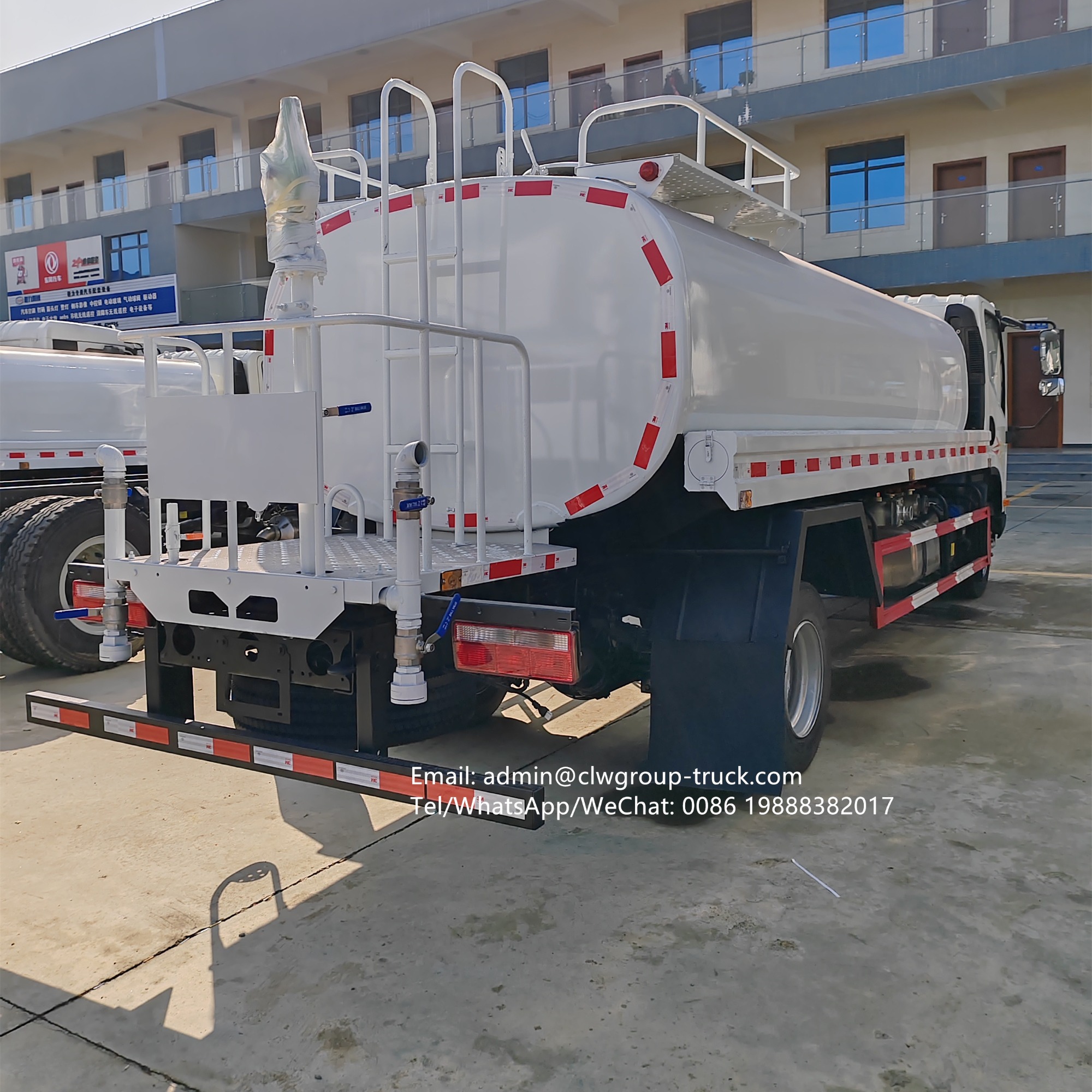

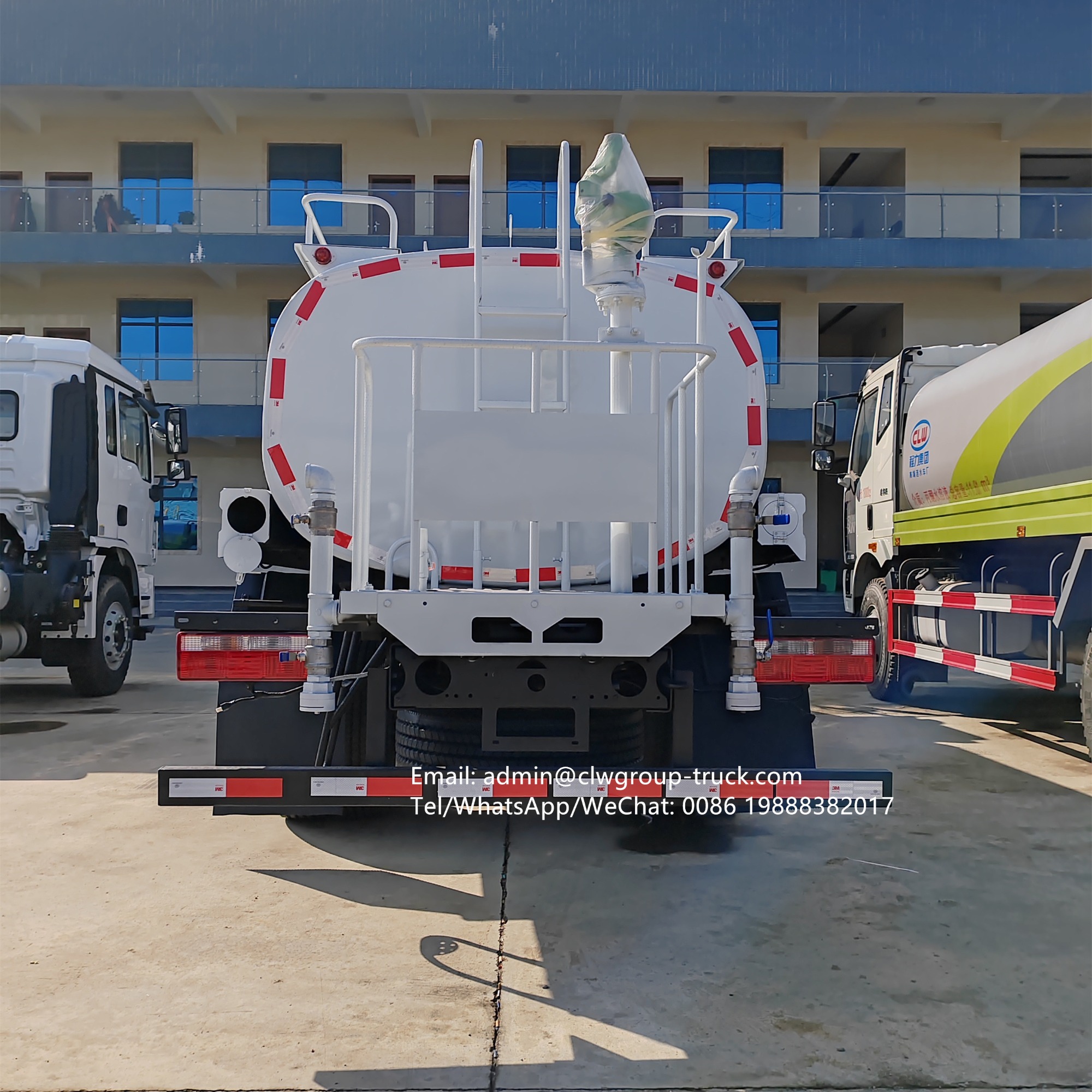

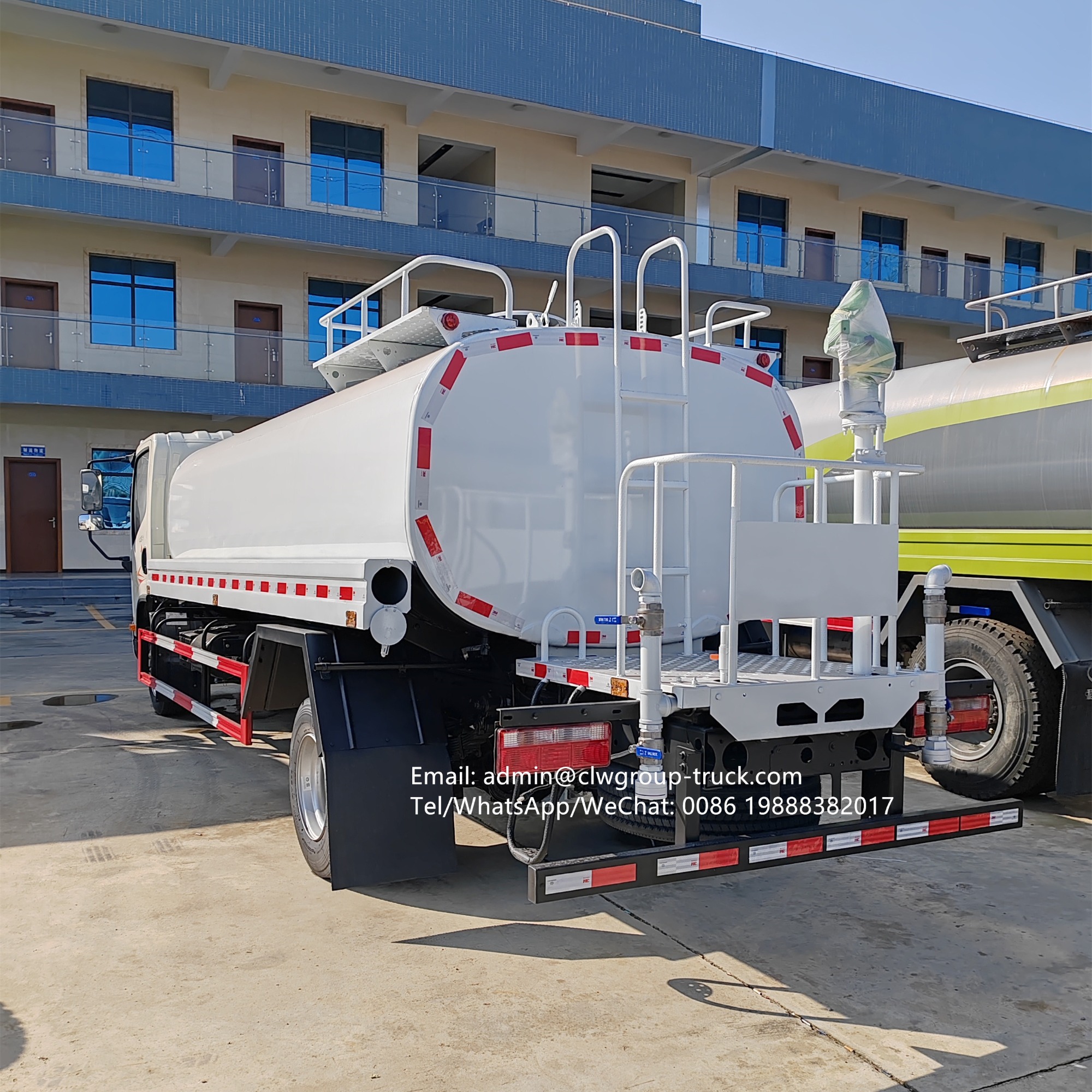

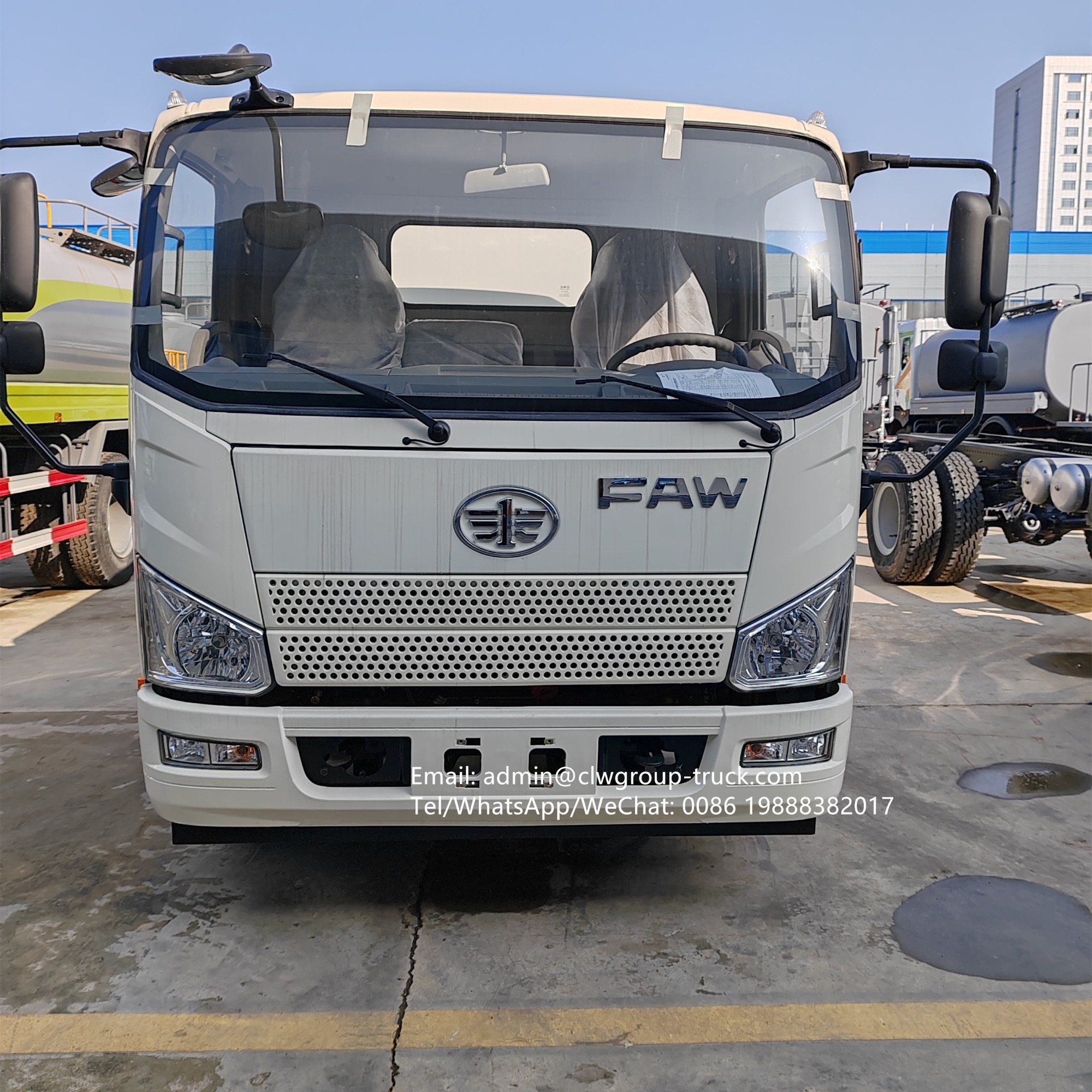

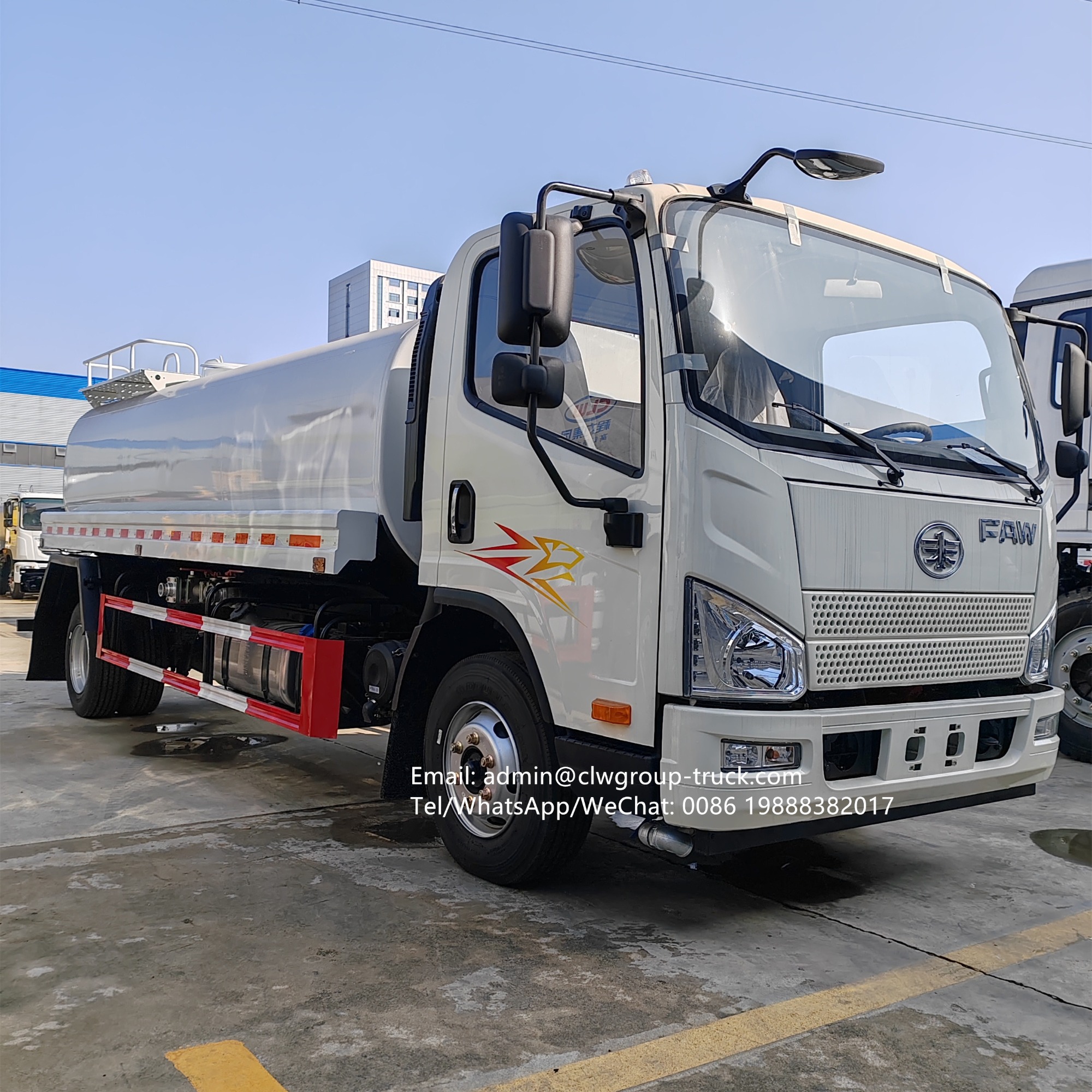

FAW 10tons water spraying street washing cannon irrigation sprinkler sprayer truck

The FAW Sprinkler is a specialized vehicle modification plant that uses the FAW chassis (CA) for modification. The most commonly used Liberation chassis include FAW 4X2,6X4,8X4

Special Function Description of Sprinkler Truck: Sprinkler trucks, also known as water trucks, sprinkler trucks, sprinkler trucks, water tank trucks, water loading trucks, water transport trucks, water supply trucks, green sprinkler trucks, and green sprinkler trucks. Mainly used for road cleaning and landscaping

FAW 4X2 10 cubic meters water sprinkler truck

Chassis configuration: Adopting FAW Qingdao chassis, Xichai 160 horsepower engine, 385 (8 tons) reinforced rear axle, 9.00-20 nylon tires, and a semi new luxury cab.

 10 cubic meter sprinkler truck tank modification configuration: The tank is made of 4mm thick Wuhan Steel carbon steel plate, with an actual volume of 12 cubic meters. It is equipped with front flushing, rear spraying, side spraying, rear working platform, and green anti-aircraft gun. It is equipped with the top domestic dedicated sprinkler truck water pump, which can pump in and out. Two equally long water pipes are provided, while the rest are standard.

 FAW 10 cubic meter water sprinkler truck equipped with insulation configuration: the tank mouth is placed on the upper rear of the tank, and a square overflow tank is installed around the tank mouth. The overflow tank is equipped with two water guiding steel pipes on both sides of the tank (to directly discharge the overflow water), and a motor water pump is installed on the working platform. Using 50mm thick polyurethane foam insulation material and 1.0mm thick carbon steel cold rolled plate for outsourcing, sealing strips are installed at the interface of the outsourcing layer to prevent tank deformation.

 FAW 10 cubic meter water sprinkler function

This sprinkler truck product has multiple functions of greening and sanitation, mainly used for road flushing in large, medium and small cities, greening trees, green belts, lawns, construction of roads, factories and mining enterprises, and high-altitude building flushing. It has functions such as watering, dust suppression, high and low level spraying, pesticide spraying, guardrail flushing, as well as functions such as water transportation, drainage, and emergency firefighting.

Note: The suction distance is ≥ 6 meters, the spraying width is ≥ 14 meters, and the range is ≥ 28 meters., The optional tank material is stainless steel, which can be used for anti-corrosion treatment of carbon steel tanks. Optional and functional, it can be used as a transport vehicle for edible liquids such as water and milk; Can be used as a pesticide spraying vehicle.

Chengli Special Automobile Co., Ltd. is an automobile factory specializing in the production of sprinkler trucks. The sprinkler truck tanks are produced using automatic assembly line tank production technology, automatic welding, and the sprinkler truck tanks are usually made of carbon steel plates. If drinking water is transported, we can also produce stainless steel sprinkler trucks using 304 stainless steel materials according to customer requirements. Stainless steel sprinkler trucks are divided into ordinary stainless steel 304 sprinkler trucks and food grade 304 2B stainless steel sprinkler trucks, We can achieve a volume of 3-30 cubic meters for the sprinkler truck.

In addition to FAW, the chassis of the sprinkler truck we most commonly use is the Dongfeng brand, as well as Foton, Isuzu, Shacman, JAC ,sinotruk etc
