Refueling truck function: self-priming oil, self-discharging oil, computer tax-controlled refueling, refueling in the flow and other functions. Refueling trucks (oil trucks) are mainly used for the transportation and storage of petroleum derivatives (gasoline, diesel, crude oil, lubricating oil, coal tar and other oil products). The mobile fuel truck is equivalent to a mobile gas station, which can supply fuel to the required vehicles anytime, anywhere.
Usually, the fuel trucks with less than 8 cubic meters of oil are pressed by the national standard Q235 carbon steel plate, the fuel trucks with more than 8 cubic meters of oil are pressed by the national standard 5mm Q235 carbon steel plate, and the fuel trucks with more than 30 cubic meters of oil are pressed by the national standard 6mm Q235 carbon steel plate

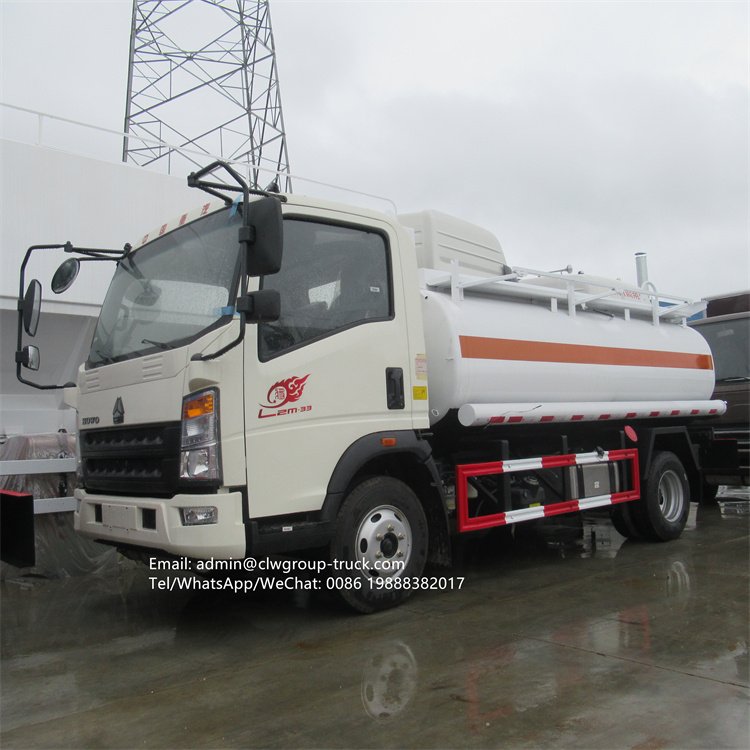

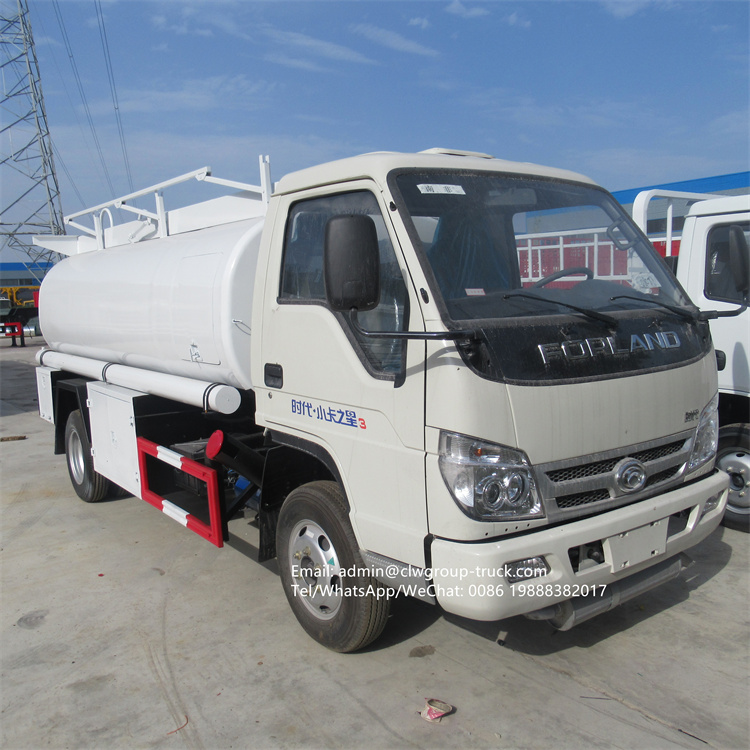

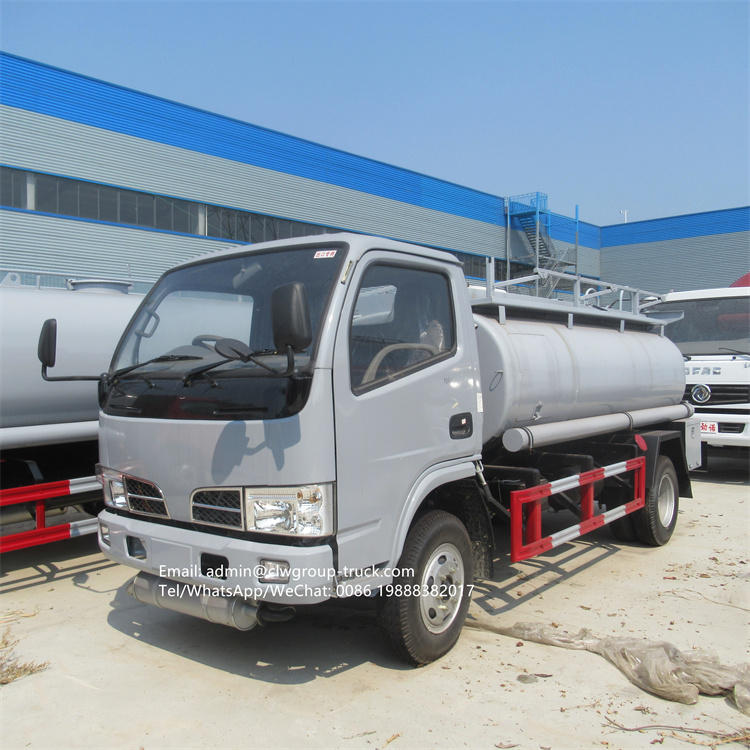

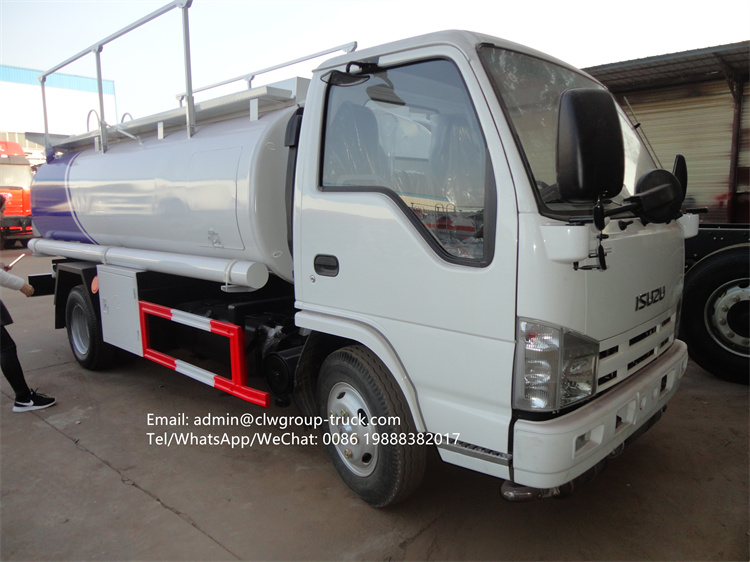

5 cubic refueling truck chassis selection: For the 5 cubic refueling truck modification, we can choose Dongfeng Chaochai engine with 95 horsepower, Foton Isuzu 108 horsepower engine, Sinotruk HOWO Yunnei 116 horsepower or Isuzu 98 horsepower modification
Main configuration of 5 cubic refueling truck
A. Made of 5MM high-quality WISCO plate; the tank body is rolled and formed at one time, with a square-shaped tank body and a water-swelling head. A corrugated wave-proof board is installed every 2 meters inside the tank body, and the brake can reduce the tank body when fully loaded. The impact force on the car body plays a role in safety protection, fully automatic seamless welding, 100% through the stringent requirements of liquid penetration, air pressure detection, flaw detection and other strict requirements, and a formal inspection report (tank inspection report) is issued.
B. The tank body is equipped with a single warehouse and Shandong Qilu oil pump as standard. The pump box is equipped with a European standard handle lock, a European standard tank mouth with a single breathing valve, a subsea valve, and two artesian valves.
C. Equipped with two 2kg fire extinguishers, two oil pipelines of the same length as the tank, fire caps, and grounded electrostatic wires (safety first, prevention first!)
D. Paint: aluminum powder silver gray, flammable liquid stickers, stickers with reflective signs, safety notices.
5 cubic meters of fuel truck optional configuration:
Bottom oil port, bottom oil and gas recovery valve, oil and gas recovery joint, anti-overflow probe probe seat, flowmeter, water tank, tool box, etc.
Chengli Special Purpose Vehicle Co., Ltd. produces 3-30 cubic meters of oil tankers, oil trucks, fuel trucks
1 Refueling truck chassis:
The chassis of the refueling truck usually adopts the special chassis for refueling trucks of large automobile manufacturers such as Dongfeng, Jiefang, Foton, Shaanxi Automobile, Sinotruk, Qingling, Jiangling, and Jianghuai.
2 Tank parts:
The tank body is required to have sufficient strength. The tank body is provided with anti-shock plates, and the tank body accessories are provided with manholes, liquid outlet valves, etc. Some tanks also need to be insulated, equipped with flow meters, etc. The tank can be divided into warehouses.
3 Fuel dispenser:
The fuel dispenser is a fuel dispenser that uses the power of the car and can move with the car to meet the needs of urban or rural oil sales. It has the functions of ordinary fuel dispensers, and is suitable for the use of gasoline, diesel, and ethanol gasoline. It is safe and reliable, compact in structure, small in size, and easy to operate. Types and brands of tankers: Shanghai Seike tanker, Guangdong Hengshan tanker, Beijing Sanjin tanker, Beijing Jialijia tanker, Zhengzhou Zhengxing tanker, Zhuhai Bellin tanker, Shanghai Bole tanker.
4 Automatic return reel:
The automatic return reel is available in 10 meters, 15 meters, 18 meters and 20 meters.
5 Refueling the car oil pump:
The oil pump of the refueling truck is usually a self-priming pump, a gear pump, a chemical pump, a stainless steel pump, a centrifugal pump, and a heavy oil pump.
6 Operating Systems:
The gearbox is driven by the engine, and the power take-off installed on the gearbox drives the oil pump, which generates power and pumps the liquid inside the tank in or out through the pipe network.
7 Fire Extinguisher:
Usually the refueling truck carries 2 sodium bicarbonate dry powder fire extinguishers.
8 Breathing valve:
The breathing valve is a ventilation device fixed on the top of the tank to ensure the normal state of the pressure in the tank, prevent the tank from being damaged by overpressure or vacuum in the tank, and also reduce the volatilization loss of the liquid in the tank.
9 Fire Cover:
The fire cover of the car is usually a vortex valve type structure. It does not need any tools. It is directly connected to the tail pipe of the car exhaust pipe by a four-bar mechanism. There is no need to switch or connect fixing screws. The operation is simple and fast, and the installation and disassembly can be completed in a few seconds. In places where the ignition point of the flammable product is relatively low and the concentration is high, it can completely extinguish the sparks entrained in the exhaust gas of the automobile exhaust pipe.
10 Anti-static facilities
The anti-static facilities on the refueling truck are mainly divided into two types: electrostatic wires and electrostatic grounding wires.
