A dump truck refers to a vehicle that unloads goods on its own through hydraulic or mechanical lifting. Also known as a dump truck. Composed of components such as car chassis, hydraulic lifting mechanism, cargo compartment, and power take-off device.
Chengli Special Purpose Automobile Co., Ltd. is a manufacturer specializing in the production of dump trucks, especially small 4X2 dump trucks with a capacity of 3-15 tons. These dump trucks have flexible conditions and are convenient to use. They can transport sand, gravel, household waste, household materials, palm fruit, and more.
Isuzu dump trucks are particularly favored by customers. Due to Isuzu's strong brand, product quality has been recognized by most countries. They can easily find parts for Isuzu dump trucks locally. When Isuzu dump trucks require maintenance, they can also easily find local repair companies for maintenance.
Compared to Japan and South Korea, China's Isuzu dump trucks have flexible delivery times and relatively cheap prices, which have been widely praised by people in Africa, Asia, and the Americas.

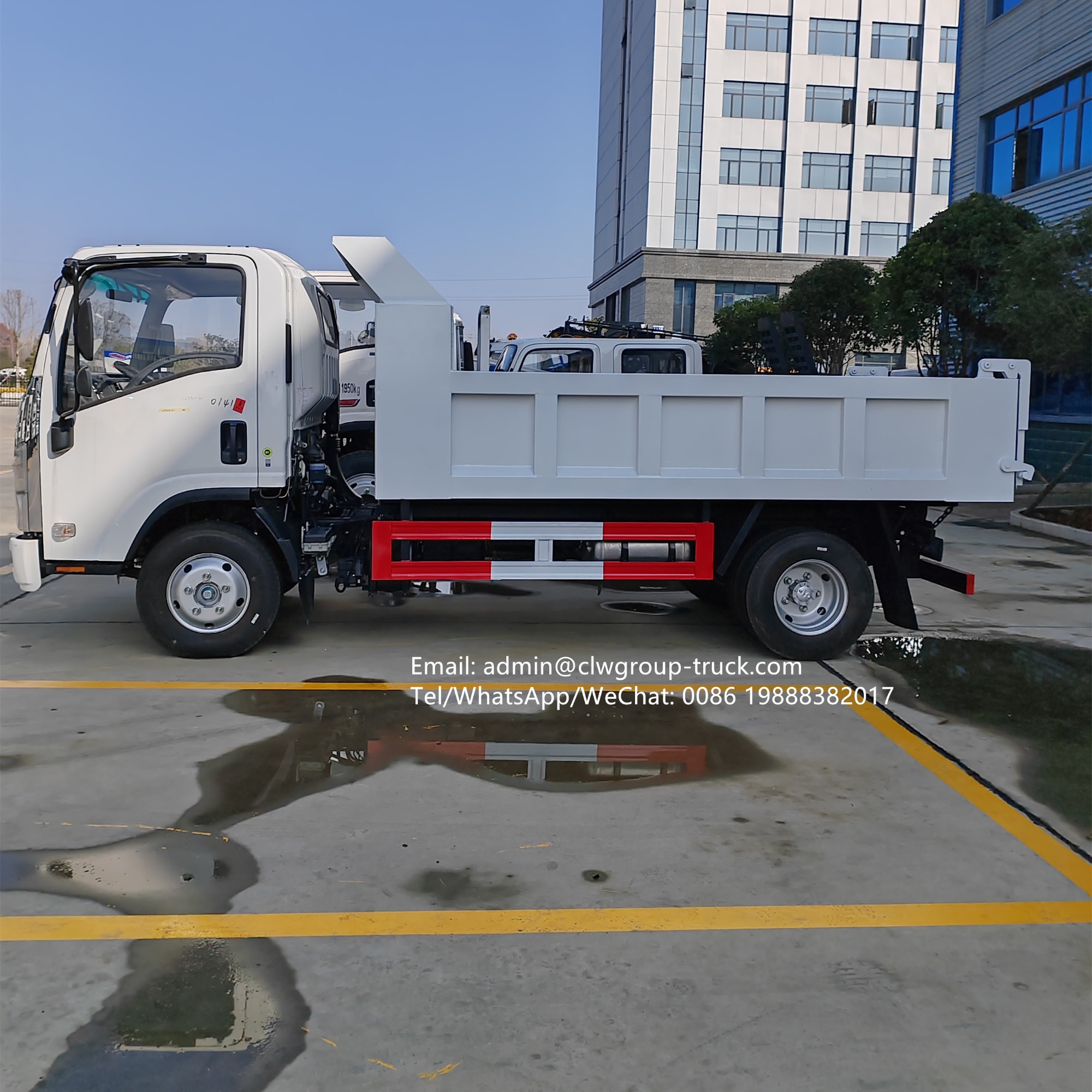

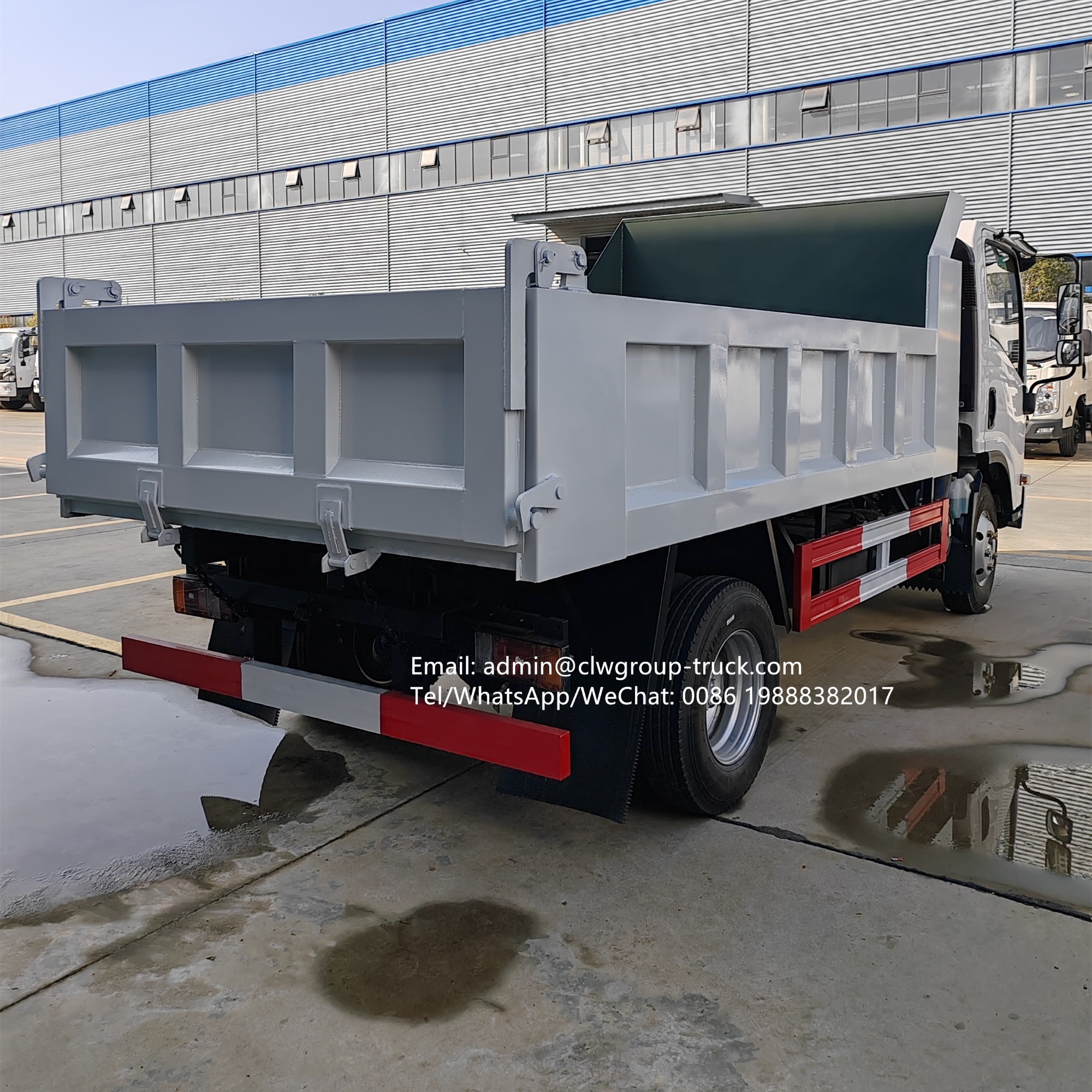

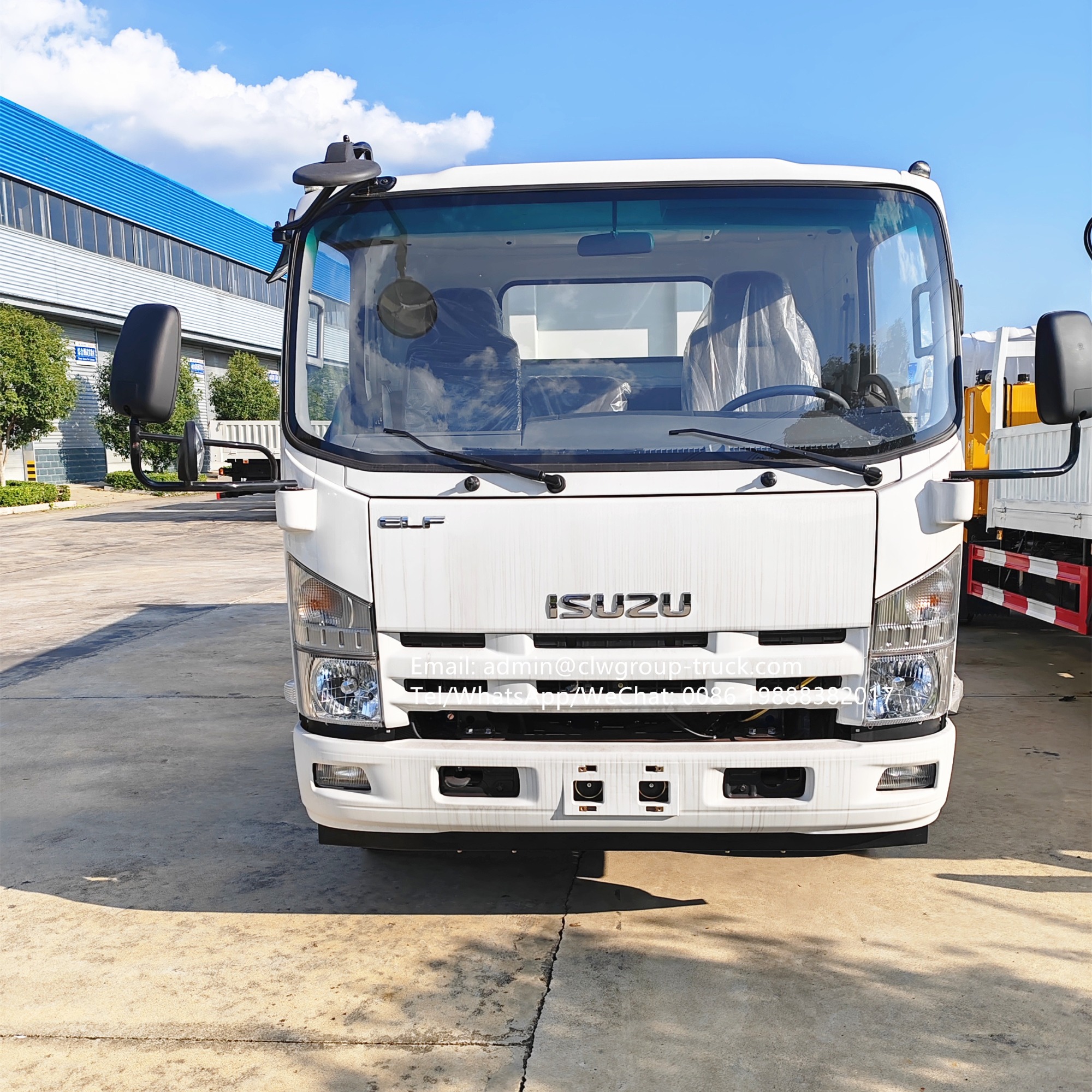

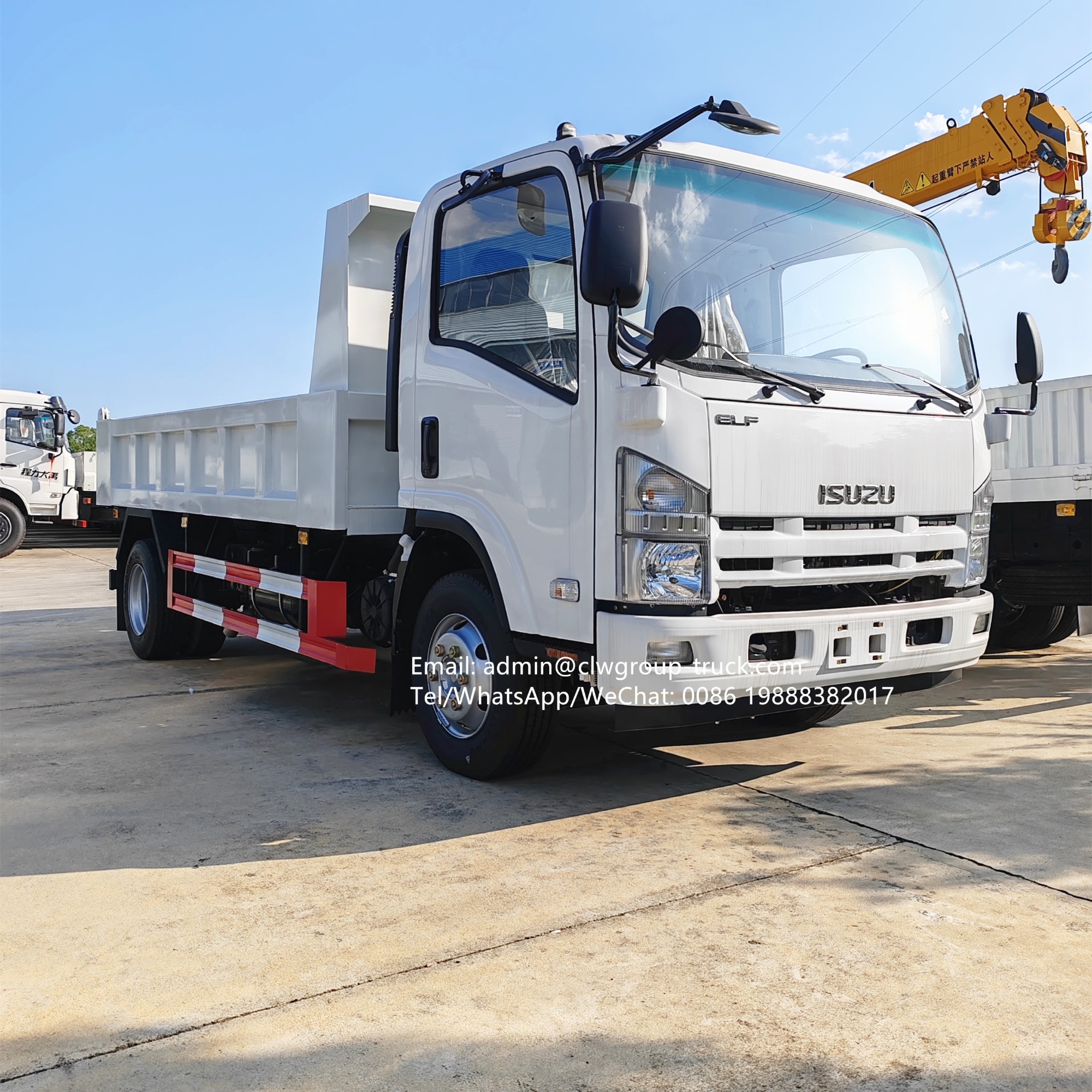

Now we would like to recommend a particularly popular 3-7 ton Isuzu dump truck. Since the development and design of this Isuzu dump truck, there have been multiple orders and a continuous stream of customers placing orders
Chassis configuration of Isuzu 3-7 ton dump truck:
Isuzu 700P medium card:
The wheelbase covers 33603815417544755200, and the cab has two options: single row and one and a half rows
Isuzu 700P chassis configuration: standard Isuzu 4HK1-TC51 engine with National V emissions of 190 horsepower, optional 205 horsepower Isuzu 4HK1-TC50 engine, Isuzu MLD six speed transmission, with air conditioning, steering assistance, front axle 4 tons, rear axle 7 tons, with ABS, air brake, and the cab can be flipped
Upper configuration of Isuzu 3-7 ton dump truck:
We can use different thicknesses of boards to achieve the load-bearing function of the dump truck carriage according to customer requirements. We usually use high-quality carbon steel Q235 material for the 3-7 ton Isuzu dump truck body, with thicknesses of 3mm, 4mm, 5mm, 6mm, etc
The body of the Isuzu dump truck can be made in different lengths according to customer needs. This time, we recommend the Isuzu chassis with a wheelbase of 3815, and the body size is 4000 * 2200 * 600mm.
The lifting method of the Isuzu dump truck is centered on the top, which means the hydraulic cylinder of the dump truck is placed in the middle of the carriage. At the same time, we can also use a front top according to customer needs and different tonnage, which means the hydraulic cylinder of the dump truck is placed in front of the carriage. This lifting method will unload more quickly.
