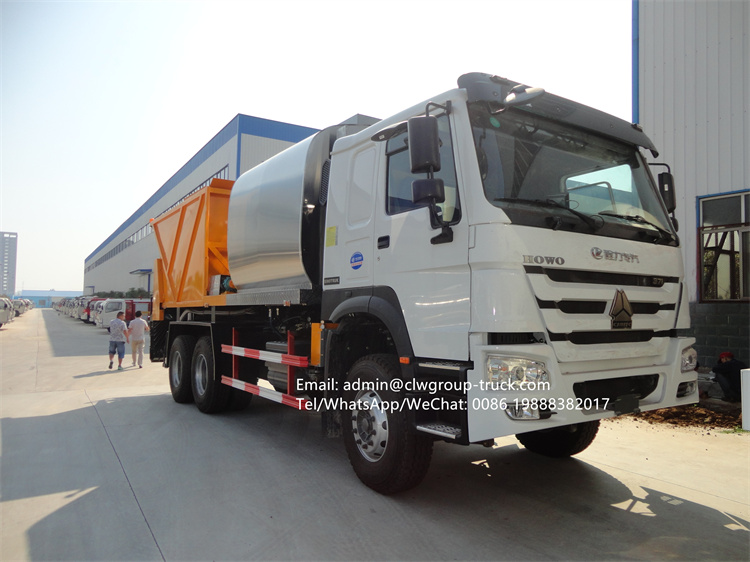

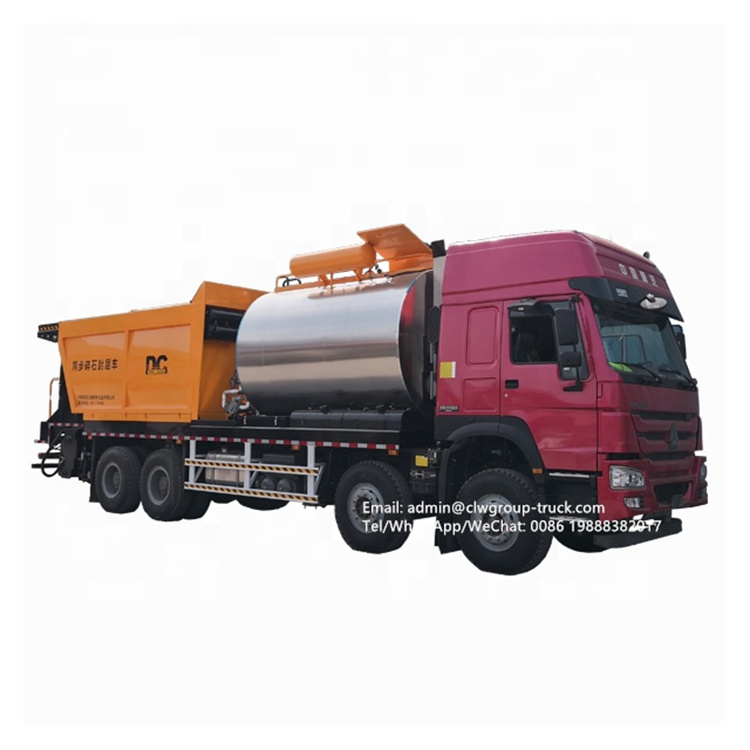

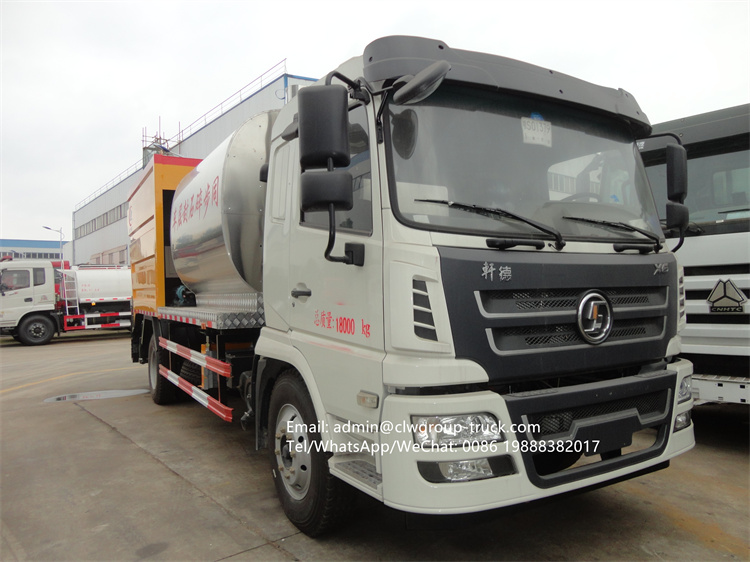

asphalt chip sealer spreader sino truck can simultaneously spray asphalt and spread aggregate, and can spray: rubber asphalt, hot (modified) asphalt, diluted asphalt, emulsified asphalt and other asphalts; it can also be used to seal under the new road surface and waterproof the bridge deck Layer construction, cement pavement white to black waterproof layer construction, and asphalt pavement preventive maintenance wear layer construction.
asphalt chip sealer spreader sino truck configuration
1. Three-section folding spray beam, which can be lifted up and down to achieve triple or double spray; detachable nozzle cylinder, easy maintenance;

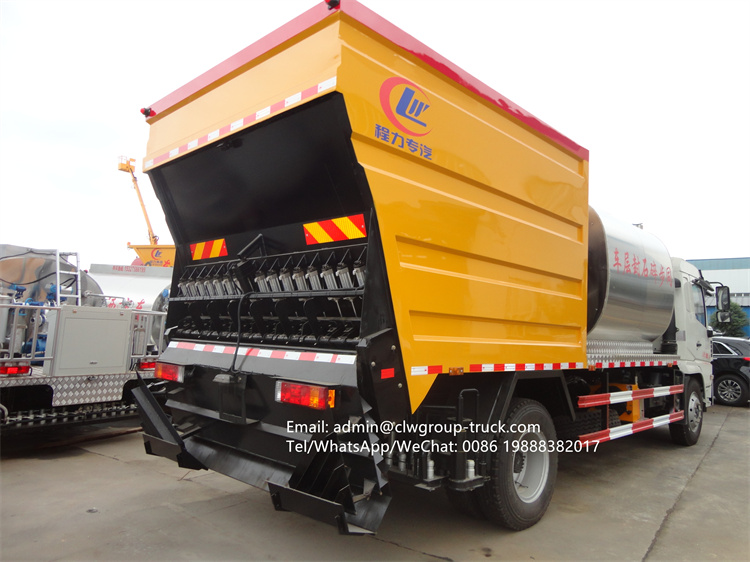

2. Conveyor belt type gravel silo, no need to lift the silo during construction, good driving stability; hydraulic telescopic gravel spreader, spread evenly;
3. The internationally renowned brand radar can automatically detect the driving speed and PLC closed-loop control. It only needs to set the amount of spraying (sprinkling) per square meter to realize automatic spraying (sprinkling); there are two sets of operating systems, manual and automatic;
4. Stainless steel packaging tank, good thermal insulation performance; with spiral stirring device to meet the construction requirements of rubber asphalt;
5. The dual-burner automatic heating system can automatically heat and maintain the asphalt system in all directions, and the heating speed is fast;
6. The Cummins engine provides power for the working device, the performance of spraying (spreading) is not affected by the engine speed of the chassis, and the performance is stable;
7. Jinan heavy duty heavy duty chassis, double sleeper high roof cab, 13-speed gearbox, heating and cooling air conditioning, ABS anti-lock braking system, safe and comfortable operation.
8. The asphalt pump and heat transfer oil pump are made of internationally renowned brands with reliable quality; the asphalt tank and management are packaged in stainless steel, with good thermal insulation performance, beautiful and durable.
asphalt chip sealer spreader sino truck application
asphalt chip sealer spreader sino truck is an intelligent new construction machine that makes asphalt spraying and aggregate spraying in the same equipment to be carried out synchronously at the same time, and organically combine the two construction processes. The equipment has the advantages of intelligent asphalt spreader and automatic gravel spreader, and is also reflected in:
1. One main engine is used in the whole vehicle, and there is no auxiliary engine, which makes full use of the extra power of the main engine and effectively improves the utilization rate of resources;
2. Fully computer-controlled asphalt nozzle device ensures precise adjustment and control of the amount and uniformity of spraying;
3. An advanced, reliable, efficient and reasonable temperature heating control system can be used to spread asphalt binders of different viscosities;
4. Automatic and precise adjustment and control of the amount of gravel spread and its uniformity, and the amount of asphalt spread and gravel spread are not affected by the speed of the vehicle;
5. Simultaneously carry out asphalt and stone spreading construction, shorten the time interval between the two, and obtain the best bonding effect within the most reasonable time. ,
6. The built-in stirring device can not only spread emulsified asphalt, diluted asphalt, base asphalt, modified asphalt, but also spread rubber (powder) asphalt.
asphalt chip sealer spreader sino truck shortens the time for the combination of asphalt and aggregate, so that the asphalt medium has the best fluidity, cohesion, permeability and other properties before the reaction of cooling, demulsification, and hardness enhancement. Adequate contact and bonding to achieve higher quality standards. The synchronous gravel sealer reduces the mechanical configuration in the construction requirements, improves the construction quality and efficiency, when the hot asphalt (modified asphalt) gravel seal needs to be spread, the temperature is particularly high and the air is extremely dry. When spraying the modified emulsified asphalt (emulsified asphalt, liquid asphalt) gravel seal, the construction of the synchronous gravel seal truck can meet the construction requirements.
