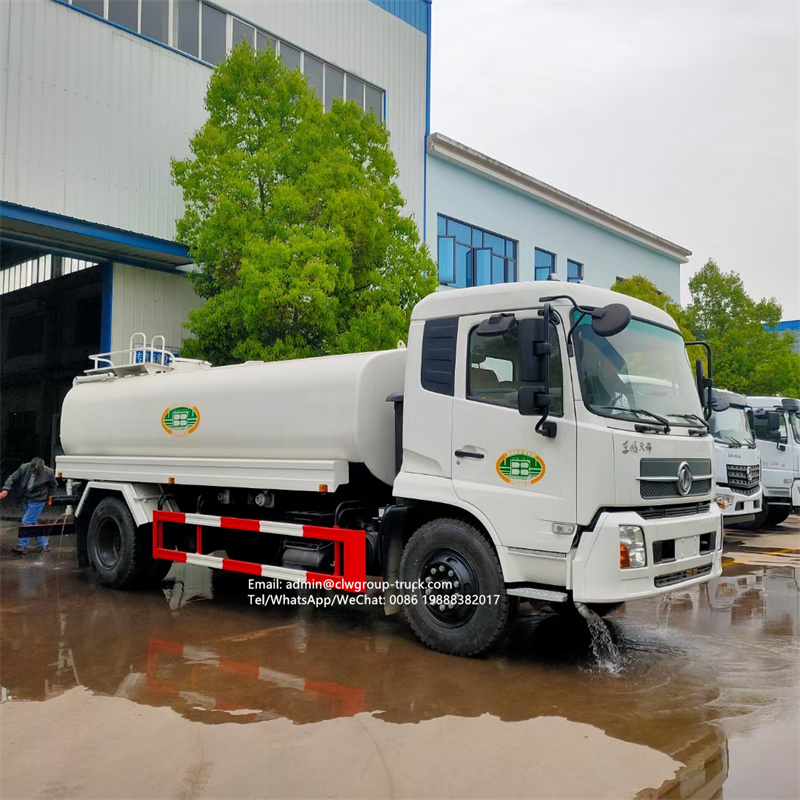

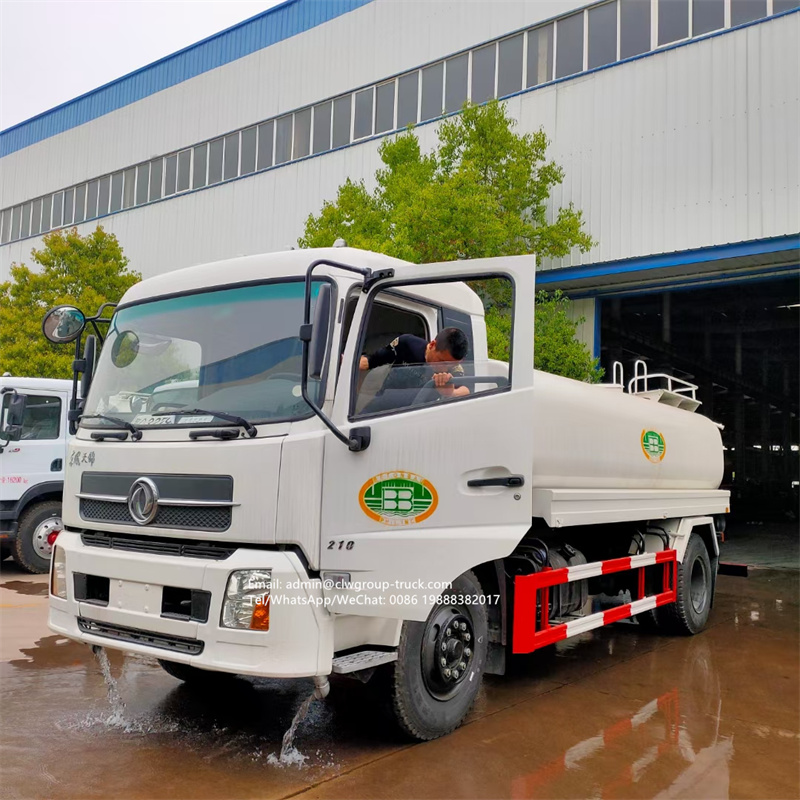

Dongfeng Tianjin water sprinkler truck has a tank volume of 12 cubic meters, adopts Dongfeng Tianjin cab, Cummins engine 190 horsepower diesel engine, 6-speed with high and low speed gearbox, air brake, with ABS, 10.00R20 steel wire tire, wheelbase 4500mm, with air conditioning , The use of WISCO 4mm high-quality carbon steel plate is rolled and formed at one time, and it is completely seamless. The water tank body is equipped with multiple wave-proof baffles, and high-pressure gas leak detection is adopted, so that the tank body has high strength, stable center of gravity, and safe and stable vehicle transportation. Chengli water sprinkler factory has an automatic sprinkler paint shop, and the tank can be guaranteed not to rust for 5 years. The tank body and bumper are affixed with red and white reflective strips, and the words "sprinkler" are sprayed on both sides of the tank body (the words can be sprayed according to the customer's specified requirements).
Vehicle size: 7650×2480×3200mm
Tank size: 4300×2350×1450mm
Tank volume: 12 tons
Transmission: 6 gears
Engine: Cummins engine 190 hp
Tire specification: 10.00R20 steel wire tire

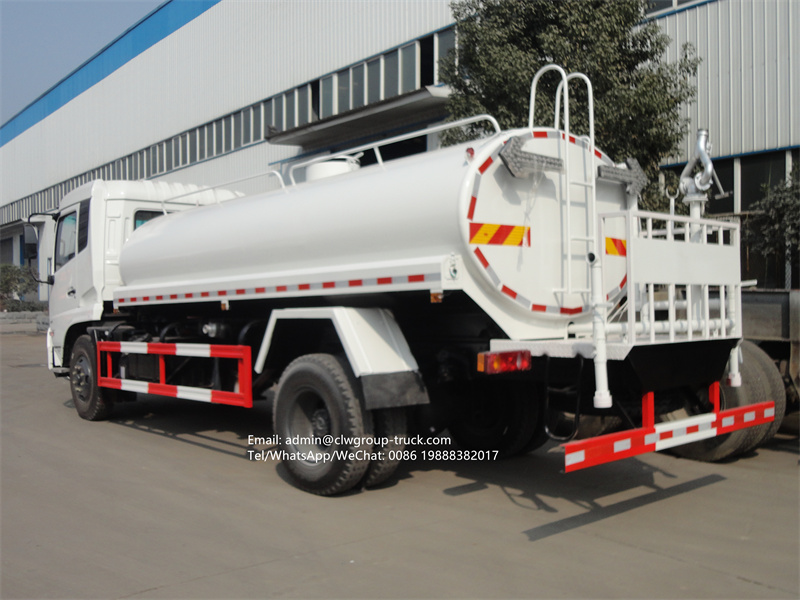

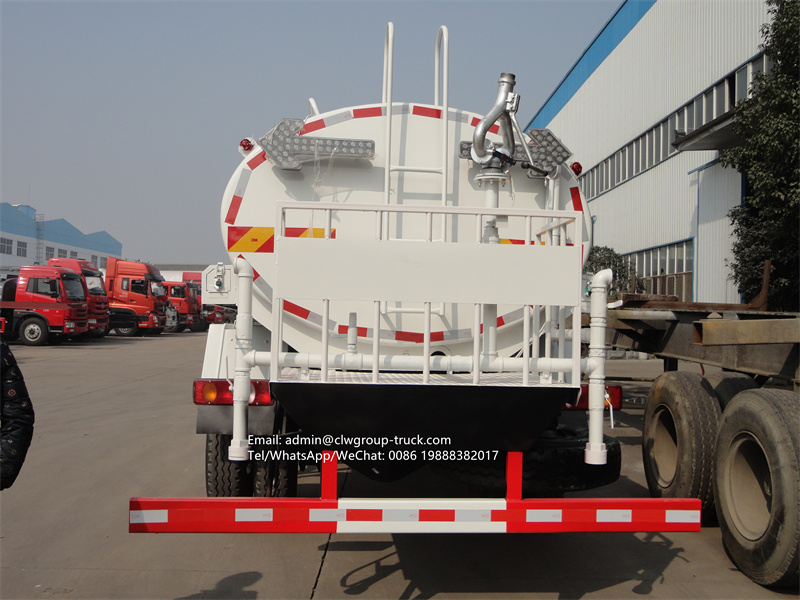

Upper body configuration of water sprinkler truck: The tank body is made of 4MM carbon steel plate, and the baffle plate in the tank has anti-wave effect to reduce the impact of the tank body liquid when the car is running. The whole vehicle is equipped with a special sprinkler pump (the maximum vertical suction range is 6 meters), the sprinkler width is 14 meters, and the range is 28 meters. The multi-function sprinkler is equipped with 2 front flushes (sprays) (which can wash away the mud, dust and garbage on the road); 2 rear sprinklers (which can evenly sprinkle water on the road, with a width of 14 meters), 2 side sprays (Shower) (can evenly water the roadside green belt), with a rear working platform, and a green sprinkler cannon is installed on the platform (the sprinkler can be rotated in all directions, and can be continuously adjusted to flush, heavy rain, Light rain, drizzle, fog can be adjusted to flush tall trees), water diversion time <5min, flow 90m3/h. With 1 fire joint, with 1 self-flow valve, 1 filter device, humanized ladder and side guardrail, install sprinkler music horn.
Dust suppression sprayer configuration: 30m sprayer, matching diesel generator power: 8.75KW, generator start mode: electric start, spray flow: 6-18L/min, horizontal range (static wind): 25-30M, fog Spectrum range: 50-150um, working pressure: 1.5-3.5MPa, pitch angle: -10°～90° remote control, rotation angle: 360° round trip.
Supplementary note: Professional configurations such as air conditioners, pneumatic control valves, and spraying equipment can be installed.
Chengli water sprinkler manufacturers can modify various multi-functional sprinklers according to customer requirements: spraying (spraying) sprinklers with barrel-type spray units, dust-removing and haze-reducing vehicles with fog cannons | dust-suppressing vehicles, with fire pumps and fire fighting Fire sprinkler truck with water cannon, sprinkler truck with truck-mounted crane, hot water transport truck with tank body with insulation layer, sprinkler truck with guardrail cleaning, sprinkler truck with snow shovel, high pressure cleaning with sprinkler function, manure suction truck With sprinkler function, hook arm garbage truck with sprinkler function and so on.
The working principle of the water sprinkler truck: the engine is mainly driven by the gearbox, the power take-off installed on the gearbox drives the sprinkler pump, and the sprinkler pump generates power to spray the liquid inside the tank through the pipe network.
Chengli water sprinkler truck price advantage: the material is close to Wuhan Iron and Steel, so the cost of round-trip transportation is greatly reduced, and the chassis is only more than 500 kilometers away from Xiangyang and Shiyan Dongfeng refitting base, so the purchase price of Dongfeng chassis is also greatly reduced, so there is The cheapest and quality guaranteed Chinese famous brand "Cheng Liwei" brand sprinkler.
