Foton 18m telescopic boom aerial work vehicle chassis parameters: 3360mm wheelbase, Foton Isuzu 108 horsepower, five-speed gearbox, 7.00R16 steel wire tire, air conditioner, steering assist, oil brake, central control lock, electric windows, multi-function steering wheel.
The performance introduction and characteristics of Foton 18-meter straight boom aerial work truck.
1 Function introduction:
Chengliwei brand straight arm aerial work vehicle has working heights of 14 meters, 16 meters, 18 meters, 20 meters, 21 meters, 28 meters, and 29 meters. It uses a fully telescopic working arm, with large outrigger span and good stability. It can be used at the same time or Independent operation, safe and reliable, compact structure, convenient operation, fast lifting speed and high work efficiency. With flexibility, it can also operate flexibly in tight high-rise buildings. It is a leader in aerial work vehicles and leads the new trend of the industry. Widely used in municipal, electric power, street lamps, advertising, communications, photography, gardening, shipbuilding, transportation, docks, airports, ports, emergency rescue, large industrial and mining enterprises and other industries installation maintenance and climbing operations.
2 Product overview:
1. Foton single row 18m aerial work truck adopts telescopic straight arm structure, the working arm is 4-section telescopic type, the turntable can be operated, and it can also be operated by remote control, which can be rotated 360 degrees, four hydraulic outriggers, and the maximum load-bearing capacity of the working bucket 200 kg, stainless steel hoarding, patterned anti-skid walking platform.
2. The working bucket adopts a mechanical self-balancing design, and its function is that the working bucket is always in a balanced state when working. The maximum extension angle of the forearm is 80°, so that it can be adjusted to the best working position.

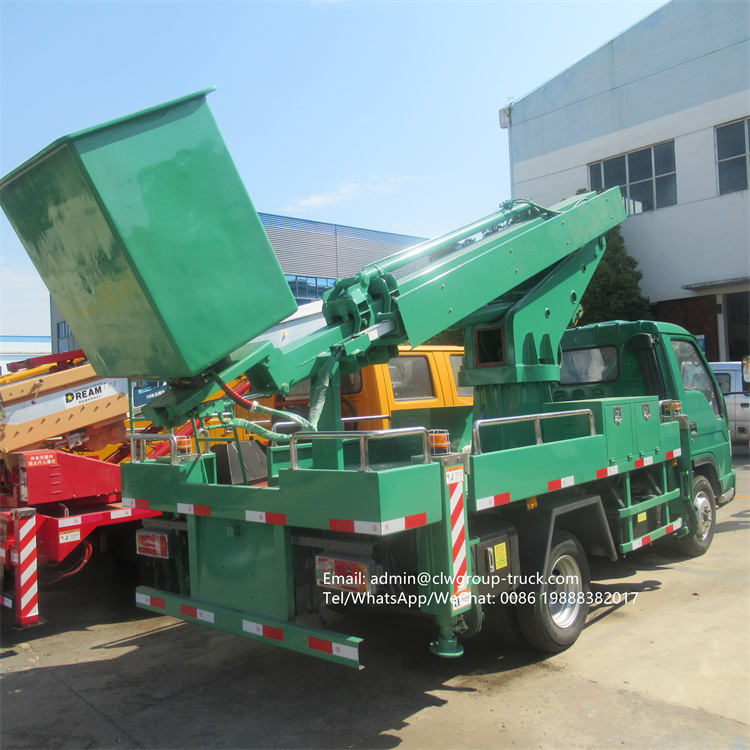

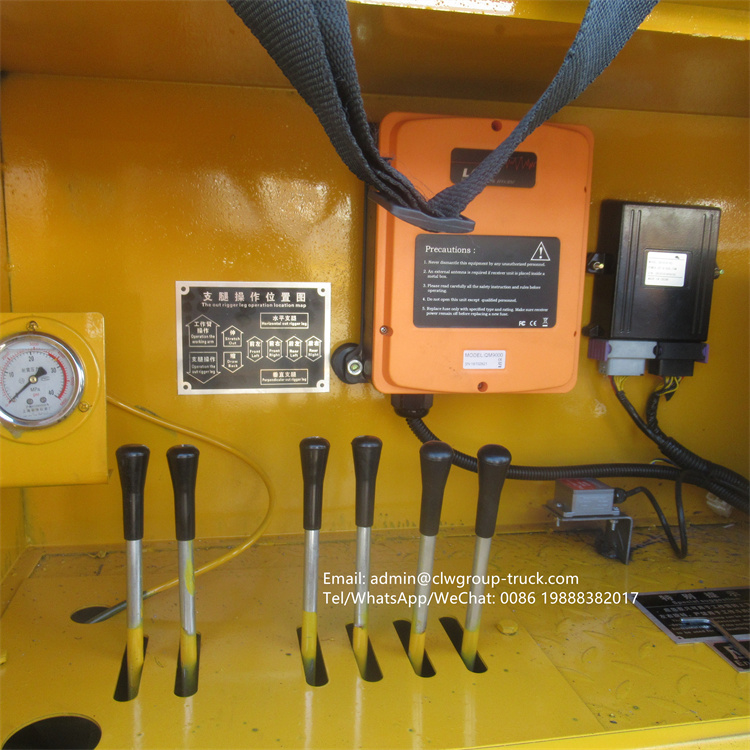

3. Night work lights, operating lights can be selected on the operating table according to the customer's operating environment to make night work safer.
4. Computer control, automatic limiter, dangerous work alarm, excellent safety performance. There is a display when getting off the car, which displays the working conditions of the whole vehicle in real time.
5. The hexagonal working arm increases strength, synchronously telescopic, compact structure, high working efficiency and large working range. The external telescopic cylinder and the chain telescopic mechanism make it easier to observe the fault point and facilitate maintenance.

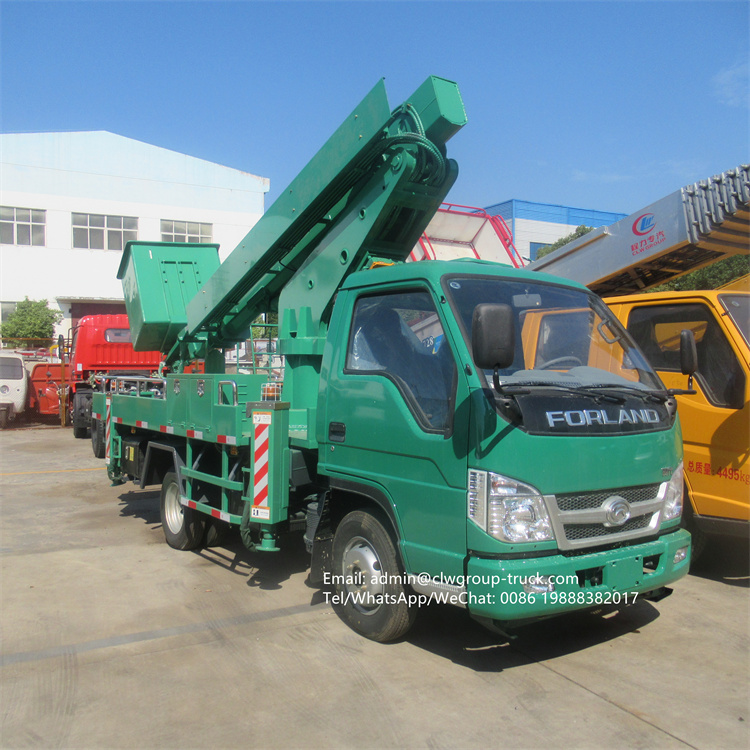

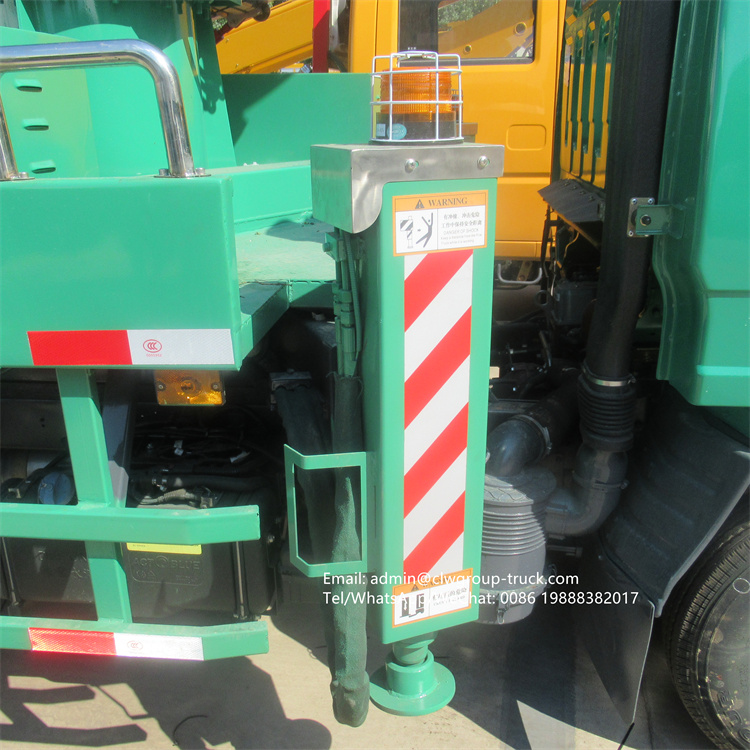

6. The outrigger adopts the front V and rear H-shaped structure, which has a larger force surface and higher stability; it can prevent the deformation or breakage of the car frame. The outriggers are individually adjustable, and each outrigger can be adjusted individually according to the operating ground environment. Even if the ground is uneven, the whole vehicle can be adjusted to a stable state. All outriggers are equipped with outrigger flashing lights for support during operation The legs show the outline and send out the light alarm signal.
7. The four vertical outrigger oil cylinders and the upper arm, lower arm and forearm oil cylinders are equipped with two-way hydraulic locks. The function is to lock the oil cylinders when the oil cylinders reach the required position to prevent accidents. A two-way balance valve is installed on the working arm to make the working arm run more smoothly.
8. The main components of the vehicle, such as two-way hydraulic lock, two-way lock balance valve, liquid flow valve, hydraulic cylinder, engine start-stop emergency pump, operating system and its control computer, are all well-known domestic brands, and the core components are imported. The commutation is stable, and the operation is flexible and convenient; the outrigger and the working arm are interlocked, which is safe and reliable to prevent misoperation.
3 Features and advantages of Foton 18-meter telescopic aerial work vehicle
A. The whole vehicle is compact in structure, short in size, convenient in driving and flexible in steering.
B. The whole vehicle adopts a full electronic control system with multiple safety protection functions
1. Each outrigger has a soft leg support function (optional).
2. The outriggers are locked. When the boom is working, the outriggers are not allowed to operate (restricted action).
3. The working range (working radius) is automatically limited, and the maximum working range is 9 meters.

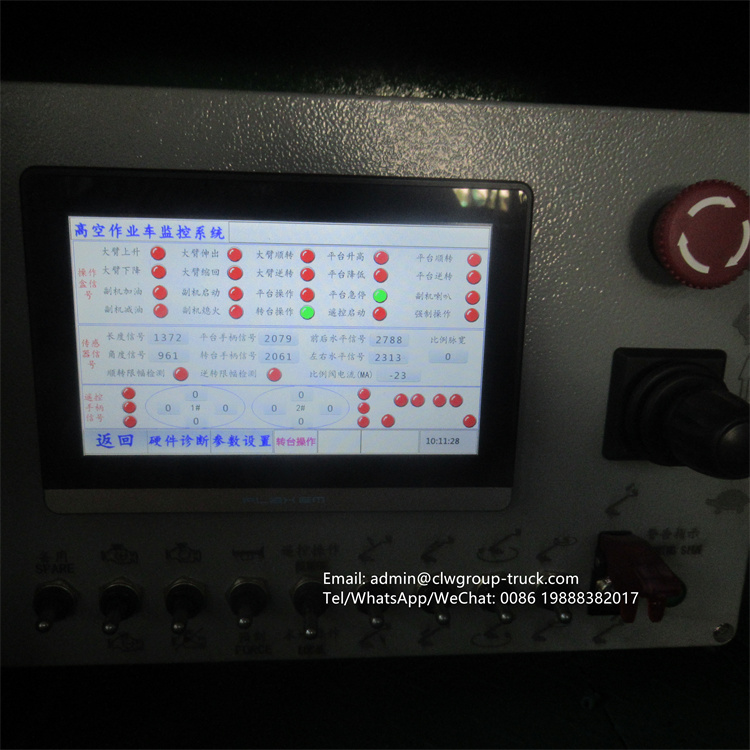

4. The body is equipped with a large-screen display, which can display the arm length, working height, working range, and inclination angle.
5. The gondola is automatically leveled, (there is an oil cylinder under the gondola and under the arm) the boom rises 50°, and the gondola descends 50°.
6. Equipped with a wireless remote control, the operation of the boom is protected when getting on and off the vehicle.
C. The latest product structure
1. The outrigger adopts the front cross type, the outrigger span is large, and the stability of the whole vehicle is better.
2. The rear tilting turntable with a large inclination angle makes the boom longer, and the length of the whole vehicle is shorter and more compact.
3. The hexagonal arm section has better structural strength and makes the expansion and contraction more stable.
4. Double chain zipper mechanism makes the work more efficient and safer. The single chain mechanism has met the requirements of use, and the double chain structure makes the safety and efficiency higher.

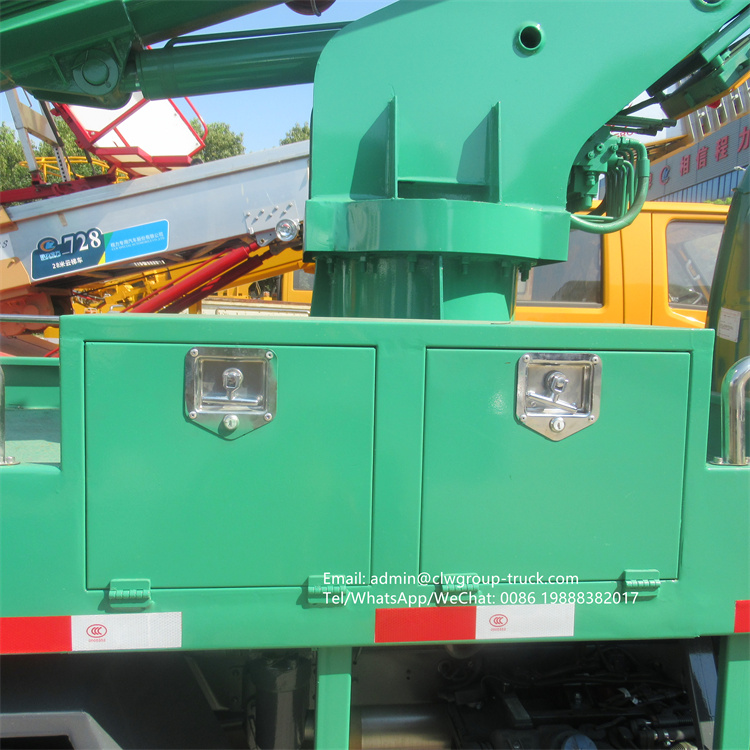

5. There are oversized tool boxes on both sides of the car, which can store more tools.
6. The emergency pump works. If the engine fails, the whole boom can be retracted.
