Road sweeper truck is also called road sweeper truck, it combine the function of road sweeping, garbage collection and garbage transportation , is new type efficient sanitation special cleaning vehicle
It is made of chassis, vice engine, air blower, electromagnetic valve, dust tank, water tank, sucker, sweeper brush,spraying water system, hydraulic system, electric control system, etc.
It is mainly used to sweep the road garbage of street, highway,dock, station, square,cement mill, electric power plant,etc.
Optional : sprinkler, snow shovel, job monitoring, high pressure water gun
Vehicle configuration

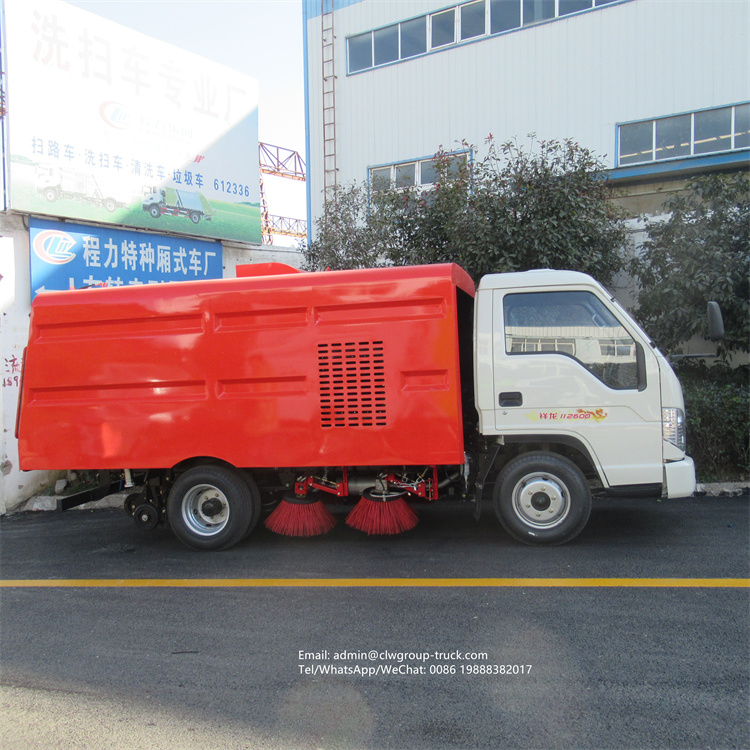

The road sweeper is modified with a Foton small truck-type national class III and II chassis, and is equipped with an auxiliary engine, a fan, a clean water tank, a garbage can, a left and right vertical sweeper, a rear suction cup, a sweeper dust suppression system, a hydraulic system, and an electronic control system for special devices. It is modified from the sub-frame and so on (the front flush can be added and the sprinkler can be added)

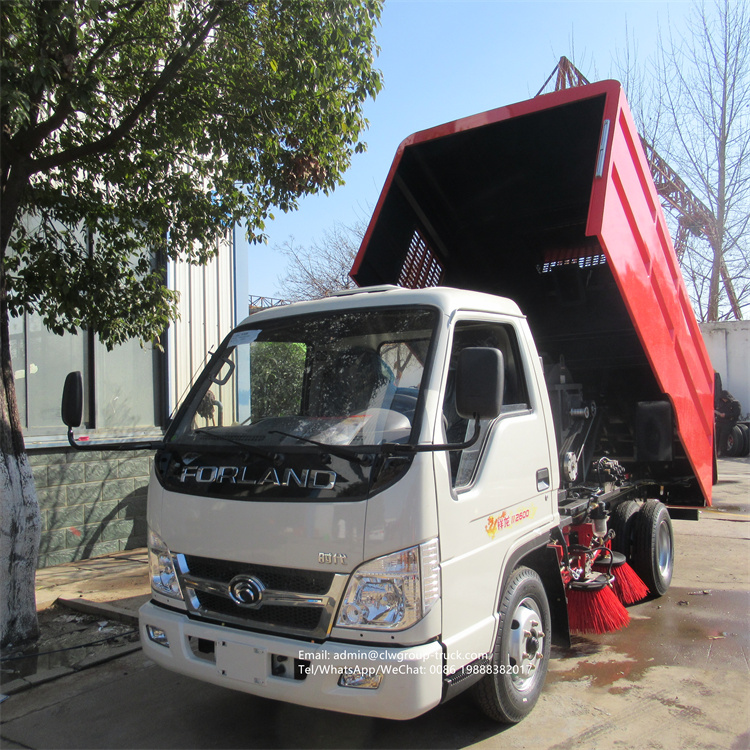

1. Foton forland (wheelbase 3360) type II chassis, cab with front flip, steering assist, 7.50-16 steel wire tires, front and rear axles with air absorbers. Equipped with Foton Isuzu 108 horsepower.
2. The auxiliary engine adopts the powerful Jiangxi Isuzu 57Kw engine.
3. The automatic clutch drives the fan to reduce the impact on the engine when the fan starts and stops. The clutch has the advantages of high wear resistance, long service life, low noise, low fuel consumption and cost saving during use.
4. The high-power wear-resistant and maintenance-free centrifugal fan of NorthGlass Taixin, a listed company in Luoyang, is used, with no noise, high efficiency, large air volume, and long service life.
5. The clean water tank makes full use of the vehicle space, with a volume of 1.5m3 and a built-in water level alarm. The inside of the water tank is treated with anti-corrosion, anti-rust and anti-virus treatment, which makes the pump run more safely and ensures the cleaning efficiency.

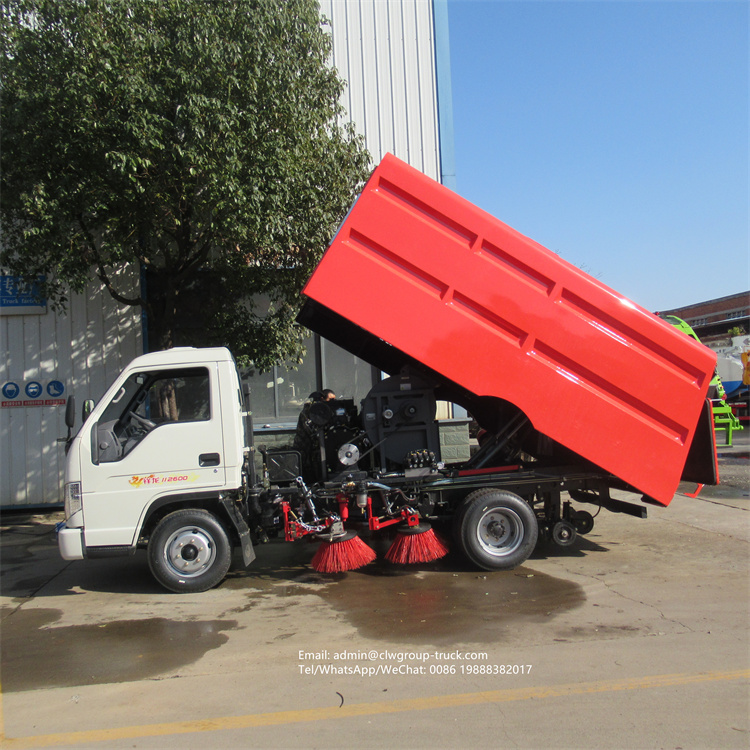

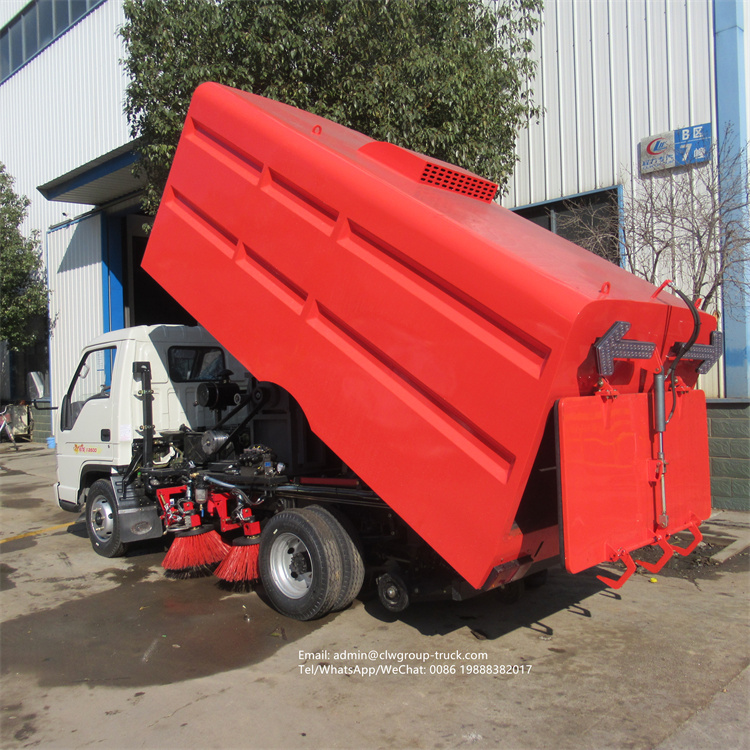

6. The dustbin adopts a double-layer stainless steel structure with a volume of 4m3. A filter screen is installed inside, which can effectively prevent light objects such as leaves and plastic bags from blocking the air vents and discharging dust. The built-in spray dust pressure device makes maximum use of the space of the garbage bin for loading garbage. The car body adopts tipping unloading.

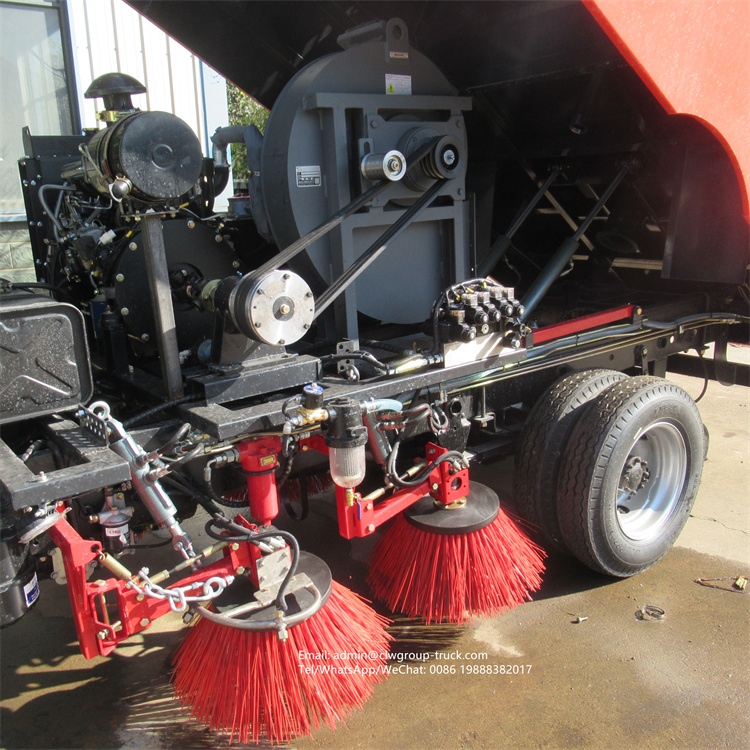

7. The left and right vertical sweeping is a single sweeping disc, and the front sweeping disc has an automatic avoidance function, which reduces the number of sweeping brushes and the consumption of sweeping brushes, which can reduce the cost of use. A water spray device is installed on the brush to spray dust. The left and right vertical sweeps are controlled separately, which can realize different operation modes such as rear sweep and full sweep.
8. The width of the suction mouth of the suction nozzle reaches 1100mm, and the maximum total working width is greater than 3.2m. Three height-adjustable suction nozzle wheels can easily adjust and ensure a reasonable gap between the suction nozzle and the road surface, so as to achieve better sewage suction effect and higher sewage suction efficiency.
9. The manual push-button hydraulic system in the cab drives the left and right vertical sweeping and lifting, the left and right sweeping disc rotation, the suction nozzle lifting, the opening and closing of the rear door of the waste bin, and the tipping and reset of the waste bin.
10. The sweeping cycloid motor adopts domestic well-known brands, with long service life, stable and reliable, and low failure rate.
11. The hydraulic pipeline adopts the German standard technical sealing structure, which has good anti-vibration performance and high sealing reliability, and can achieve a leak-free sealing effect.
12. High-quality hydraulic solenoid valve is used, and the key electronic control components are German Siemens electrical switches, which have high reliability and long service life.
13. The hydraulic components are designed with integrated superposition, and the cab is controlled by electro-hydraulic centralized control, which is easy to operate.
14. A manual pump emergency system is installed, which can lift the garbage bin even when the auxiliary engine is stopped, which is convenient for maintenance.

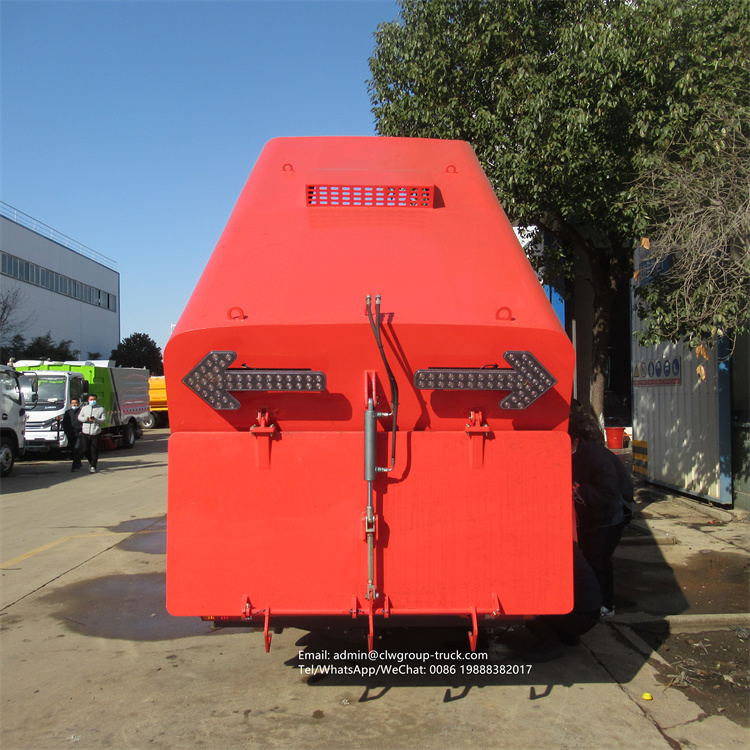

15. The rear adopts LED arrow light warning light to ensure the safety of driving operation.
16. Non-stainless steel parts are treated with electrophoresis to prevent rust and are durable.
17. The sub-frame load-bearing beam is welded with square steel with a section length of 120mm and a width of 60mm and a thickness of 8mm, which ensures the safety of the whole vehicle and makes the vehicle travel safer.
18. Appearance modeling computer design, high side skirt, curved surface transition, overall coordination and symmetry. Achieve low fuel consumption, low noise, streamlined design
