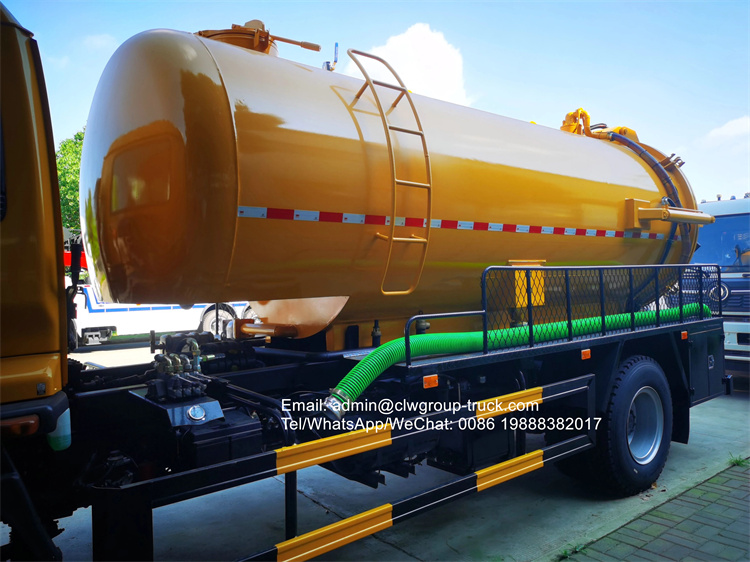

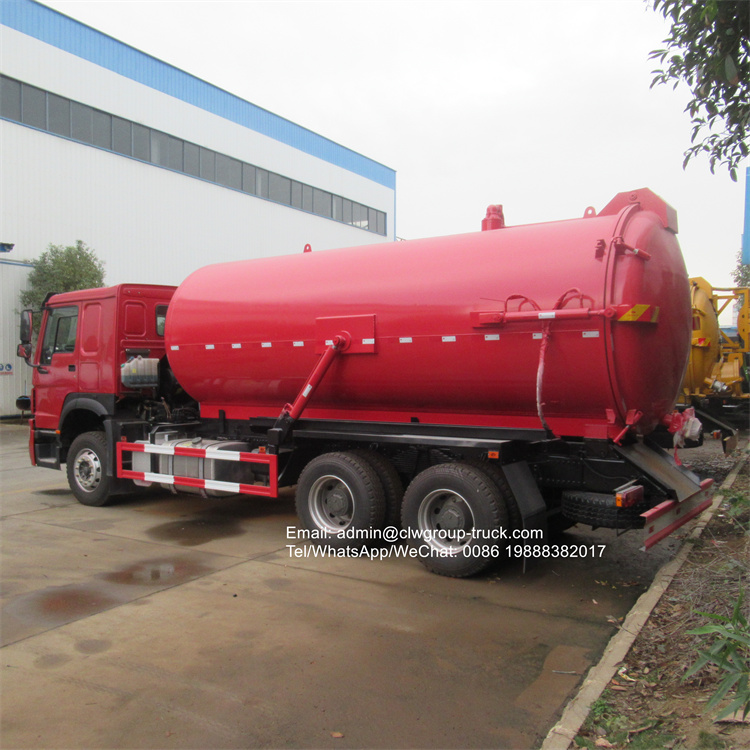

Before the sewage suction truck or manure suction truck leaves the factory, the manufacturer needs to test the vehicle to ensure that the quality of the vehicle is qualified and the performance is normal. The inspection content includes the appearance of the sewage suction truck or the fecal suction truck, the external dimensions, the weight of the whole vehicle, etc. The most important test is the test of the sewage suction truck or the sewage suction truck. Now I will introduce some of the testing contents and testing methods of sewage suction truck manufacturers for sewage suction trucks.
Determination of the maximum vacuum degree (pressure value) of the sewage suction truck
Drain the water in the sewage suction truck tank, and close the tank tail cover and the sewage inlet and sewage outlet ball valves. After the test starts, start the sewage suction truck, control the speed of the vacuum pump at the rated speed, observe the maximum vacuum (pressure value) reading indicated by the pointer of the vacuum gauge, and the continuous and stable indication time should not be less than 2 minutes.
Determination of the suction depth of the fecal suction truck
The experimental pool prepared by the sewage suction truck manufacturer needs to have a large enough volume, and the height of the page does not change by more than 50mm during the experiment. The vertical distance between the water surface and the parking surface of the fecal suction truck is the design value of the suction depth of the fecal suction truck. After the test starts, the speed of the vacuum pump is controlled at the rated speed, and the effective volume of the tank is filled.
Determination of Suction Time of Sewage Suction Truck
During the measurement, control the speed of the vacuum pump at the rated speed, and the suction time starts from moving the valve until the height of the page reaches the maximum specified by the design. Time with a stopwatch, measure three times, and take the average value.
Determination of pressurized excretion time of fecal suction truck
The sewage tank of the fecal suction truck is filled with water to the maximum value specified by the design. During the test, the speed of the vacuum pump is controlled at the rated speed, and the blowdown time starts from moving the valve and stops when all the liquid in the tank is discharged. Time with a stopwatch, measure three times, and take the average.
Determination of temperature rise of vacuum pump during operation of sewage suction truck
Control the speed of the vacuum pump at the rated speed, measure the temperature rise of the surface temperature of the vacuum pump shell when a tank of water is continuously pumped with a spot thermometer, and the min scale of the spot thermometer is not greater than 1 degree Celsius.
Leakage test of suction and drainage system of manure suction truck
All the welding seams and connecting and sealing parts of the tank body are coated with soap liquid, and the vacuum pump of this vehicle is used to transport compressed air into the tank, and the system pressure reaches 150kpa for 20 minutes. Observe the vacuum gauge readings and check for air bubbles in the area where the soap is applied.
It is very important to test the sewage suction truck or the fecal suction truck before leaving the factory. In the process of testing, it is necessary to find defects and faults, so as to ensure that the vehicle can run smoothly in the hands of the user after it leaves the factory.
