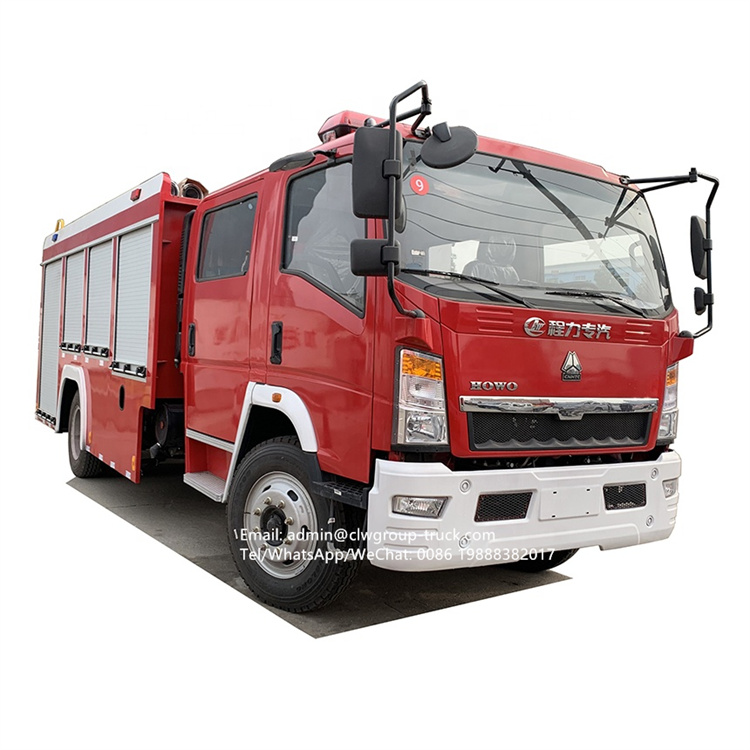

What is the price of the Sinotruk 2.5 ton fire truck produced by Chengli Automobile Group. The car is refitted from the second-class special chassis of Sinotruk Howo light truck. It consists of the second-class car chassis, water tank, pump, pipeline, and instrument circuit system. . After assembling the aluminum alloy ladder (removable), the pump room is at the rear of the vehicle, the tank material is high-quality carbon steel tank, anti-corrosion treatment, and 2.5 cubic meters of water is loaded. The vehicle is equipped with CB10/20 fire pump and PS20 fire monitor with a range of up to 45 meters. The biggest feature of this car is that it can be widely used in fire rescue stations, government full-time fire brigade, full-time fire brigade, community streets, factory warehouses, etc.
Body configuration:
Tank volume: water capacity 2500KG
Material: Made of carbon steel or 304 stainless steel, steel plate material thickness: 3mm on the tank top, 3mm on the tank wall, 4mm on the tank bottom, and carry out effective anti-corrosion treatment;
The water tank and the foam tank are each provided with a manhole, the inner hole is φ440, with quick locking/opening, automatic pressure relief when the tank pressure exceeds 2 kg, and vertical and horizontal anti-sway plates are installed inside;
The water tank is provided with a sewage outlet and a stainless steel ball valve;
Install an electronic level gauge in the tank;
The top of the water tank should be anti-skid or anti-skid;
With quick lock/open, automatic pressure relief when the tank pressure exceeds 2 kg;
fire Pump
Brand model: optional imported or domestic vehicle fire pump
Normal pressure flow: 30L/S≥1.0mpa;

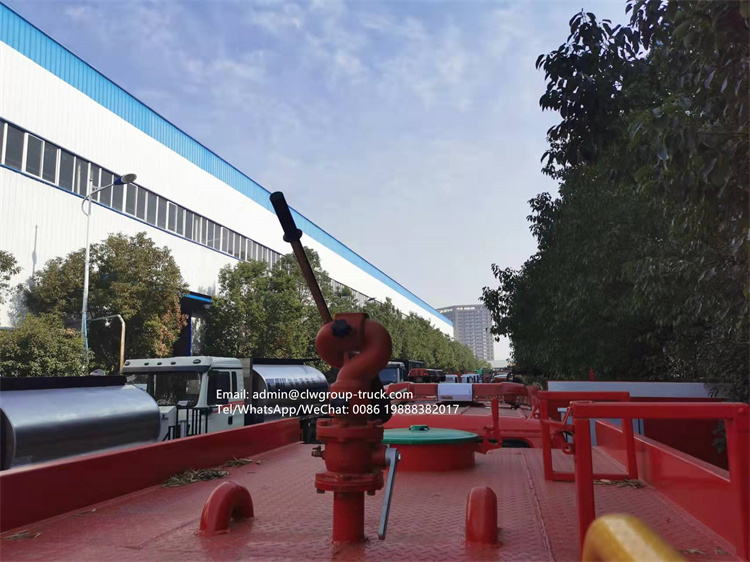

fire monitor
Brand model: first-line brand, optional imported or domestic fire monitor
Flow: adjustable 30L/min; working pressure 0.74MPa;
Range: water ≥ 40 meters
Angle: horizontal rotation angle ± 45 degrees; elevation angle 90 degrees; depression angle 45 degrees;
Control distance: ≥100 meters wireless remote control operation.
body panel
On the car ladder: 1 piece on the right side of the rear of the car, movable ladder;
Body frame: aluminum alloy profile welded frame;
Body hoarding: paste aluminum alloy plate;
Body platform/equipment box pump chamber roof: laying anodized anti-skid aluminum alloy plate;
Equipment box/pump room/tool box: equipped with aluminum alloy locking roller shutter door
waterway control
Water control mode: electrical control; the boom console has buttons for de-hanging water pump and oil pump, which can be combined with water pump and oil pump under the condition of vehicle bottom speed.
Control panel location: pump room at the rear of the car body;
The nozzle configuration design is reasonable to meet the fire protection needs.
