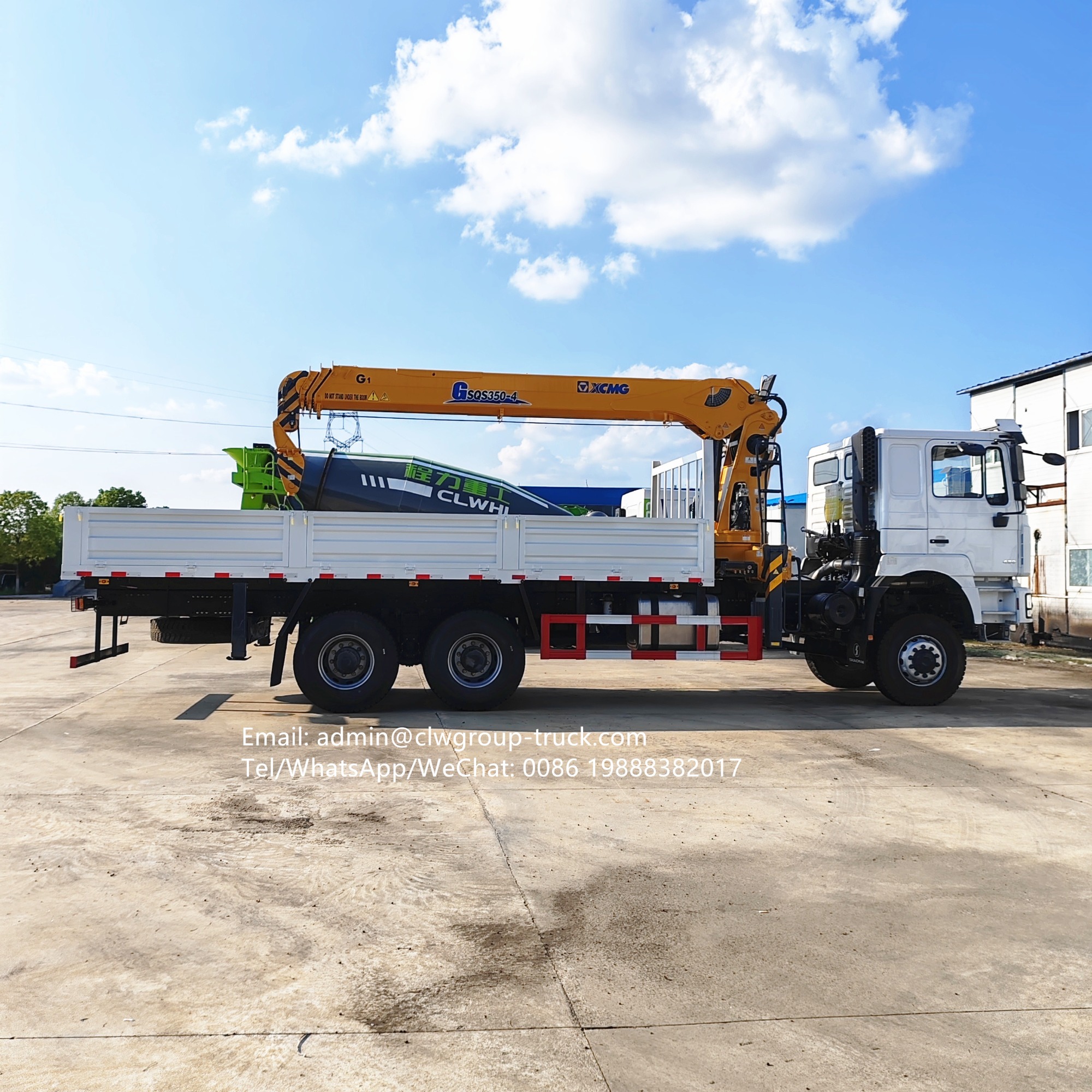

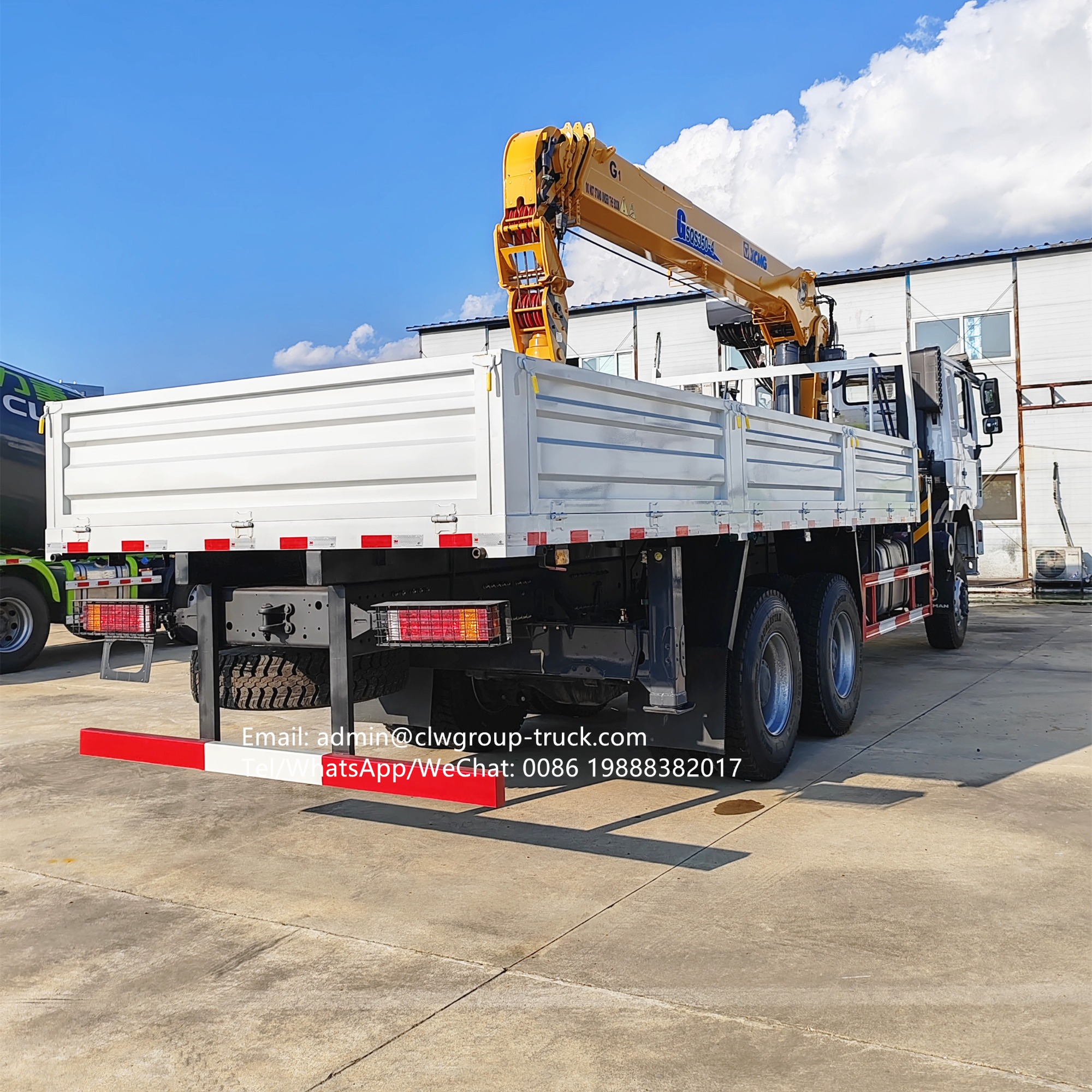

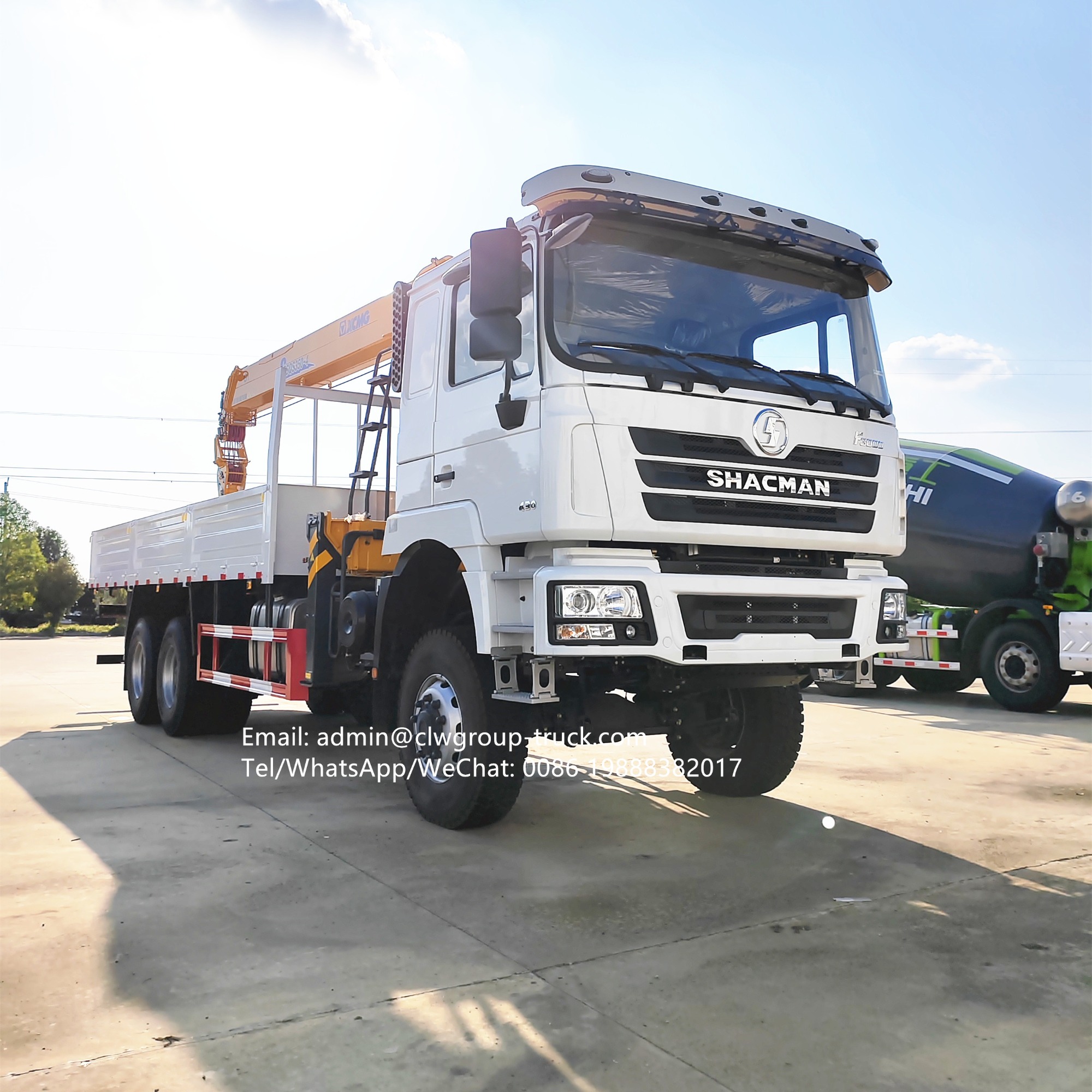

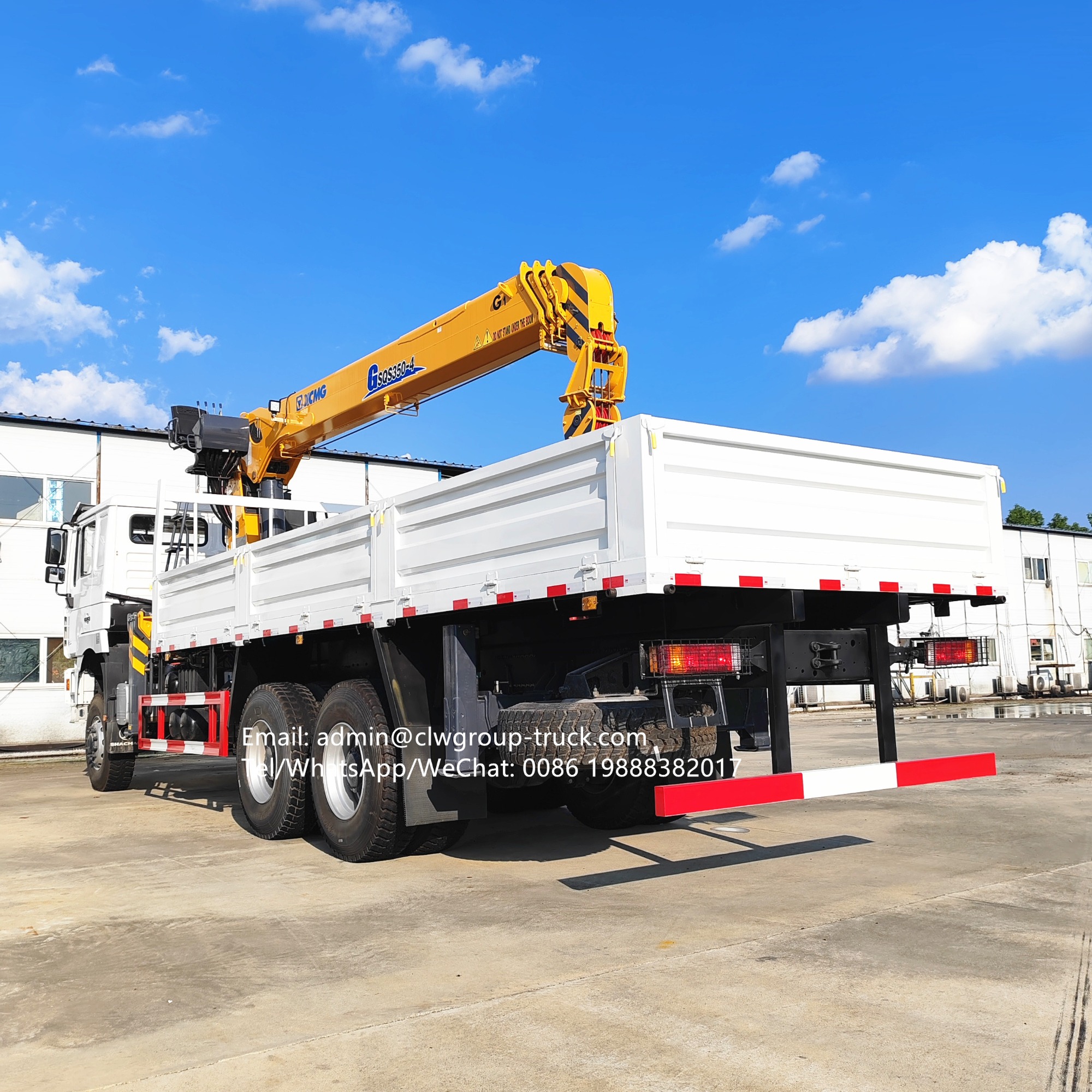

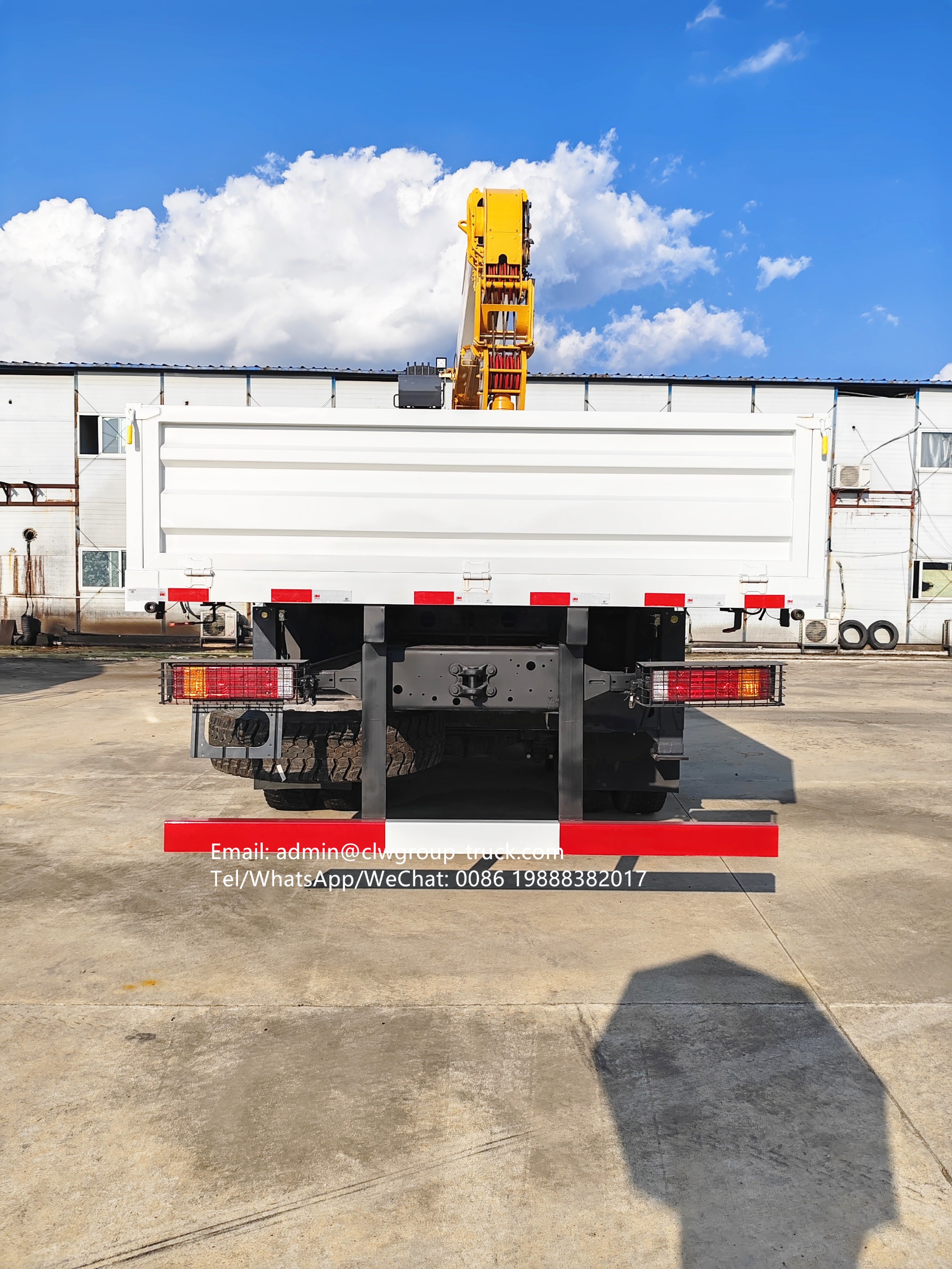

Shacman F3000 XCMG Straight Arm 114 ton boom crane truck Chassis Parameters:
Shaan Automobile F30006X4 medium length flat top cab, hydraulic main seat, four point hydraulic suspension, electric constant temperature air conditioning, electric window shaking machine, electric automatic constant temperature air conditioning, wheelbase 4375+1400 Weichai 340 horsepower, transmission 10JSD180+QH50 10 forward and 2 reverse gears, front axle 7.5 tons, rear axle 16 tons bipolar cast bridge 5.262, frame 850X300 (8+5) three-layer reinforced beam, 12.00R20 steel wire tire, fuel tank 360L aluminum alloy fuel tank,
Shacman 6X4 14 ton boom crane truck XCMG crane crane configuration:
XCMG 14 ton 5-section boom crane, working radius 18.85 meters, lifting height 20.9 meters, U-arm, plunger pump, radiator, one piece start stop, double section telescopic cylinder, double section front support legs
Shacman 14 ton boom crane truck has dimensions of 12000 × 2550 × 3950 (mm), with dimensions of 7500-8300 * 2450 * 550mm for the cargo box. The thickness of the cargo box is 3mm for the edge plate and 5mm for the bottom plate, which is made of high-quality carbon steel material. It can also be widened, lengthened, and thickened according to customer requirements
Chengli Special Vehicle Co., Ltd. exports its car mounted cranes to more than 30 countries and has a comprehensive quality and after-sales service system, making your car purchase worry free!
The high-altitude seat of the car mounted crane is an additional part of the car mounted crane. Generally, the operation of the car mounted crane is carried out on the ground, and can be operated on both sides. This operation will create a blind spot in the viewing angle, making it impossible to see the environmental conditions on the other side. With the high-altitude seat, the view is relatively broad and clear, reducing the blind spot in the viewing angle, allowing for easy observation of the surrounding lifting situation, and improving work efficiency.
Truck mounted cranes are divided into straight arm and folding arm types according to the type of crane, and into 2 tons, 3.2 tons, 4 tons, 5 tons, 6.3 tons, 8 tons, 10 tons, 12 tons, 14 tons, 16 tons, etc. according to the tonnage; Different cranes are equipped with different chassis. Generally speaking, a 4X2 truck mounted crane is usually equipped with a crane of 8 tons or less, a 6X4 truck mounted crane is equipped with an 8-12 ton crane, and an 8X4 truck mounted crane is generally equipped with a 12-16 ton crane. The chassis of the on-board crane can be selected from Dongfeng, Jiefang, Foton, Dayun, CNHTC, Shaanxi Automobile, etc
Shacman 6X4 14 ton boom crane truck XCMG crane 14 ton on-board crane features strong lifting capacity, high equipment power, high lifting height, and wide operating range. The lifting and handling work requires the overall movement of the crane during the operation process, which is achieved through the movement of multiple mechanisms. It can achieve fast lifting, high efficiency, and energy saving. The vehicle body requires multiple people to operate and collaborate to complete.
