Flatbed transporter, also known as factory machinery transporter, flatbed truck, low flatbed transporter, is mainly used to transport some non-removable objects like excavators, loaders, and harvesters. , This kind of vehicle is generally widely used in factories, construction sites and other large-scale production or engineering locations. The characteristics of the strong seed bearing capacity of the flatbed transporter make it play an important role in the process of economic development.

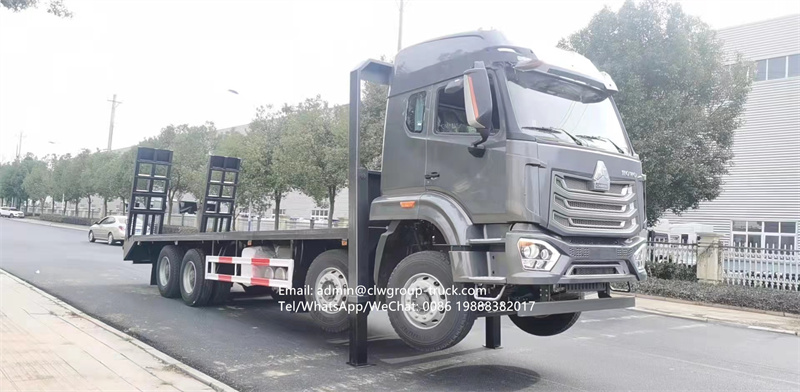

Chassis configuration of 8X4 40 ton heavy truck flatbed transporter:
Engine: Sinotruk engine 336-430 horsepower
Gearbox: 10-speed gearbox
Front and rear axle tonnage: front axle 7 tons/9 tons, rear axle 16 tons/20 tons
Tire: 12+1 steel wire tire 12.00R20
Wheelbase: 1800/2100+4600+1300mm
Girder: 8+8/300
Fuel tank: 400L
8X4 40 ton heavy truck flatbed truck body configuration:

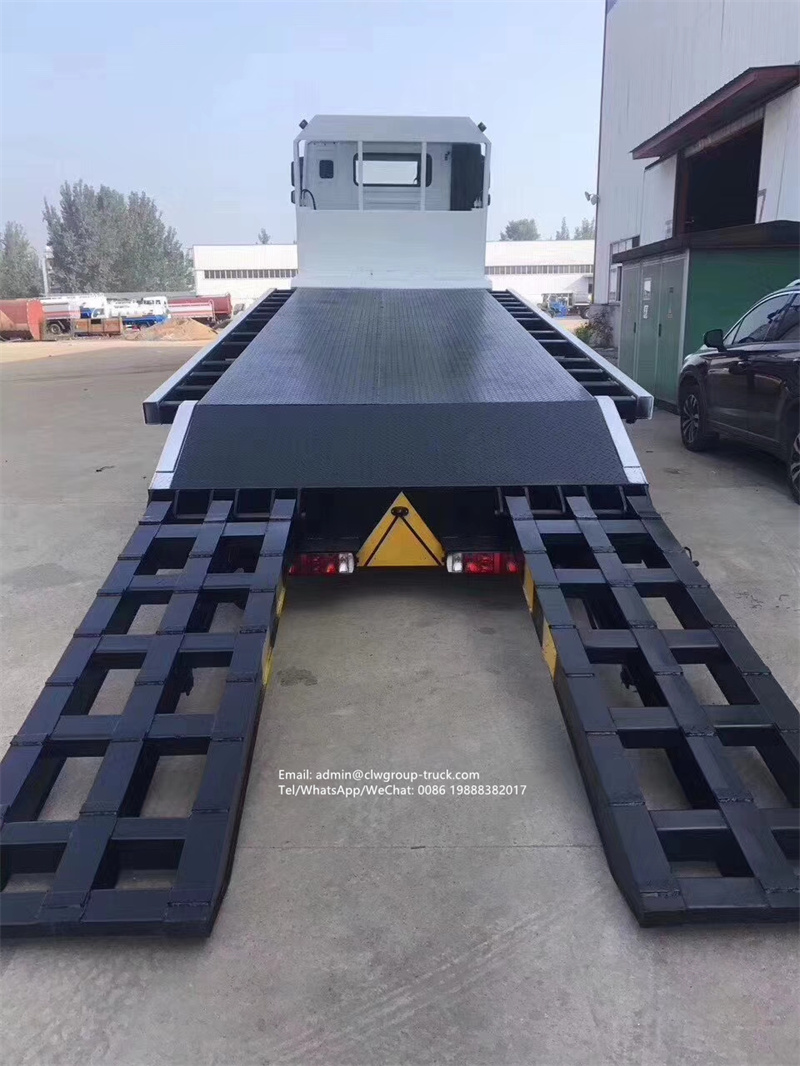

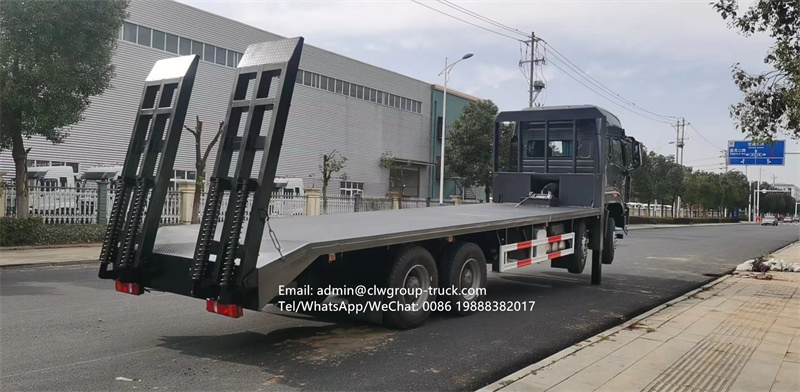

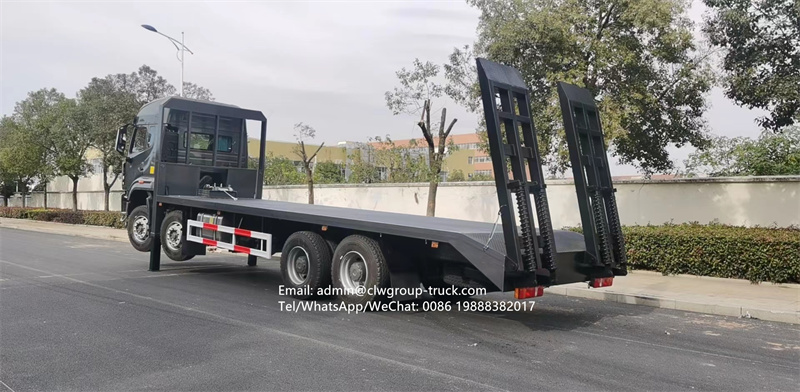

The standard top-loading beam is made of 12*12 6mm thick square steel, and the whole piece is designed to ensure the bearing performance. The cargo box flat plate is 8mm thick checker plate. The heavy-duty top-loading beam adopts 12*10 size 8mm thick square steel. 8mm thick checkered plate, the ladder adopts heavy-duty reinforced design, adopts three-bar double-spring reinforcement, with rear outriggers, the plate has inclined support, optional hydraulic ladder or hydraulic folding extended ladder, the cargo box flat can be telescopic, Extends 3 meters, retracts 2.5 meters, and the length of the cargo box is 8-9.5 meters. It is an ideal trailer for transporting 30-40 tons of large excavators, large construction machinery, etc.
8X4 SINOTRUK 40 ton flatbed truck description:
The material and process of the flatbed transporter have been greatly improved. The previous ordinary flatbed has been replaced with the current checker plate, which can prevent construction machinery and excavators from slipping, and thicken it on the original basis. , Strengthen the carrying capacity of the vehicle. Now the large excavators with more than 200 meters are 3 meters wide. The company has added a telescopic system to the width of the flatbed truck to ensure the convenience and safety of use.

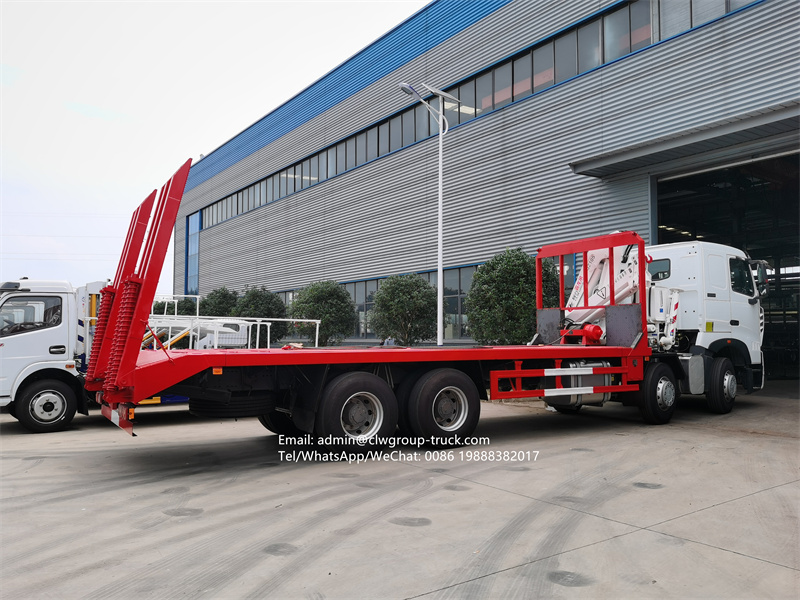

The truck-mounted flatbed transporter is a combination of the truck-mounted crane and the flatbed transporter. It has the basic functions of the truck-mounted crane and the flatbed transporter. It can be used not only as a truck-mounted crane but also as an engineering transport vehicle, or as a cargo Transportation; truck-mounted flatbed trucks are often used in various loading and unloading, installation and lifting operations, especially for field lifting, operating in narrow places such as stations, ports, warehouses, construction sites, etc. In addition to the operation, equipment such as excavators can also be transported, and hydraulic rear outriggers need to be installed to enhance the stability of the vehicle.
We can also customize the flatbed transporter according to the customer's requirements, optional front hydraulic lifting outriggers, reels, flatbed widening, rear hydraulic climbing ladder, ladder widening, beam reinforcement, flatbed self-unloading function, etc.
