Case Details

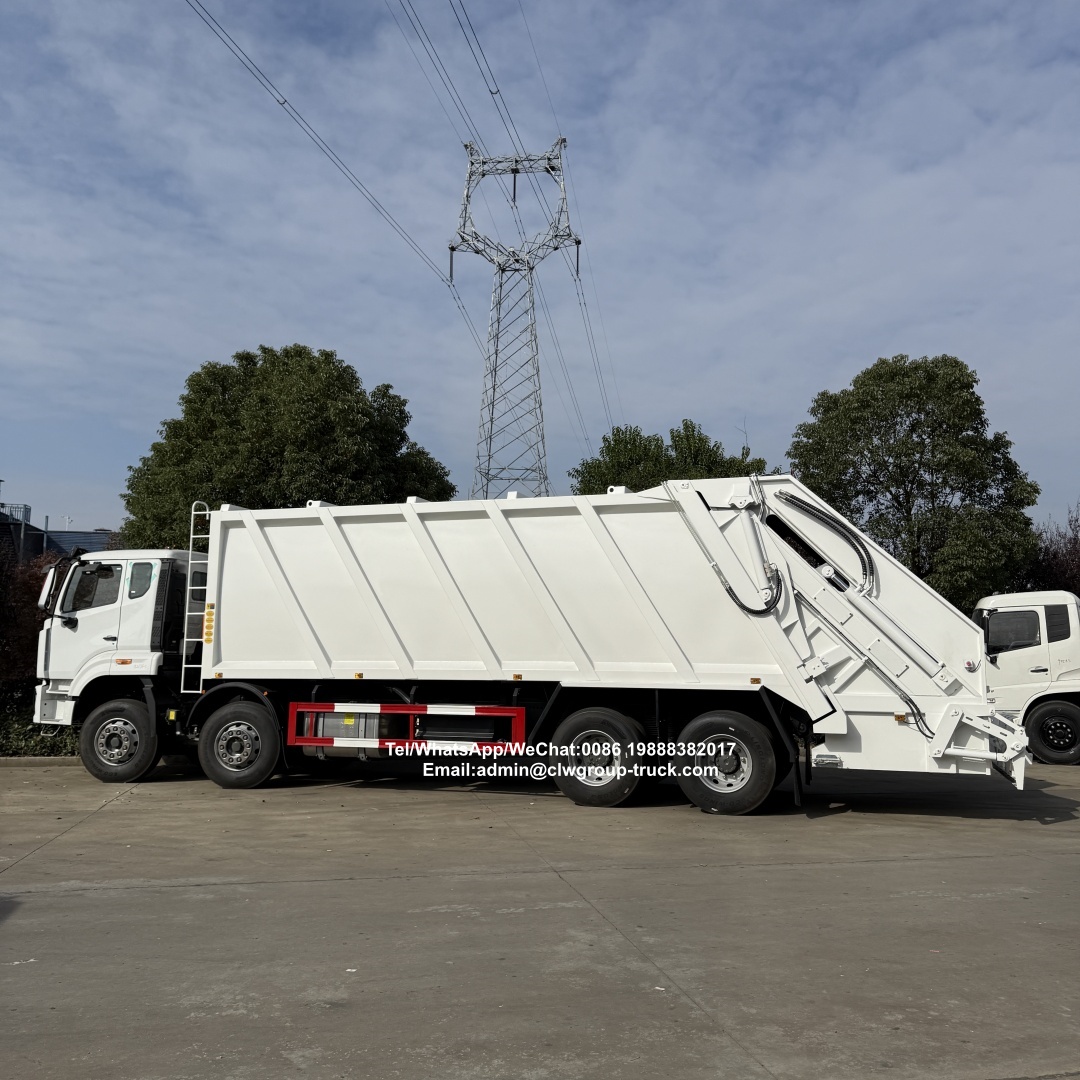

Configuration of Sinotruk howo NX 8X4 Compactor Garbage Truck:

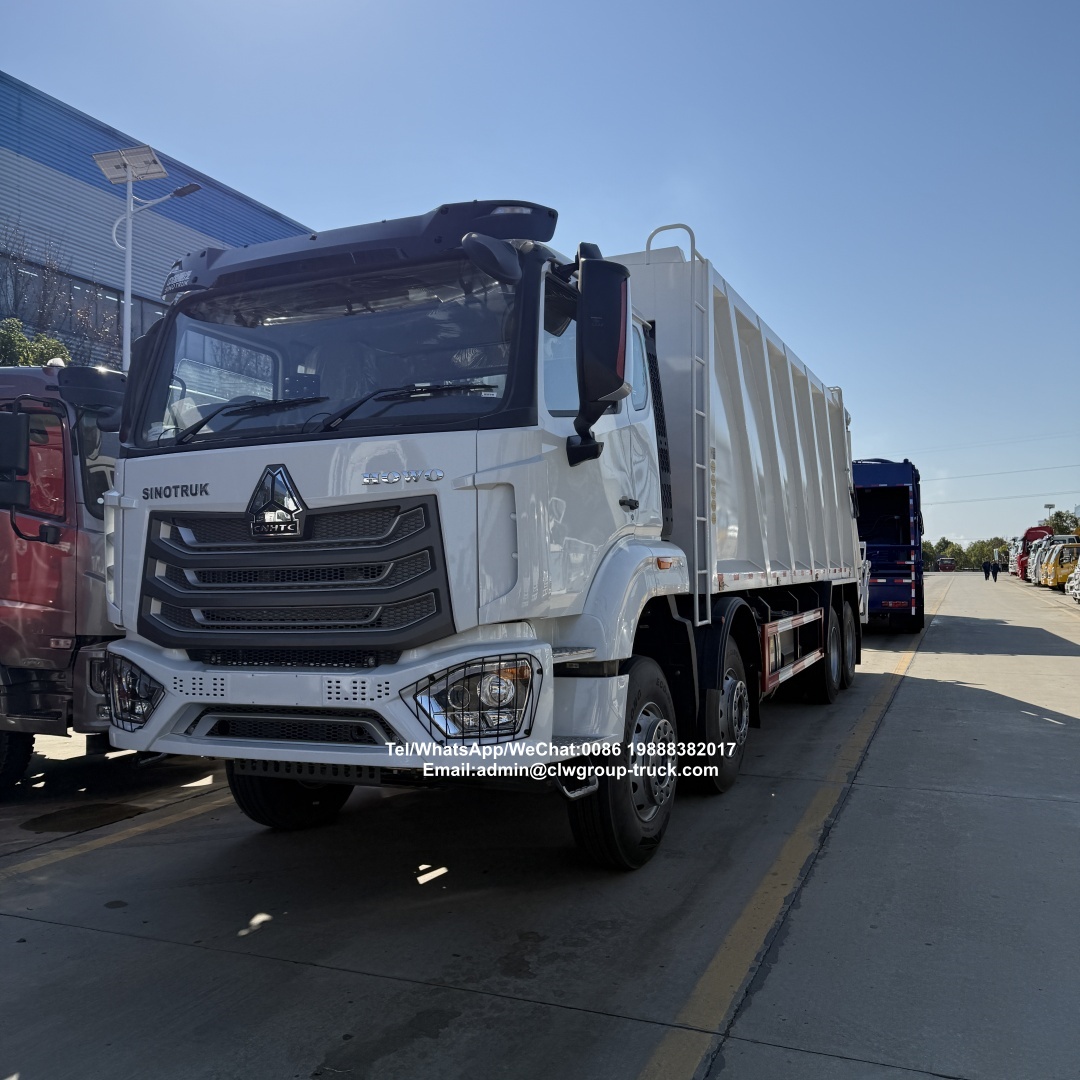

The Sinotruk NX8X4 compactor garbage truck has a capacity of 25-40 cubic meters and can haul 32 tons of waste. The Sinotruk NX chassis features a wheelbase of 1995+4600+1400 (mm). It is powered by a China National Heavy Duty Truck Group WD615.47 inline six-cylinder diesel engine with a displacement of 9.726 liters, delivering 371 horsepower and 1500 N·m (1100-1600 rpm) of torque. The front axle capacity is 9.5T×2 and the rear axle is 16T×2, equipped with 11R22.5 18PR tires. The transmission is a 10-speed gearbox from Sinotruk, featuring factory-installed air conditioning, air suspension seats, central door locks, and power windows
Upper Structure Configuration: The net volume of the box body is 35 cubic meters. The box body features an arc-shaped design with frame-type reinforcing ribs around the perimeter, ensuring strong load-bearing capacity. The entire vehicle is constructed with T700 high-strength wear-resistant plates. The box body is fabricated with a 5mm side and 6mm bottom thickness. The filler edge plate has a thickness of 6mm on the side and 8mm on the bottom, while the slide plate and slide track are 8mm thick. The push shovel cylinder undergoes heat treatment and is manufactured to 5-grade standards, minimizing the space occupied by the push shovel while maximizing the box body volume, allowing for greater garbage loading capacity. The CAN bus intelligent screen operating system includes wireless remote control. The system program can be customized on the intelligent screen based on user-specific operating conditions, enabling self-setting of automatic operation conversion times, throttle control levels, and featuring automatic fault detection with alarm prompts. Other standard features are included.

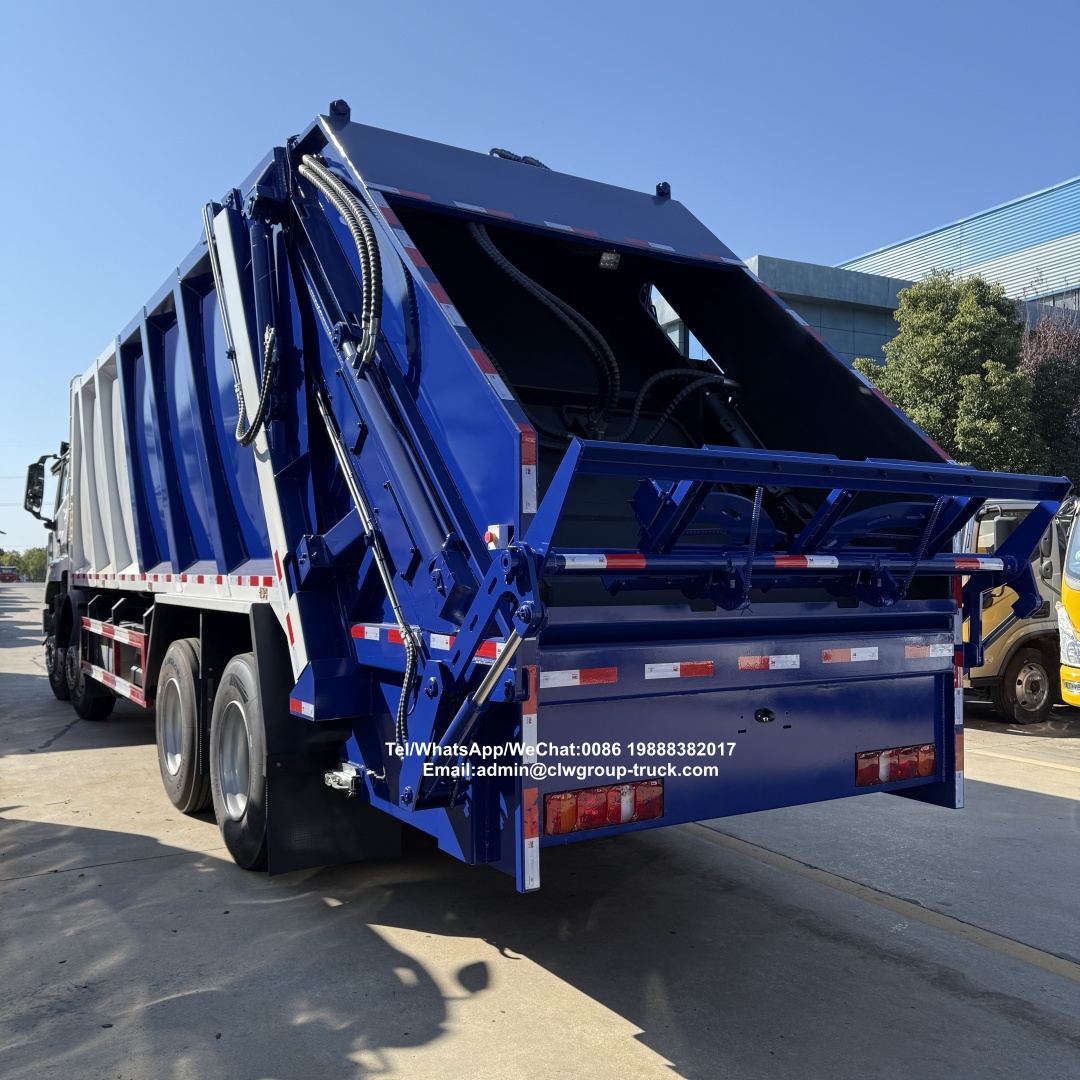

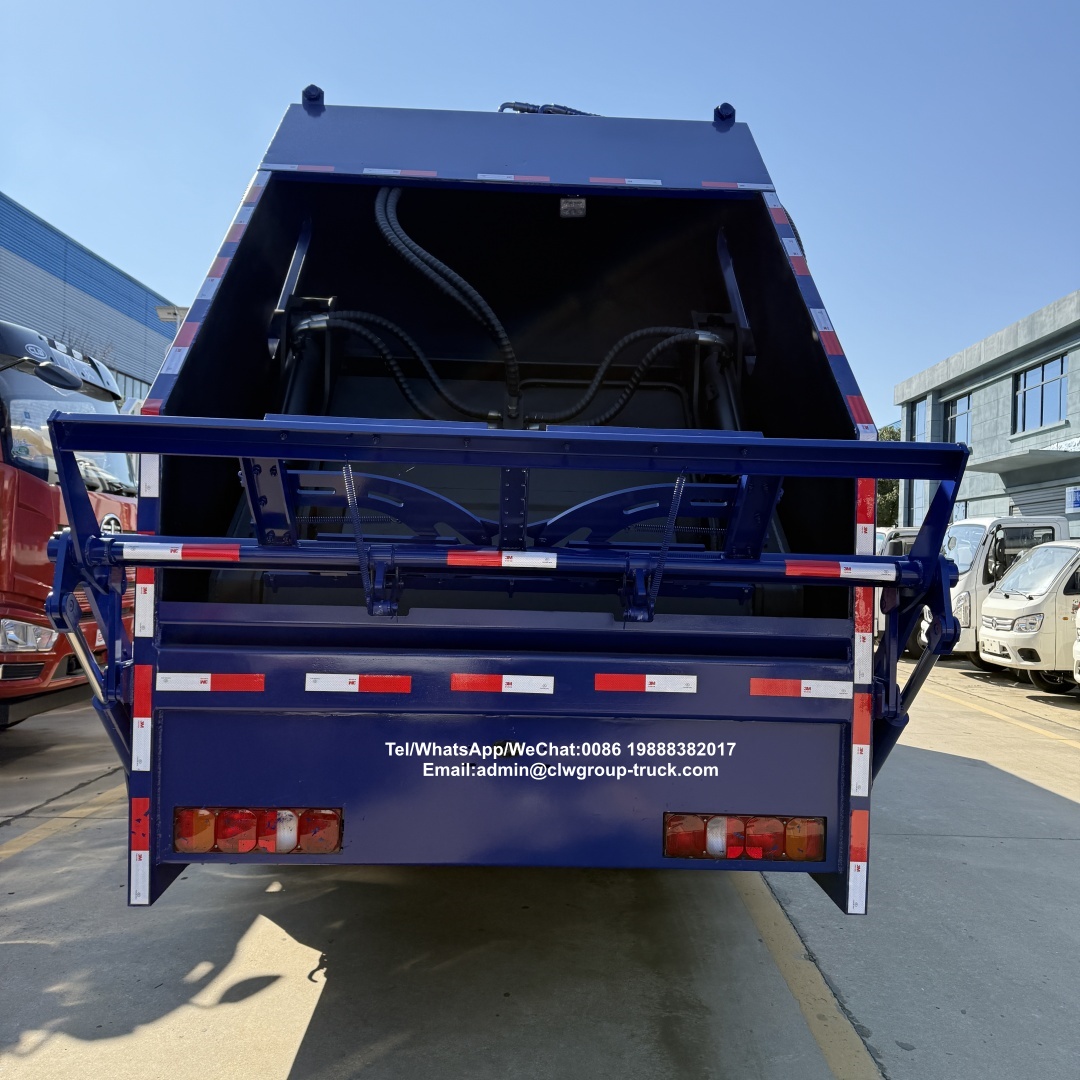

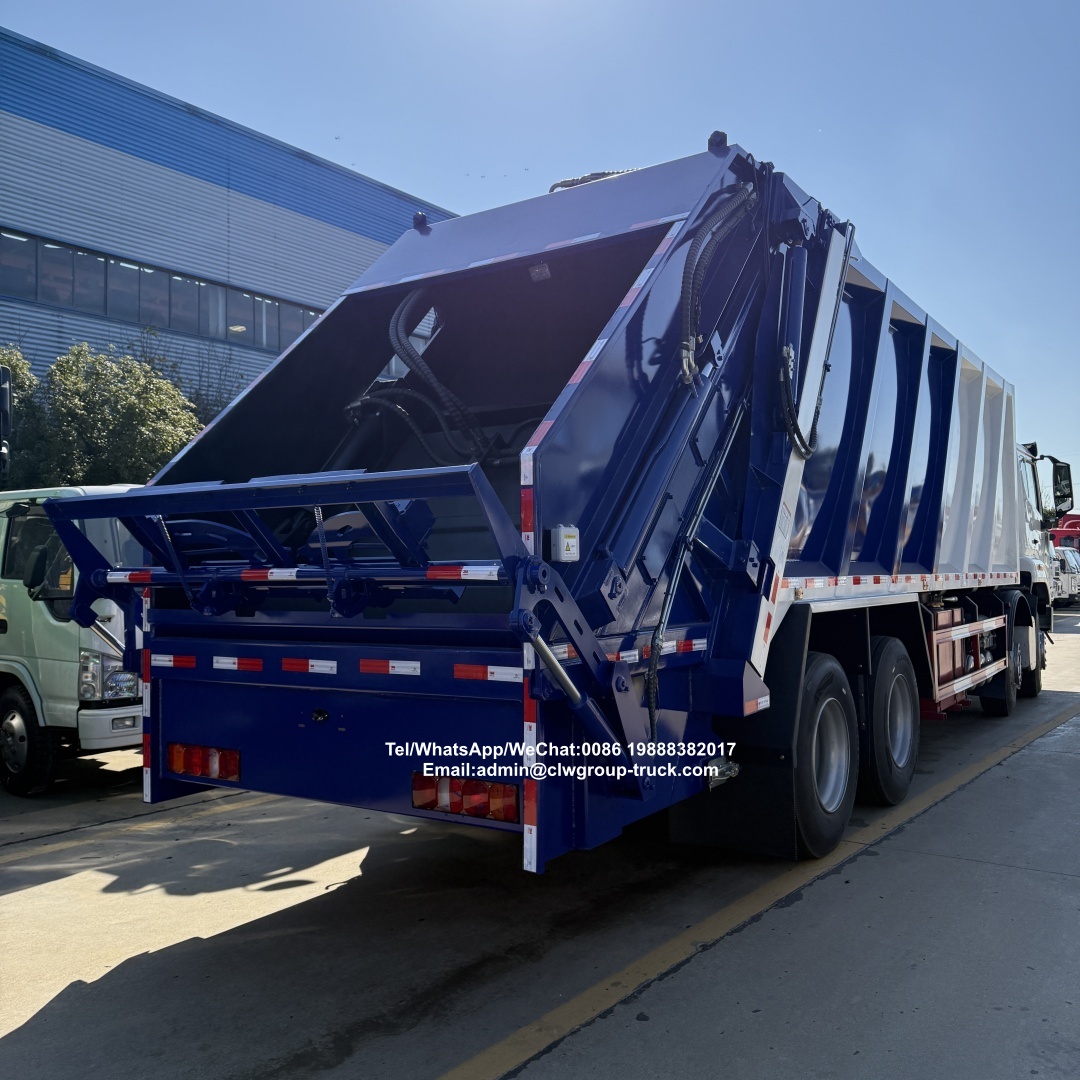

Technical specifications of Sinotruk 35-cubic-meter compactor garbage truck: The compactor compartment adopts an arc-shaped design with a fully folded and seamless-welded floor plate, eliminating leakage risks. It features a sleek and aesthetically pleasing appearance, strong resistance to deformation, and reliable structural performance. Additionally, it effectively increases the actual loading capacity. The material used is high-strength manganese steel plate, offering excellent wear resistance and corrosion resistance. The tail filler can be optionally equipped with large ground bins, lifting capacities of 120L, 240L, 660L, and 1100L plastic garbage bins, as per customer requirements The electric control system of the garbage truck features one-touch unloading, segmented garbage scraping, wireless remote control, and enables remote operation The hydraulic tank has a large capacity, effectively improving cooling efficiency, and is equipped with a return oil filtration device The compression garbage truck is equipped with a balance valve to prevent the hydraulic cylinder from dropping due to operational errors, ensuring enhanced safety The garbage truck is equipped with a back pressure valve or compaction valve to increase the compression ratio of the loaded waste and enhance the loading capacity Equipped with a rear light for convenient night work by sanitation workers, featuring an induction switch for better protection of hydraulic cylinders and systems. It includes high-quality hydraulic cylinders and power take-off units from top-tier brands, ensuring stable and reliable performance The compressed garbage truck is equipped with dual sewage collection tanks and integrated with a diversion-type sewage collection device, effectively preventing leaks and avoiding secondary pollution. The drainage outlet of the filler uses galvanized material to eliminate corrosion and ensure long-lasting durability.
Sinotruk howo compactor garbage truck 8X4 with a capacity of 35 cubic meters. More advantages and functions: The compression mechanism is efficient and reliable, capable of completing the compression cycle within 20 seconds, achieving a high density of 0.8t/m3. The unloading mechanism consists of oil cylinders and push plates, and can complete unloading within 40 seconds. Vehicles not only have simple collection methods and high compression ratios, but also have automated operating systems, good economic performance, and dual system guarantees. In addition, multiple optional flipping mechanisms and collection structures are provided to adapt to different job requirements. Options for flipping the garbage collection structure: In addition to the standard garbage collection method, the heavy-duty truck with a capacity of 35 cubic meters can also be equipped with a hanging bucket flipping mechanism, a dustpan flipping mechanism, a rear swing arm flipping structure, or a large floor bucket flipping structure. These structures provide a more flexible and efficient garbage collection solution.
How garbage compactor truck works?Working principle of 35 cubic meter compactor garbage truck of Sinotruk howo

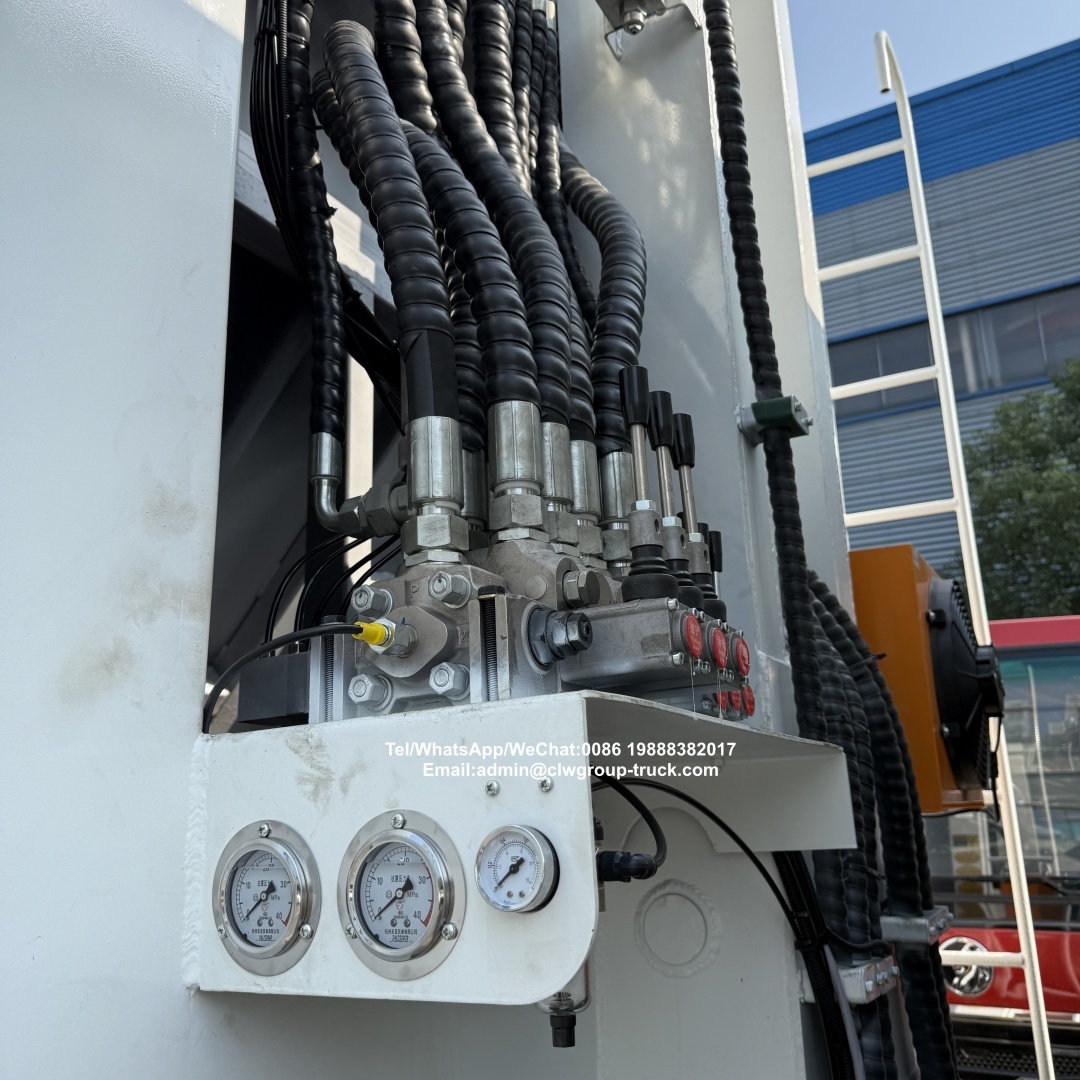

The working principle of a compressed garbage truck is to drive relevant mechanisms through a hydraulic system to complete loading, compression, and unloading. The power of the car engine is transmitted to the oil pump through the power take-off, and the oil pump rotates to produce high-pressure oil. Operate the relevant control switches on the multi way directional valve, hydraulic oil causes the relevant oil cylinder to work, and the oil cylinder drives the relevant mechanism to complete the work of loading, compressing or dumping garbage
What are the precautions for using a 35 cubic meter compactor garbage truck for heavy trucks 1. It is strictly prohibited to dispose of construction waste to avoid damaging machinery. If any abnormal movement is found during the operation of the hydraulic system, the work should be stopped immediately, the cause analyzed, and the fault eliminated. Do not force pressure work. Whether engaging or disengaging the power take-off, the clutch pedal must be pressed; When the power take-off and multi way directional valve are in operation, garbage must not enter the driving state. 4. The pressure regulating device of the hydraulic system is the pressure regulating bolt on the multi way directional valve. After the bolt is calibrated and locked, it cannot be adjusted arbitrarily during use, and it is not allowed to adjust the oil pressure arbitrarily. The one-way throttle valve at the top of the pressure regulator is a device that controls the descent speed of the pressure regulator. After being set and locked, it cannot be adjusted arbitrarily. The closing of the vehicle's collection hopper should be done by lowering it to the bottom, with the locking tongue and locking block engaged, before the closing is complete. Do not pour water into the hydraulic oil tank when washing the car. Regularly check the height of the hydraulic oil level, and add oil promptly when the hydraulic oil is insufficient. All oil circuit joints must not leak oil. During maintenance, collision should be prevented to avoid damage, deformation, and scratches on parts.
In general, the Sinotruk howo 8X4 35m3 compactor garbage truck is an environmental protection equipment with advanced
technology, excellent performance and high-end configuration. Its emergence will greatly improve the level of urban environmental sanitation and create a cleaner and better living environment for people. At the same time, the vehicle also has excellent reliability and stability, which can meet the operational needs in various complex environments. In the future, the 35 cubic meter compactor garbage truck of China National Heavy Duty Truck Group is expected to become a star product in the field of urban environmental sanitation, making greater contributions to promoting the development of environmental protection.
