Isuzu 3-5 tons refrigerate truck for food transport with -5 or -15 degree refrigeration unit ,cold room freezers for lorry,japanese thermo king refrigerator truck
Case Details
A refrigerated truck is a closed box transport vehicle used for transporting frozen or fresh goods. It is a specialized refrigerated transport vehicle equipped with a refrigeration unit and a polyurethane insulated compartment. It is commonly used for transporting frozen foods (refrigerated trucks), dairy products (dairy transport vehicles), vegetables and fruits (fresh goods transport vehicles), vaccines and drugs (vaccine transport vehicles), etc.
The refrigerated truck is composed of a dedicated vehicle chassis, an insulated and insulated compartment body (usually made of polyurethane material, fiberglass, color steel plate, stainless steel, etc.), a refrigeration unit, a temperature recorder inside the compartment, and other components. For vehicles with special requirements, such as meat hook trucks, meat hook trucks, cargo hold tanks, aluminum alloy guide rails, and ventilation channels can be optionally installed

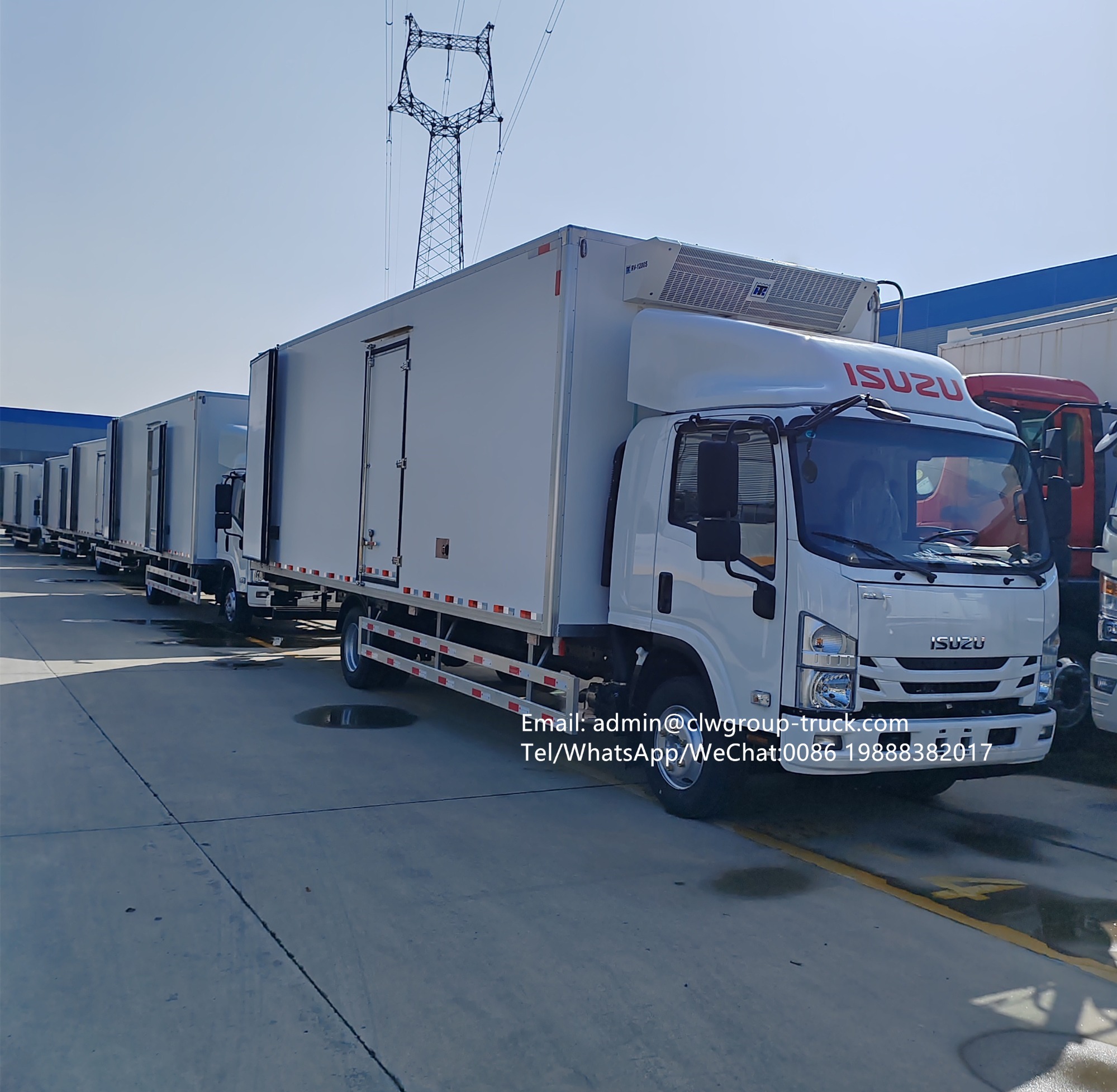

Isuzu 700P refrigerated truck, manufactured by Chengli Refrigerated Truck Factory
Box size 6800 * 2300 * 2300
The refrigerated compartment body adopts advanced and latest wooden craftsmanship, broken bridge insulation technology, high-strength fiberglass inside and outside the box, deeply embedded bolts, and seamless synthesis using large negative pressure equipment. It is formed in one go, with fast cooling speed, slow temperature dissipation, and good insulation effect. The middle is filled with 8cm advanced insulation board, and the bottom plate is made of 10cm thick durable thickened plate with seismic insulation. The compartment body is surrounded by right angle aluminum profiles, and the rear door is equipped with stainless steel locks.
Optional cold king independent refrigeration unit, optional hydraulic tail plate

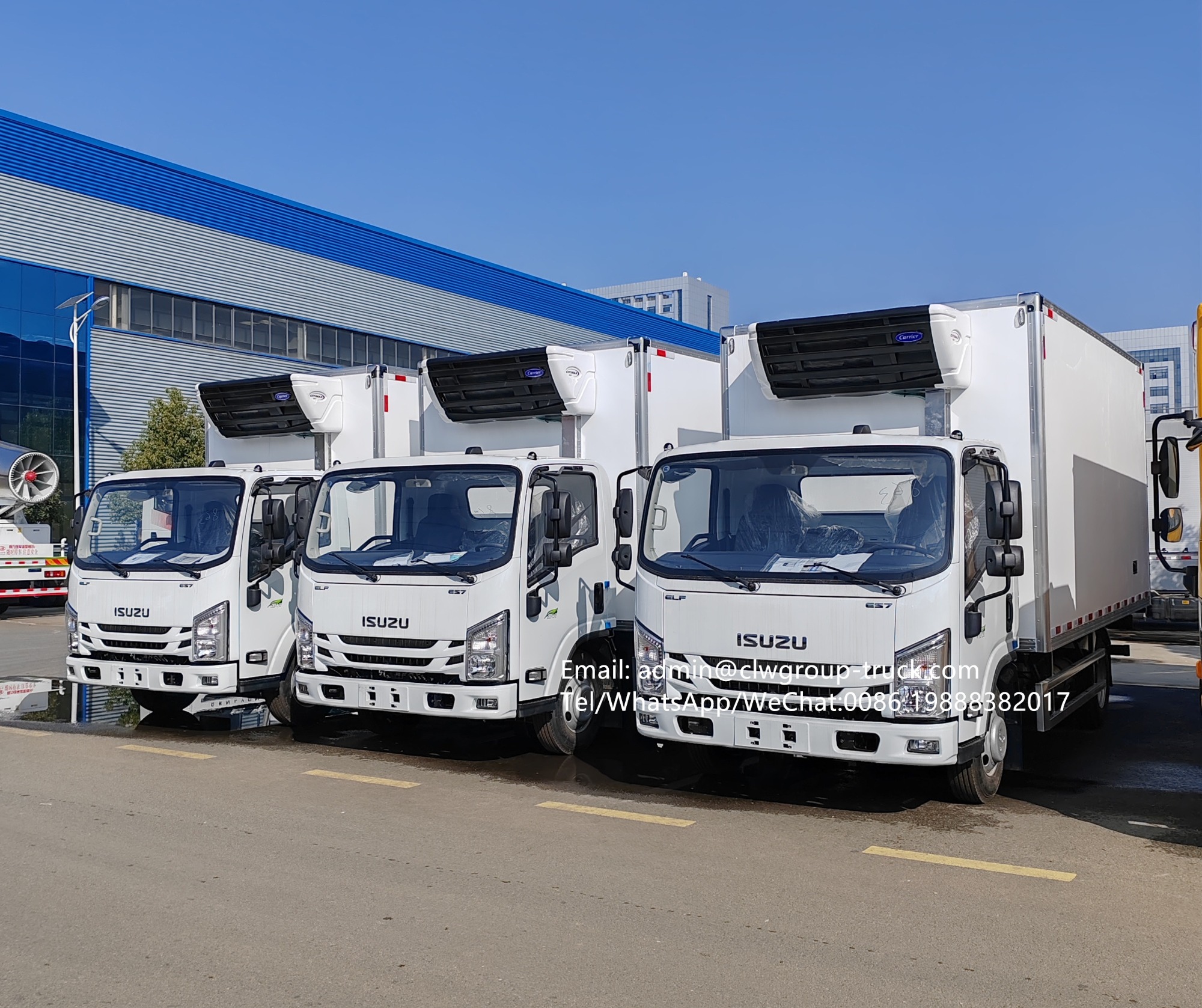

Isuzu small 3-5 ton refrigerated truck
Vehicle size: 5995 * 2270 * 3270 Box size: 4015 * 2100 * 2100
Chassis: Isuzu 120 horsepower 4KH1CN6LB engine, Isuzu 5-speed transmission, 7.00 steel tires, with air conditioning, steering assistance, central locking, electric glass, multifunctional LCD instrument panel, with ABS, air brake, and reversible cab. Wheelbase: 3360mm
[Refrigeration truck box configuration]

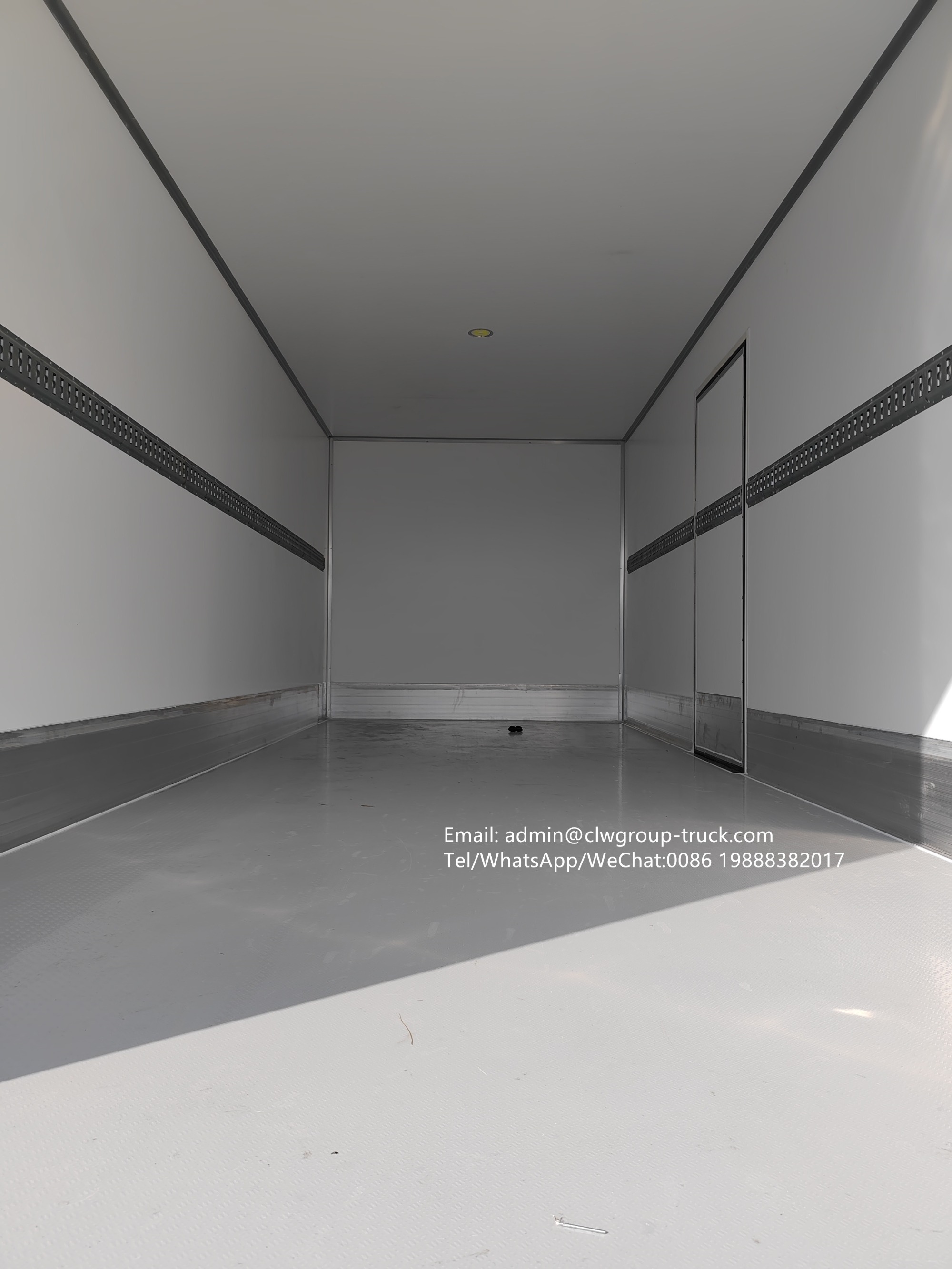

(1) : The interior and exterior of the refrigerated truck are made of high-quality fiberglass (non light absorbing, good insulation, strong hardness, and oxidation resistance), and filled with 8mm thick XPS extruded panels in the middle; High strength adhesive, hot pressing molding with a positive pressure machine (using a fully automatic gluing and pressing machine, gluing+pressing plate is completed in one go, gluing is uniform, not easy to bulge, and the board is produced quickly and efficiently).

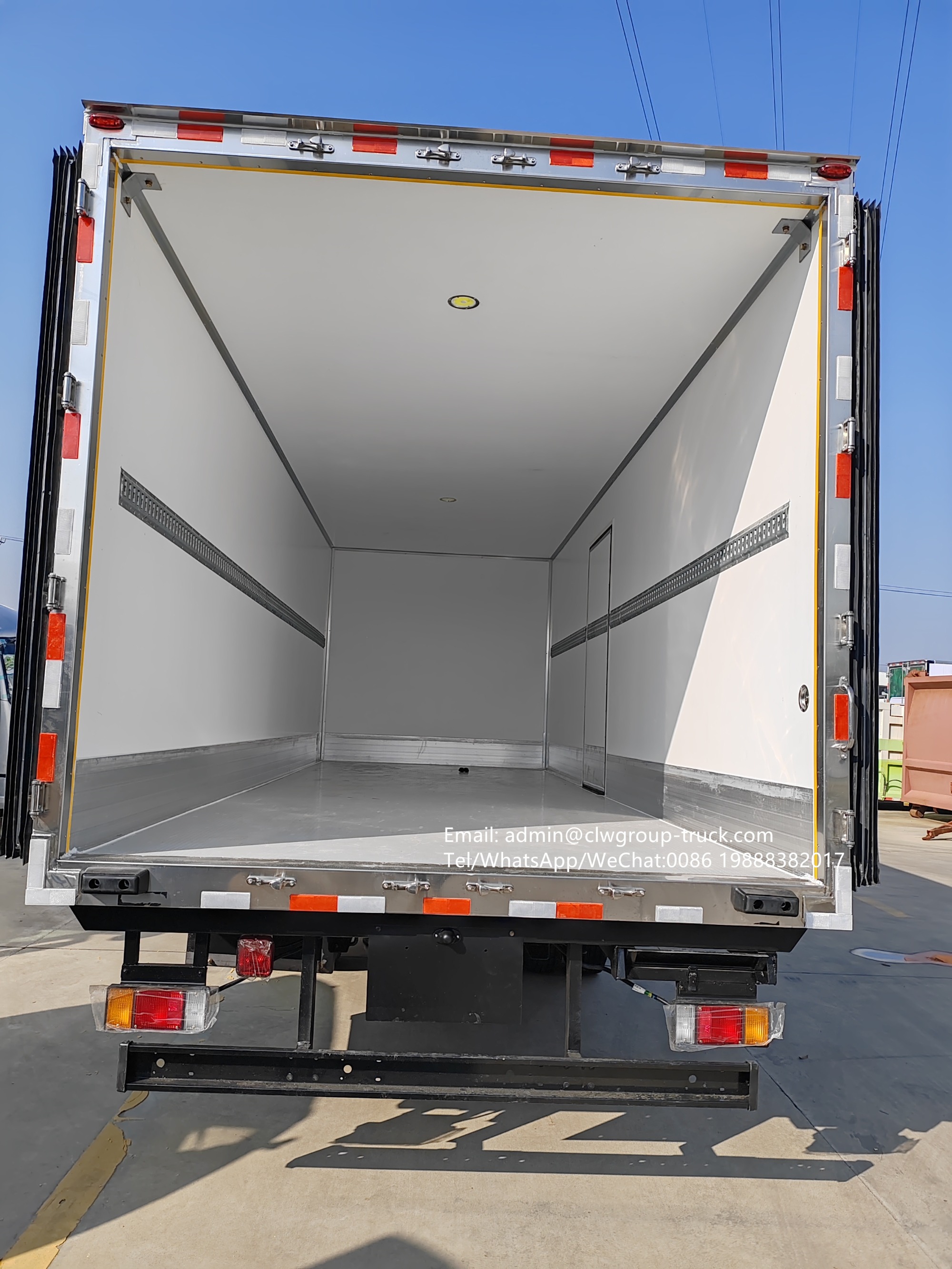

(2) The floor is made of plastic steel patterned panels, with a 15cm apron on the inner side of the compartment. The box is wrapped at right angles, with front drainage holes. The door edge is sealed with labyrinth style rubber sealing strips and a glossy stainless steel door frame.
(3) Car body accessories: thickened aluminum alloy edges around the car body, stainless steel corners, stainless steel door lock hinges, stainless steel lock parts and hinges, energy-saving LED lighting inside the car body.
[Refrigeration Unit] Refrigeration unit -5 degrees, -15 degrees, optional according to customer requirements
