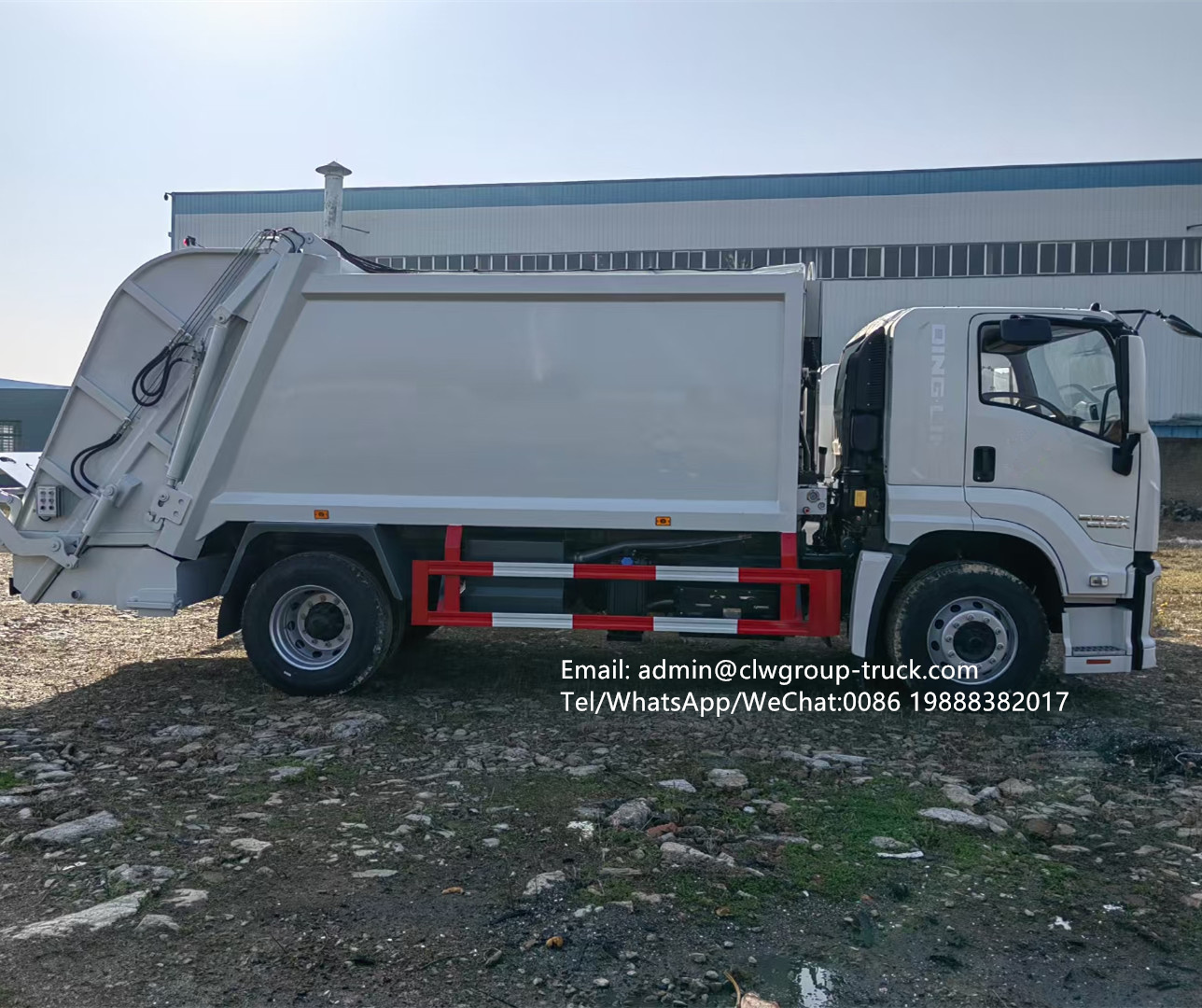

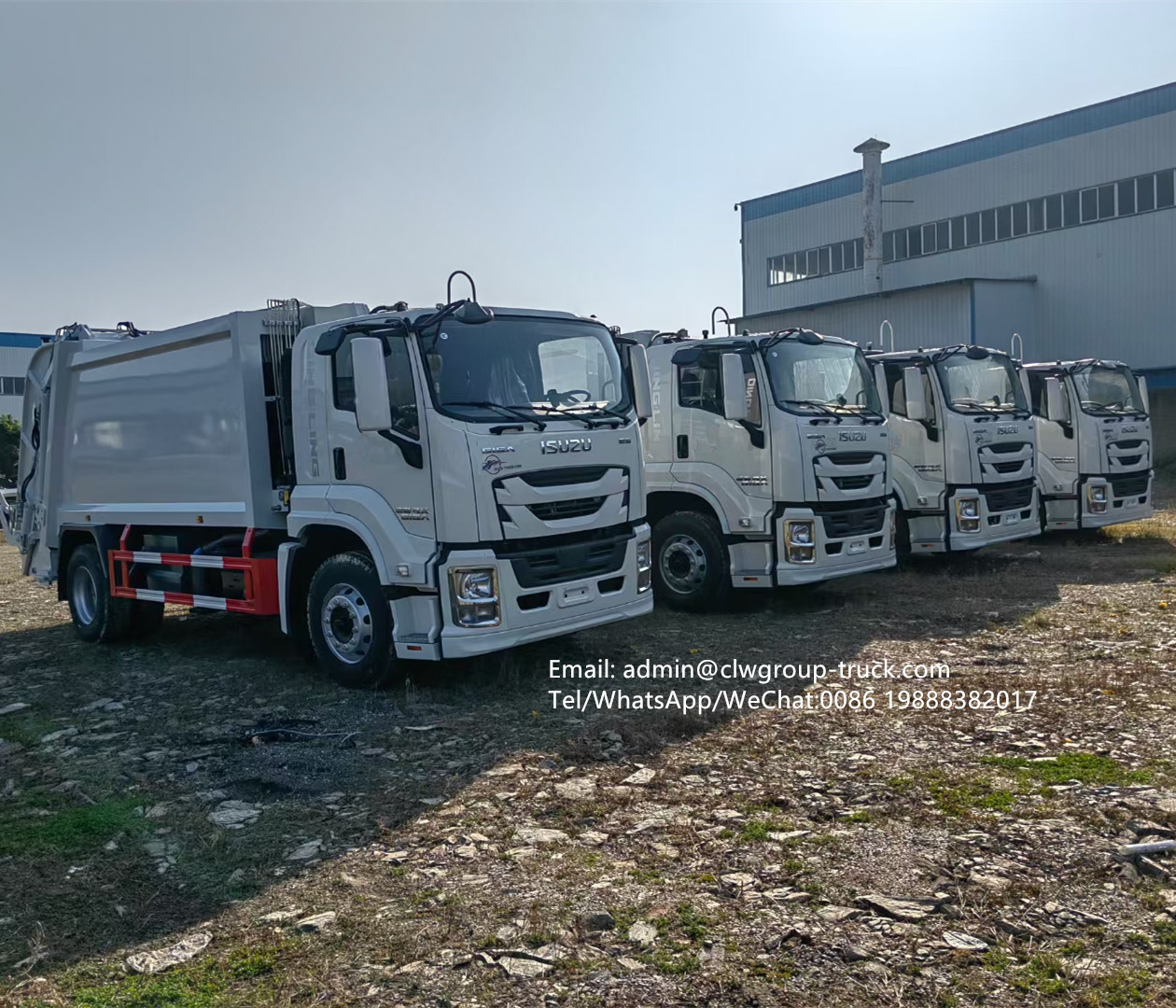

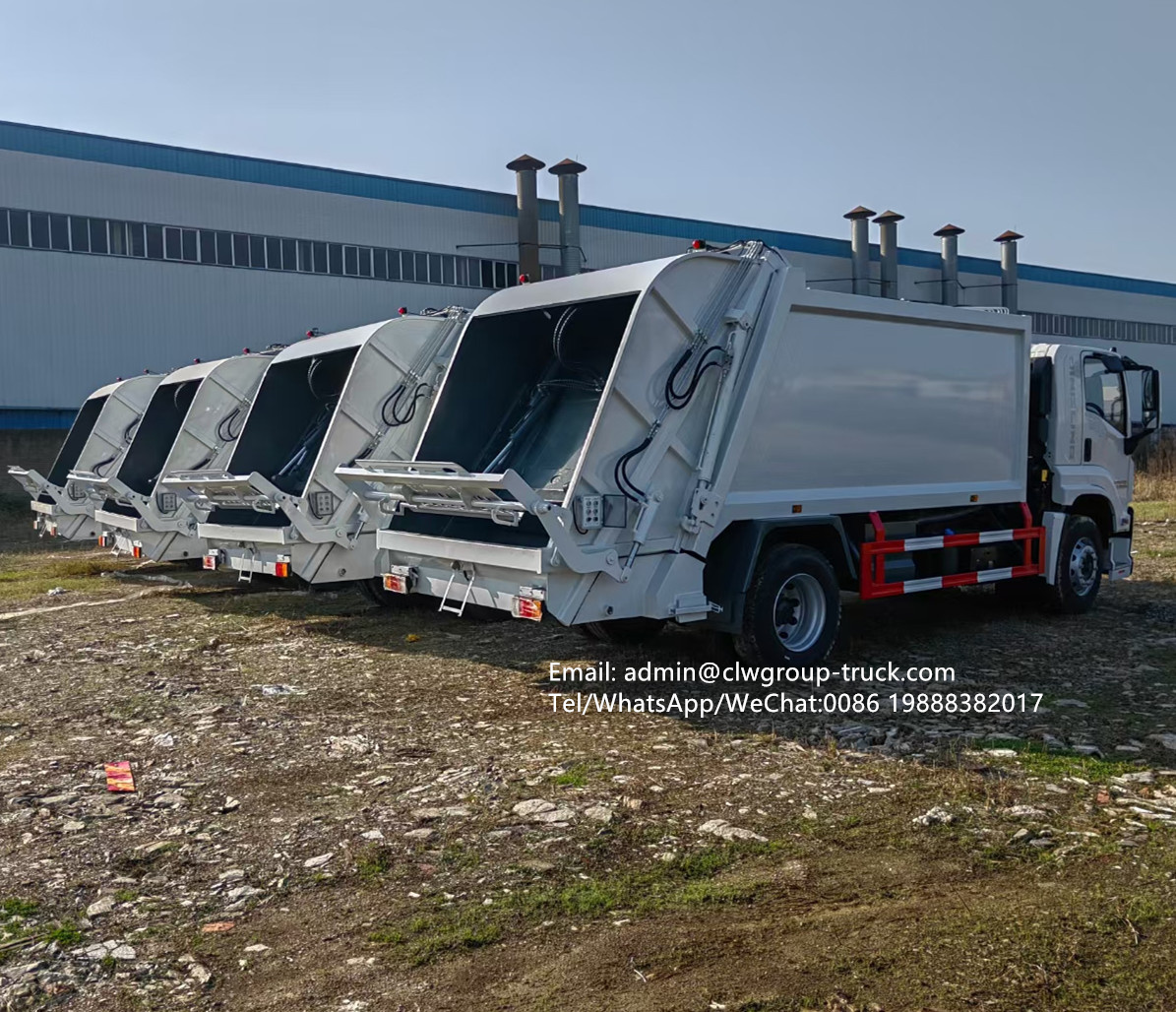

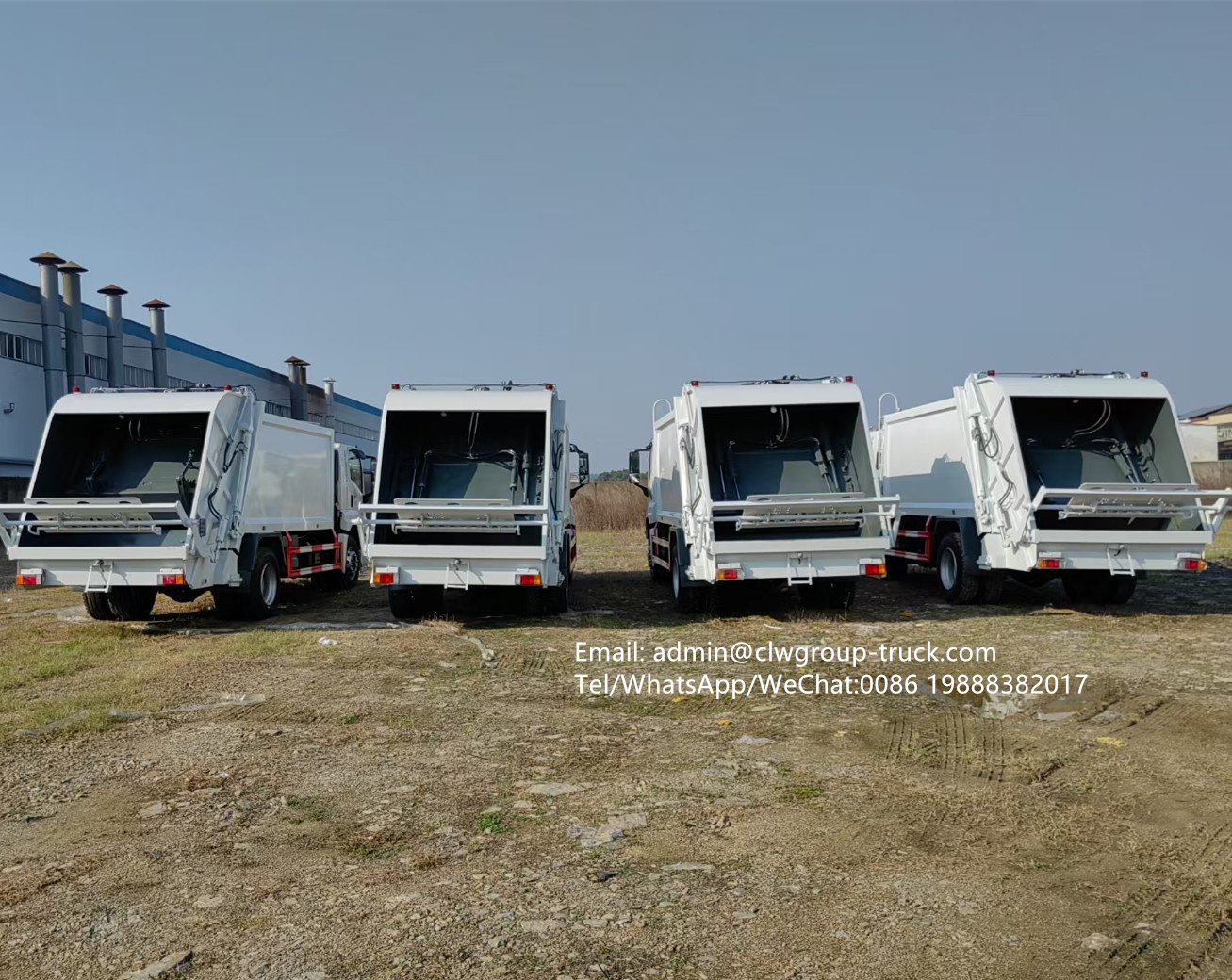

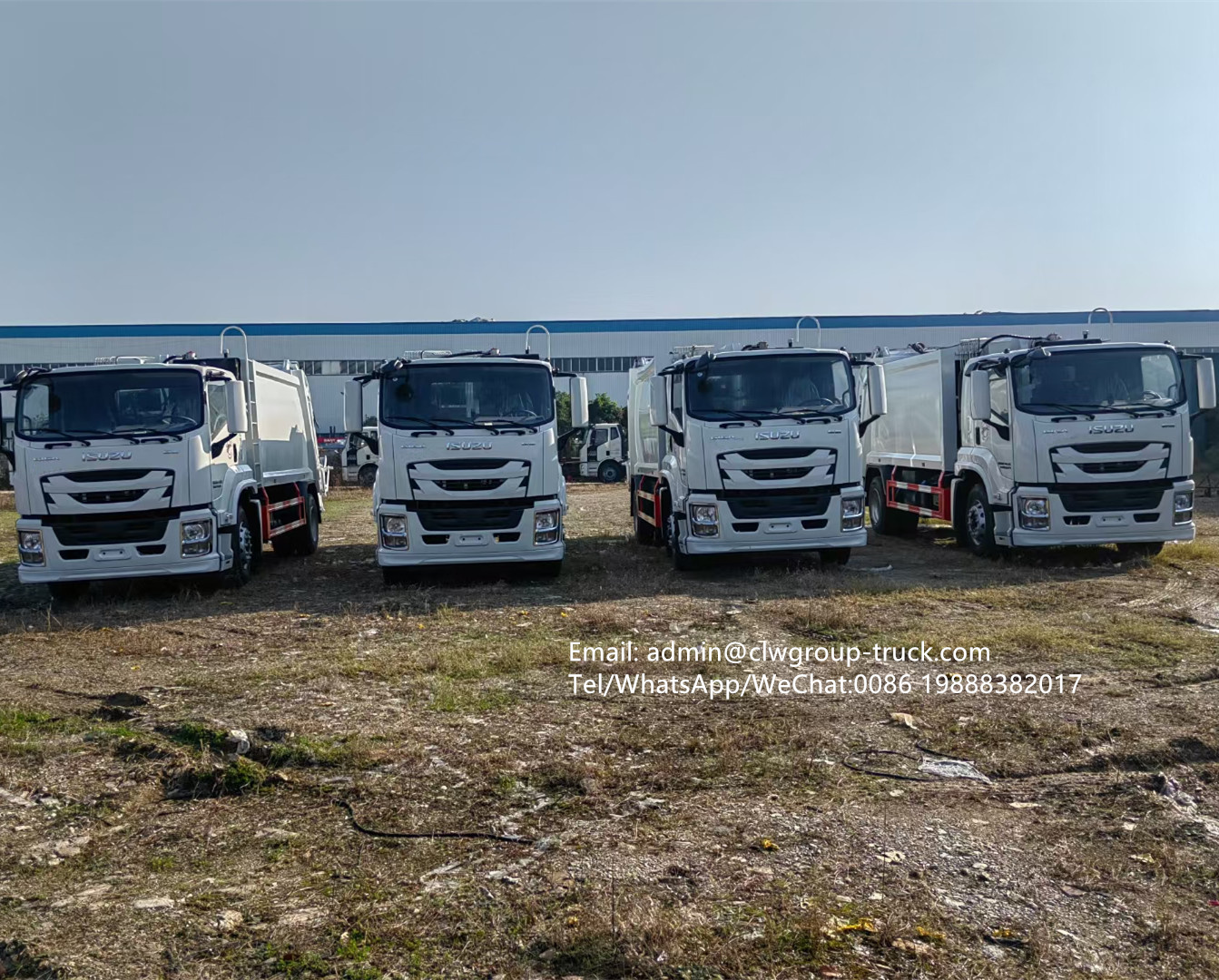

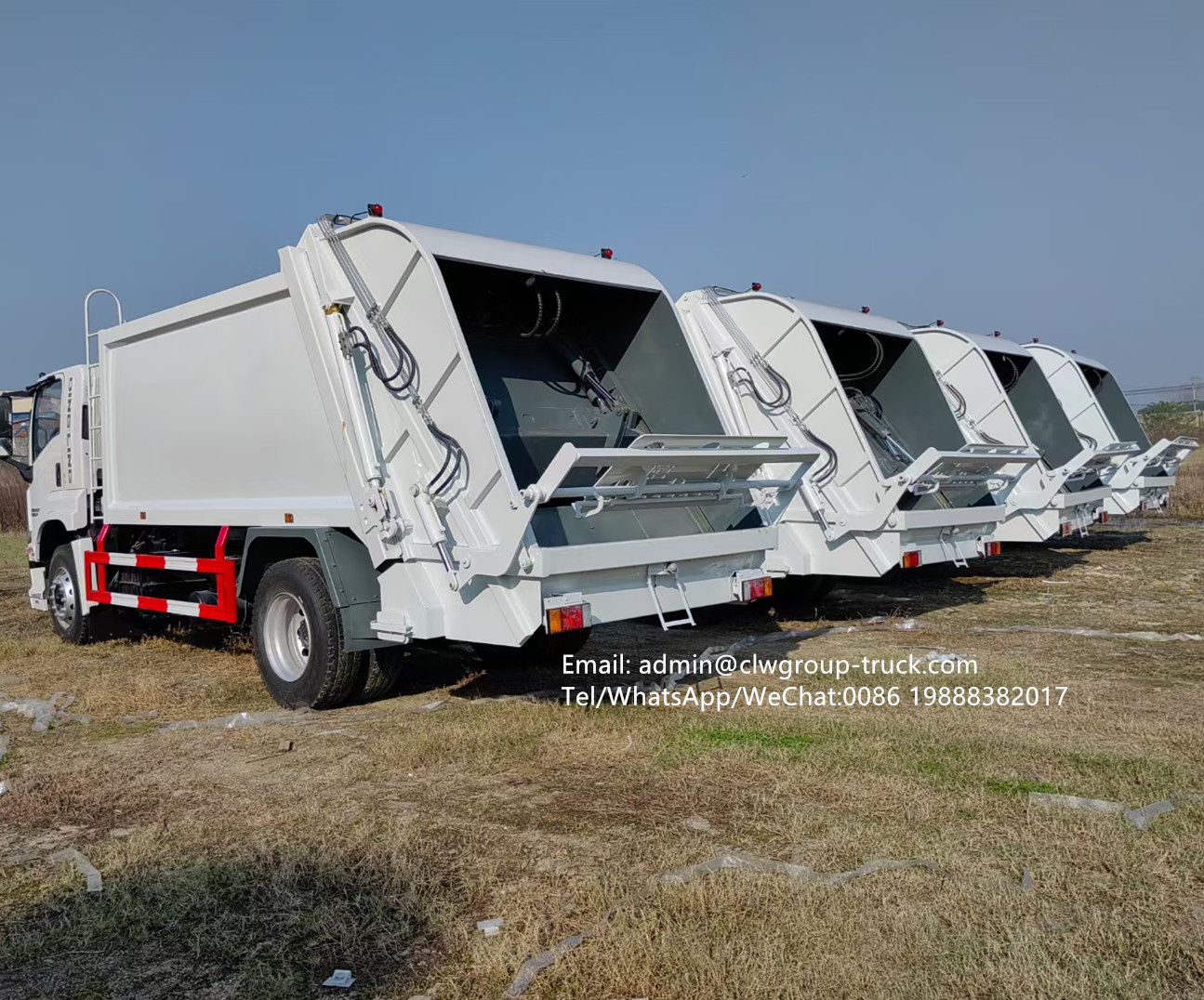

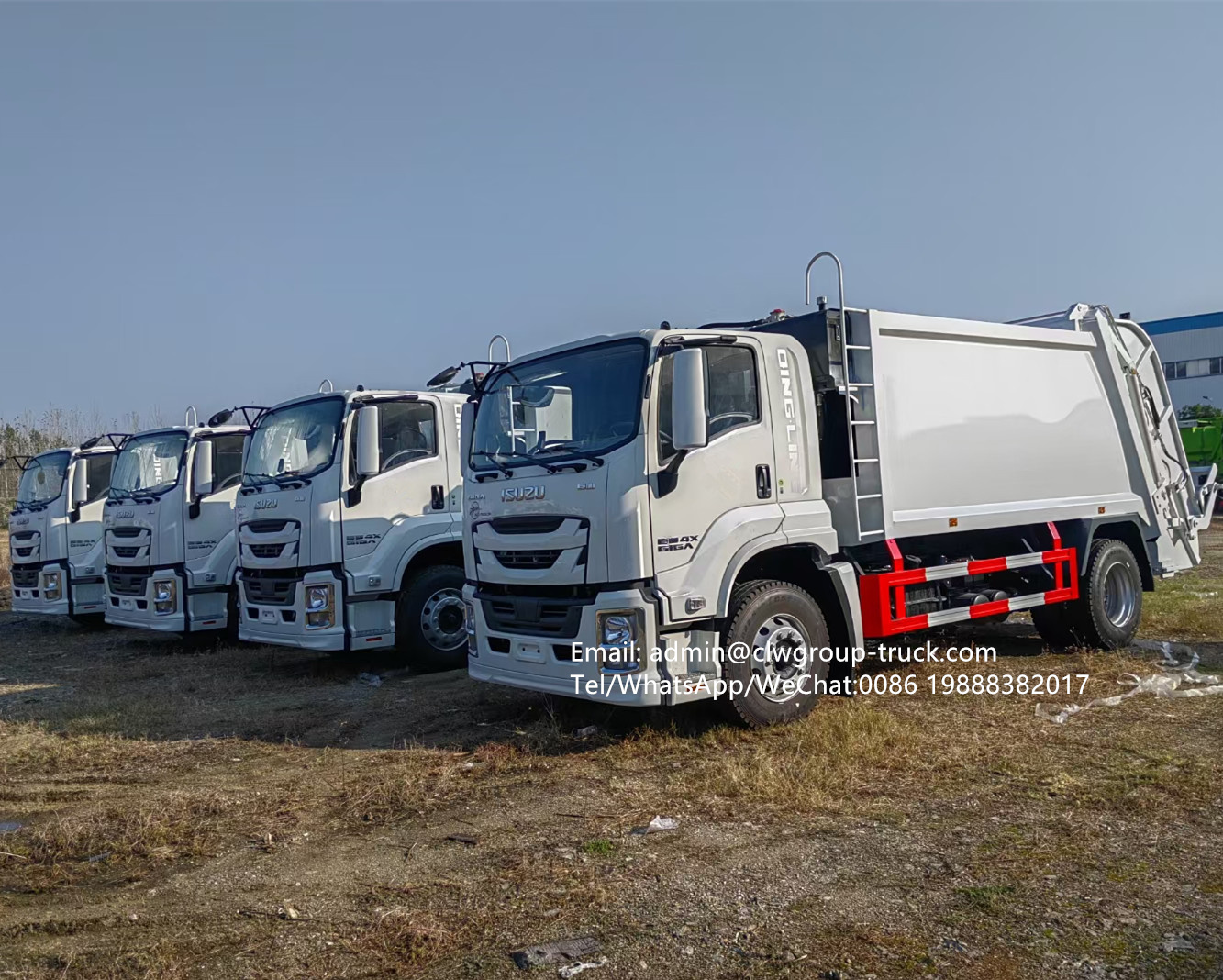

The Isuzu 16 cubic meter compressed garbage truck is a heavy-duty modification of Isuzu GIGA, with a total vehicle weight of 18 tons and a loading weight of 13.5 tons. Let's take a look at the performance parameters of the Isuzu 16 cubic meter compressed garbage truck:
Advantages of the vehicle model: With a large loading capacity, the 18 ton compressed garbage truck can guarantee the loading of more than 380 barrels of household waste (240L), a compression ratio of 1: 0.85 or more (with a loading capacity of about 14 tons, leading the industry), stable and strong performance, precise customization of accessories, high pressure, strong power, and low failure rate
Isuzu 16 cubic meter compressed garbage truck chassis configuration: new Isuzu VC61 cab, cold and warm air conditioning, steering assistance, central locking, electric doors and windows, multifunctional steering wheel, multifunctional LCD instrument panel, with ABS, air brake, front axle 6.3 tons, rear axle 13-20 tons tires 295/80R22.5 engine Isuzu 4HK1-TC60 205 horsepower, Isuzu MLD 6-speed transmission
Isuzu 16 cubic meter compressed garbage truck box configuration: box volume of 16 cubic meters, curved box, made of 5mm manganese steel, floor with support reinforcement, open and easy to clean sewage tank, garbage bin is connected, Yangzhou Duomei multi way valve, Hefei Changyuan double gear oil pump, with photoelectric induction, compression push plate, triangular bucket flipping feeding mechanism, PLC one key control system installed, LED lighting installed in the sealed bucket
Compressed garbage trucks are mainly used for transporting various types of garbage in various environmental sanitation municipal and large factories and mining departments. They can also transport bulk building materials such as ash, sand, stone, and soil, and can also transport ore or coal in mines or coal mines. It can be modified into a garbage truck for various special purposes according to user requirements.
Isuzu compressed garbage truck composition:
Composed of a sealed garbage bin, hydraulic system, and operating system. The whole vehicle is fully sealed, and the sewage generated during self compression, self dumping, and compression processes enters the sewage tank, completely solving the problem of secondary pollution during garbage transportation and avoiding inconvenience to people. The key components are imported, which have the advantages of high pressure, good sealing, easy operation, and safety. Optional rear hanging bucket flipping mechanism or garbage bin flipping mechanism.
The characteristics of Isuzu compressed garbage truck:
1. The collection method is simple, changing the dirty and messy old appearance of garbage bins scattered all over the city, and eliminating secondary pollution.
2. High compression ratio and large loading capacity: The large crushing pressure reaches 12 tons, and the loading capacity is equivalent to twice and a half times that of non compressed garbage of the same ton level.
3. Automation of homework: Using a computer control system, all filling and unloading operations require one driver to operate, and can be set to two operating modes: fully automatic and semi-automatic. This not only reduces the labor intensity of sanitation workers, but also greatly improves the working environment.
4. Good economy: When specialized equipment is in operation, the computer control system automatically controls the throttle
5. Dual insurance system: The operating system has dual functions of computer control and manual operation, greatly ensuring and improving the utilization rate of vehicles. Flip mechanism: An optional flip mechanism with a garbage bin (or bucket) can be installed.
