dongfeng 10,000litres water tanker with lorry export to West Africa

Water tank truck are a very practical vehicle that plays an important role in landscaping, urban cleaning, and agricultural development. Sprinkler truck, also known as sprinkler truck, multifunctional sprinkler truck, landscaping sprinkler truck, water tanker truck, water transport truck

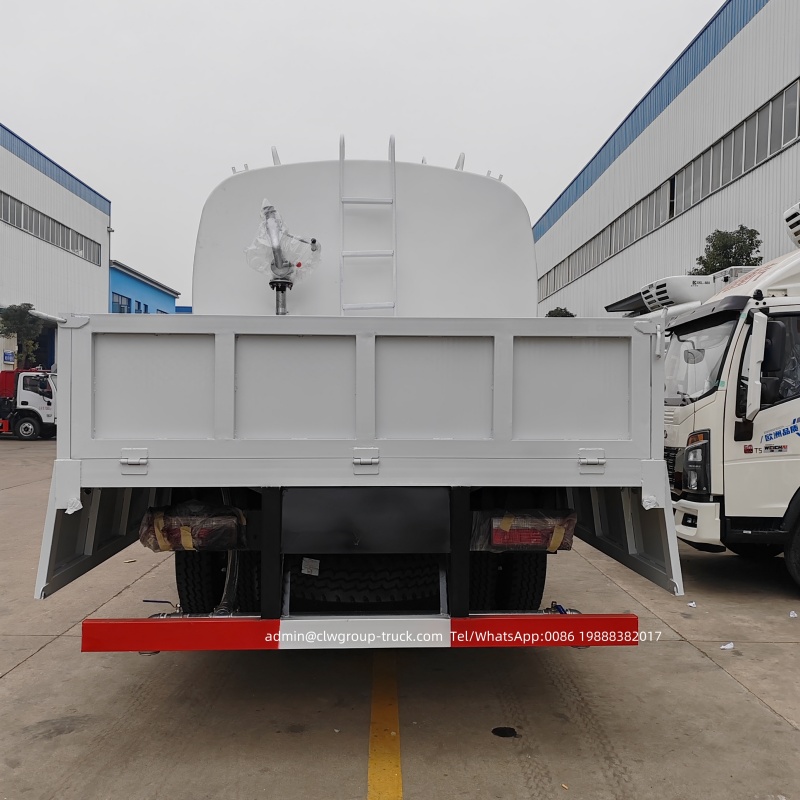

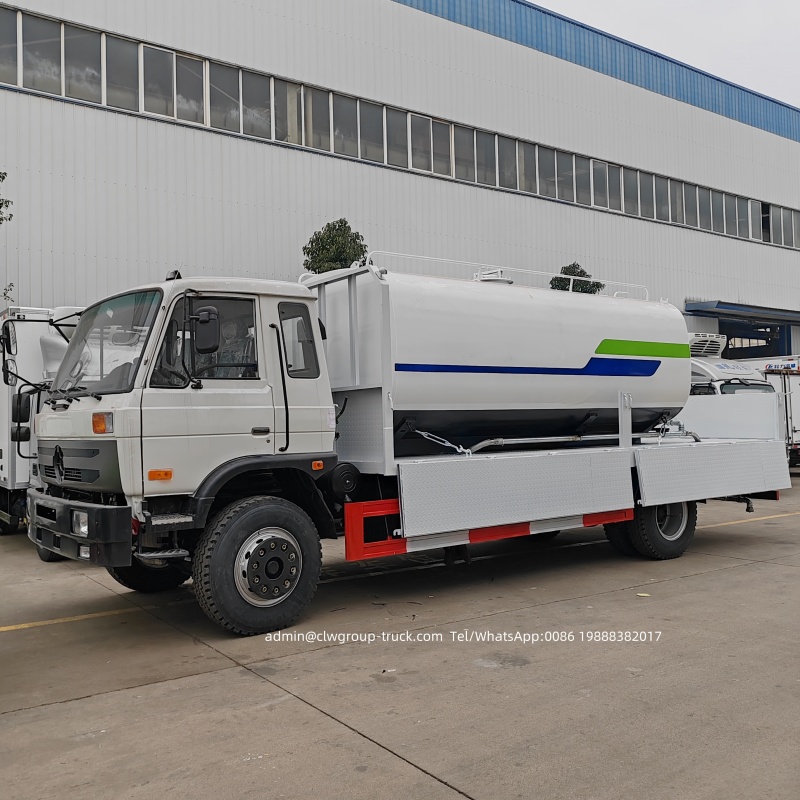

The general components of a water tank truck are a carbon steel tank, a fire interface, outlet and inlet valves, and a front flushing and rear spraying nozzle. Optional configurations: GPS, universal nozzle, solenoid valve, pneumatic valve, visual operating system, external power, medication tray. Today we received a request from a client from Africa for a sprinkler truck with the function of transporting goods. After being designed and produced by a designer, this multifunctional sprinkler truck is shown in the following picture


Dimensions of water tank truck (length, width, height): 8200x2480x3050
Gross weight and curb weight of the vehicle: 14490/7000kgs

Chassis configuration:
The chassis of CLW Chengli brand is equipped with a Cummins engine with 190 horsepower (6-cylinder engine), a 153 row semi cab, a gearbox with 8-speed (high and low gears), a front axle of 5 tons and a rear axle of 10 tons, tires of 10.00 R20252 double-layer frame, drive wheel, air brake, electric doors and windows, and air conditioning.

Water tanker configuration:

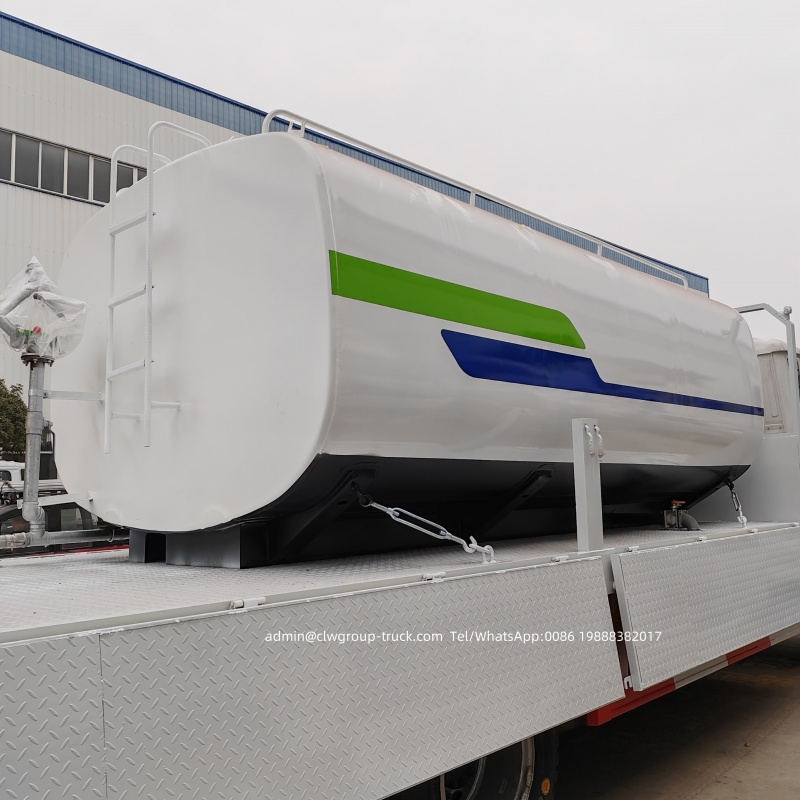

A 10 cubic meter carbon steel water tank truck is made of high-quality carbon steel plates from Wugang, which are rolled and pressed in one go to achieve seamless molding. Equipped with a dedicated sprinkler pump, front flushing and rear spraying, side spraying, rear work platform, and high-pressure sprinkler gun. The self-priming height of the sprinkler pump is 6 meters, with a water output of 60 cubic meters per hour. The sprinkler width of the entire vehicle is greater than 14 meters, and the straight range of the water cannon on the rear work platform is about 30 meters (adjustable to: straight, heavy rain, moderate rain, light rain, drizzle). The entire vehicle is equipped with a fire joint, a gravity valve, and self-priming function. Comes with 2 equally long water pipes for the tank, 1 20 meter green reel, 1 rear ladder, both sides and rear bumper.

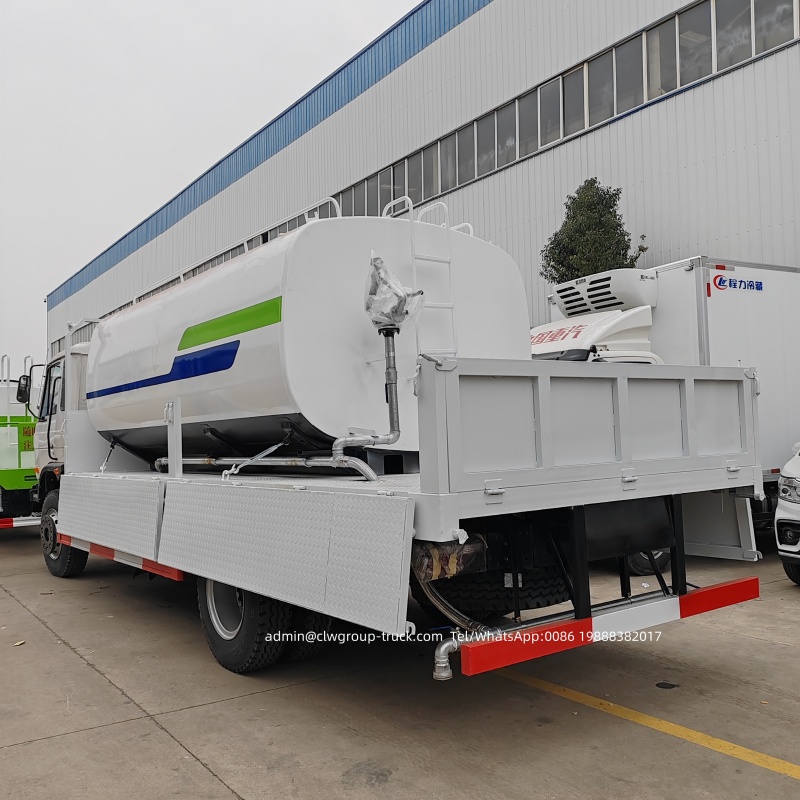

The sprinkler tank is installed in a self unloading container, which is made of carbon steel with a thickness of 4mm at the bottom and 3mm at the edges
The size is 6200 * 2450 * 600mm, and the cargo box is painted white.

water tank truck Piping system
It consists of pipelines, four position three-way ball valves, straight through ball valves, filter screens, and water outlets (front flushing and rear spraying, side spraying; high-level side showerheads; with green sprinkler high-altitude guns).
Water tank truck is a type of tank truck specialized for Chengli vehicles. In addition to sprinkler trucks, fuel trucks, sewage suction trucks, and fecal suction trucks, they all belong to the branch of environmental sanitation vehicle tank trucks. We can choose the chassis and customize the vehicle according to the customer's requirements. When you decide to order a specialized vehicle, you first need to determine the brand of chassis commonly used, such as Chengli brand, Dongfeng, Foton, Sinotruk, Shacman, Isuzu, FAW, etc. The engine, gearbox, front and rear axles, and tires have different configurations and prices. Then we need to determine the volume of the water tank truck. The volume of the water tank truck ranges from 3 cubic meters to 35 cubic meters, and the capacity of the semi-trailer is 35 cubic meters to 60 cubic meters. The flow rate of the water pump is small, and the water tank truck generally has a flow rate of 30 cubic meters per hour, but there are also large flow rates of 60 cubic meters per hour. We can also install high-pressure pumps and reels for washing small and concentrated impurities. In some countries, a sprinkler truck equipped with a fire pump can also serve as a fire sprinkler, or a high-altitude work basket can be installed in front of the sprinkler tank. In addition to watering, it can also spray pesticides and maintain electric lights at high altitude. We can also produce truck mounted lifting and transportation vehicles with water tanks, and modify them into multi-purpose sprinkler trucks.
In some tropical regions or densely populated urban areas, water and power outages often occur during high voltage periods in summer. At this time, a drinking water vehicle is needed to transport the water source, which is commonly referred to as a drinking water transport vehicle. Unlike ordinary water tank truck, drinking water vehicles can use carbon steel tanks with anti rust coatings to ensure the cleanliness and hygiene of drinking water. They can also be made of stainless steel, equipped with stainless steel pumps and pipes to ensure that the water source is pollution-free and meets the standards for healthy drinking for the people. Stainless steel water trucks are also in high demand and generally do not come with sprinkler guns and rear platforms.

We also have a type of tank truck that requires the use of stainless steel, which is called a milk truck. Milk transport trucks are also known as fresh milk transport trucks, milk tank trucks, and liquid food transport trucks. The tank body is made of food grade stainless steel plates, and the exterior of the tank body needs to be insulated to prevent fresh milk from spoiling. The interior of the tank body is required to be smooth and free of sharp corners, and generally requires CIP (cleaning device) to be added to each milk compartment. The tank body is made of high-quality aluminum alloy and stainless steel, and the inside and inside of the tank body are finely polished. The tank body can be equipped with insulation and cooling functions. It can transport various chemical raw materials, dairy products, oil products, and liquid food.
