Dongfeng with cummins engine 170hp 8000l water delivery truck
dongfeng with cummins engine 260hp 20,000l water delivery truck
Case Details
Dongfeng sprinkler truck is a specialized vehicle used for urban road cleaning, green irrigation, emergency firefighting, and other purposes. Its basic components include anti rust tank body, power take-off, transmission shaft, dedicated self-priming sprinkler pump, pipe network, spray outlet, working platform, and Class II chassis. These components work together to enable the Dongfeng sprinkler truck to efficiently complete various sprinkler tasks. The tank body of Dongfeng sprinkler trucks is usually made of high-quality carbon steel plates, and in special cases, 304 stainless steel can also be used according to customer needs

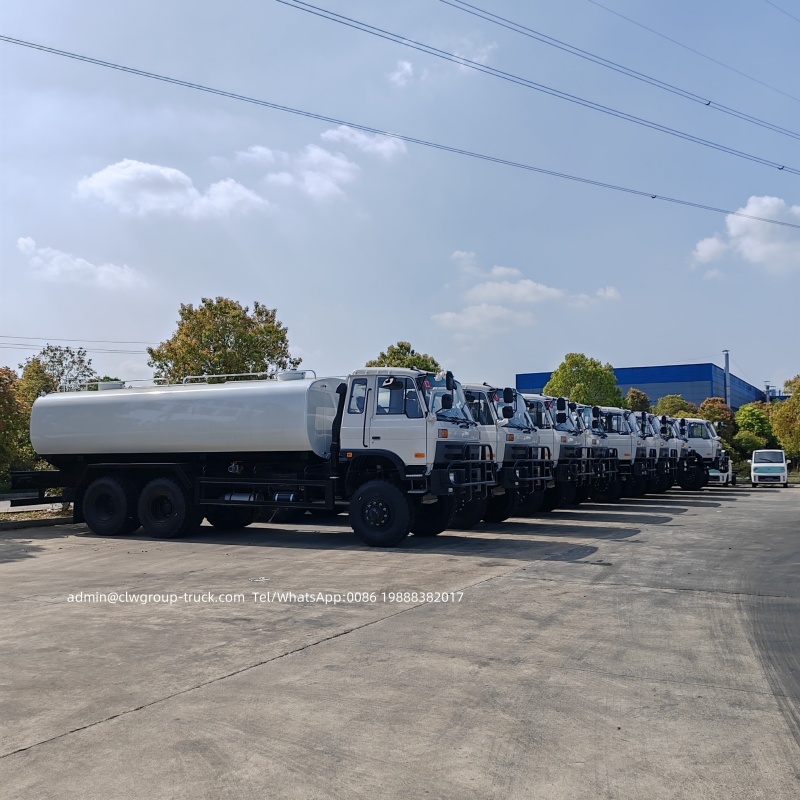

The 4X4,6x6 drive Dongfeng water truck has good passability and grip, suitable for unpaved terrain such as deserts, Gobi, forests, and snow. Its strong off-road performance makes it the preferred product for field operations. In some tropical countries in South Asia, the roads are very rugged. After inspecting Chengli Special Purpose Vehicle Co., Ltd., the customer was very satisfied with our production process and manufacturing technology. The sprinkler workshop adopts an automatic assembly line tank production process, which includes cutting, automatic welding of splicing plates, head spinning forming, and one-time rolling forming of tank bodies, among other advanced domestic production processes The tank material is mostly made of high-quality carbon steel plate, and the tank body is produced by electrophoretic spray painting to reduce rust. The equipment has a rolling machine, automatic bending, etc. The manufacturer has ISO certification, greatly enhancing customer trust. After several consecutive visits and visits, a batch of over 30 transport vehicle orders were signed with us.
Let's introduce the configuration and parameters of the following batch of orders:

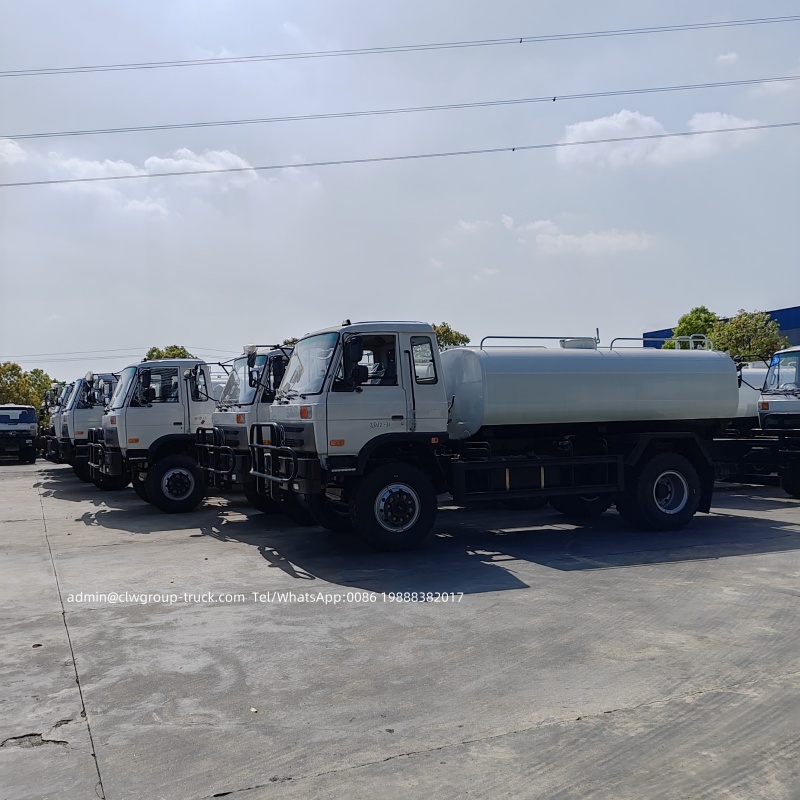

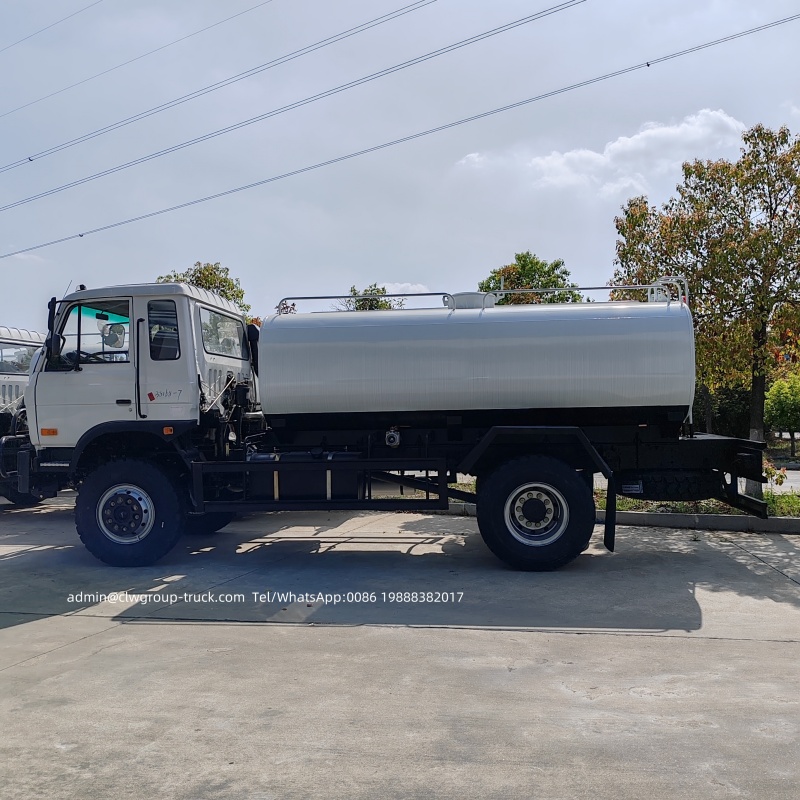

Dongfeng 4 * 4 8000l water transport truck chassis configuration: Cab: Dongfeng 153 cab, single row, white, with front bumper and air conditioning Drive type 4 * 4, wheelbase 3950mm, engine model: B170 33 125KW/170HP, torque 560N,. M, emission 5.9L, produced by Dongfeng Cummins Engine Co., Ltd., small eight speed transmission, model 8JS85C-FDX, 8 forward gears and 2 reverse gears. The transfer case with a small eighth gear is manufactured by Hubei United Gravity Technology Co., Ltd. It has a front axle of 4.5 tons, a rear axle of 9 tons, a frame of 250 * 80 * 7+4mm, suspension springs of 8/10+8, and tires of 11.00R20

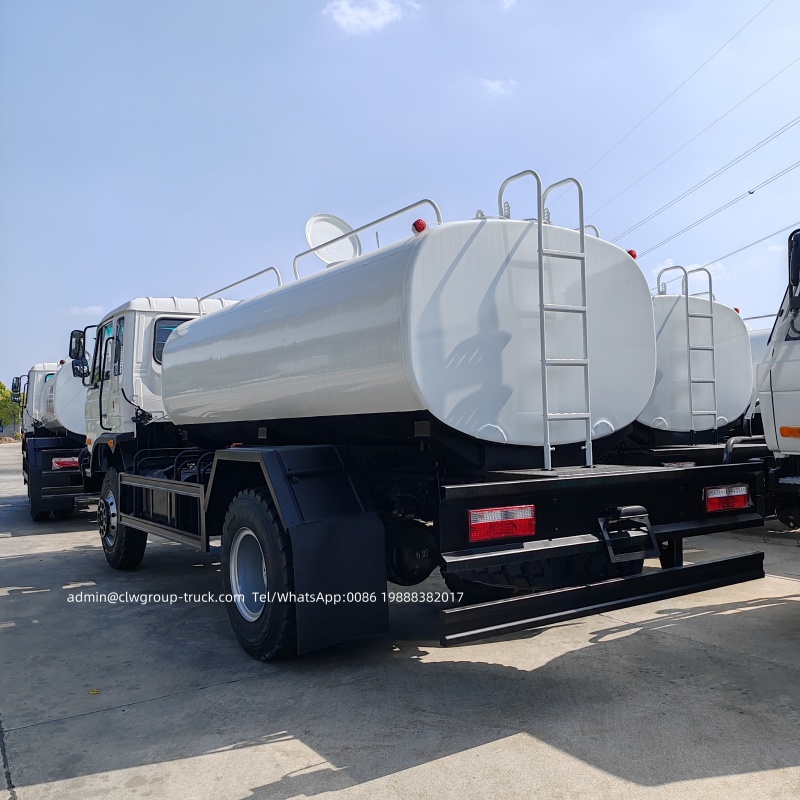

Dongfeng 4 * 4 8000l water tank installation configuration: Carbon steel Q235R tank body, with a thickness of 4mm for the tank body and 5mm for the head. There are 2 anti wave plates inside the tank, equipped with a 65 # ball valve, filter screen, self flowing valve, a manhole cover with manual lock, anti slip walkway, ladder, and electrophoretic paint.
Dongfeng 6 * 6 all wheel drive chassis configuration: Cab: Dongfeng 153 cab, single row, white, with front bumper and air conditioning Drive 6 * 6 left steering wheel, wheelbase 4350+1350mm, engine model Cummins 260 horsepower, 191 kW, torque 1090N. m, displacement 8.3L, produced by Dongfeng Cummins Engine Co., Ltd., transmission model 10JSD120A, 10 forward gears and one reverse gear, transfer case model LHZL-1200-010, front axle 6 tons, rear axle 10 tons, frame 278 * 80 * 8+4mm, suspension spring 8/10, tires 12.00R20 18PR

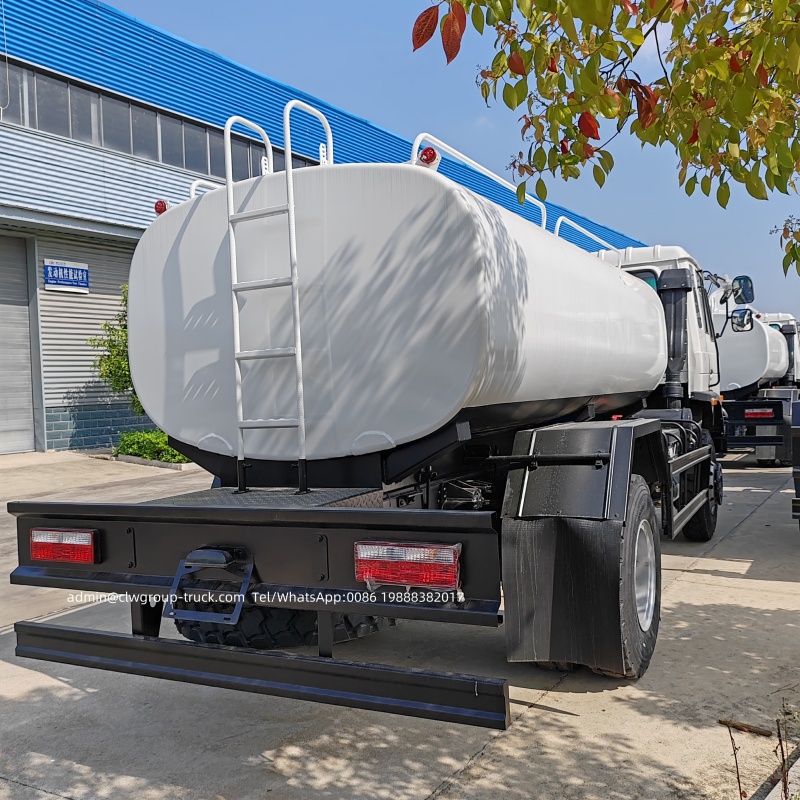

Dongfeng 6 * 6 20000L sprinkler tank installation configuration: Carbon steel Q235R tank body, with a thickness of 5mm for the tank body and 6mm for the head. There are 2 anti wave plates inside the tank, equipped with 65 # ball valves, filter screens, and self flowing valves. The two manhole covers have manual locks, anti slip walkways, ladders, and electrophoretic paint
The difference between a water truck and a sprinkler truck is that they do not have a rear platform or front flushing and rear spraying, making the entire structure simpler and more durable. If the customer has a need for a sprinkler truck, we can choose to install it Front flushing - Install two 360 degree adjustable DC nozzles with a flushing width of over 25mm. In addition to flushing the road surface, when the nozzle is adjusted to around 45 degrees, it can flush the tall trees on both sides of the road surface.
Post spraying - equipped with two sprayable post spraying devices, mainly for cleaning and dust suppression on the road surface. When spraying in a fan shape, the spraying width can reach more than 10m. Anti aircraft gun spraying - equipped with an anti-aircraft gun grab, with a range of over 30m, adjustable to mist or column shape as needed, mainly used for landscaping and emergency firefighting
If you are looking for a professional and reliable sprinkler truck, then Chengli sprinkler truck will be your best choice. In practical applications, Chengli sprinkler trucks demonstrate powerful functionality and excellent performance Advanced technology:
As one of the representative products of Chengli, Chengli sprinkler truck has achieved perfect integration in terms of technical level. Adopting advanced integrated control system and precise and efficient response make it highly advantageous in driving, pumping water, and maintenance.
Reliable Quality: Chengli Water Sprinkler uses high-quality imported raw materials, a complete production management system, and strict production processes, resulting in superior product quality and performance. Whether in the manufacturing process or in the later stages of use, it can demonstrate its excellent reliability and safety.
Service in place: Chengli sprinkler trucks have a comprehensive guarantee system from purchase to after-sales service. Our professional after-sales service team can meet your needs to the greatest extent possible, providing you with worry free service from terminal sales to after-sales maintenance.
Easy to maintain: The maintenance of Chengli sprinkler truck is particularly simple, which can greatly reduce the dwell time of trucks in the repair shop
The sprinkler truck can be equipped with GPS, universal nozzle, solenoid valve, pneumatic valve, visual operating system, external power, medicine tray and other configurations. These optional configurations not only enhance the functional diversity of the vehicle, but also increase the efficiency and safety of the operators.
Dongfeng sprinkler trucks are widely used in urban road cleaning, landscaping, dust reduction in construction sites, emergency firefighting, and other fields. With their excellent performance and reliability, they have won the trust and praise of a large number of users.
