Fecal suction truck is a specialized vehicle for cleaning sewage ditches and sewers, mainly used for suction and transportation of feces and other sewage in urban and rural areas and environmental sanitation departments. The suction truck produced by Chengli Special Automobile Co., Ltd. can suck feces, sewage, sludge, and liquids mixed with small suspended debris. It is suitable for municipal sanitation, large, medium and small industrial and mining enterprises, residential areas, schools, septic tank cleaning and transportation, urban pipeline cleaning and dredging, factory biogas slurry and sludge cleaning, etc.
The fecal suction pipe can rotate 360 degrees and can be discharged in two ways: pressurized discharge and self flow discharge. The time for the suction truck to fill the sewage (fecal) tank is ≤ 5 minutes, and the suction lift is ≥ 7 meters. Vacuum suction trucks are self suction and self discharge, with fast working speed, large capacity, and convenient transportation. They are suitable for collecting and transporting crude oil liquid substances, sewage slurry, sludge, stones, and other substances with large volume and low water content.

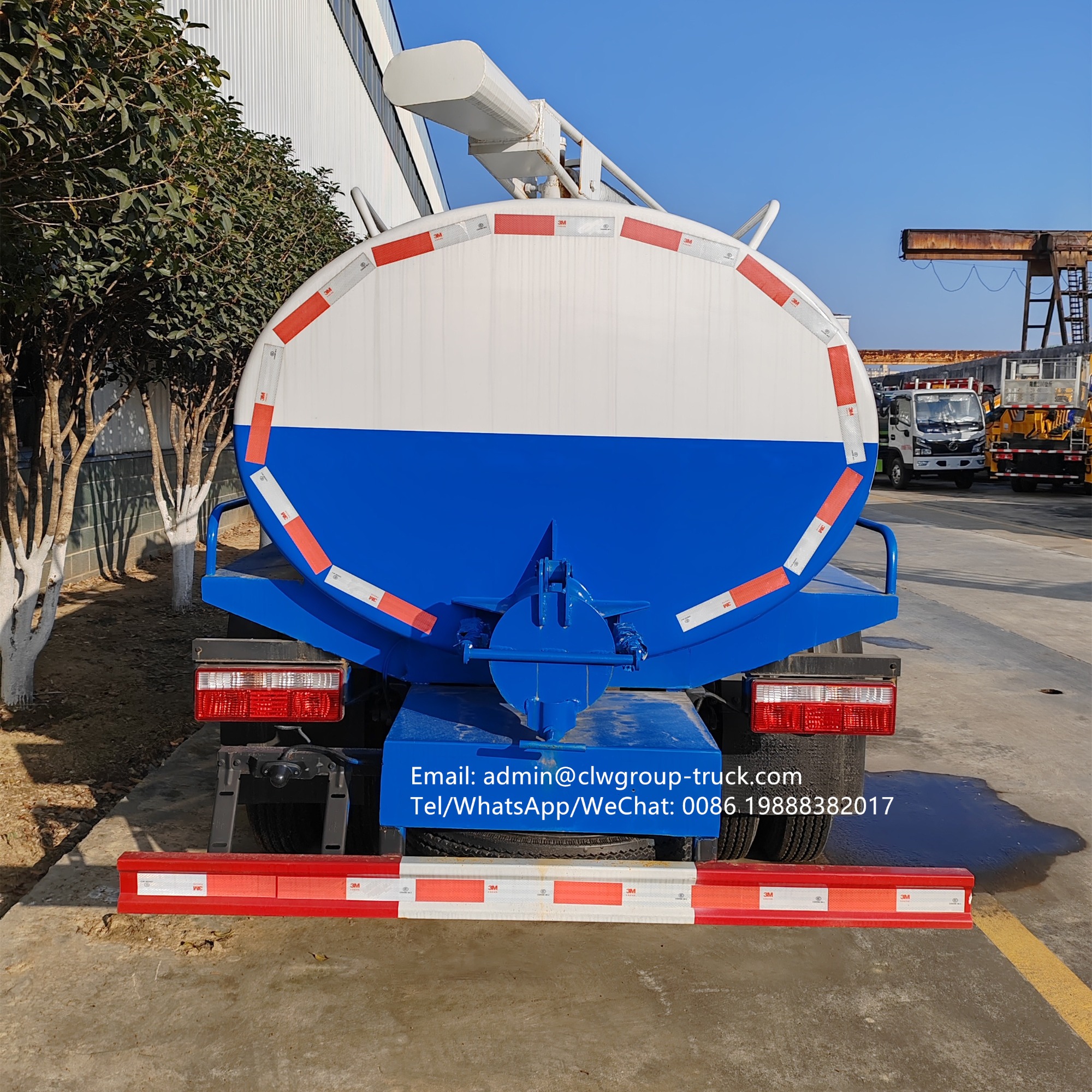

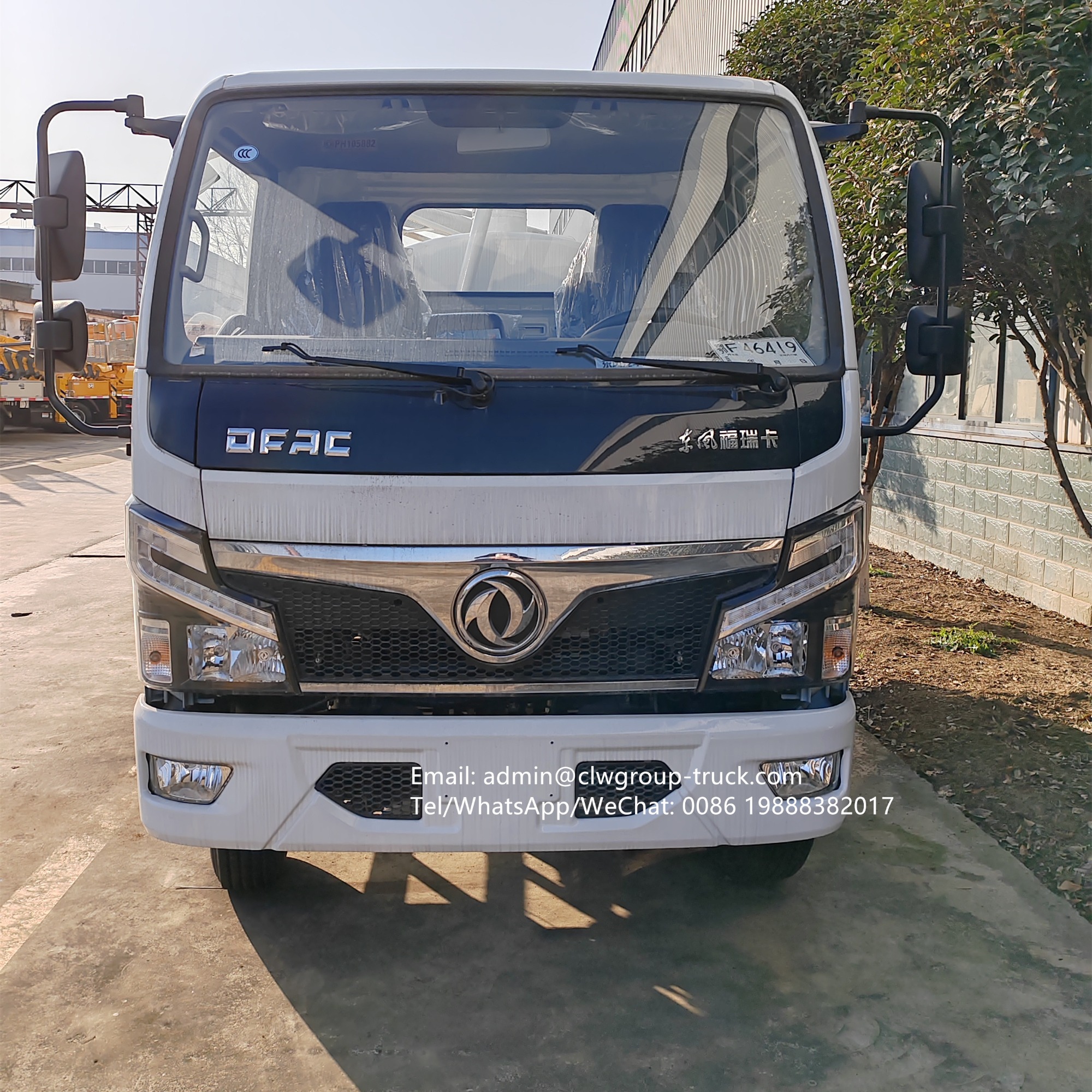

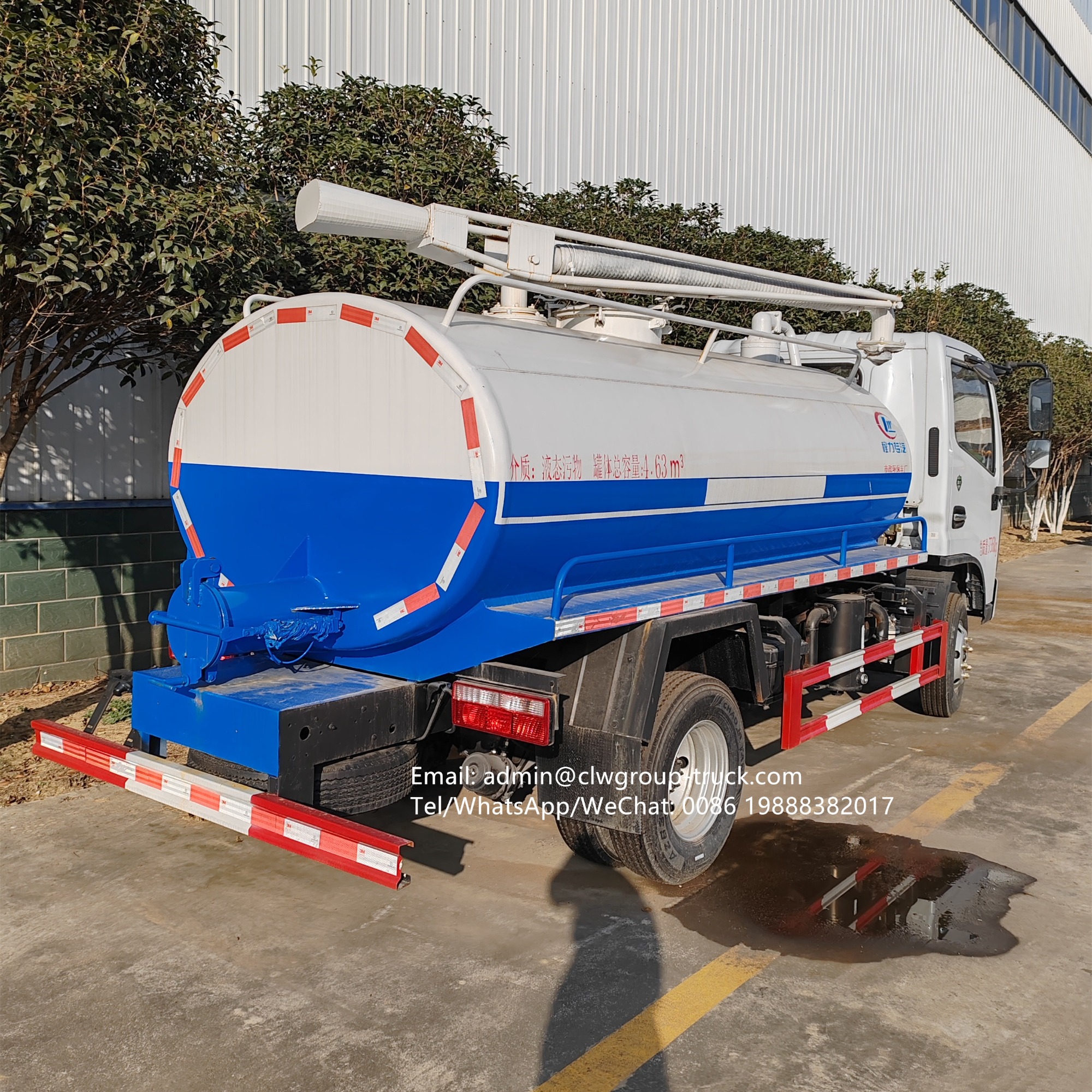

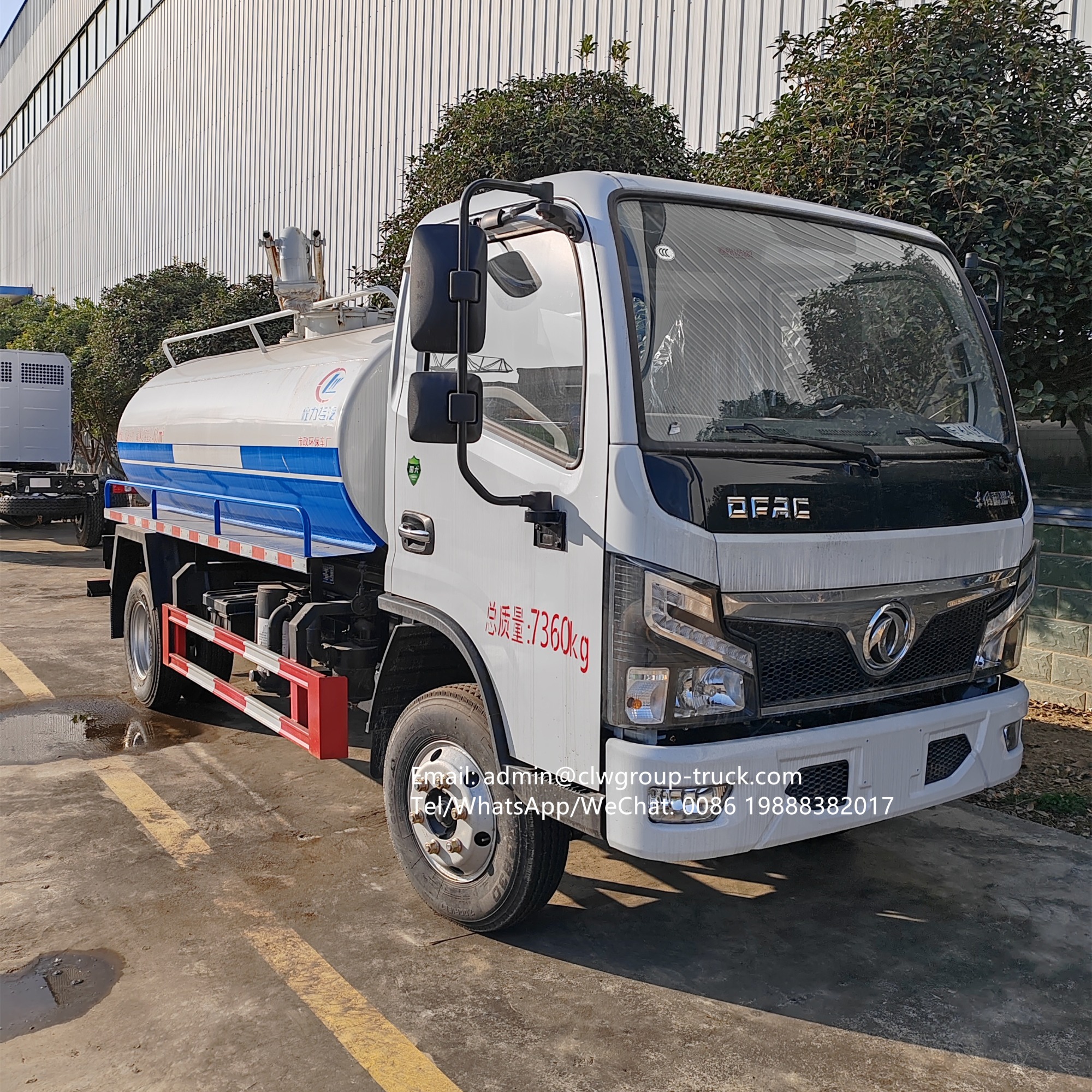

Dongfeng 5-cubic meter fecal suction truck chassis configuration: wheelbase 3308, cab 1730 single row chassis, engine Chaochai 80 horsepower, Wanliyang 5-speed gearbox, exhaust brake, front and rear axles 1.8/3.5, 7.00 steel tires, power steering, clutch air assist, ABS, dryer, electric window, central locking. Upper configuration: 4-5 thick Wuhan Iron and Steel plates with a volume of 5 cubic meters, 5-6 thick at both ends, equipped with fecal observation windows, 1 self flow port, cleaning device, 5 meters of fecal suction pipe, with suspension rod seat, vacuum pump, oil-water separator, and anti overflow valve.
Dongfeng 5-cubic meter fecal suction truck function introduction: The suction truck is mainly used as a specialized vehicle for cleaning and cleaning in environments such as septic tanks, sewage ditches, and sewers. It is also known as the three major environmental sanitation models along with sprinkler trucks and garbage trucks. Full suction time of sewage (feces) tank: ≤ 5 minutes, suction lift: ≥ 10 meters. Self suction and self discharge, long service life, fast working speed, and convenient transportation. There are two types of discharge methods for suction trucks: boom pressurized discharge and self flow discharge. The suction truck is self suction and self discharge, suitable for use by environmental sanitation and municipal departments in large, medium, and small towns
The Dongfeng 5-cubic meter fecal suction truck is one of our recommended economical and affordable models. The Dongfeng chassis is relatively cheap, making it easy to find chassis parts and easy to maintain in the later stage. It has deeply attracted the attention and praise of many car enthusiasts
We can generally achieve a capacity of 3-20 cubic meters for suction trucks according to customer requirements
In addition to Dongfeng, we can also choose other brand like,Shacman, Isuzu, Foton, FAW, sinotruk etc
Composition of the fecal suction truck: Vacuum suction truck configuration: partially composed of a power take-off, transmission shaft, vacuum suction pump, water and gas separator, oil and gas separator, multi-channel directional valve, suspension rod, fecal tank, fecal discharge valve, suction gun, clean water tank, fecal viewing window, vacuum pressure gauge, pipeline system, etc.
Who knows the difference between a fecal suction truck and a sewage suction truck?
1. Different types of suction trucks are mainly used for cleaning vehicles in environments such as septic tanks, sewage ditches, and sewers. A sewage suction vehicle is a new type of environmental sanitation vehicle that collects, transfers, cleans and transports sludge and sewage to avoid secondary pollution.
