Case Details
Nowadays, municipal governments in various countries are very concerned about the dredging of urban waterways. Due to the accumulation of silt over the years, the cleanliness and tidiness of waterways have been affected, weakening the water storage capacity of waterways. River dredging is beneficial for improving water quality, strengthening the water storage capacity of waterways, and enhancing the flood prevention and drainage function of waterways during flood season. Therefore, this African customer has customized this 6X4 cleaning and suction vehicle from our cleaning and suction vehicle manufacturer. Below, we will introduce it to you

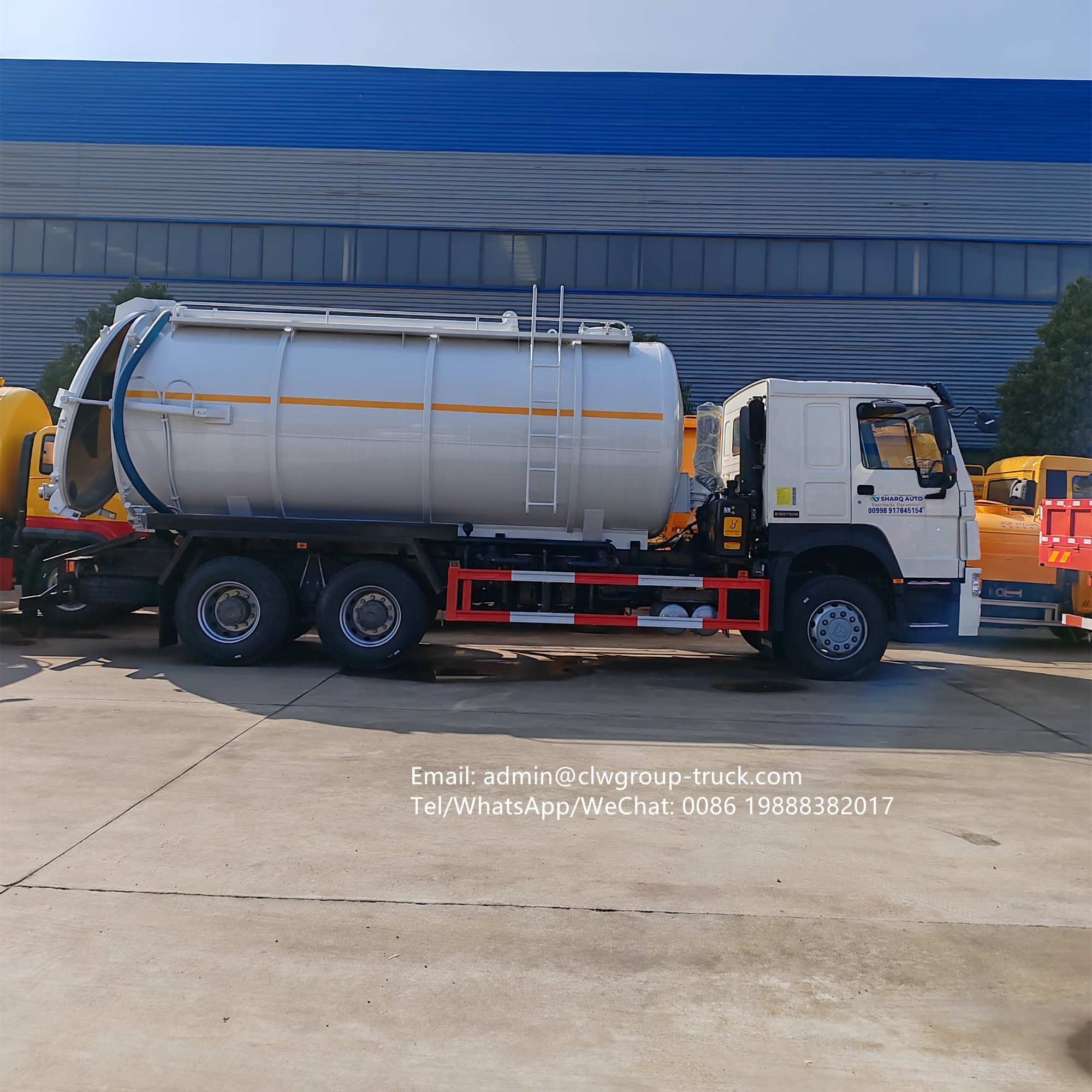

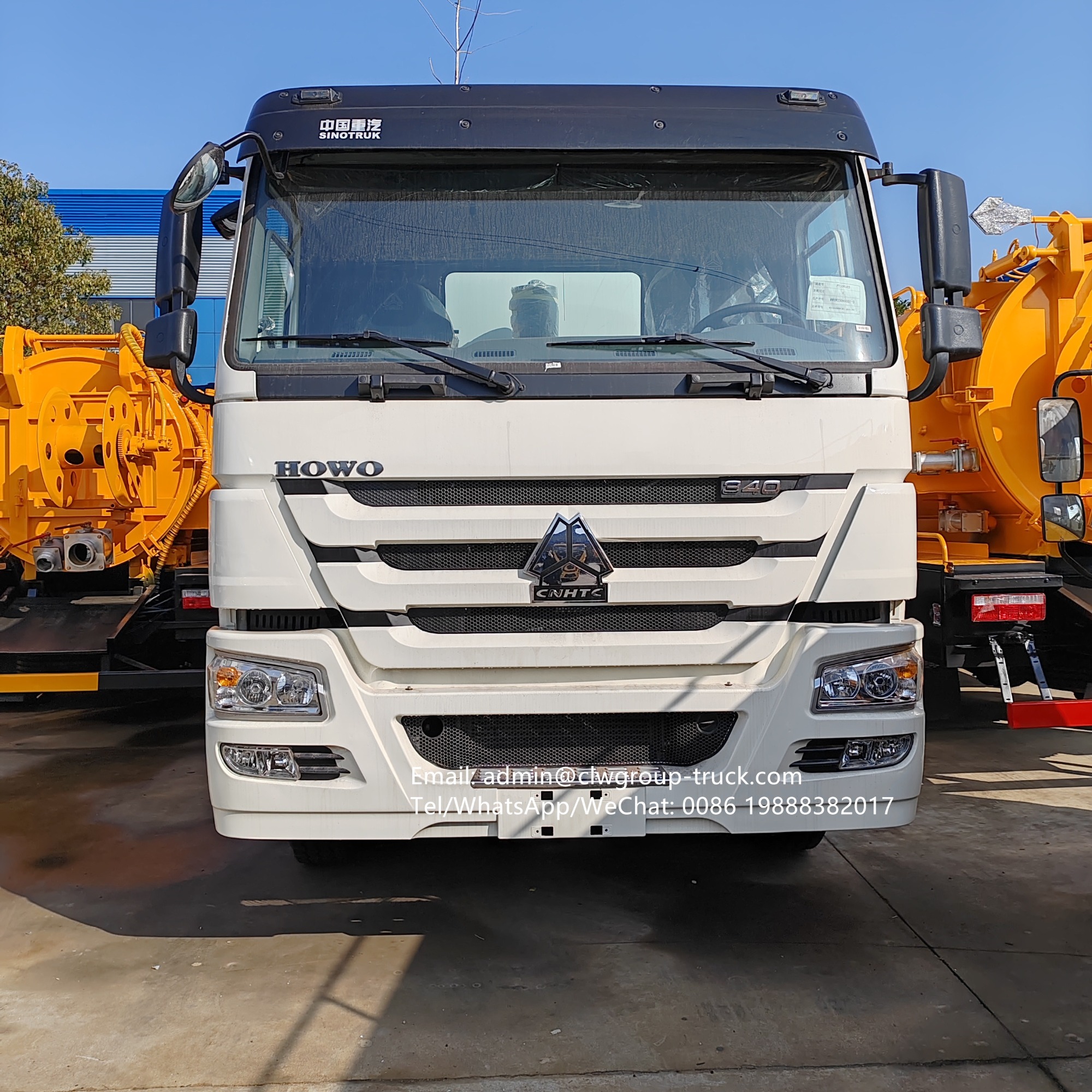

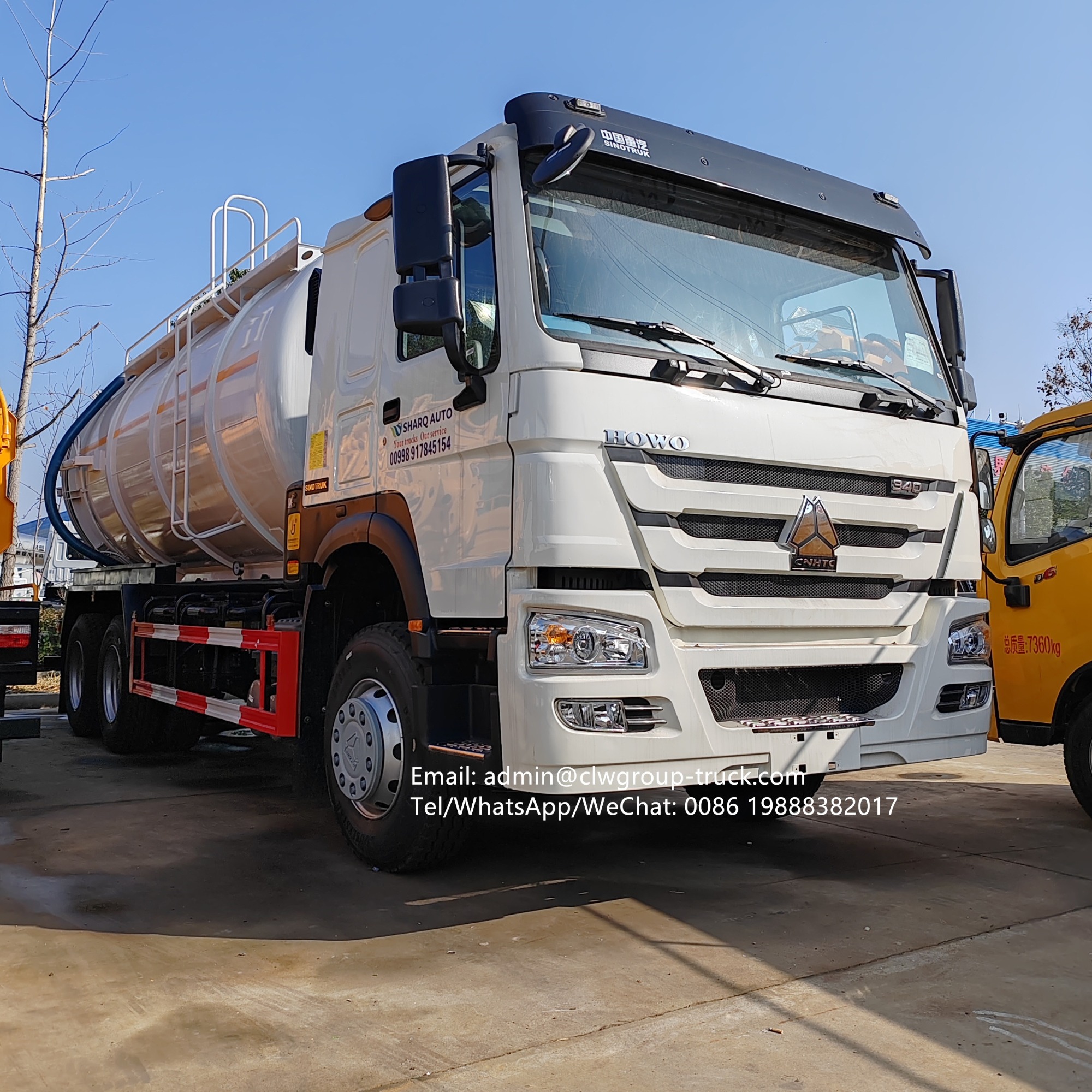

Sinotruk howo 6X4 Combined vacuum pump suction and pressure cleaning truck 22-25 cubic meters Chassis Detailed Configuration: Weichai 400 horsepower engine, Haowo 10 speed with original power take-off, 9.5 ton front axle/16 ton rear axle (speed ratio 4.63), straight through double layered frame, 11.00R20 steel wire tires, four point suspension cab, airbag seats, automatic air conditioning, central locking, remote key
Sinotruk howo 6X4 Combined vacuum pump suction and pressure cleaning truck 22-25 cubic meters, equipped with:
1. High pressure pump: 350 flow high pressure pump for cleaning, dual water supply, air blown water, enlarged high-pressure three piece set, self-made filter bucket.
2. Sewage pump: equipped with a 420 horsepower engine and a 2BE258 water circulation pump.
3. Install a set of slurry pump with hydraulic small reel and 2 30 meter oil inlet and return pipes.
Process details for cleaning and suction trucks of Sinotruk howo 6X4 Combined vacuum pump suction and pressure cleaning truck
1. Two compartments are interconnected and controlled by 100 ball valves.
2. The tank is equipped with platforms and guardrails on both sides, with the platform enlarged and thickened, and external climbing ladders.
3. The reel is installed on top of the rear head, hydraulically controlled, and equipped with a set of self-made anti overflow valves and stainless steel filters.
4. Install a ball valve switch on the bright tube, add a hand washing device to the bright tube, and make the rear toolbox as large as possible.
5. An LED lighting with a cover for the tail lights.
6. The size of the rear protection section is 235 × 60mm, and the lower edge is 470mm above the ground.

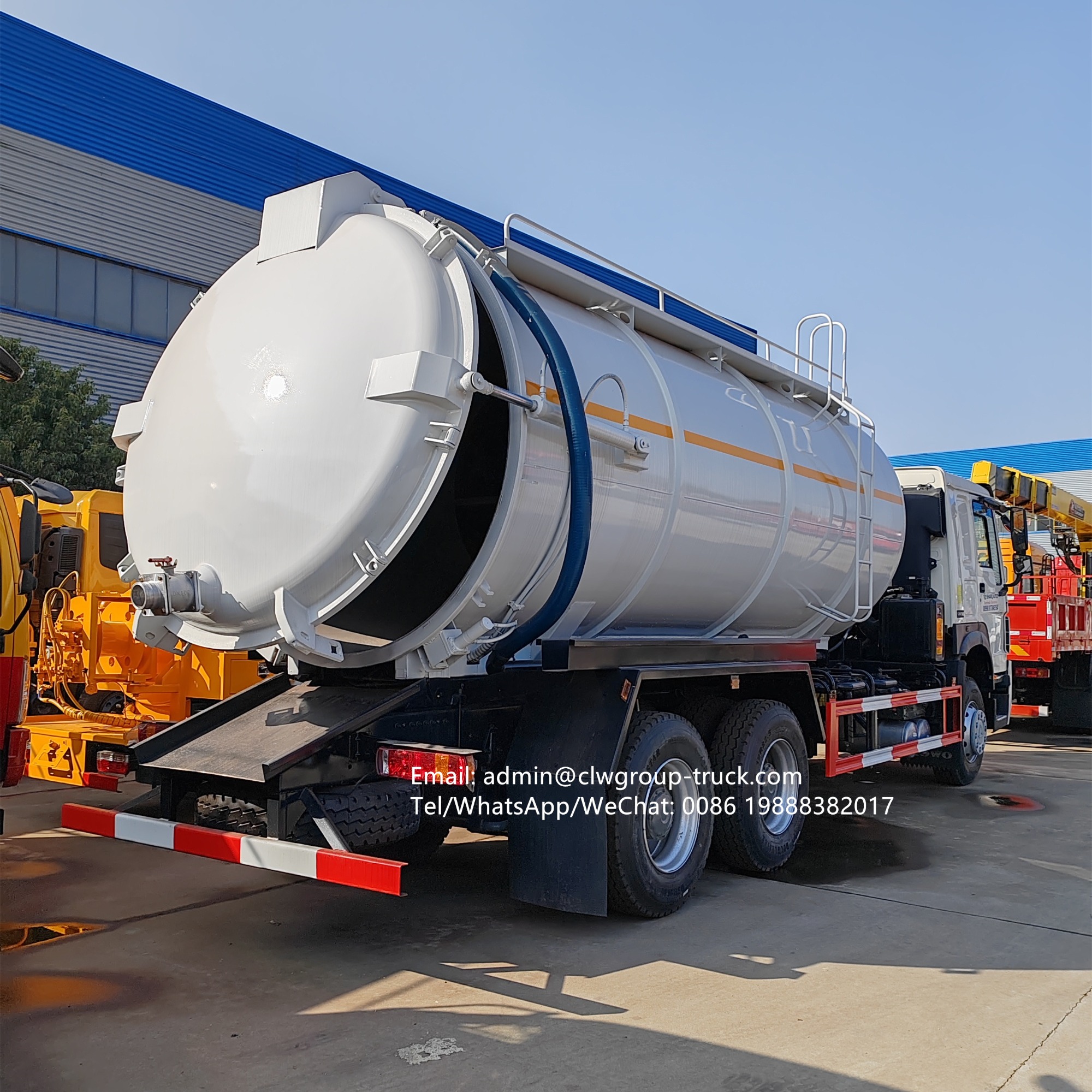

7. The tank has a capacity of 5 cubic meters of clean water, while others are used as dirty tanks. The partition uses a head and the tank is covered with stainless steel.
8. The tank body is made of 8 thick carbon steel plates, with a clear water tank filling the water truck tank mouth and a sewage tank with a cement tank mouth. A ladder is added inside the tank.
9. Build a platform and guardrail at the top. Rear head reinforcement, rear cover not open.
10. One 700 hydraulic quick open valve at the tail, one 150 ball valve, one 100 ball valve, with outlet, the ball valve tilts downwards as low as possible, and a 100 ball valve is used for the clean water valve. One 100 ball valve is used for internal suction, with an inner guide pipe and a baffle added to the inner guide pipe.
11. Add 65 fire ball valves on both sides of the clean water tank, and add drain ball valves at the bottom.
The heavy-duty HOWO 6X4 cleaning and suction vehicle has a 22-25 cubic meter indoor electrical control operation. The body control system adopts a new type of pneumatic ball valve for control, which can be achieved in the driver's cab. Multiple sewage circulation systems are selected to enable high-pressure flushing, vacuum suction, and sewage circulation to work simultaneously, achieving uninterrupted continuous operation. The tank body is welded automatically by machinery, and compared to traditional manual welding, the tank body weld seam is smooth and even, The quality of the suction pump is very good, with high vacuum degree, achieving self suction and self discharge. The high-pressure water pump driven by the chassis engine produces 19MPA of high-pressure water, which is sprayed back and forth at high speed through a specially designed nozzle. The hydraulically driven water pipe reel can control the direction and speed of the nozzle's movement
The heavy-duty HOWO 6X4 cleaning and suction vehicle with a volume of 22-25 cubic meters is the preferred model for cleaning and suction vehicles with good quality. The tank body has a delicate appearance and is easy to operate. The cleaning and suction vehicle has added a high-pressure cleaning configuration on top of the original suction function, making it more practical and versatile for one vehicle has a 22-25 cubic meter indoor electrical control operation. The body control system adopts a new type of pneumatic ball valve for control, which can be achieved in the driver's cab. Multiple sewage circulation systems are selected to enable high-pressure flushing, vacuum suction, and sewage circulation to work simultaneously, achieving uninterrupted continuous operation. The tank body is welded automatically by machinery, and compared to traditional manual welding, the tank body weld seam is smooth and even, The quality of the suction pump is very good, with high vacuum degree, achieving self suction and self discharge. The high-pressure water pump driven by the chassis engine produces 19MPA of high-pressure water, which is sprayed back and forth at high speed through a specially designed nozzle. The hydraulically driven water pipe reel can control the direction and speed of the nozzle's movement
The heavy-duty HOWO 6X4 cleaning and suction vehicle with a volume of 22-25 cubic meters is the preferred model for cleaning and suction vehicles with good quality. The tank body has a delicate appearance and is easy to operate. The cleaning and suction vehicle has added a high-pressure cleaning configuration on top of the original suction function, making it more practical and versatile for one vehicle
