Fuel tank truck: also known as mobile refueling truck, computer-controlled refueling truck, oil tanker truck, oil loading truck, oil transport truck, oil delivery truck, oil transport truck, edible oil transport truck, mainly used for the transportation and storage of petroleum derivatives (gasoline, diesel, crude oil, lubricating oil, coal tar and other oil products).
According to different purposes and usage environments, there are various refueling or oil transportation functions, including oil suction, pumping, and various oil sorting and discharging functions. The dedicated part of the oil tanker consists of components such as the tank body, power take-off, transmission shaft, gear oil pump, and pipeline system. The pipeline network system consists of an oil pump, a three-way four position ball valve, a two-way ball valve, a filter screen, and pipelines.

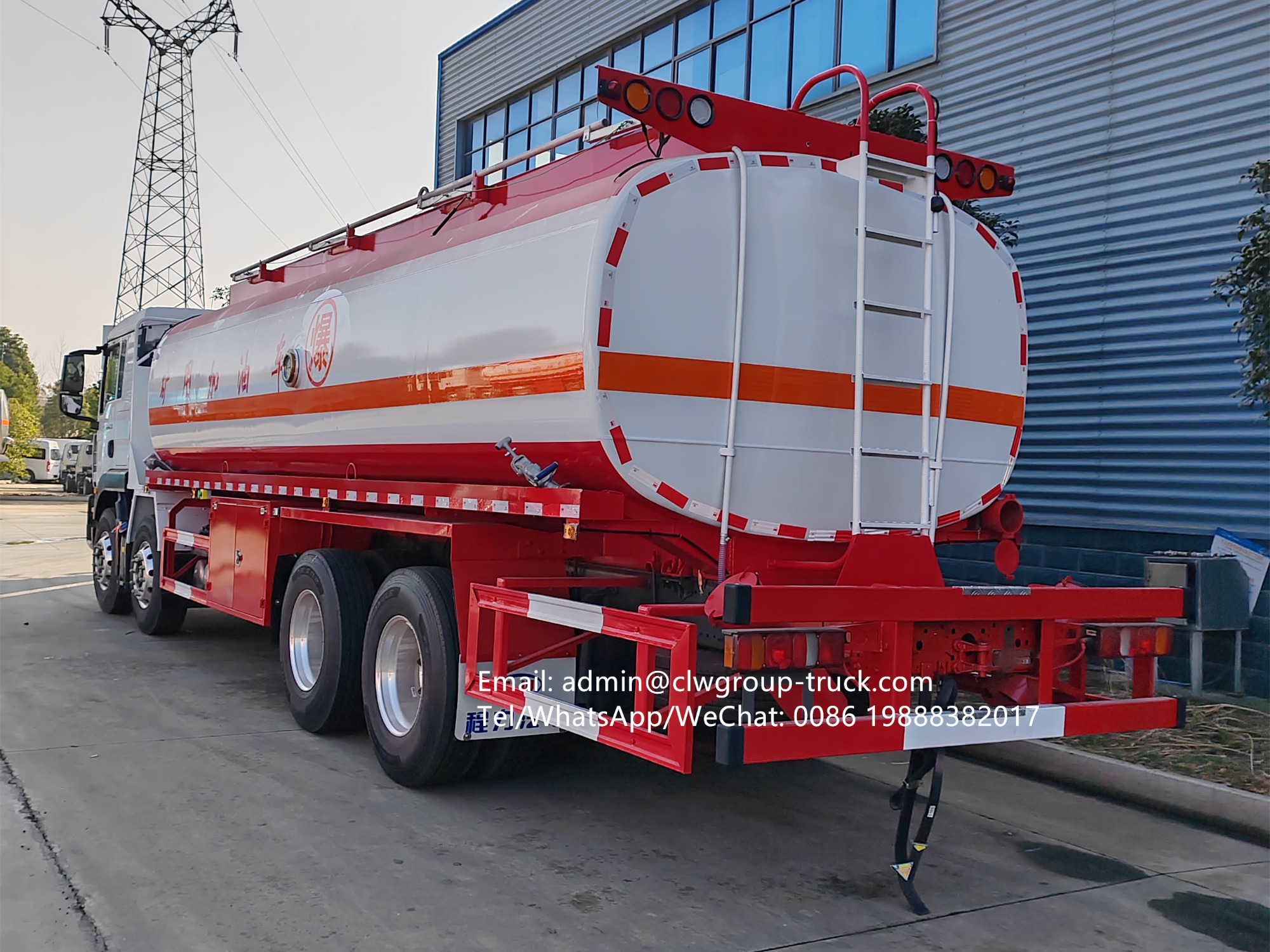

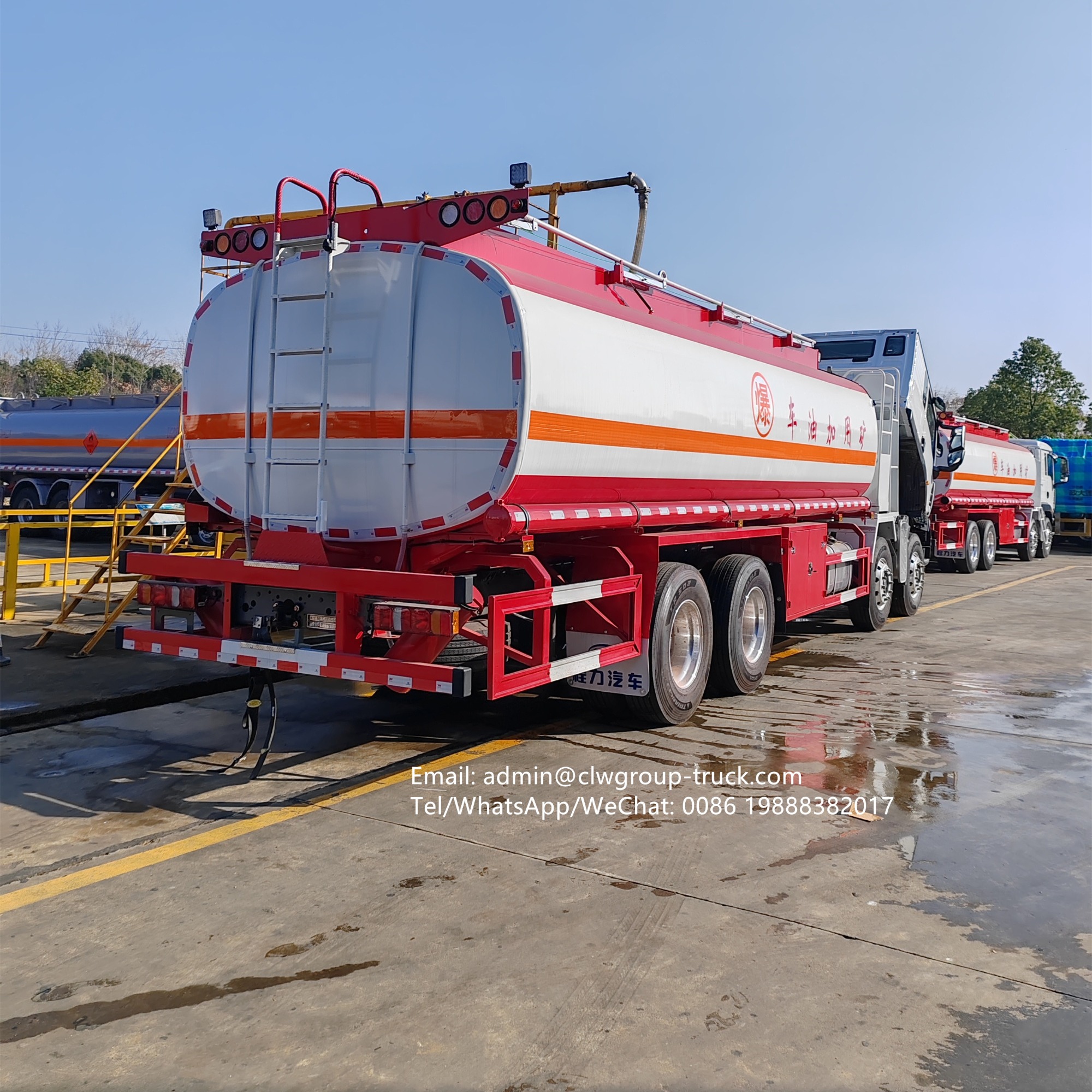

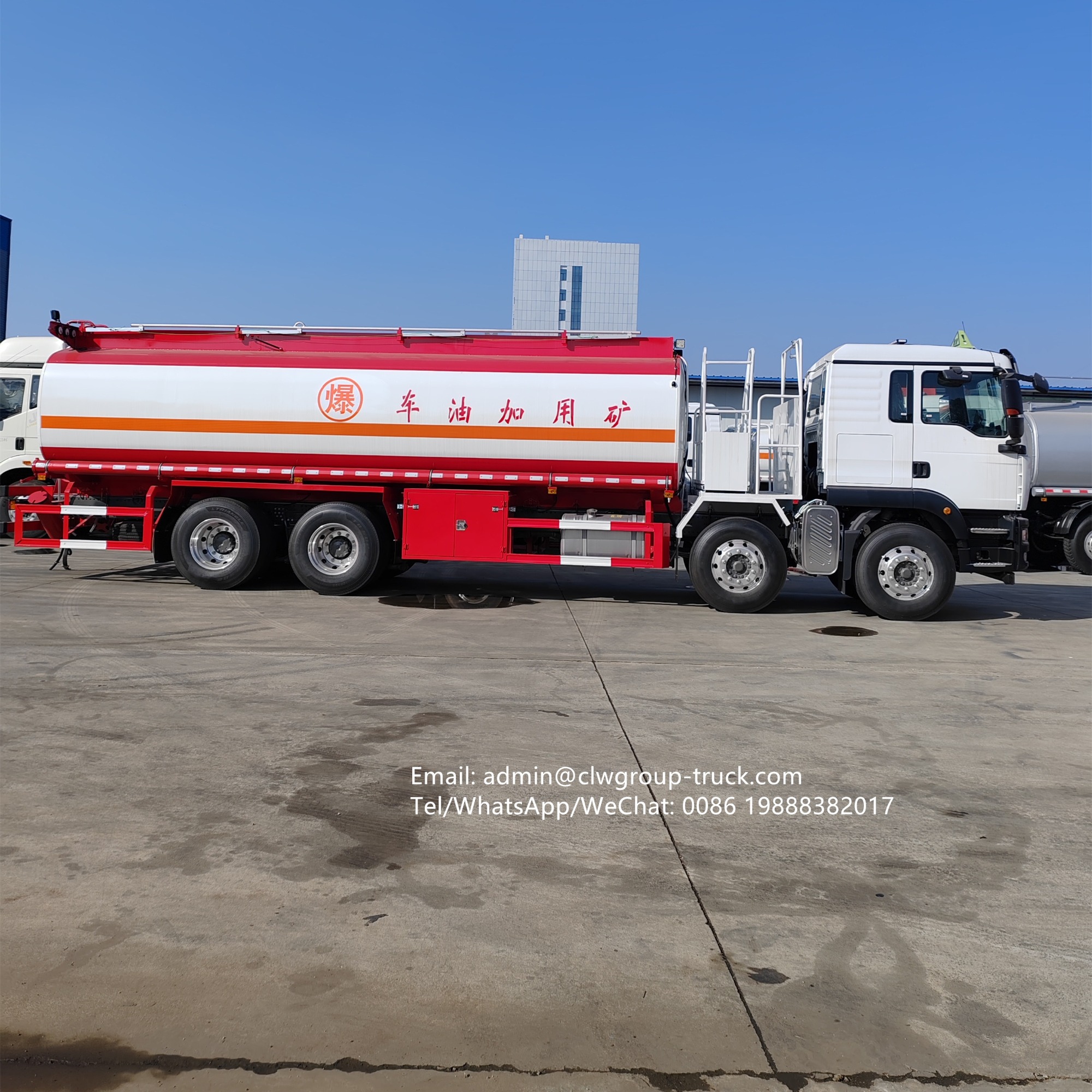

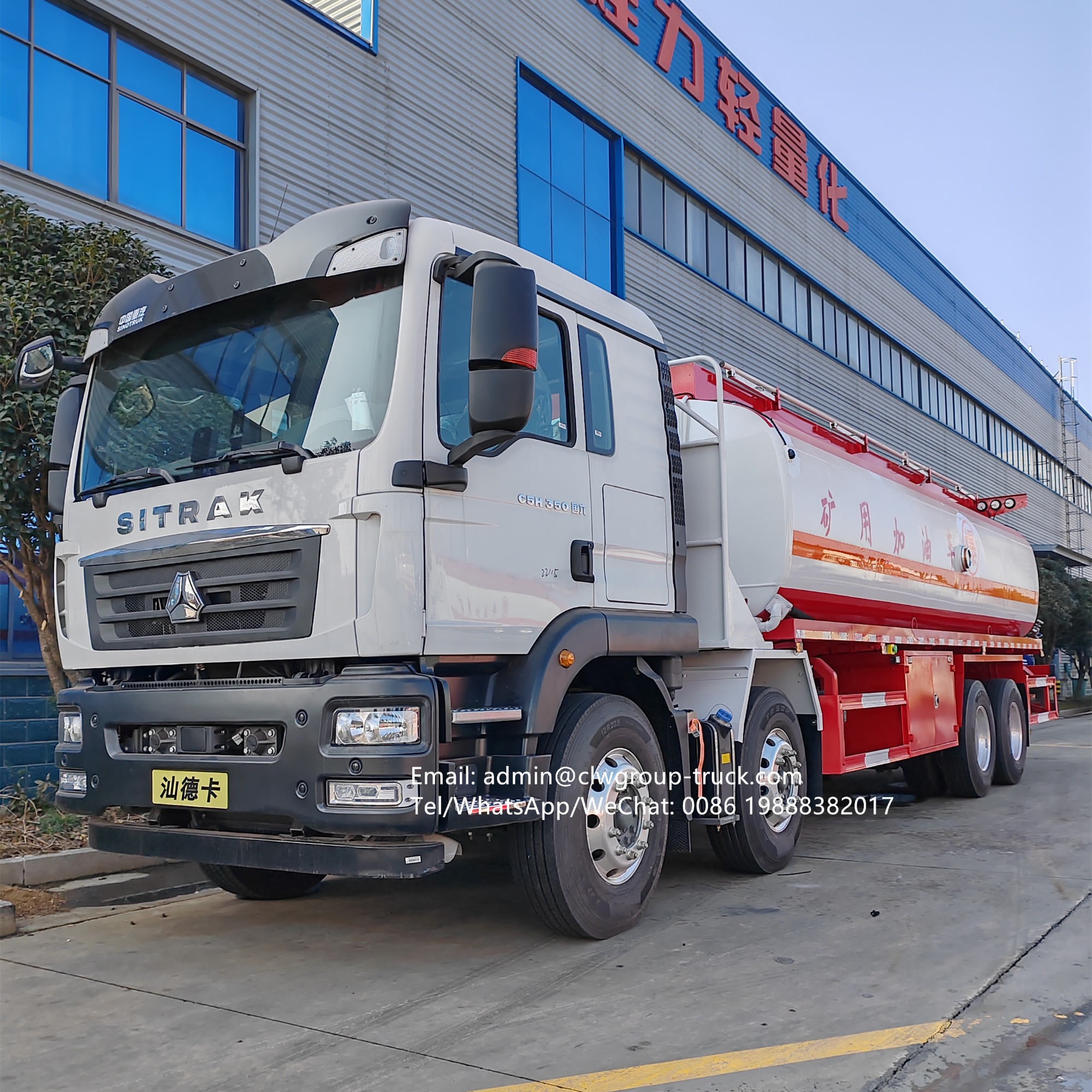

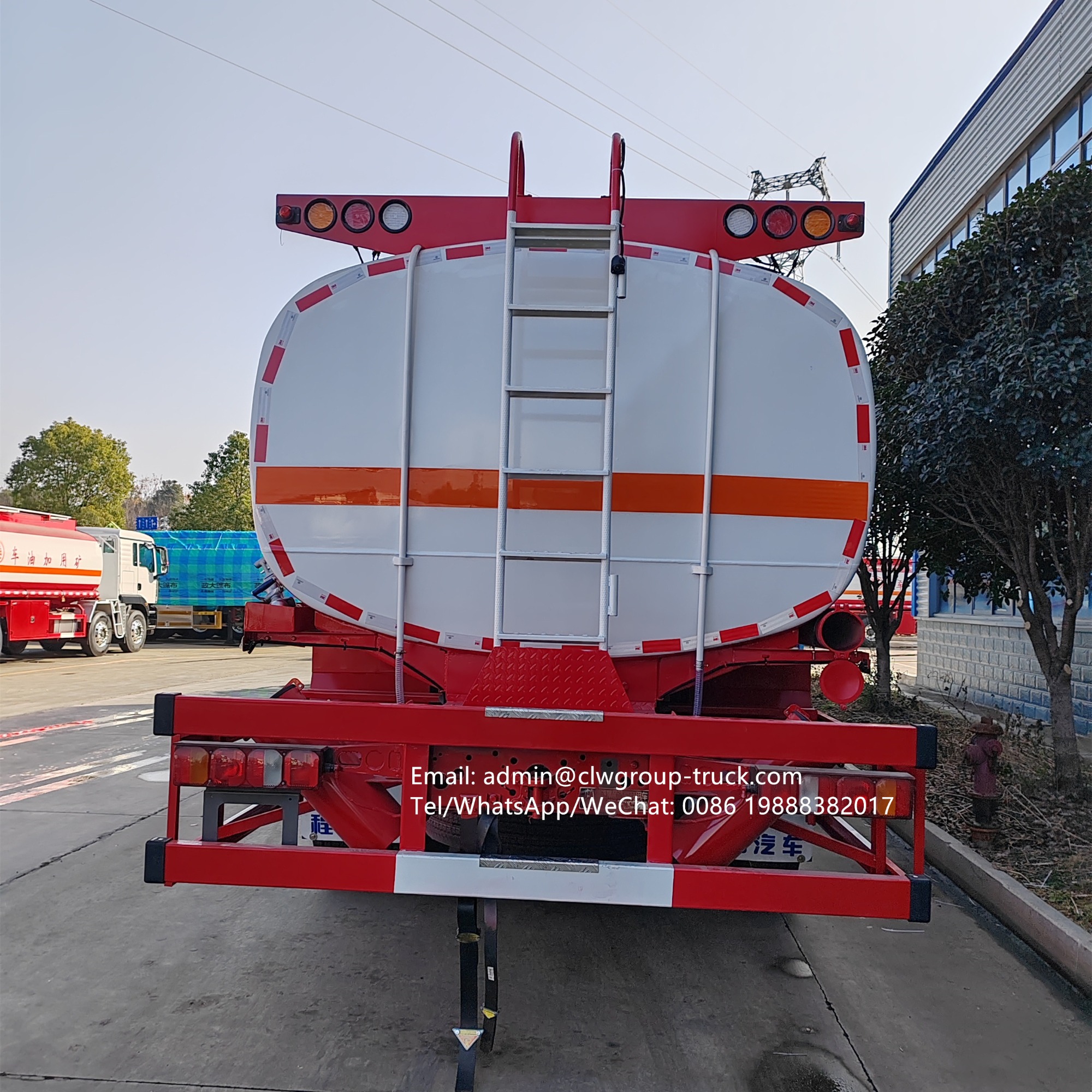

Sinotruk howo 8X4 30 cubic meter fuel tank truck
Fuel tank body configuration: Approximately 30 cubic meters in volume, with a tank thickness of 6mm, equipped with Shandong pump, European standard filling port, submarine valve, (emergency shut-off valve) patterned plate walkway, equipped with a fire cap, two equally long oil pipes, two fire extinguishers, all locks in European style, and other factory standard equipment.
In addition to the chassis of Sinotruk howo , we can also choose Dongfeng, Foton, JAC, FAW, Isuzu, Shacman, Beiben, and other options for the refueling car
In addition to carbon steel, we can also choose stainless steel or aluminum alloy as the material for the tank body. Generally, carbon steel is the most affordable material and is an ideal material for transporting diesel engine oil and gasoline. When customers need to transport edible oil or require a lighter tank body to transport more oil, we can choose aluminum alloy material, so that the tank body will be lighter and more corrosion-resistant.
The tank body of the refueling truck is not divided into compartments by default. If the customer has a requirement for separate compartments, we can also implement it. According to the customer's requirements, the tank truck can be divided into multiple compartments for the transportation of different types of oil products

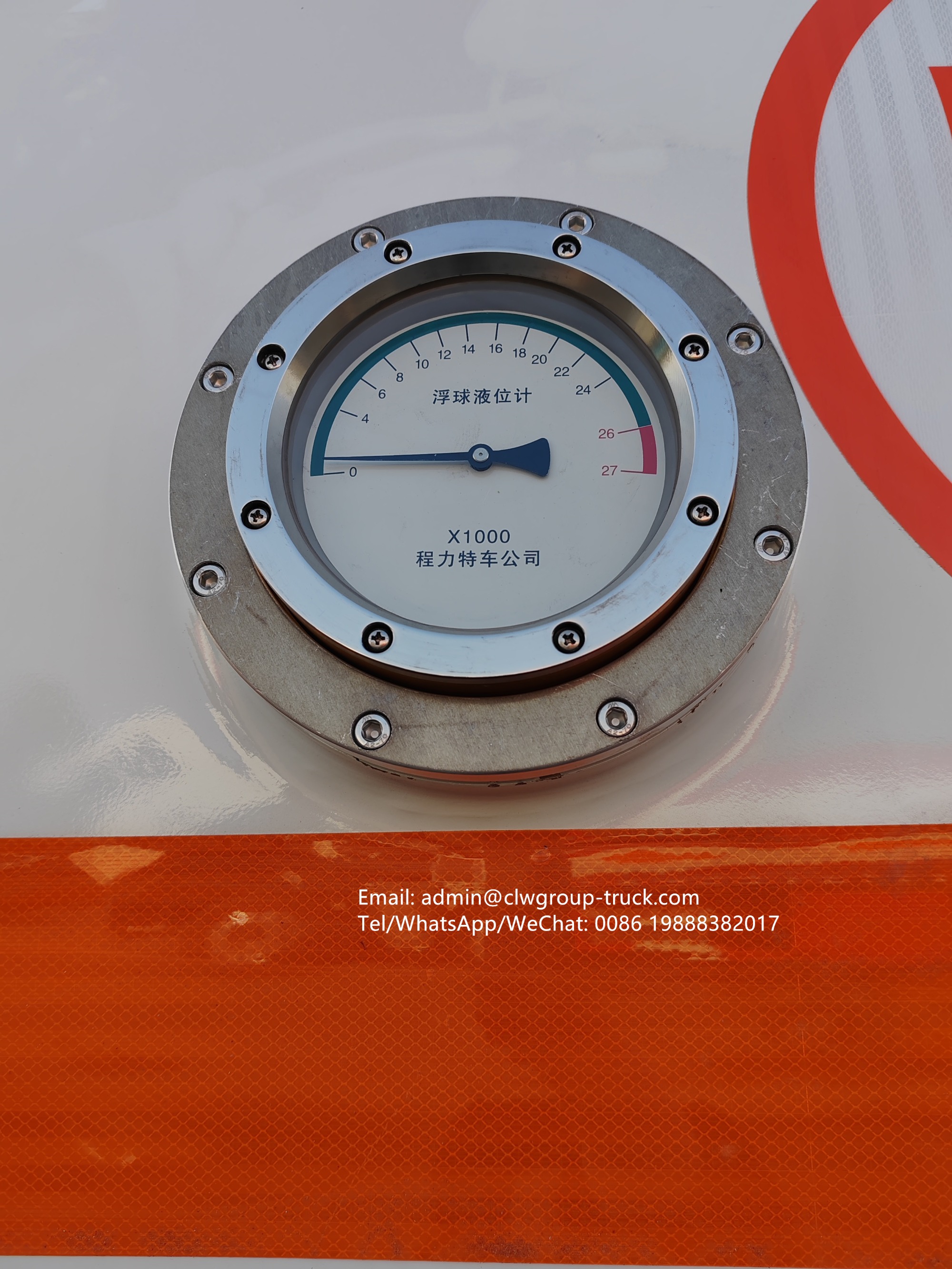

We can also install different accessories such as pumps, flow meters, liquid level gauges, fuel dispensers, etc. for refueling vehicles according to customer requirements
When the oil tank truck is made of aluminum alloy material, we will install European standard tank ports, lower oil and gas recovery devices, and electrostatic coils. It has the following advantages: Sinotruk howo 8X4 30 cubic meter fuel tank truck
aluminum alloy oil tank truck features
1 pump in and out, oil tank trucks are equipped with suction and discharge equipment as standard, with a model of 80-30 self suction and self discharge oil pump,

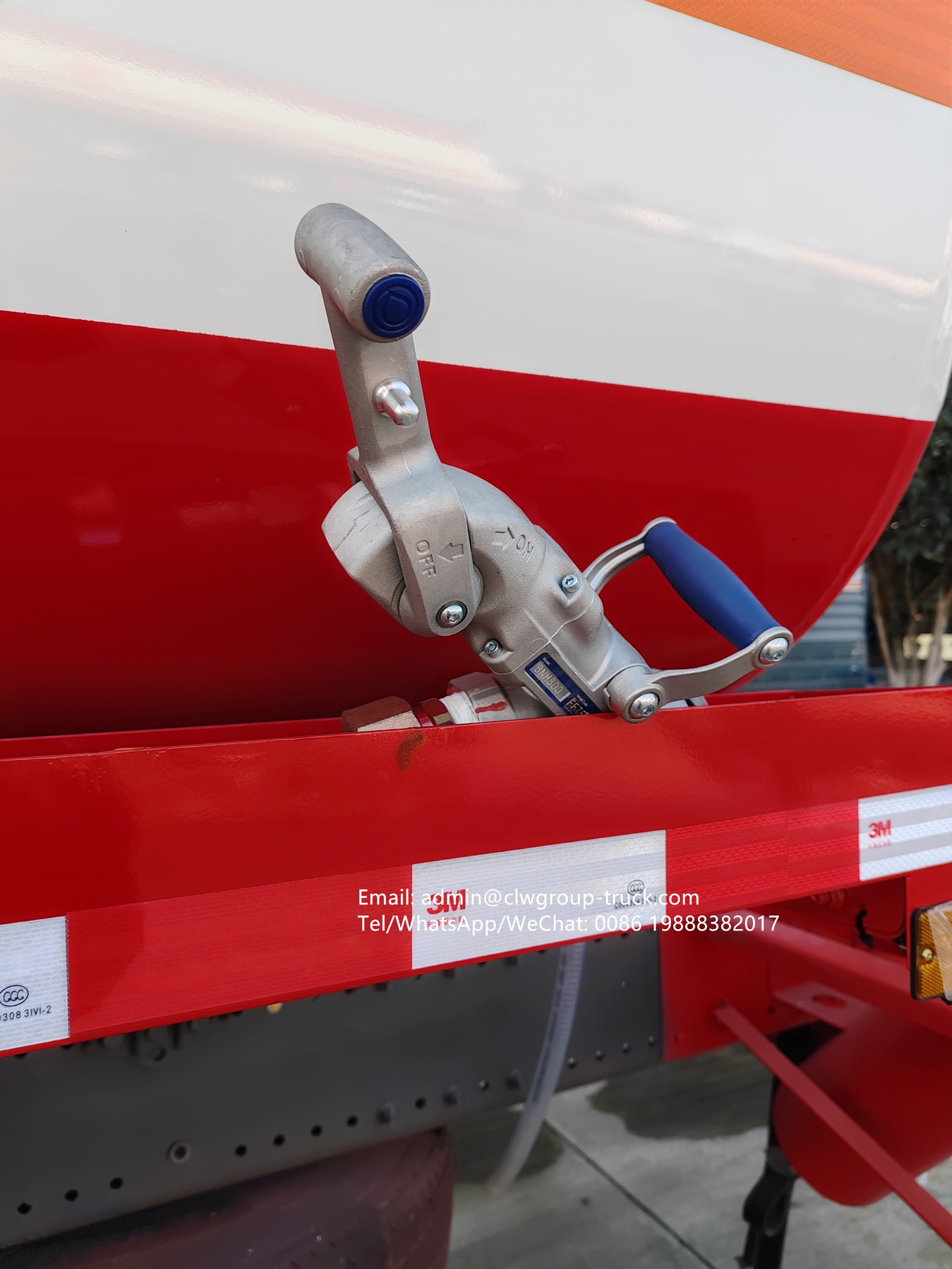

2 loading and unloading valves, used for quick loading and unloading of oil, are generally installed below the side of the oil tank truck and are necessary safety loading valves for oil storage.
The 3 oil and gas recovery valve can recover all the oil generated by the volatilization of oil during loading and unloading to the tank truck in the storage area, avoiding oil and gas leakage
4 electrostatic sockets, anti overflow electronic sensors. To prevent liquid from overflowing and leaking, when the oil level reaches the warning limit, the sensor will automatically alarm and trip.
5 three-way valves are used to control the inlet and outlet direction of oil products. Through the coordination of the three-way valves, it is possible to share oil pumps and pipelines between the front and rear compartments, saving space
6 static coils and grounding equipment are used for safe grounding and conductivity during oil loading and unloading operations, greatly improving operational safety.
7 pneumatic combination switch, used to control the switch of emergency shut-off valve (submarine valve).
