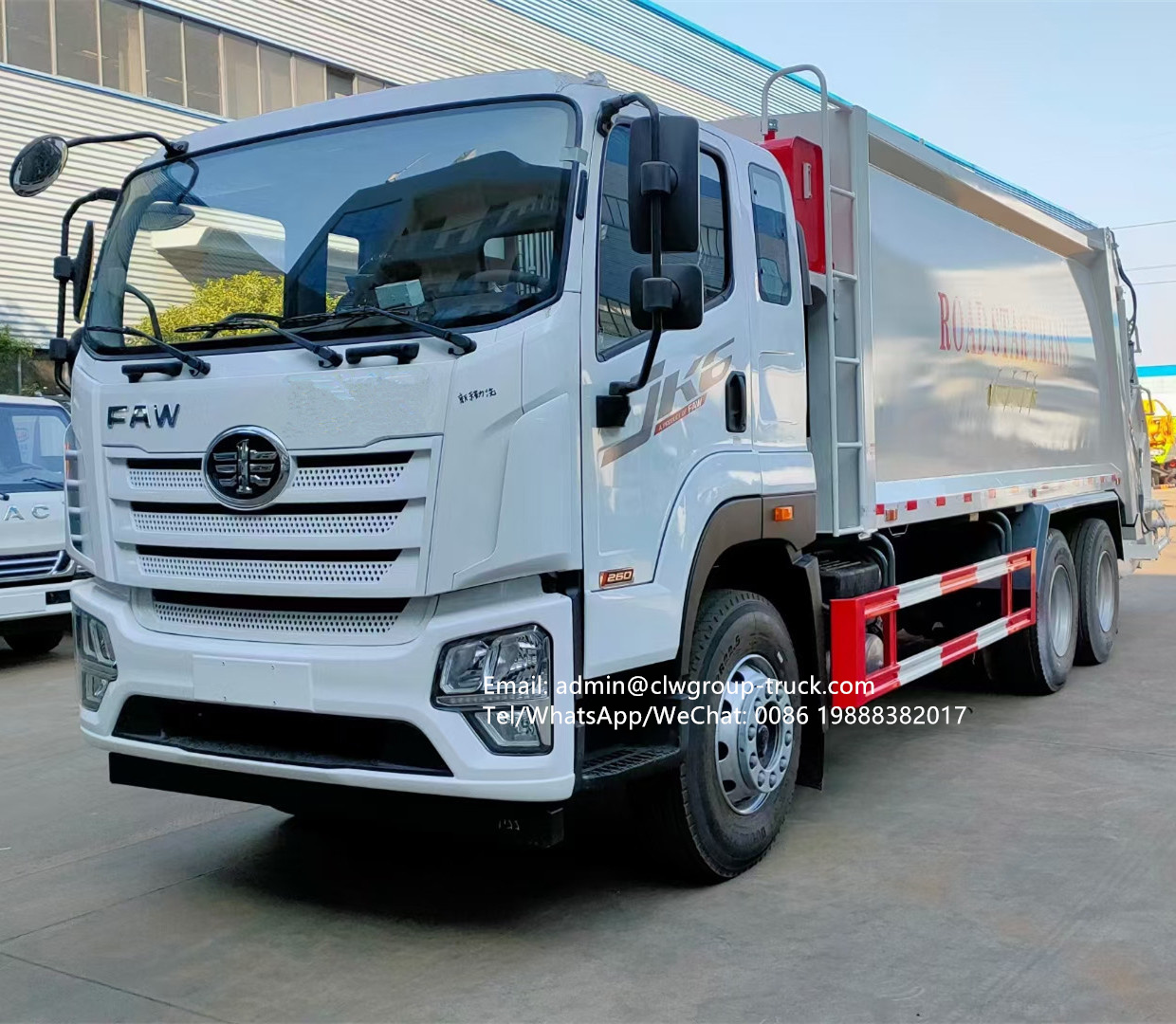

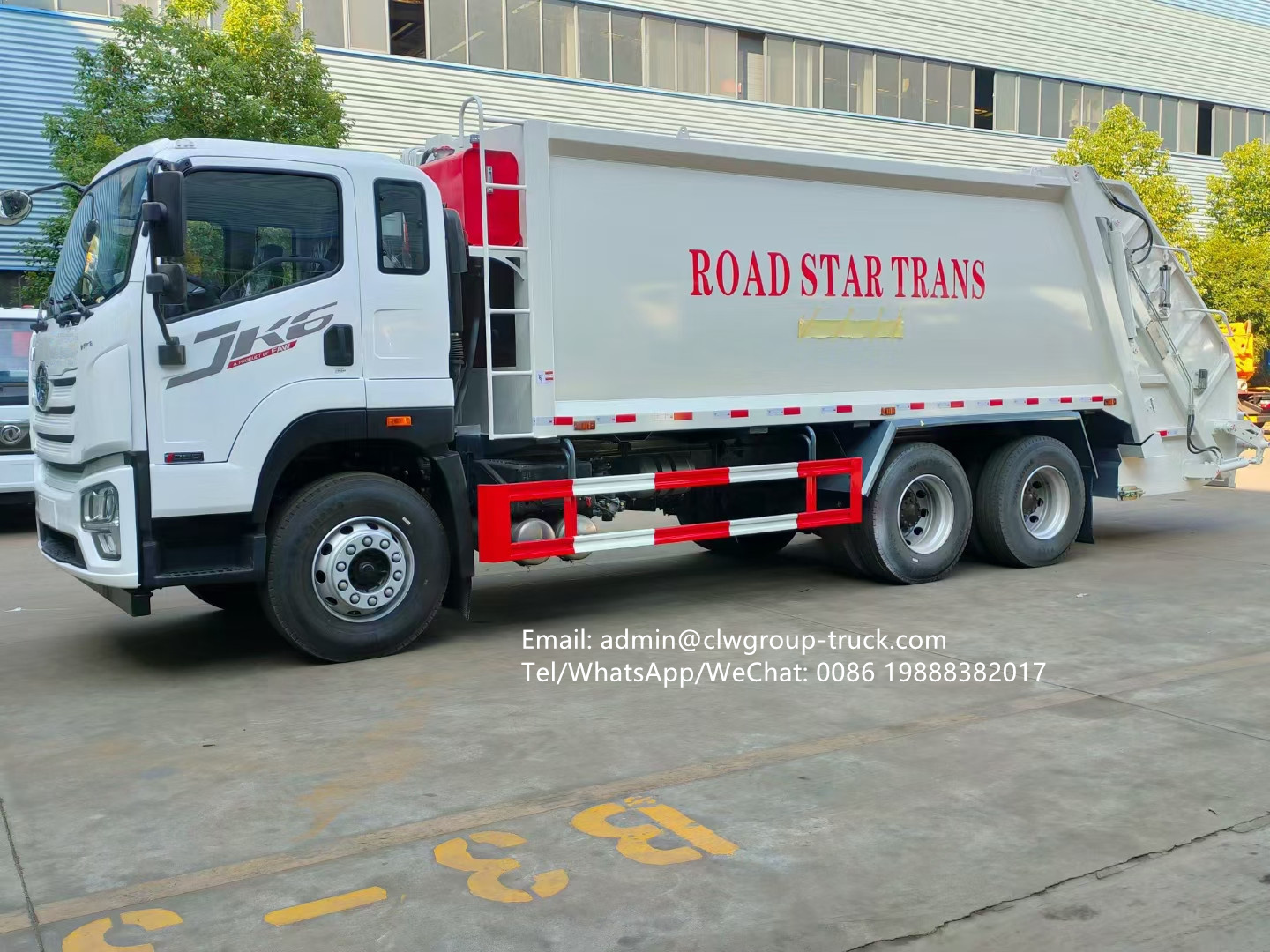

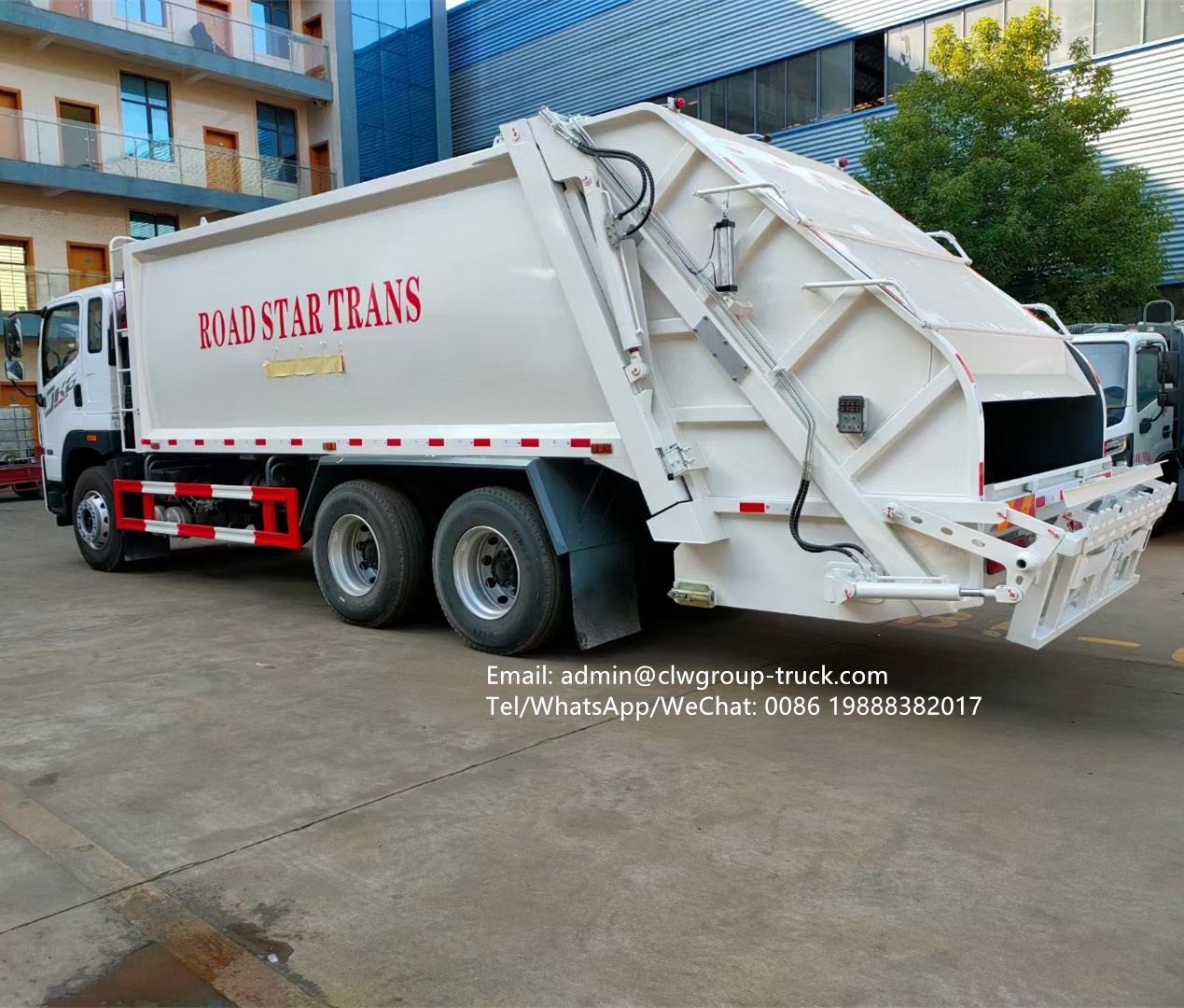

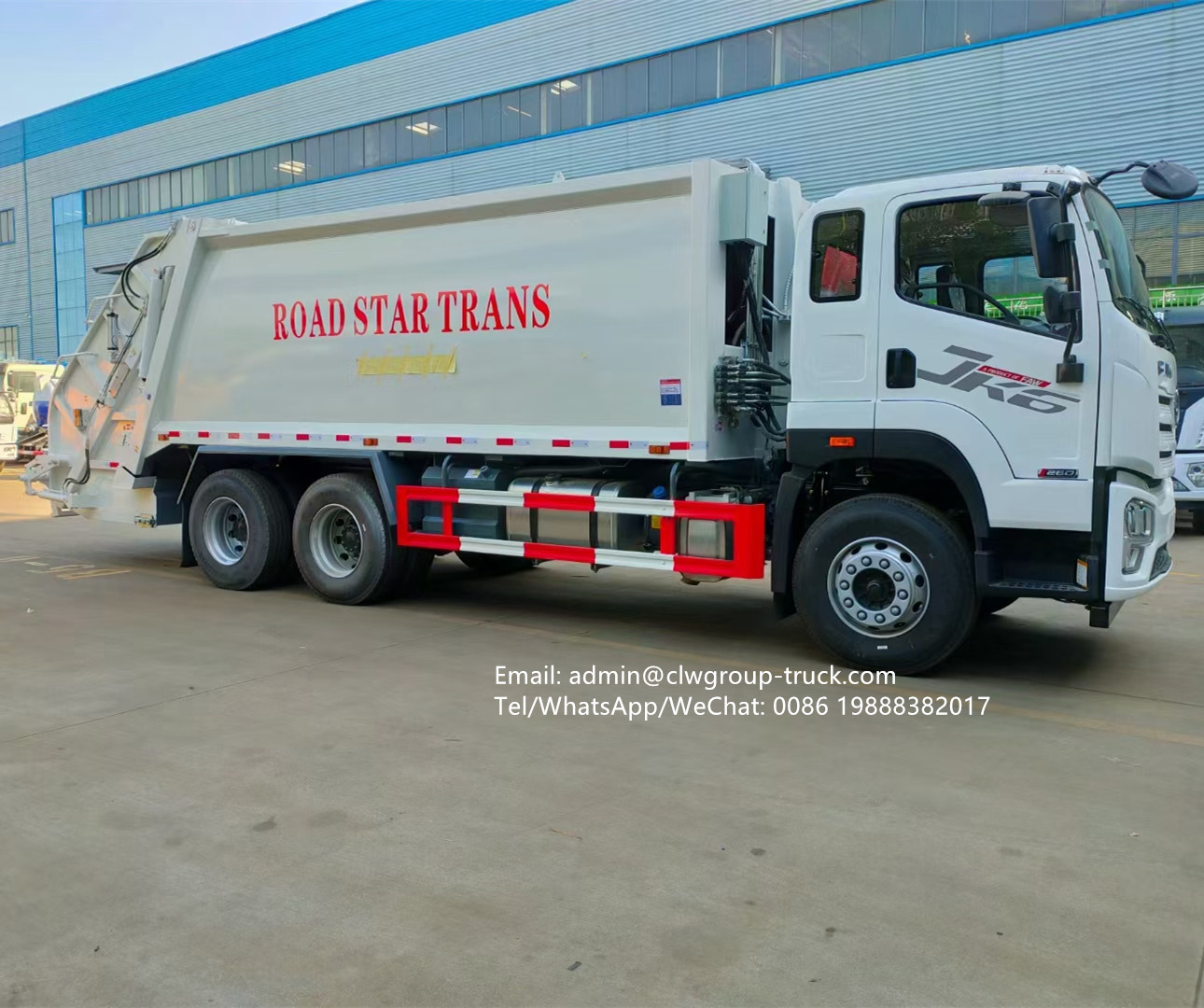

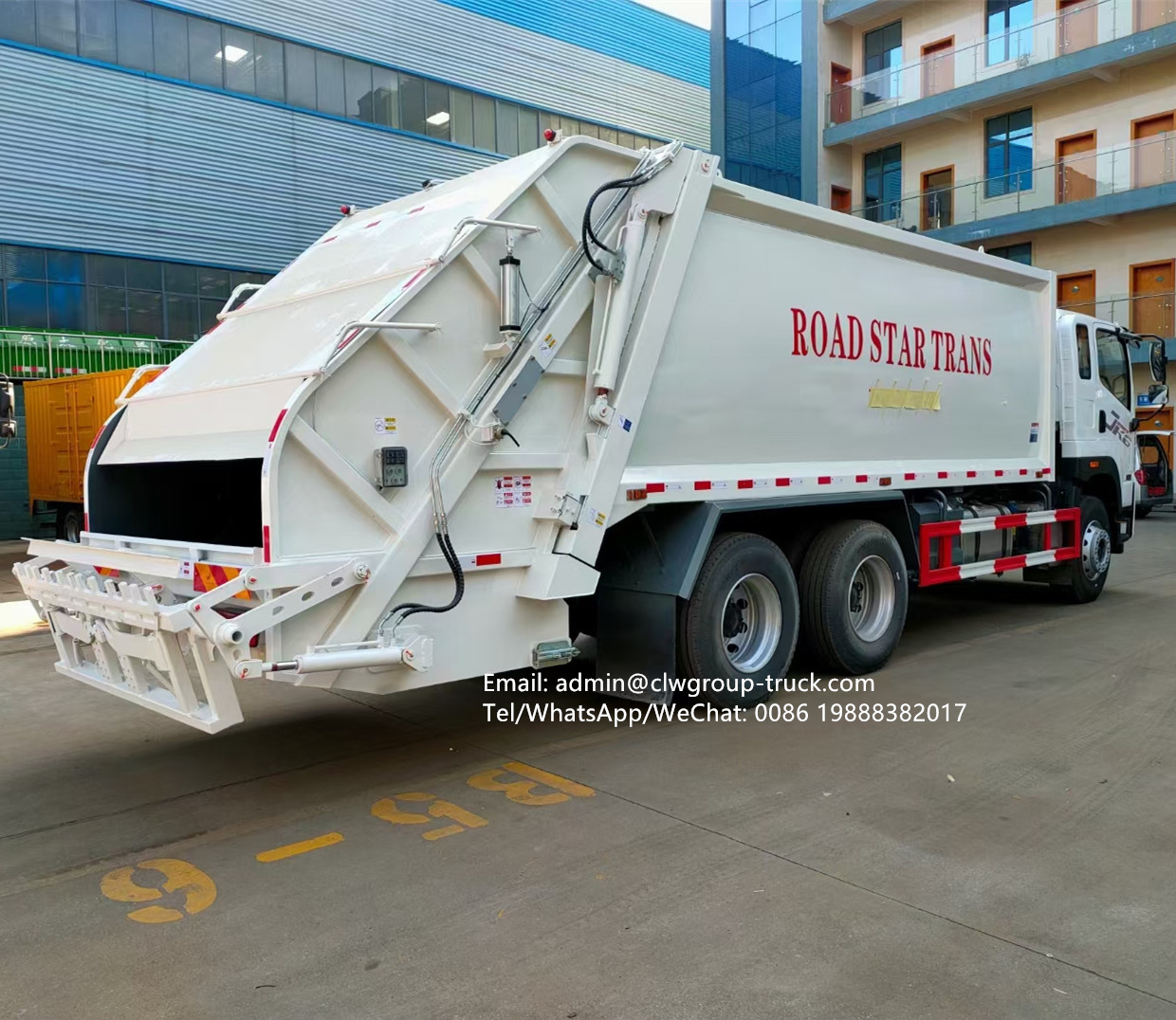

Picture of a 20 cubic meter compressed garbage truck
How much does it cost to liberate an 18 cubic meter compressed garbage truck
FAW 6X4 18 cubic meters and 20 cubic meters garbage sorting and transportation vehicle Jiefang 8X4 compressed garbage truck, with a chassis equipped with FAW JK6 luxury cab, Weichai 380 horsepower engine, and a 4350+1350 wheelbase. 12 speed transmission, tires 12.00R20
The new arc-shaped box body (with an effective volume of about 20 cubic meters) is made entirely of Q345 manganese steel plate, with a new type of crushable scraper. It comes standard with a dual pump, dual valve, backpressure valve, oil circuit filter, hanging bucket flipping mechanism, and can be equipped with pneumatic rear cover type, triangular bucket type, fully sealed bucket type, swing arm type, wireless remote control, and reverse image.
FAW 6X4 18m3 20m3 Compressed garbage truck is one of the most practical sanitation vehicles in contemporary times. Not only does it have a large loading capacity, but it can also avoid secondary pollution during transportation. The compression type garbage truck adopts mechatronics and hydraulic integration technology, mainly through garbage bins, fillers, shovels, hydraulic and other devices. With the help of machine, electricity, and hydraulic joint automatic control, garbage can be poured, crushed or flattened, loaded, squeezed into the garbage bin, compacted, and unloaded through the garbage bin, fillers, and shovels. Its main characteristics are simple garbage collection, automatic repeated compression and compression function, high compression ratio, large loading, automated operation, good power and environmental protection, vehicle utilization, and good sealing. The compressed garbage truck consists of a chassis, a sealed garbage bin, a hydraulic system, and a hydraulic system. The entire vehicle is a fully sealed type, capable of self compressing, self dumping, and all compressed sewage entering the garbage bin.
The collection of urban household waste is completed using post loading compression and bidirectional compression technology, with a compression ratio of 0.5 tons per cubic meter. Widely used for garbage collection and transportation among urban residents, schools, logistics parks, residential properties, factories and mining enterprises, etc. There are various flipping bucket (bucket) devices to meet the different needs of customers for garbage collection
1.Compacting System
Include collecting Panel & Pressing Panel.All made of high tension steel with long time use
2.Loading System
Lifting system are chose as per customer requirement,including Barrel Lifting,Square Container Lifting,Skid Loader lifting system.
3.Compact System Lifting
Lifting system choose as per customer requirement,including Barrel Lifting,Square Container Lifting,Skid Loader lifting system.
4.Sewage Container
The bottom of the tank is equipped with a sewage collection tank to prevent the sewage in the tank from leaking out, effectively preventing the occurrence of secondary pollution.
5.Rear Full Electronic Control
Electronic control Panel install in the back of the container body for easy handling. Imported PLC Control System with auto & semi-auto control. Optional Inside Cabin Control
6.Manual Handle Control
The hydraulic controller at the rear of the cab controls the work of the reversal mechanism and the pressure filling mechanism to ensure the accuracy and reliability of each mechanism and improve the reliability of the vehicle..
7.Lift hydraulic strut
FAW 8X4 18m3 20m3 Compressed garbage truck compartment configuration: New flat curved compartment, made of Wuhan Iron and Steel carbon steel, with an effective compressed volume of 18-20 cubic meters. PLC one key operation control, manual and electric integrated operation, dual electric control on both sides, with cab operation, central control - remote control front door lock, air conditioning, cruise control, ABS, lower protection, airbag shock absorber driver's seat. The compression box is composed of a sealed garbage bin, hydraulic pressure, and operation. The compressed garbage truck produced by our company is fully hydraulic driven, controlled by a dual operation of fully automatic and manual. It adopts mechatronics and hydraulic integration technology, and uses a microcomputer PLC intelligent control program to automatically complete single cycle or continuous cycle garbage loading. The operation is simple and convenient. The joint between the filler and the compartment is sealed by a special shaped sealing strip through hydraulic locking, ensuring reliable sealing of garbage in the compartment and preventing leakage of garbage and sewage. This vehicle has the characteristics of crushing and compacting garbage, high garbage compression ratio, and large loading capacity, making it reliable
