Shacman 4x2 210hp waste collector rubbish refuse garbage compactor truck

1--Rubbish Compactor Truck  is consisted of compactor garbage truck, swing arm garbage truck, hook lift garbage truck,roll on roll off garbage truck, bin lift garbage truck,dumper garbage truck,sealed garbage truck,container garbage truck,rear load garbage truck and so on.
2--Easy Full Automatic Operation: computer control system for loading and unloading operations.
3--One Person Operation: Reducing sanitation working, greatly improves the working environment.
4--Double Operation System: computer control system and manual operation greatly improve+s the vehicle usage rate.
5--Capacity: option for 3-20m3 22M3, 24M3 garbage truck.
6--Steering wheel: both left and right hand drive,meet the needs of different countries.
7--Emission standard: option Euro 1,Euro 2,Euro 3,Euro 4,Euro 5 garbage truck.
8--Truck chassis: option for Japanese and Chinese brand,such as Dongfeng,faw,Foton,HOWO,JAC,JMC SHACMAN, for land...

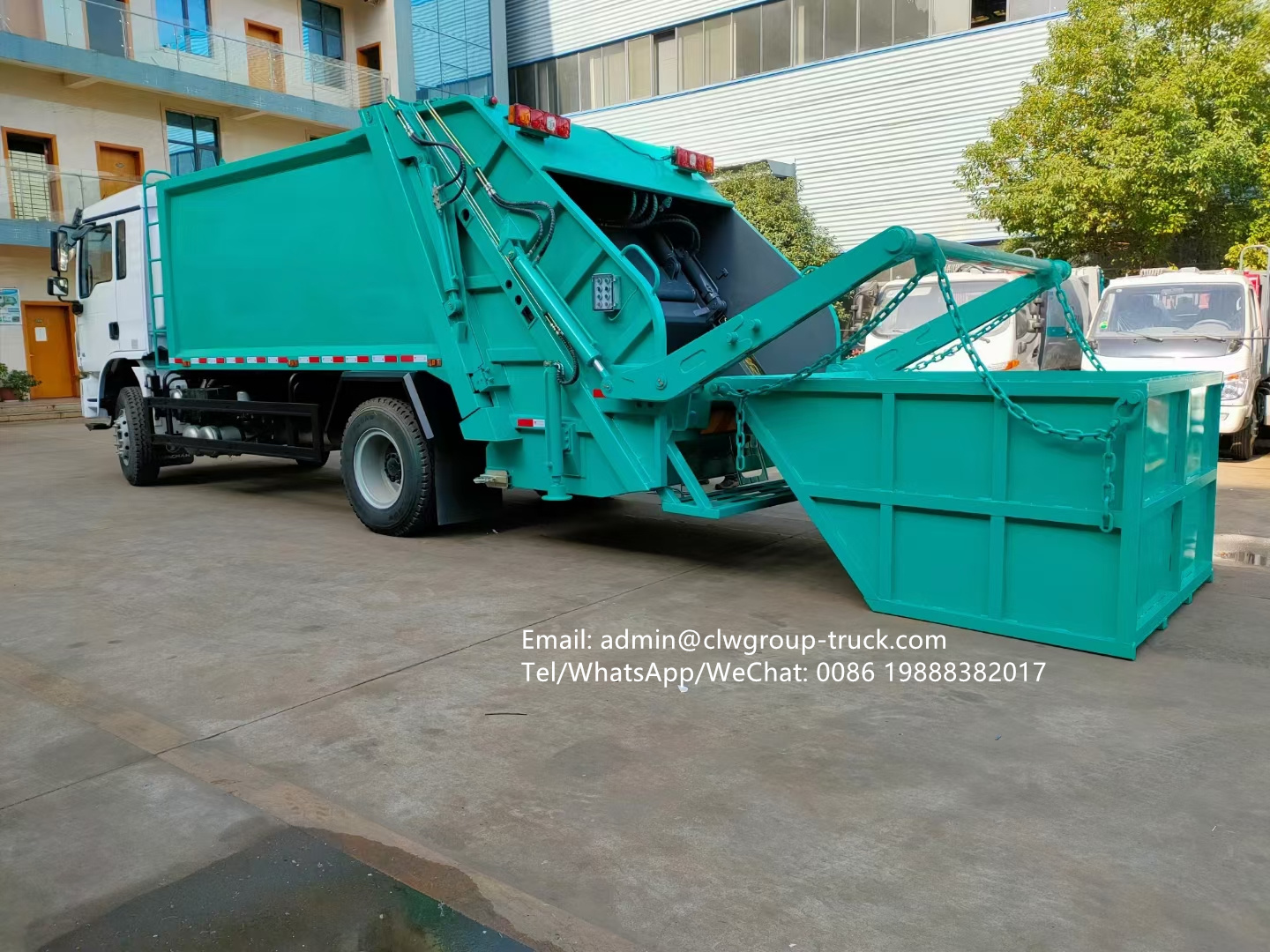

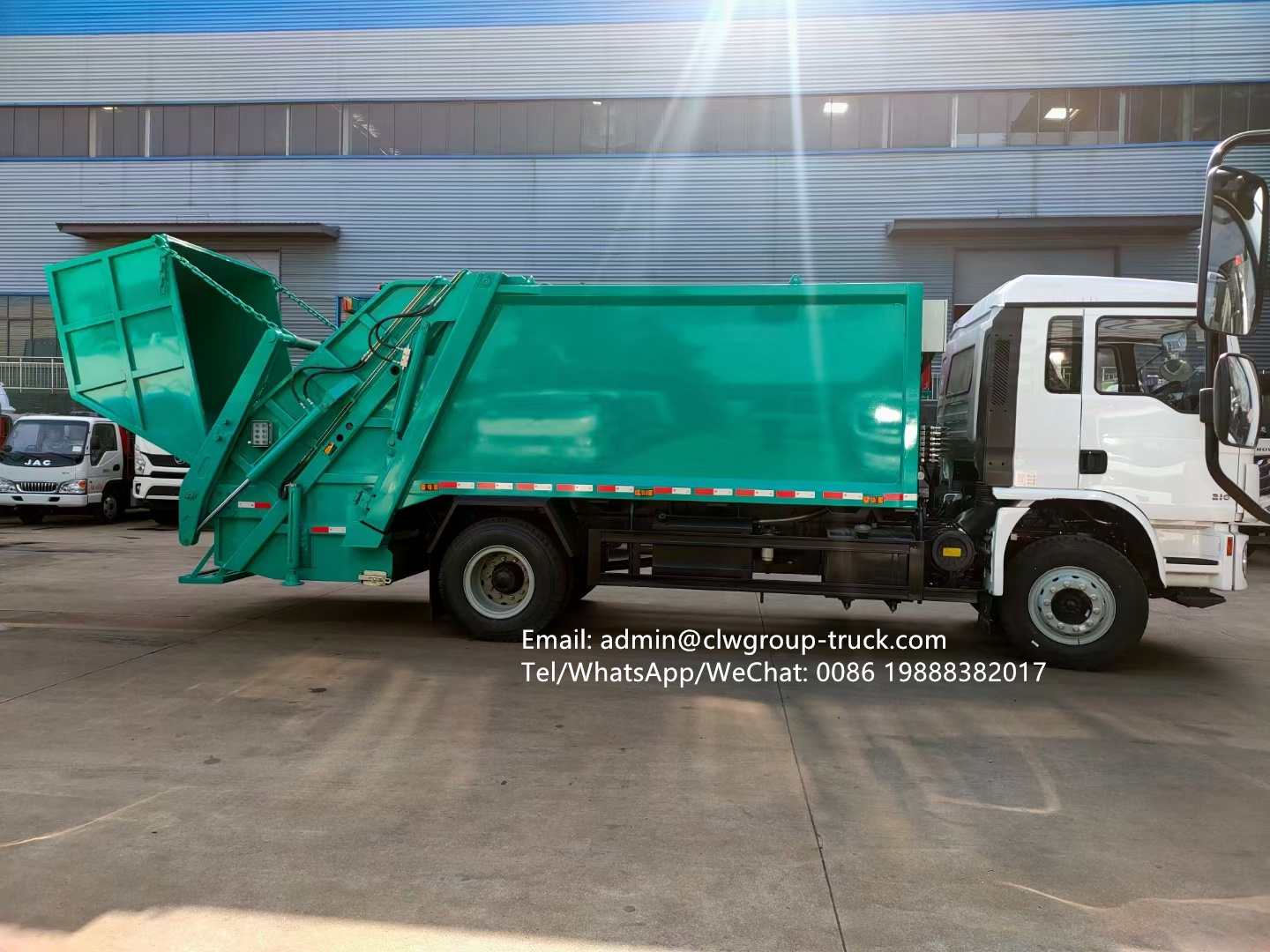

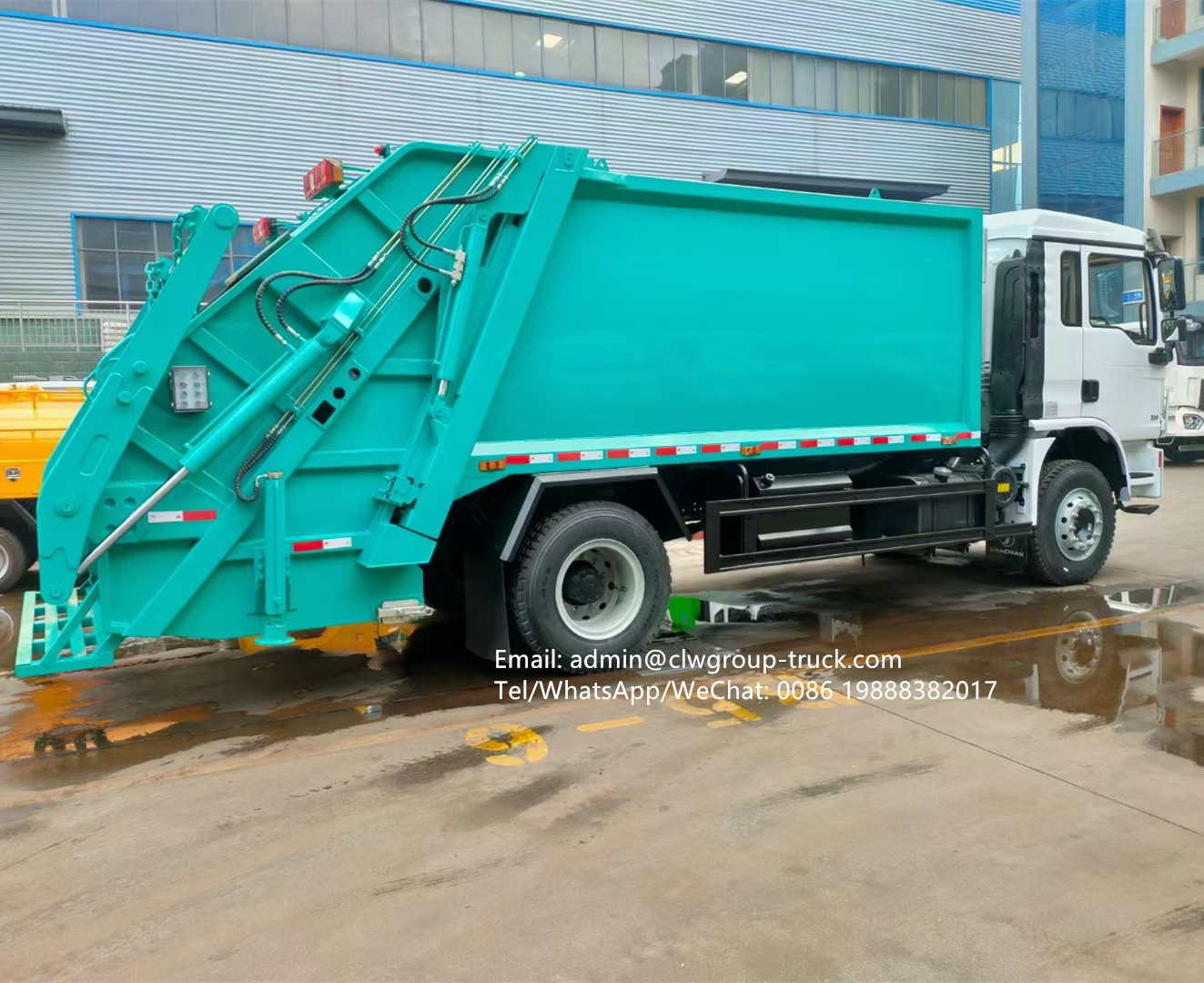

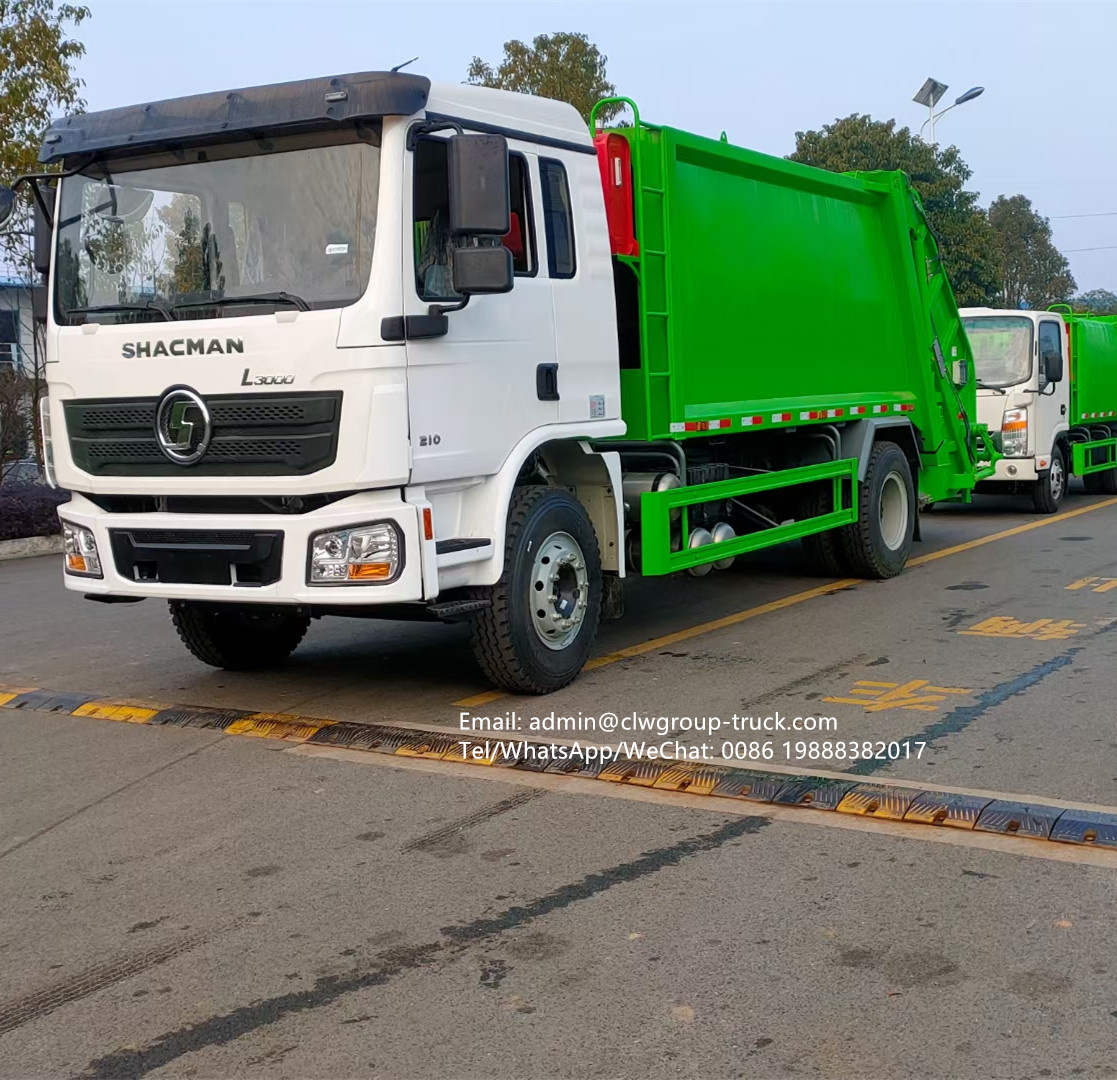

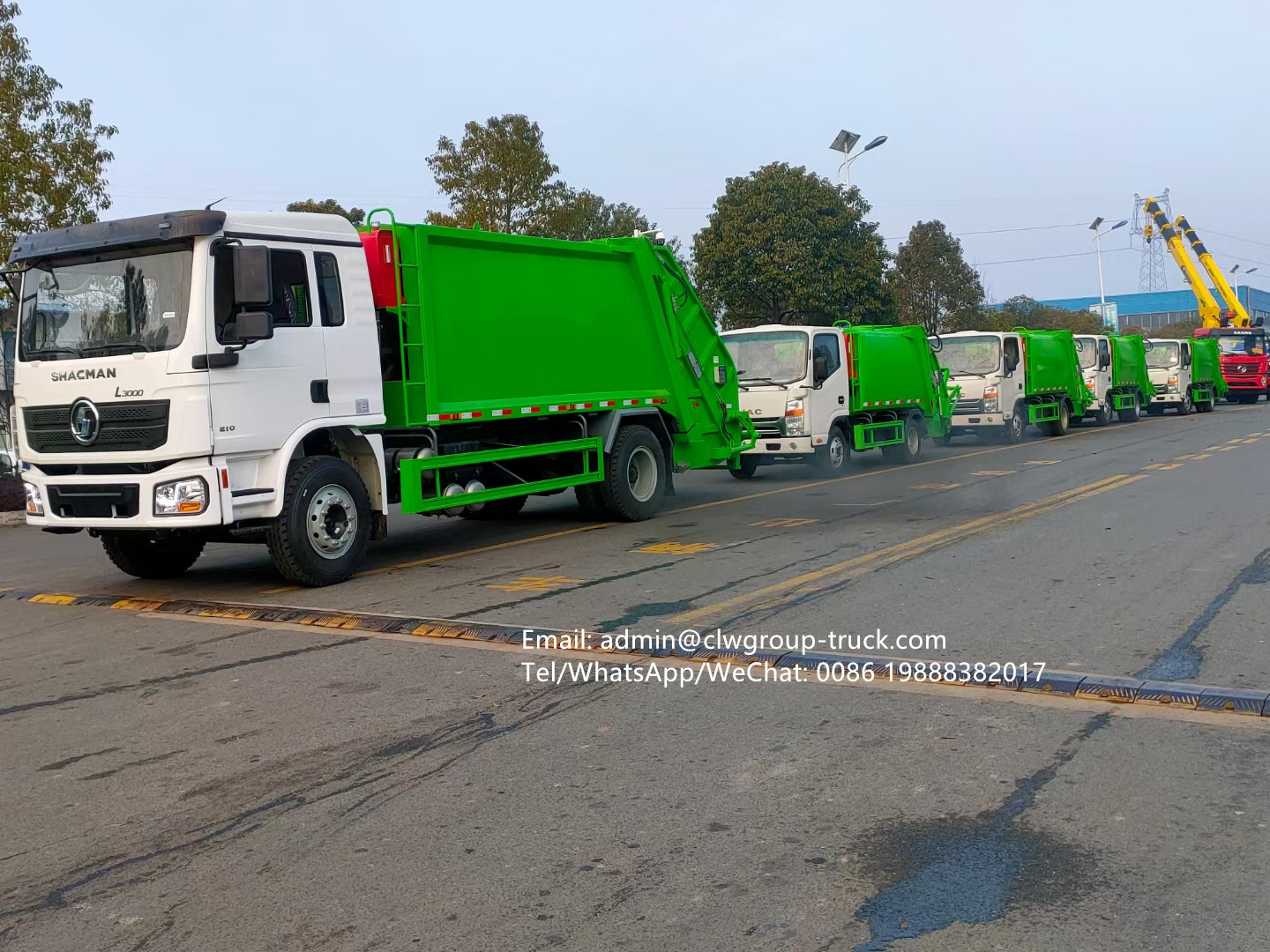

Shacman 4x2 L3000 garbage compactor Truck

Chassis configuration:

 This truck adopts shacman chassis, Weichai WP6.210E32 National 3 210 horsepower engine, wheelbase 4500mm, transmission 8JS85TE-C, axle speed ratio 10T single stage axle 4.625, frame 870X250 (7+4), front axle 4.8 tons, 10.00R20 steel wire tires, fuel tank 200L, with original ABS and driving recorder.

 Shacman garbage compactor body configuration:

The garbage bin adopts a rectangular structure, with a flat bottom and curved sides and top. It has a beautiful appearance, light weight, good stress, and does not deform. Our company's compression car flipping mechanism adopts a fiberglass skirt package, which enhances overall coordination and sealing. According to customer requirements, the flipping mechanism can be made into hanging bucket and swing arm types, with a reasonable structure, reliable performance, and convenient operation.

 Hydraulic system: high-quality oil cylinders with no leakage

We use high-quality lifting cylinders, operating valves, sleeve type joints, high-pressure hoses, and high-pressure steel pipes for reasonable installation. At the same time, reliable fixing devices are arranged to ensure no leakage for a long time, achieving reliability, convenient maintenance, and extended service life.

Dual insurance system: manual, automatic, and free switching

 The homework system has dual functions of computer control and manual operation, greatly ensuring and improving the utilization rate of vehicles.

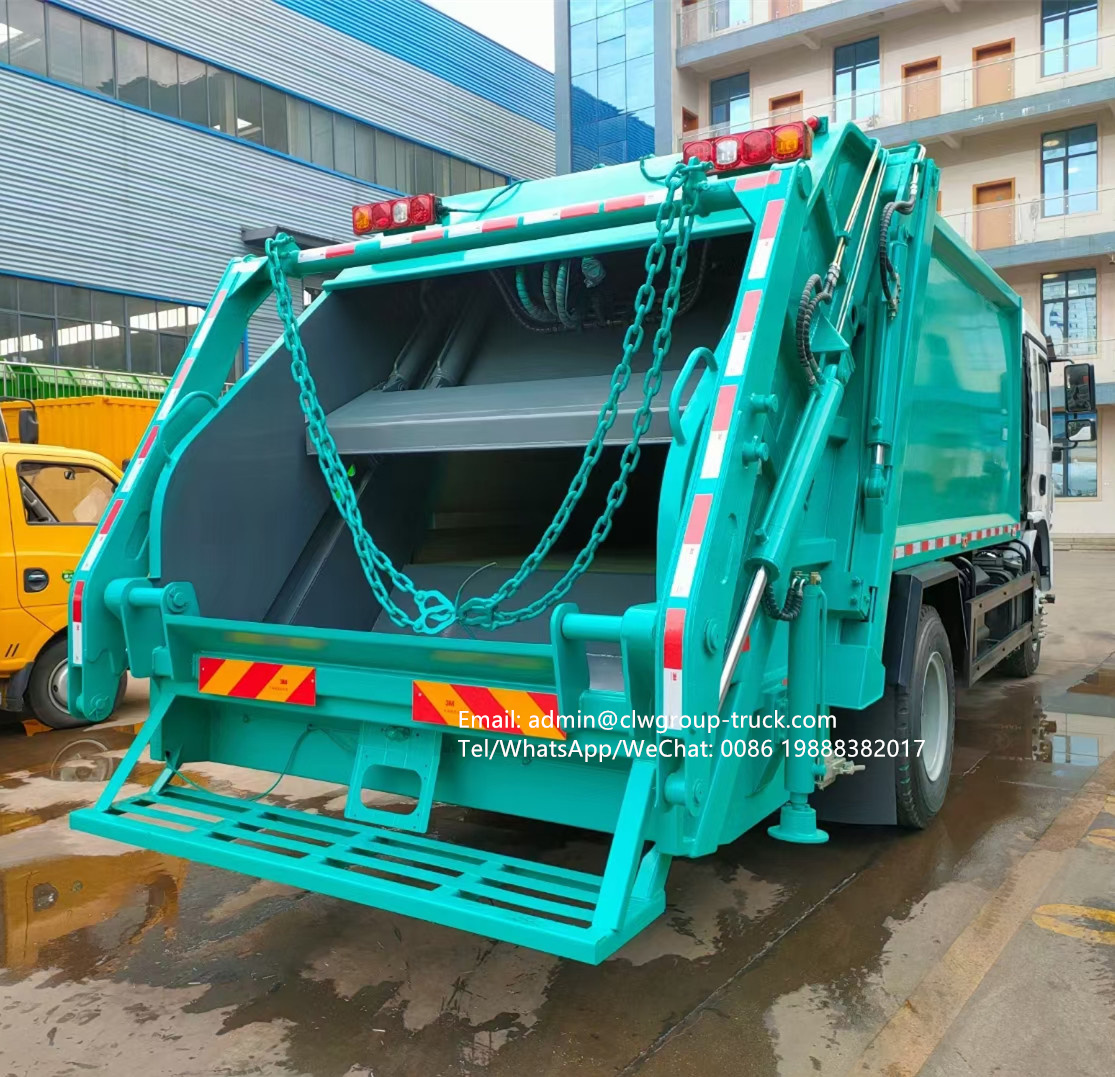

Diversified flipping institutions: multi capacity diversification

Optional flip mechanism with garbage bin (or bucket) can be installed to lift multi capacity garbage bins, capable of flipping over 300L garbage iron bins, 800L small garbage bins, 250L plastic garbage bins, 1400L sealed cover garbage bins, etc.

Hydraulic lifting safety circuit: effective isolation, safety, and explosion-proof

 The explosion-proof valve in the hydraulic lifting system effectively blocks the hydraulic hose from the lifting cylinder, and in the event of oil pipe rupture, there will be no danger, making it relatively safe.
