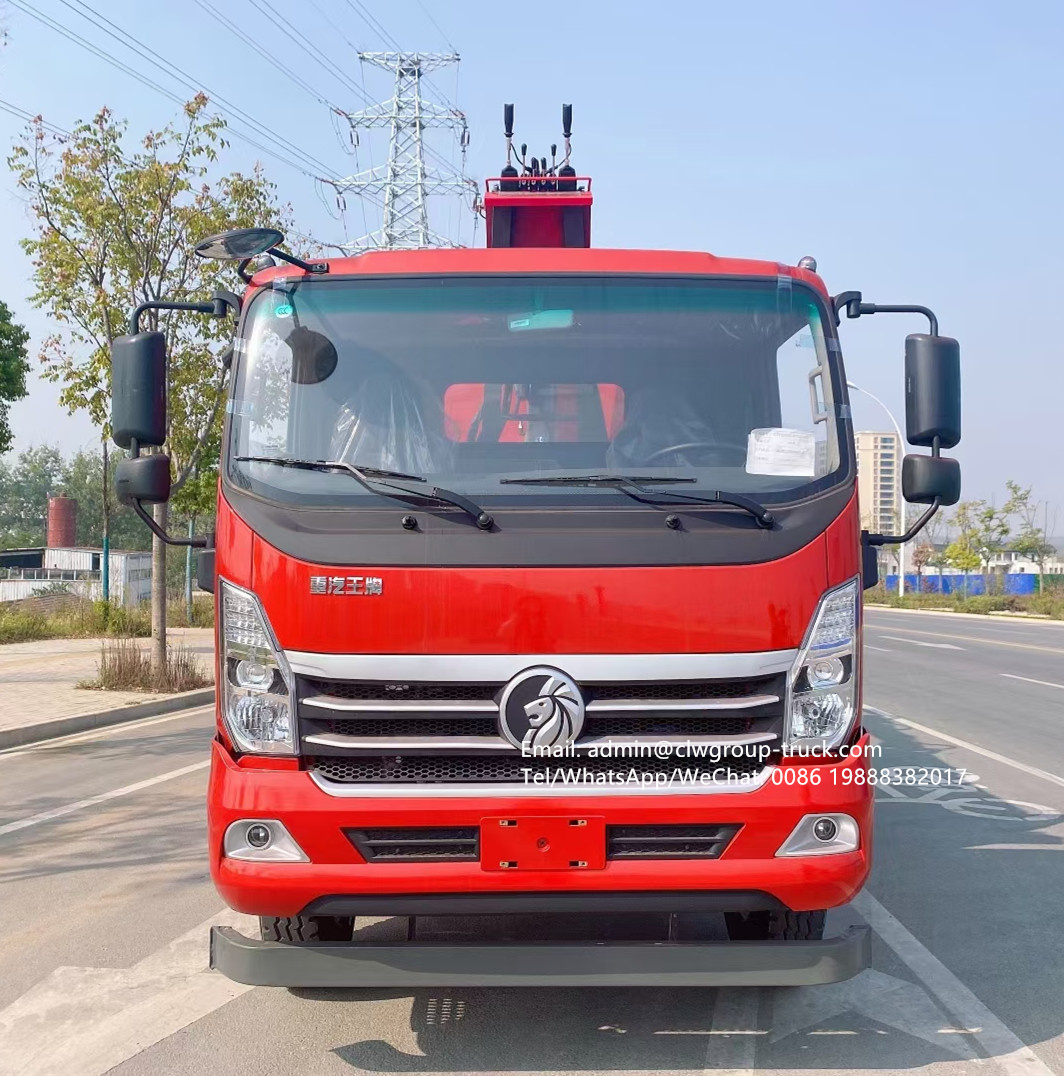

5 tons sinotruk crane truck Chassis configuration:
Configuration 1: The 5-ton truck mounted crane of CNHTC's flagship adopts CNHTC's flagship dedicated chassis, a 2080mm cab, a Xichai 130 horsepower engine, National V emission standards, 5-speed with auxiliary gearbox, a 7-ton rear axle, a 250mm beam, 8.25 steel wire tires for the entire vehicle, and a 3.9-meter wheelbase;
Configuration 2: Special chassis for heavy-duty truck, 2080mm cab, Yuchai 160 horsepower engine, National V emission standard, Haowo 9-speed gearbox, 9-ton rear axle, 250mm beam, 9.00 steel wire tires for the entire vehicle, 4.5 meters wheelbase;
Standard configuration: equipped with directional assistance, ABS, air brake system, brake with automatic adjustment arm, headlight adjustment function, mudguard with splash prevention device, parking wedge added with vehicle tools, reflective vest, etc.
Truck crane Lorry box configuration:
When selecting a 3.9-meter wheelbase for the heavy-duty truck's flagship crane, the length of the cargo box is 4.3 meters. When selecting a 4.5-meter wheelbase, the length of the cargo box is 5.1 meters. The bottom plate of the cargo box is 5mm thick, and the form of the edge plate is optional. Both the crossbeam and longitudinal beam of the cargo box can be made of channel steel or square tube materials. The cargo box can be equipped with a self unloading function, achieving multiple uses for one vehicle.
Crane configuration:
CNHTC's flagship truck mounted crane chassis is equipped with a 3.9-meter wheelbase, typically equipped with 5-ton, 6.3-ton cranes, and a 4.5-meter wheelbase, typically equipped with 5-ton, 6.3-ton, and 8-ton cranes. Crane brands include Sany, XCMG, Shimei, etc., with 360 degree full rotation and standard front hydraulic support legs. The rear support legs can be fixed or single chamber hydraulic rear support legs.
Sinotruk truck crane Product advantages:
1. The golden frame body has a one-time molding of the main beam, with a thickness of 10mm for the main beam plate, strong load-bearing capacity, and more advantages compared to competing models;
2. CNHTC's flagship models are complete, ranging from small to large on-board cranes, and conventional vehicle configurations can meet all requirements;

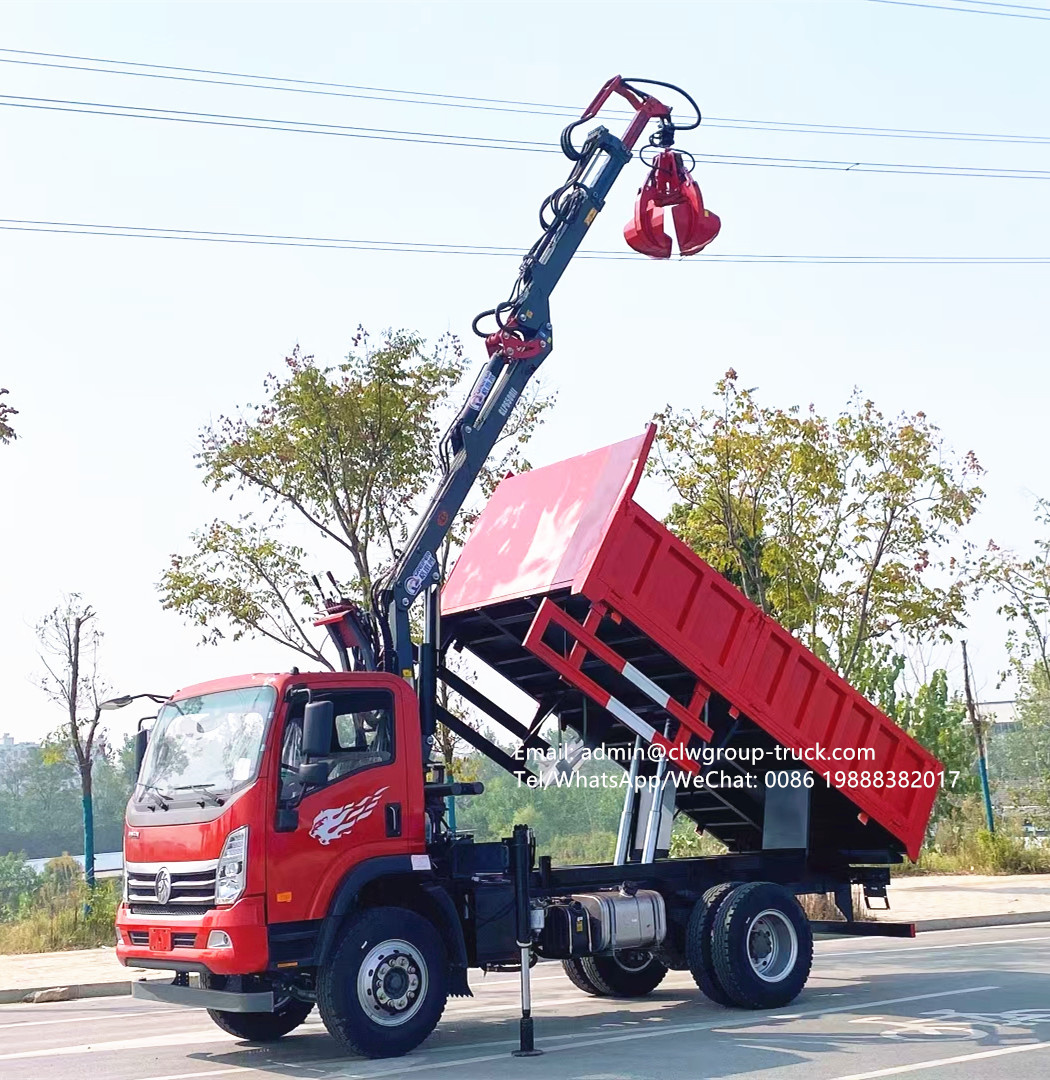

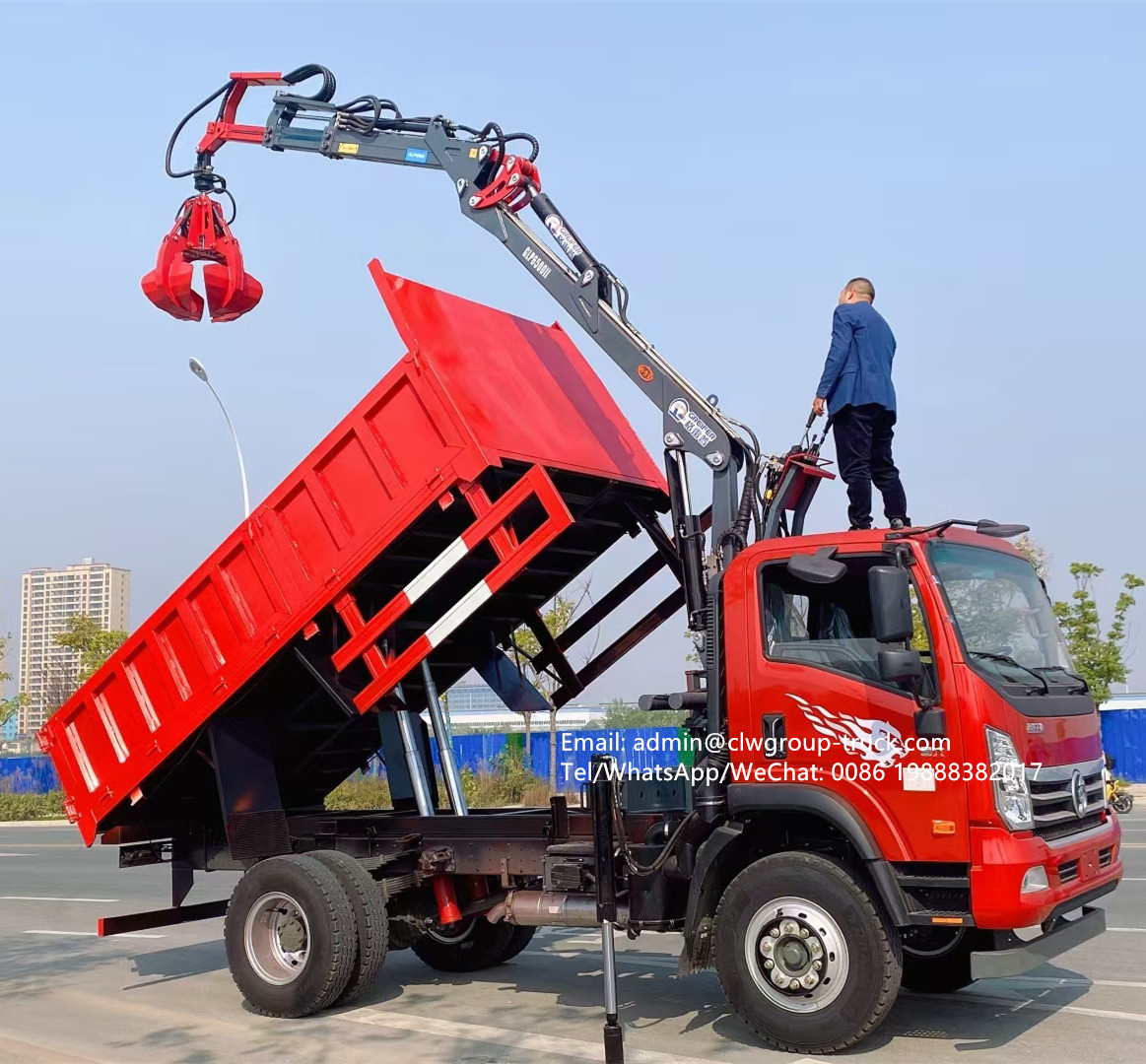

3. China National Heavy Duty Truck's flagship truck mounted crane is the model with the most self unloading functions among all models, which can achieve automatic unloading
China National Heavy Duty Truck's flagship 5-ton truck mounted crane with a medium truck cargo box length of 4.3 meters
China National Heavy Duty Truck Group's flagship is used on small and medium-sized vehicle mounted cranes. The chassis of China National Heavy Duty Truck Group's flagship is more commonly used, resulting in stable vehicle performance and improved power. Depending on the selected wheelbase, the cargo box can reach 4.3 or 5.1 meters. The front face and bumper of China National Heavy Duty Truck Group's flagship adopt a vehicle like design, with exquisite and beautiful appearance, electrical layout, reasonable wiring layout, standardized assembly, compact interior design, practical control button layout, and a Xichai engine with 130 horsepower, Fuel saving and cost saving, with slightly lower maintenance costs. Another synonym for China National Heavy Duty Truck's flagship brand is the golden frame, with a 250mm beam formed in one go and high strength, which complements the 7-ton rear axle and has strong load-bearing capacity.

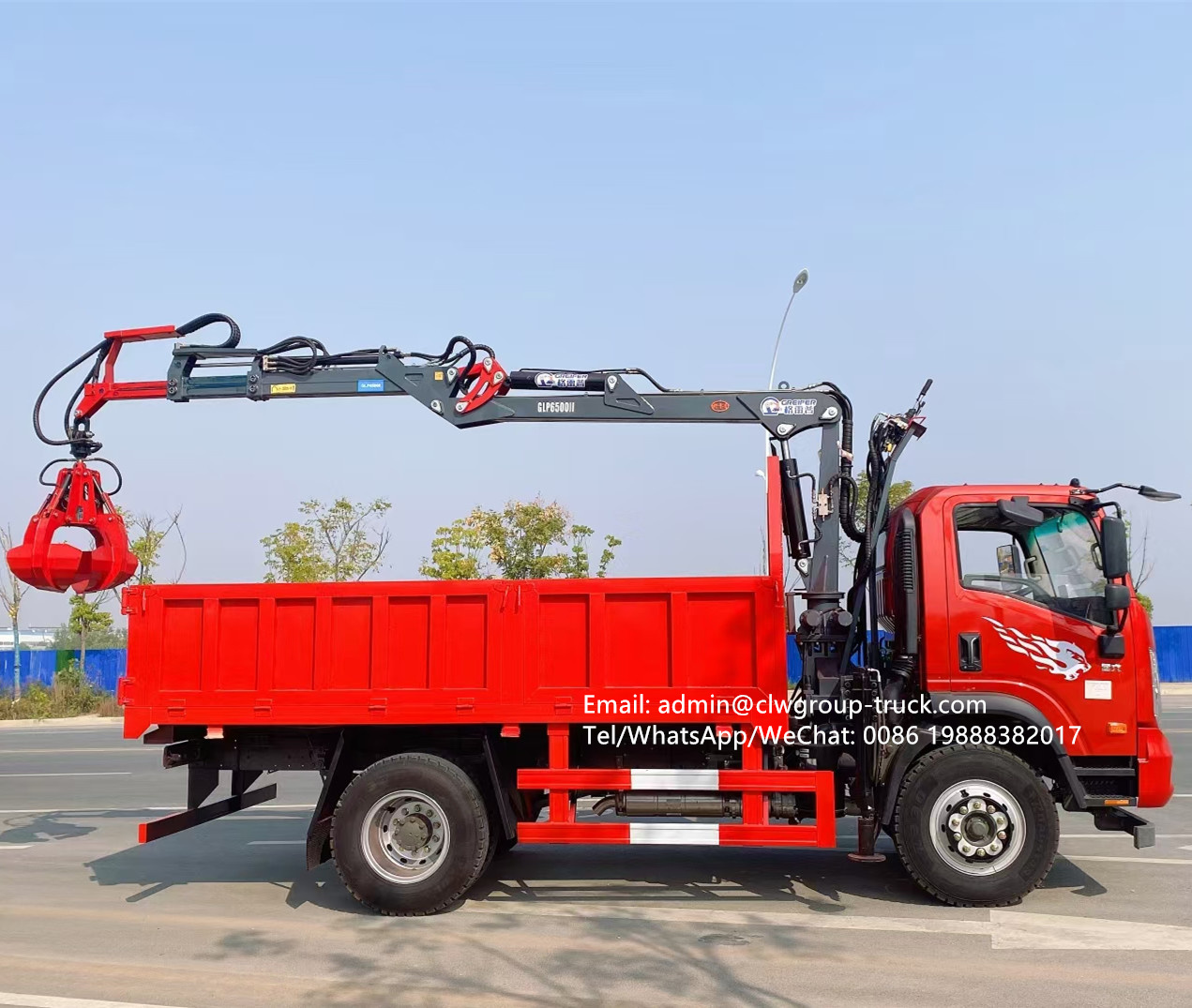

China National Heavy Duty Truck Group's flagship 4.3-meter cargo box truck mounted crane is commonly equipped with 4 tons, 5 tons, and 6.3 tons. The crane can be selected from Sany, XCMG, Shimei, etc. The crane arm style is mostly straight arm crane. Compared with folding arm crane, the crane arm is long, has a wide operating range, and is suitable for working in a wide environment. Taking XCMG's 5-ton four arm crane as an example (as shown in the figure below), the crane model is KSQS125-4, which is standard with four arms, a working radius of 11 meters, a lifting height of 12 meters, and can lift up to 0.4 tons, The lifting arm is controlled by downward operation, and can be operated on both sides. The top of the lifting arm is equipped with a work light to meet the needs of night work
A truck-mounted crane is grouped together as a means of transport. By the boom, lifting torque, frame, legs and otherparts. Crane left and right operation can be both positive and negative 360-degree rotation, can also be full rotation.
Compared special crane trucks with crane, with a high speed, climbing ability characteristics. Enables fast movements,efficiency, energy-saving.With a flexible, easy to operate, efficient, safe, and reliable.
