ISUZU 6 Wheels 8Ton Hydraulic Mobile Straight Boom Arm Crane Truck
Truck crane ,also called boom truck crane,mobile truck crane , truck mounted crane , hydraulic folding truck crane,telescopic straight boom crane,truck with crane , crane lorry,hydraulic arm crane for trucks,pickup truck mounted crane,light truck with crane,folding arm hydraulic lift platform,hydraulic crane telescopic boom,mobile crane price ,self loader truck with boom crane,new forland lorry truck mounted crane,telescopic boom truck mounted crane,flatbed knuckle boom truck crane,6 wheelers truck with crane boom truck cranes sale etc
A crane mounted on a truck carrier provides the mobility for this type of crane. This crane has two parts: the carrier, often referred to as the Lower, and the lifting component which includes the boom, referred to as the Upper. These are mated together through a turntable, allowing the upperto swing from side to side. These modern hydraulic truck cranes are usually single-engine machines, with the same engine powering the undercarriage and the crane. The upper is usually powered via hydraulics run through the turntable from the pump mounted on the lower. In older model designs of hydraulic truck cranes, there were two engines. One in the lower pulled the crane down the road and ran a hydraulic pump for the outriggers and jacks. The one in the upper ran the upper through a hydraulic pump of its own. Many older operators favor the two-engine system due to leaking seals in the turntable of aging newer design cranes.
Product Description
1. Purpose: It's used for lifting and transporting all kinds of bulk cargo, and also applied in jetty and construction work.
2. Main parts: Crane. (Different lifting capacities match different chassis.)
3. Advantage: One truck combines the functions of crane and dump truck.

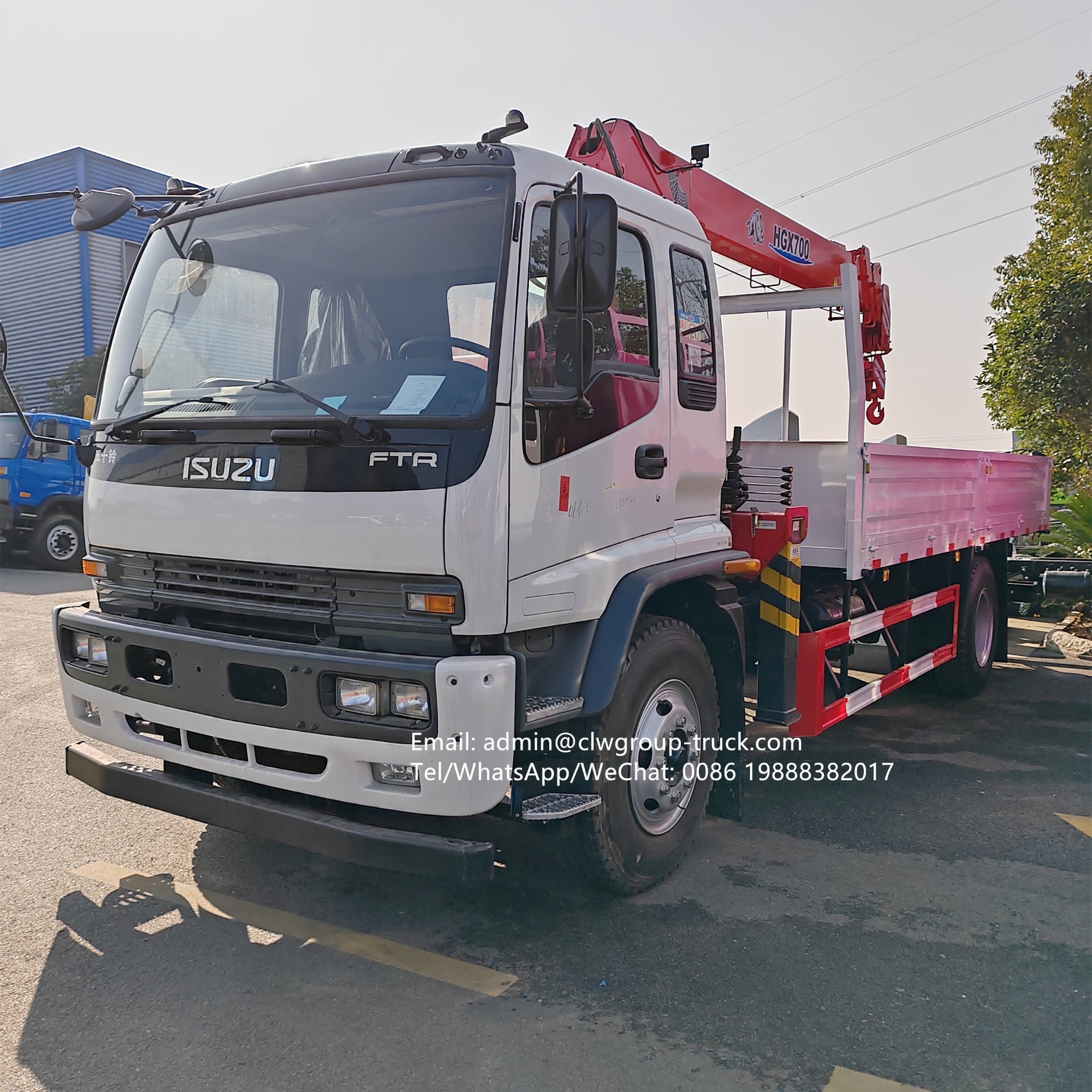

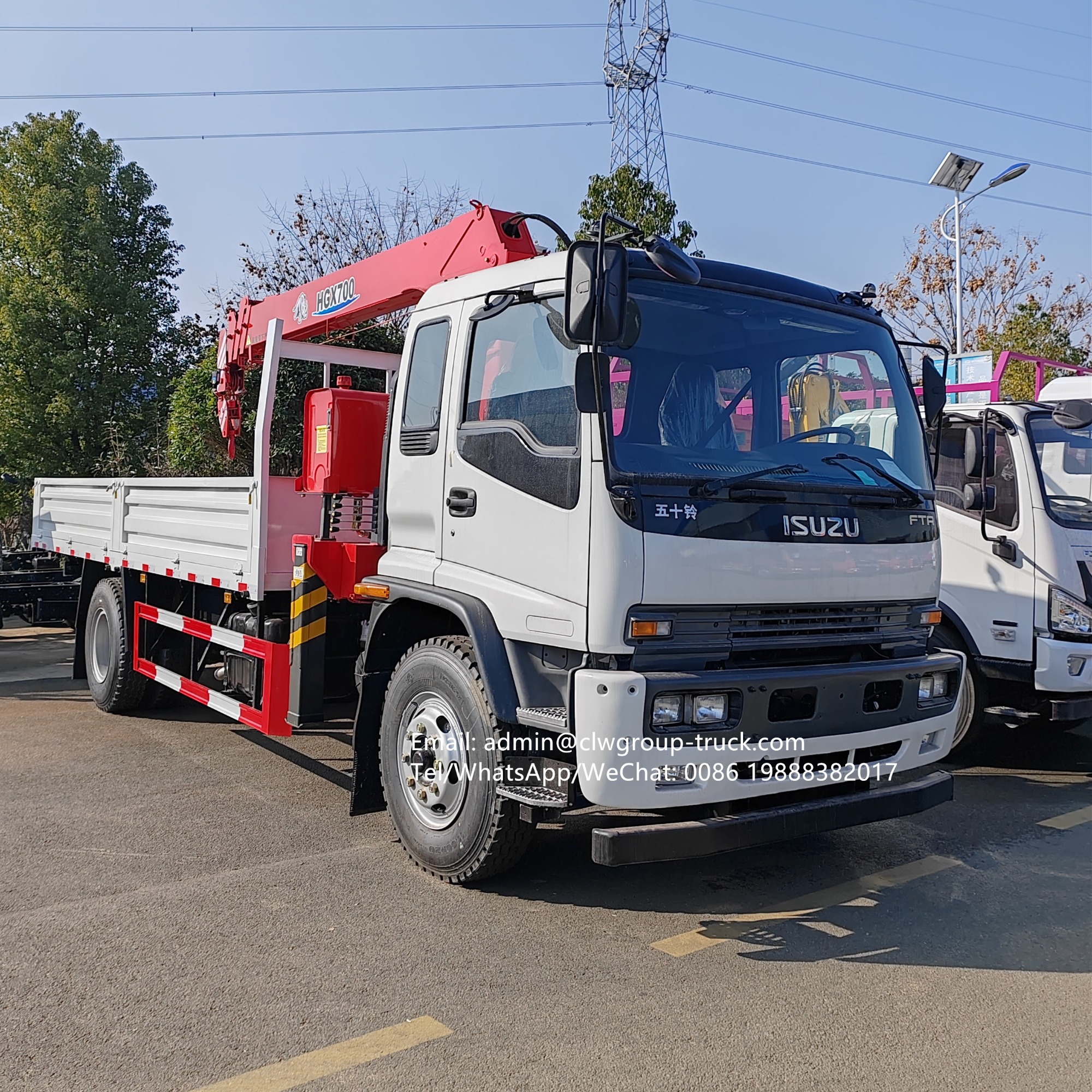

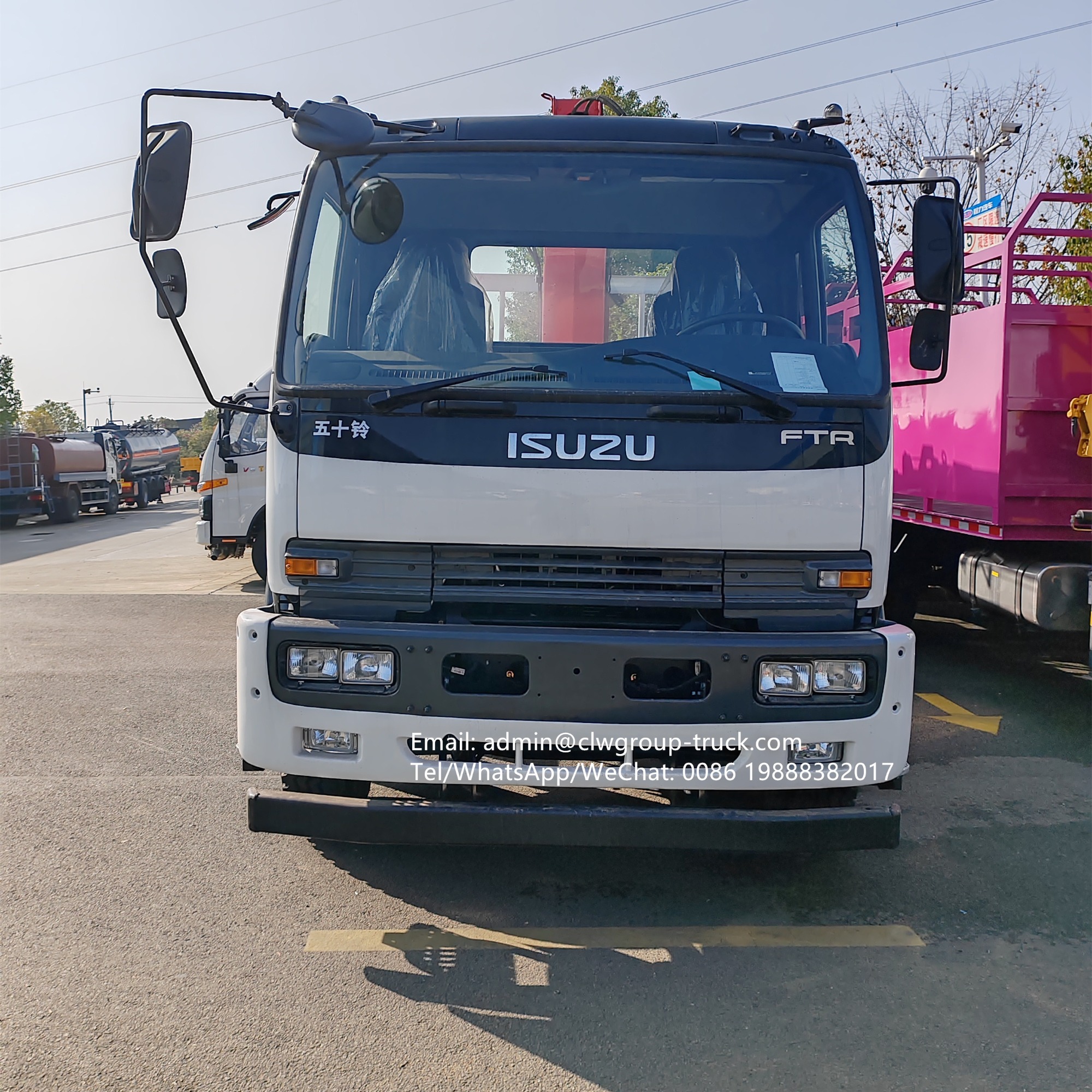

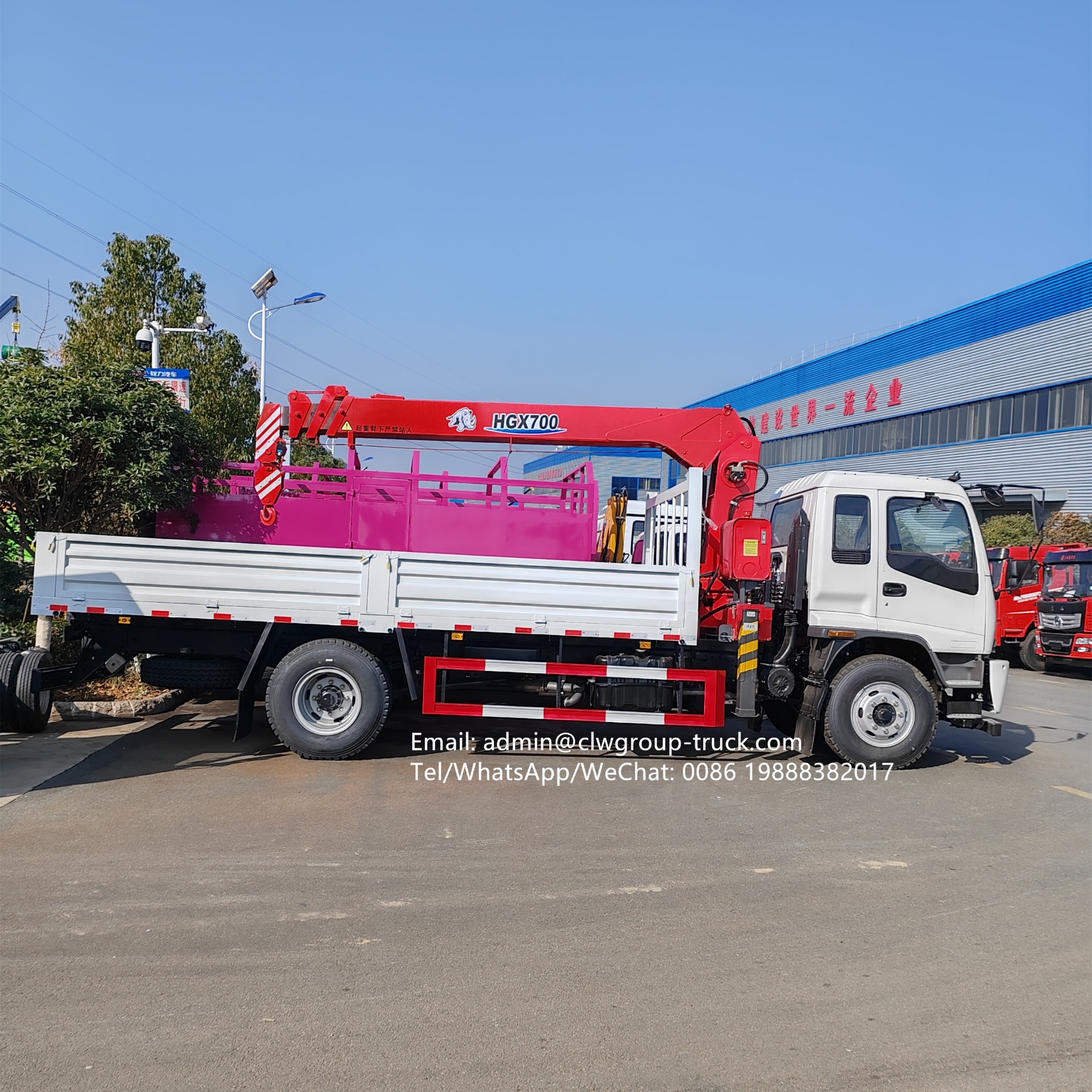

ISUZU 6 Wheels 8Ton Hydraulic Mobile Straight Boom Arm Crane Truck
chassis optional : dongfeng ,foton ,sinotruk ,Shacman ,FAW,Beiben etc
Isuzu FTR 6.3 tons, 8-ton truck with crane
The Isuzu 8-ton straight arm truck mounted crane adopts a chassis wide body three seater cab, Isuzu 205 Ma 4HK1-TC50 engine, Isuzu MLD 6-speed transmission, front axle 6.3 tons, rear axle 13 tons, 10.00R20 steel wire tire cargo box size 5650 * 2430 * 600mm
Vehicle size 9000 * 2530 * 3700mm, total weight 18000kg, curb weight 12100kg, rated load capacity 6525kg
Chassis equipped with air conditioning, steering assistance, central locking, electric glass, multifunctional LCD instrument panel, with ABS, and air brake
Isuzu 6.3 ton truck mounted crane with four straight arms and a non extended arm length of 4.14 meters, a fully extended arm length of 11 meters, and a lifting height of 12.8 meters. The horizontal lifting parameters are: a lifting arm length of 11 meters, a lifting capacity of 0.6 tons, a lifting capacity of 1.6 tons at 7.19 meters, and a lifting capacity of 6.3 tons at 2.5 meters.
The Isuzu 8-ton truck mounted crane has a four section arm length of 4.48 meters without extension, a fully extended arm length of 11.5 meters, and a lifting height of 13.5 meters. The horizontal lifting parameters are: the arm length is 11.5 meters, lifting 1.1 tons, lifting 2.5 tons at 7 meters, and lifting 8 tons at 2.5 meters
