Crane truck, the full name is truck-mounted lifting transport vehicle.
In some places Also known as car crane, self-crane and so on. It is a kind of equipment that integrates hoisting and transportation, and realizes the lifting, turning, and hoisting of goods through hydraulic lifting and telescopic systems.
It is generally composed of a truck chassis, a cargo compartment, and a crane. It is mostly used in stations, warehouses, docks, construction sites, field rescue and other places.

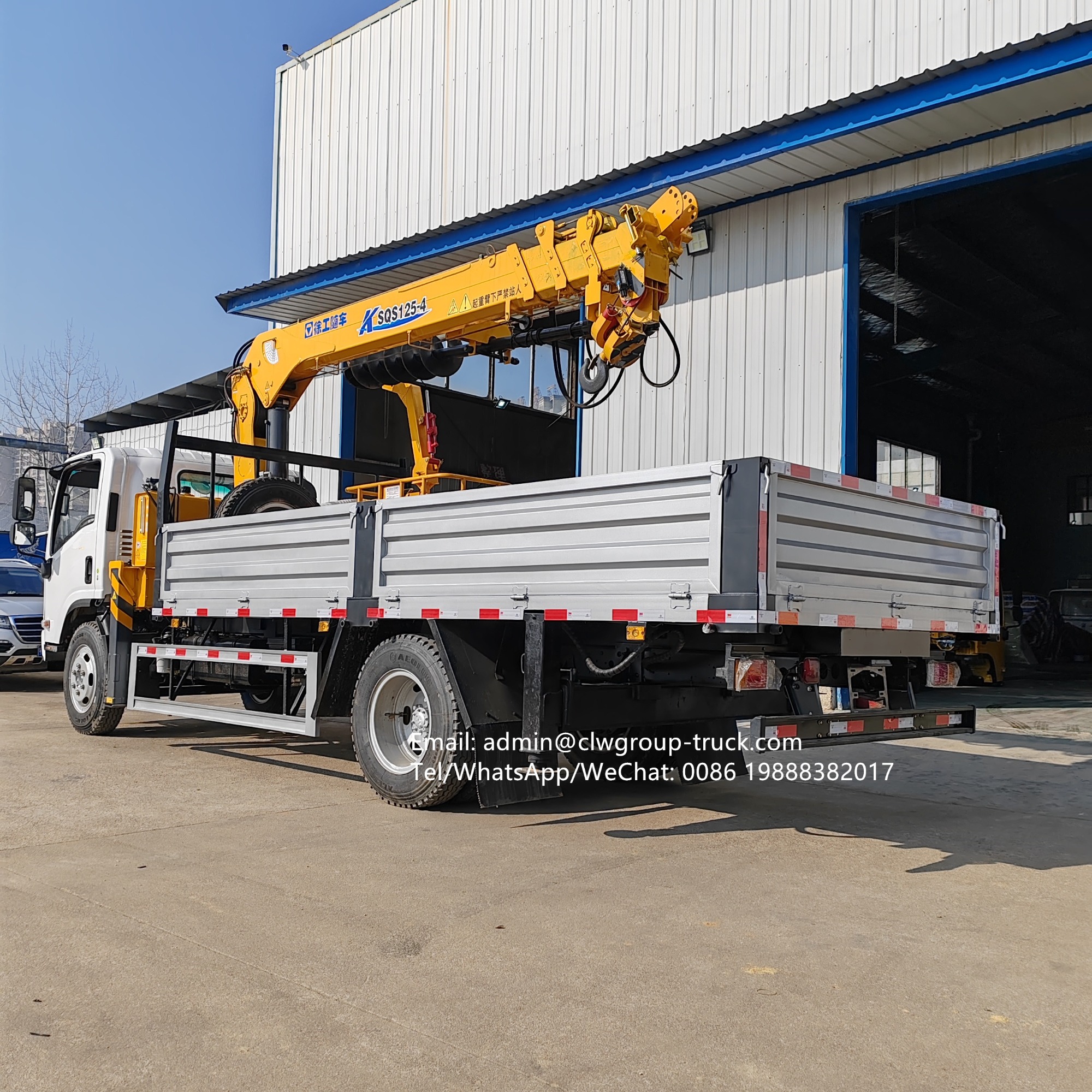

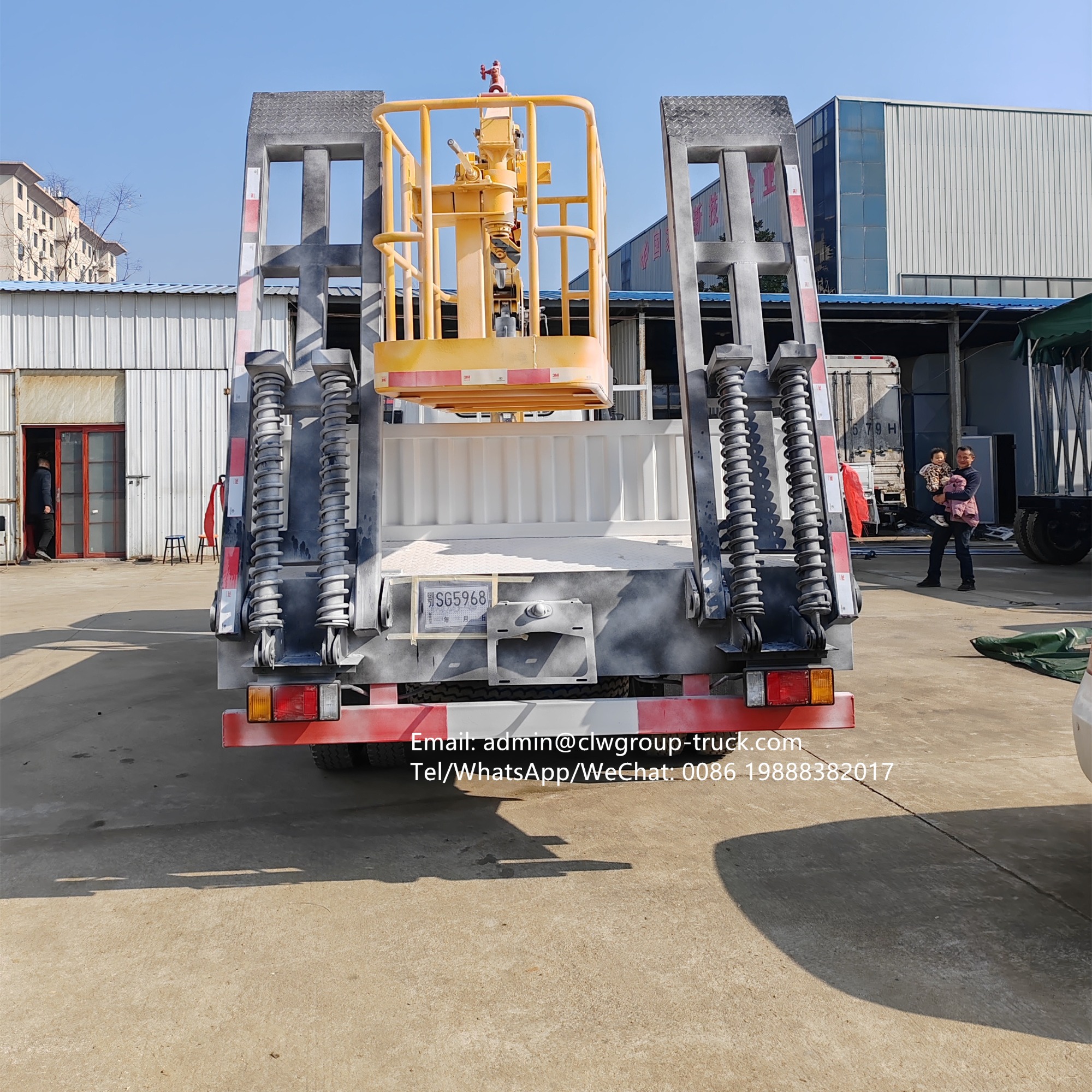

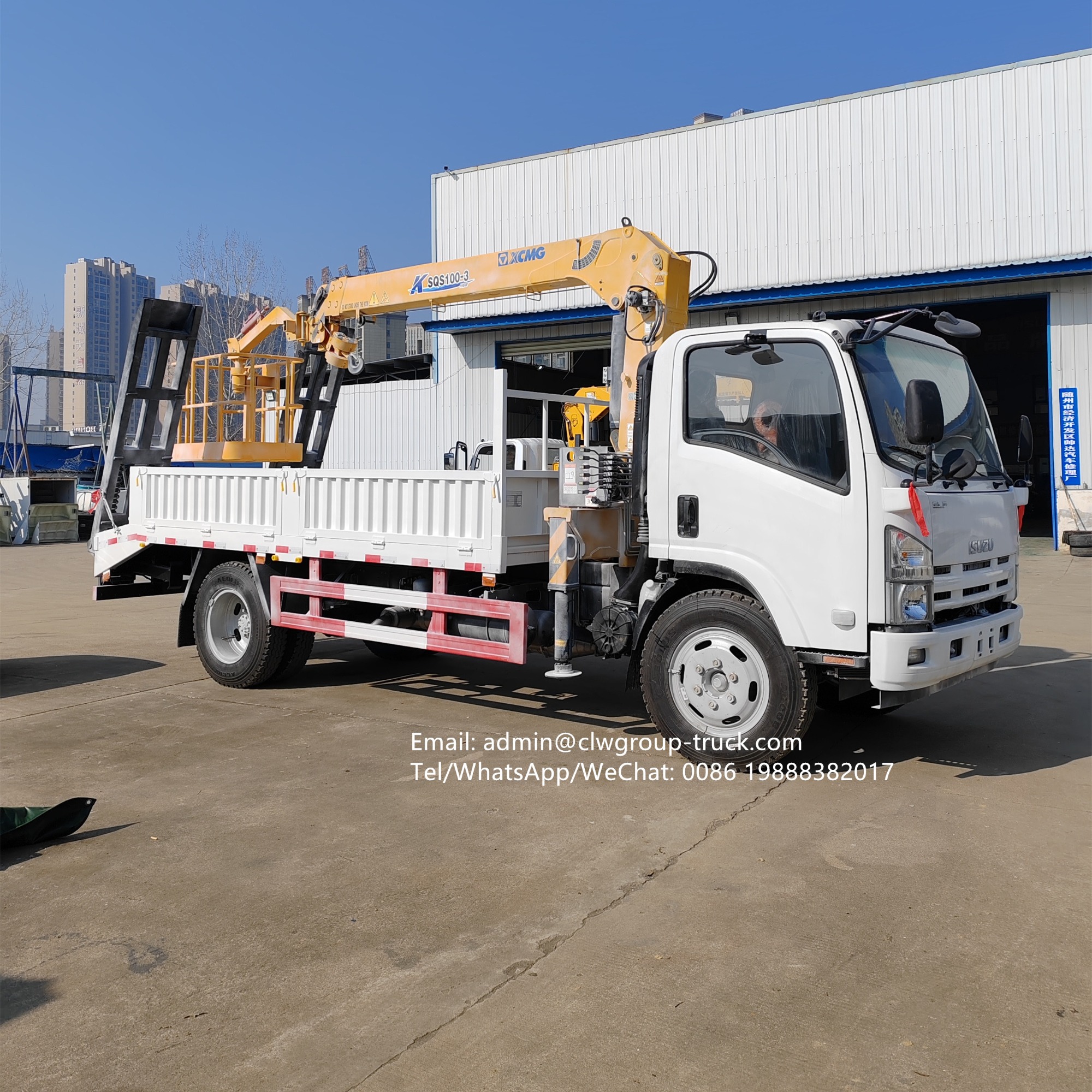

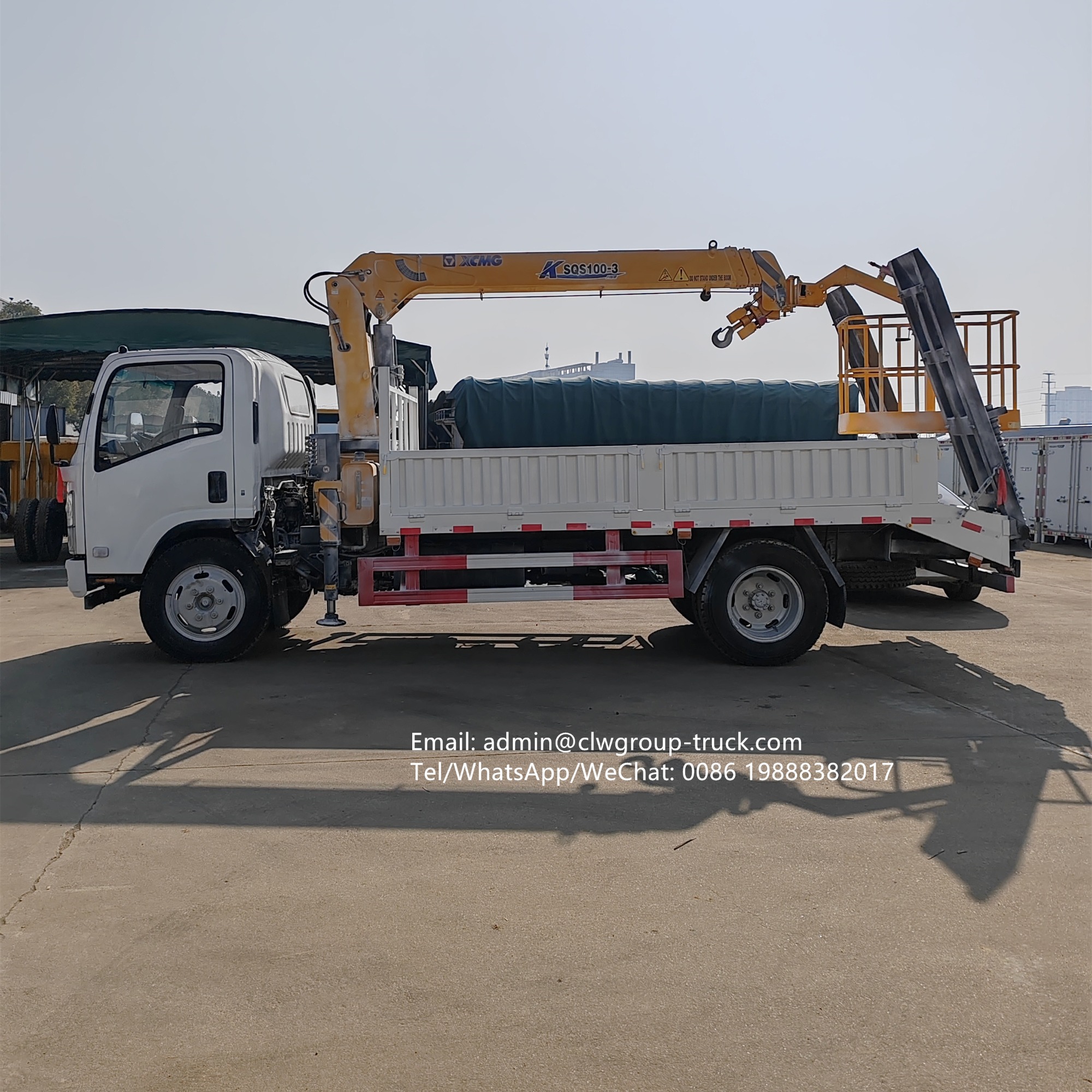

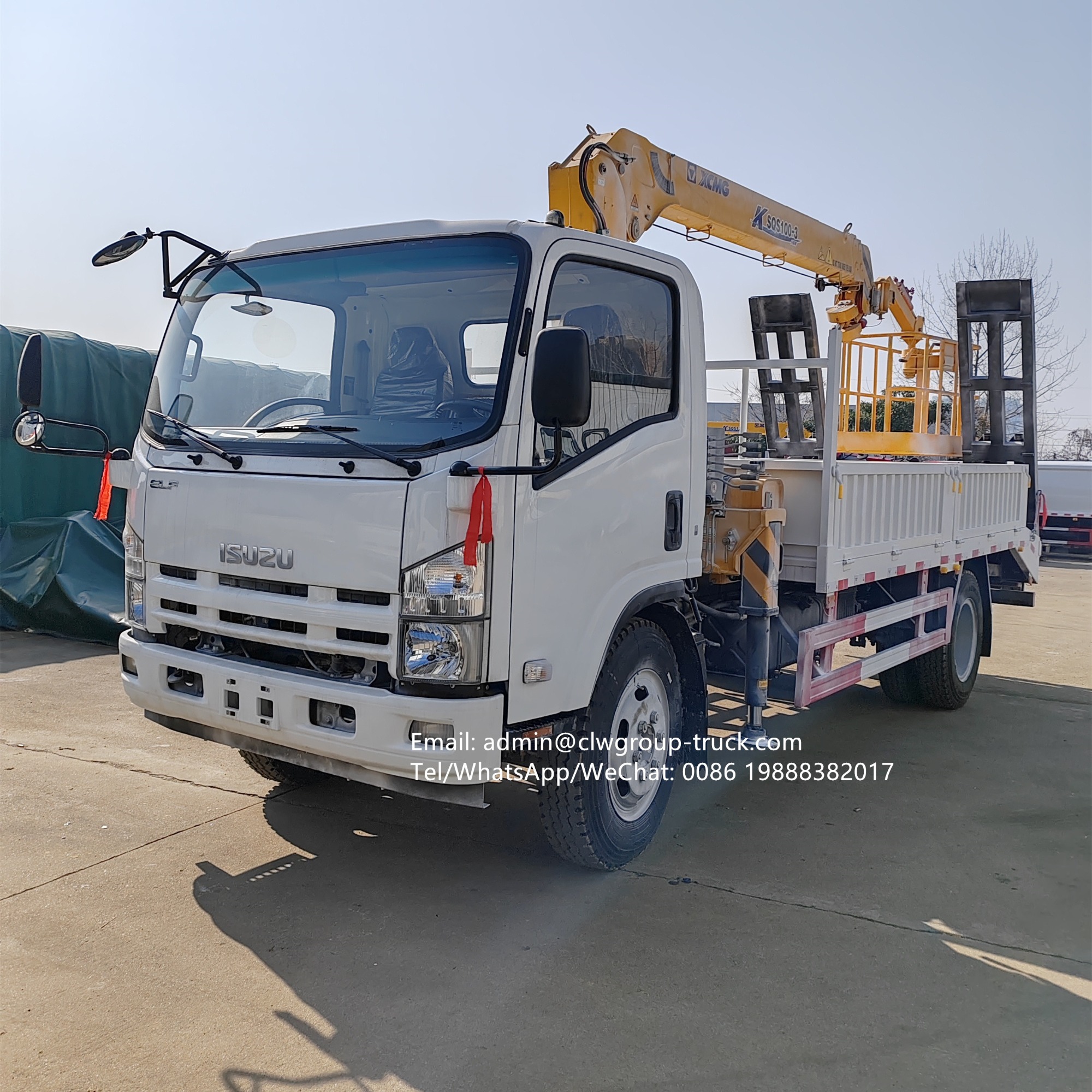

Isuzu 5-ton truck with crane
Isuzu 5-ton straight arm truck mounted lifting and drilling rod adopts a chassis wide body three seater cab, Isuzu 190Ma 4HK1-TC51 engine, Isuzu MLD 6-speed transmission front axle 4 tons, rear axle 7 tons, 235/75R17.5 steel wire tire cargo box size 4300 * 2300 * 550mm
Vehicle size 7750 * 2400 * 3500mm, total weight 14000kg, curb weight 8350kg, rated load capacity 5520kg
Chassis equipped with air conditioning, steering assistance, central locking, electric glass, multifunctional LCD instrument panel, with ABS, and air brake
2. XCMG 5-ton four section boom crane, with a boom extending 2.5 meters and a horizontal lifting capacity of 5 tons; The boom extends 3.62 meters and the horizontal lifting capacity is 2.8 tons; The boom extends 6.05 meters and the horizontal lifting capacity is 1.5 tons; The boom extends 8.5 meters and the horizontal lifting capacity is 1.1 tons; The boom extends 11 meters and the horizontal lifting capacity is 0.4 tons
3. Reminder: The lifting capacity of the crane is related to the working environment, working elevation angle, and boom length. When doing homework, please strictly follow the instructions on the lifting nameplate of the crane for operation, and it is strictly prohibited to expand or retract with load
