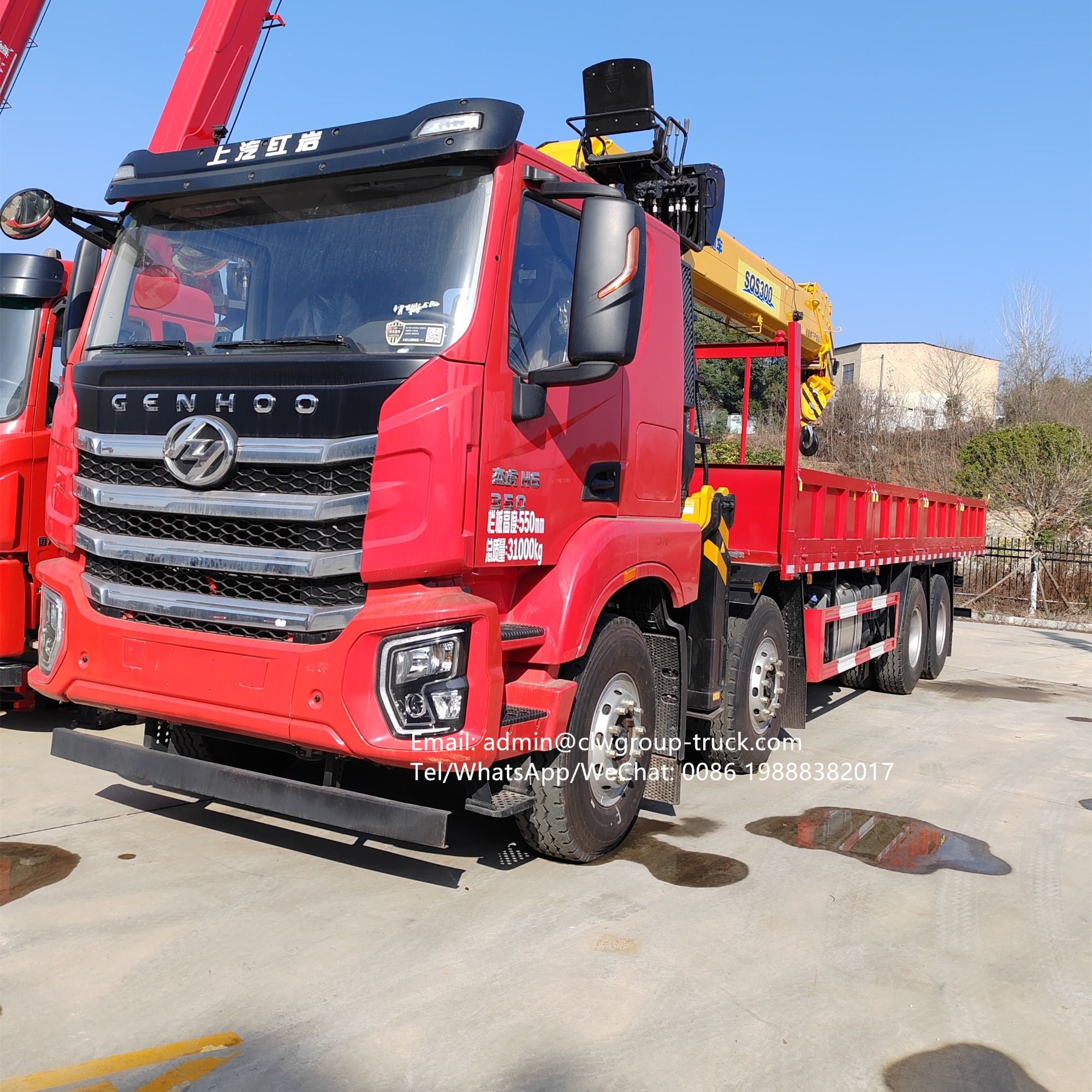

Iveco Hongyan 8X4 truck mounted lifting belt 16 ton straight arm crane

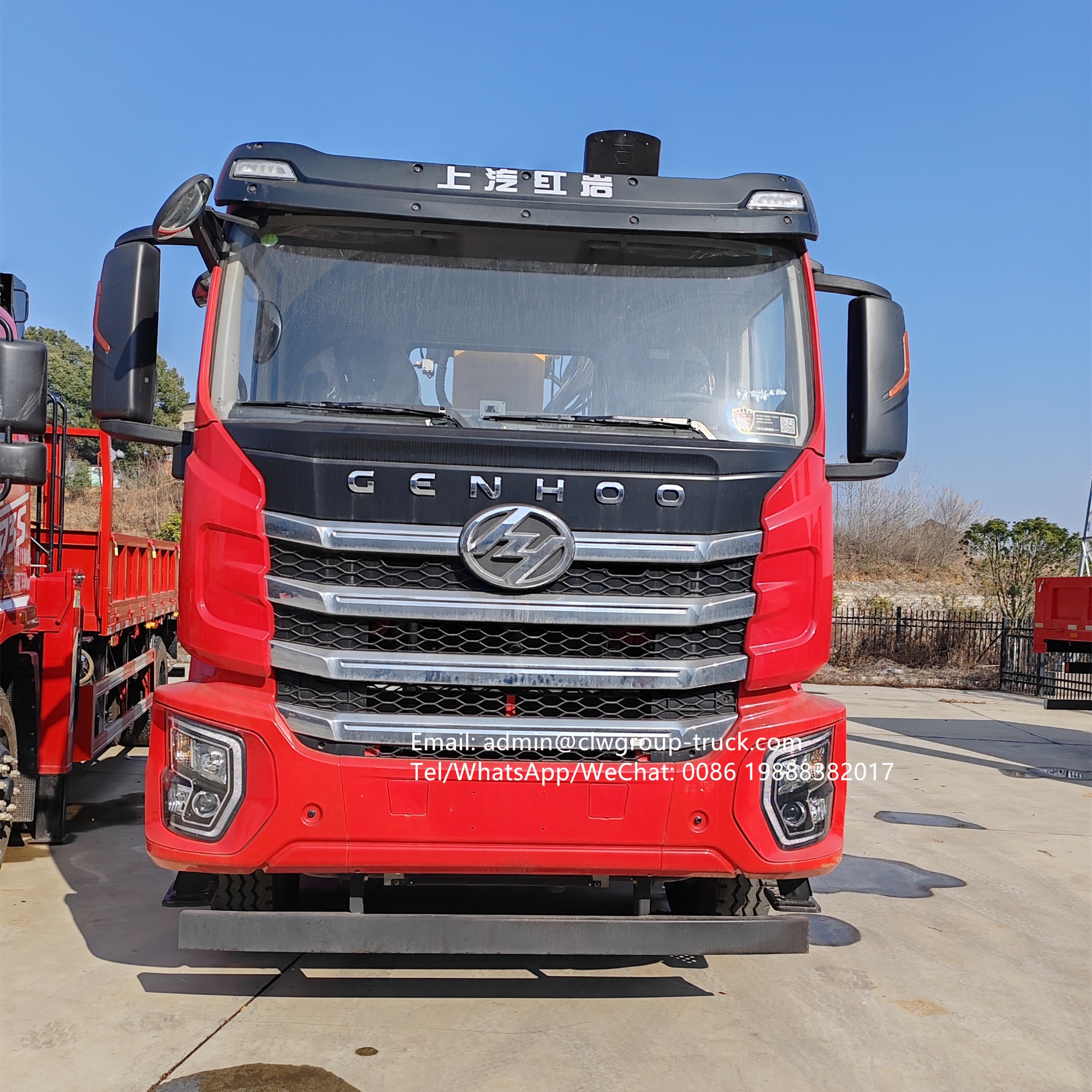

Iveco Hongyan 8X4 chassis parameters: wheelbase 2025+4375+1400, weight 31000KG, curb weight: 19440kgs. chassis self weight: 12500kgs, cargo box size: 8400 * 2400 * 600mm, vehicle size: 11980 * 2550 * 3890mm Weichai engine 380 horsepower, Faust 12 speed transmission, four point suspension cab, dual front axle 7.5 tons, rear axle 13 tons, 11.00R20 steel wire tires, 400L aluminum alloy fuel tank, manual flipping, electric doors and windows

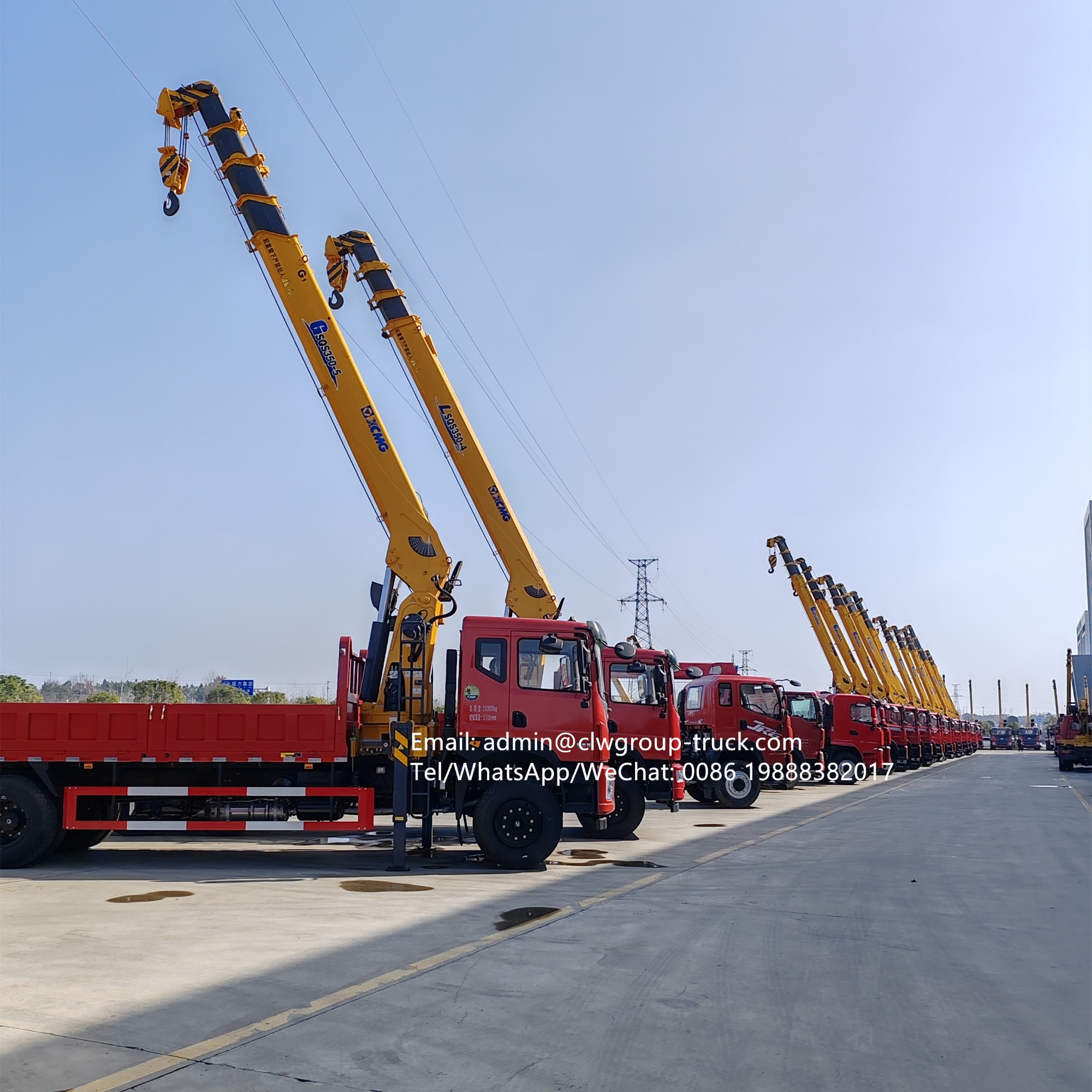

Crane configuration: XCMG GSQS350-5 model crane, XCMG 14 ton truck mounted crane with five straight arms, non extended arm length of 5.8 meters, fully extended arm length of 19.6 meters, lifting height of 21.6 meters, horizontal lifting parameters: arm length of 19.6 meters, lifting capacity of 900KG, lifting capacity of 2 tons at 12.7 meters, lifting capacity of 3.5 tons at 9.27 meters, lifting capacity of 14 tons at 2.5 meters.
XCMG 16 ton five section boom crane, SQS400-5, with a maximum arm length of 18.5 meters and a maximum lifting height of 20 meters, operated from a high-altitude seat, electronic lifting display, 360 degree full rotation, standard dual chamber hydraulic rear support leg span of 4.5 meters.
XCMG's 20 ton truck mounted crane, model SQS500-5, the latest G-series crane, was launched at the end of 2020. It adopts a dual pump system, high-altitude seat operation, two telescopic oil cylinders, and a high torque rotary mechanism. The maximum arm length is 23.7 meters, and the maximum lifting height is 25.5 meters. The front leg span is 8.2 meters, and the rear leg span is 4.5 meters.
XCMG G-SQS500-5 truck mounted crane has a maximum lifting capacity of 20 tons, a maximum arm length of 23.7 meters, a 360 ° full rotation, a maximum lifting height of 25.5 meters, a working radius of 6 meters, and a maximum lifting capacity of 8.1 tons; The homework radius is 10 meters, and the maximum lifting capacity is 4 tons; The homework radius is 15 meters, and the maximum lifting capacity is 2.3 tons; The homework has a radius of 19 meters and a maximum lifting capacity of 1.4 tons. The supporting leg span of 8.1 meters can meet various working conditions. UFIDA's mature production and manufacturing technology, scientific research and development process, advanced research and development technology, ultra long lifting arm, and the industry's new benchmark XCMG 20 ton G-series SQS500-5 truck mounted crane, as the largest tonnage in the straight arm series, its design, performance, and configuration are undoubtedly top-notch. Its maximum operating radius is 23.7 meters, and its maximum lifting height is 25.5 meters. With an ultra long lifting arm, it sets a new benchmark in the industry.
The dimensions of the 8X4 Iveco Hongyan 16 ton straight arm truck mounted crane carriage are 8500 * 2300 * 550, with a bottom plate thickness of 5mm (manganese steel) and a box plate thickness of 4mm (manganese steel).
8X4 Iveco Hongyan 16 ton straight arm truck mounted crane modification process: The truck mounted crane can be equipped with fixed rear legs, single chamber hydraulic rear legs, hanging baskets, drilling machines, brick throwing machines, grabbing machines, etc. according to customer requirements. The cargo box can also be made into a telescopic cargo box or a self dumping cargo box according to the customer's usage environment, with an optimal telescopic length of 60-80 centimeters
