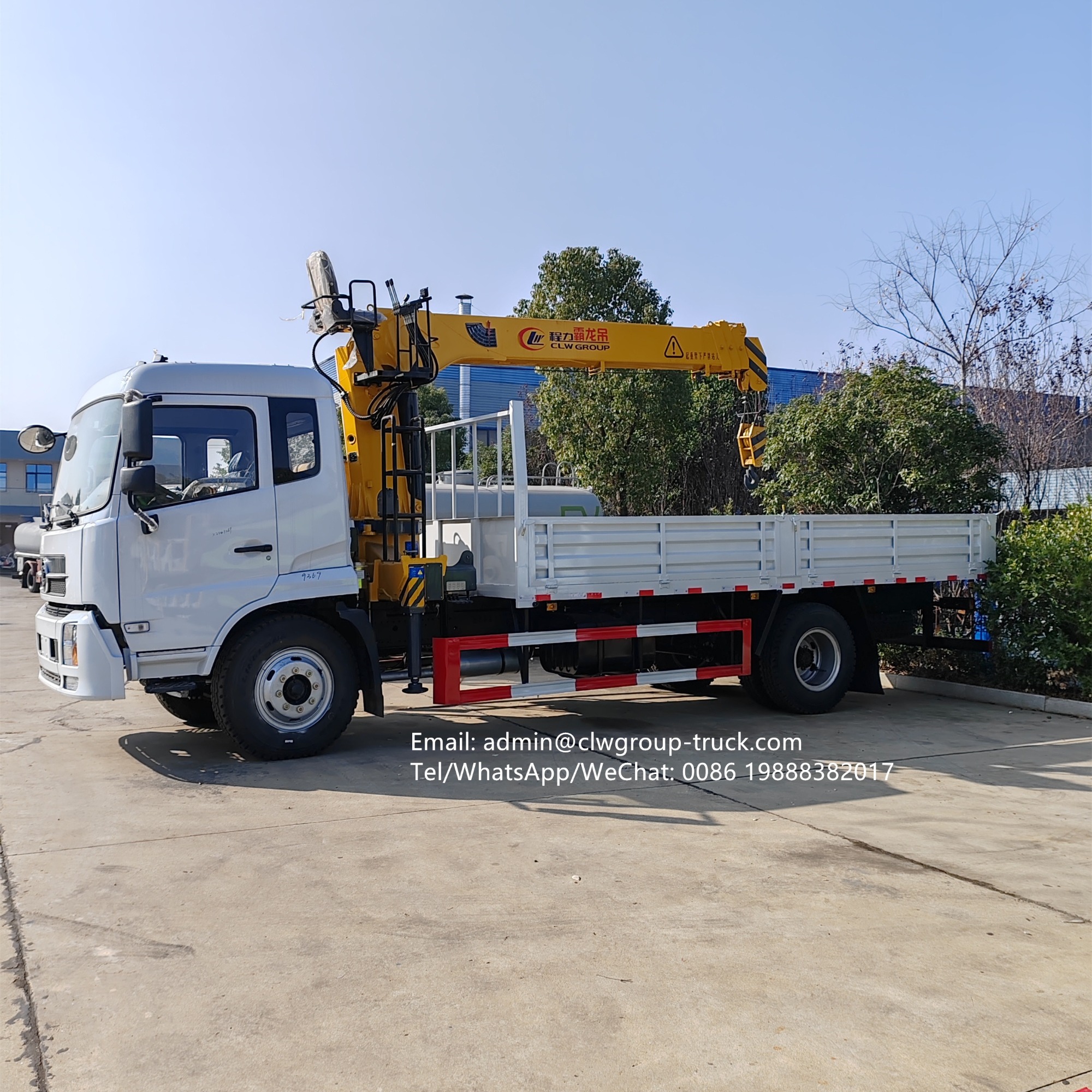

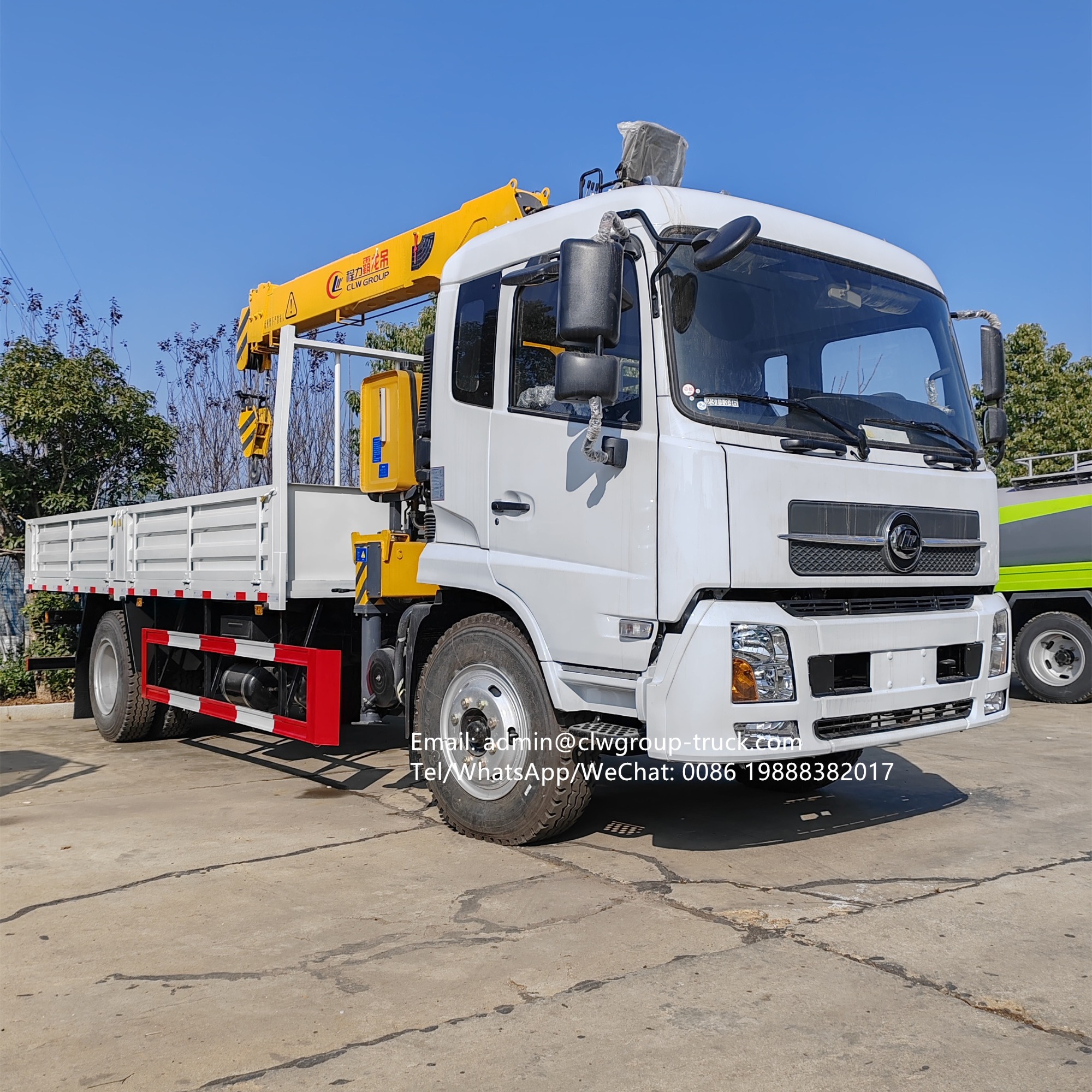

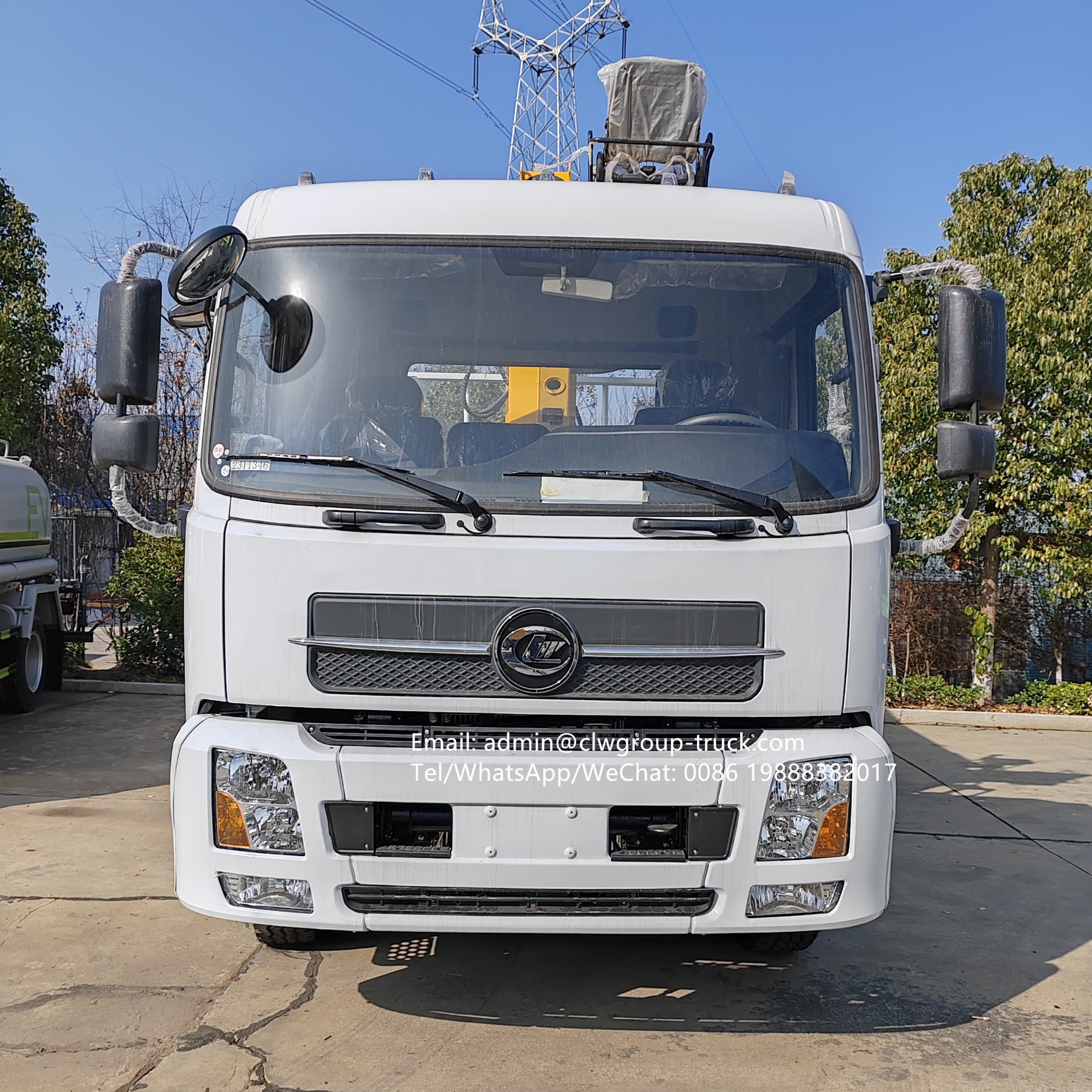

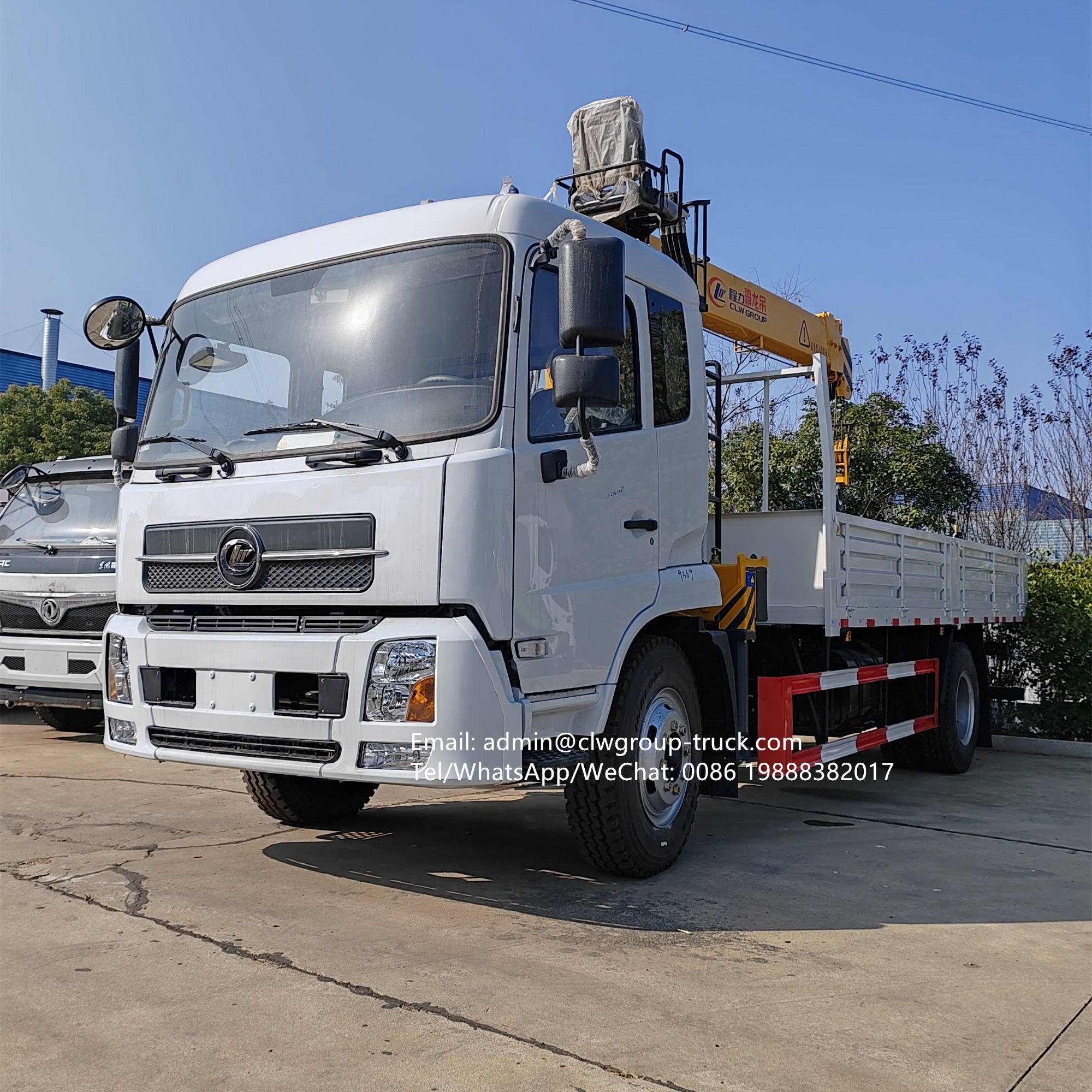

Dongfeng Tianjin 6.3 ton telescopic boom truck mounted crane
Dongfeng Tianjin 6.3-ton truck crane configuration: Dongfeng Tianjin cab, Cummins 190 horsepower engine, 4500mm wheelbase, cargo compartment size 5000 × 2100 × 600 (mm), 6-speed with auxiliary gearbox, 250mm double-layer beam with partial three layers, 5-ton front axle, 10 ton rear axle, 10.00R-20 tires, power steering, air brake failure.
6.3 ton Dongfeng Tianjin truck mounted three section telescopic boom crane lifting capacity: maximum lifting capacity of 6.3 tons, maximum working radius of 8.5 meters, maximum lifting height of 10.5 meters, working radius of 3.8 meters, lifting height of 5.5 meters, lifting weight of 2.9 tons; Working radius 6.17 meters, lifting height 8 meters, lifting weight 1.6 tons; The working radius is 8.5 meters, the lifting height is 10.5 meters, and the lifting weight is 1.2 tons.
6.3 ton Dongfeng Tianjin truck mounted four section telescopic boom crane lifting weight: maximum working radius of 11 meters, maximum lifting height of 13 meters, maximum lifting weight of 6300kg, working radius of 3.62 meters, lifting height of 5.5 meters, lifting weight of 2900kg; Working radius 6.05 meters, lifting height 8 meters, lifting weight 1600kg; Working radius 8.50 meters, lifting height 10.5 meters, lifting weight 1200kg; The working radius is 11 meters, the lifting height is 13 meters, and the lifting weight is 600kg.
6.3 ton Dongfeng Tianjin telescopic boom truck mounted crane cargo box specifications:
Dongfeng Tianjin XCMG 6.3 ton truck mounted crane, with a cargo box length of 5 meters and a width of 2.4 meters. The edge plate thickness of the box is 2mm, and the bottom plate thickness is 4mm. The auxiliary beam at the bottom of the cargo box is made of 12 * 12 square steel according to national standards. The spacing between the bottom crossbeams of the cargo box is 30cm, and the crossbeam size is 10 * 10. Users can customize the cargo box specially, and add a self unloading function.
Dongfeng Tianjin truck mounted crane is generally equipped with XCMG 5-ton, 6.3-ton truck mounted crane, and can be equipped with 8-ton crane, with a working radius of 11.5 meters, a lifting height of 13.5 meters, and a self weight of 3315kg. The crane can lift 1100kg when the entire arm is extended, with a 360 degree full rotation operation, hexagonal crane arm, section bending resistance, good folding performance, and an integral winch lifting mechanism. The working and hydraulic systems have a long service life, and a special floating three-point bridge structure design, Reduce the additional force on the main beam during vehicle operation.
The truck mounted crane legs are divided into fixed legs and hydraulic legs. The fixed legs can only be extended up and down, not horizontally, and have a relatively small span. They are installed at the tail of the cargo box, and the hydraulic legs can be extended up and down on both sides. They are strong and powerful, with a large span, stable and safe, and are standard for the front legs. The rear legs can be optionally installed. The span of the XCMG 8-ton crane legs is 2280-5580 (mm), and can be freely adjusted according to the width of the road surface.
