Refrigerator truck named freezer van truck, cooling van truck, frozen truck is the enclosed van used for transporting the fresh and frozen goods, vegetables and fruits, milk goods and vaccines. It is the van truck equipped with refrigerator device with which inside temperature could be optional of -5°, 10°,-16°,-18°.The surface of van body could be made of fiberglass, aluminum or stainless steel. The padding material with varieties ofthickness is polyurethane foam that could preserve the temperature.

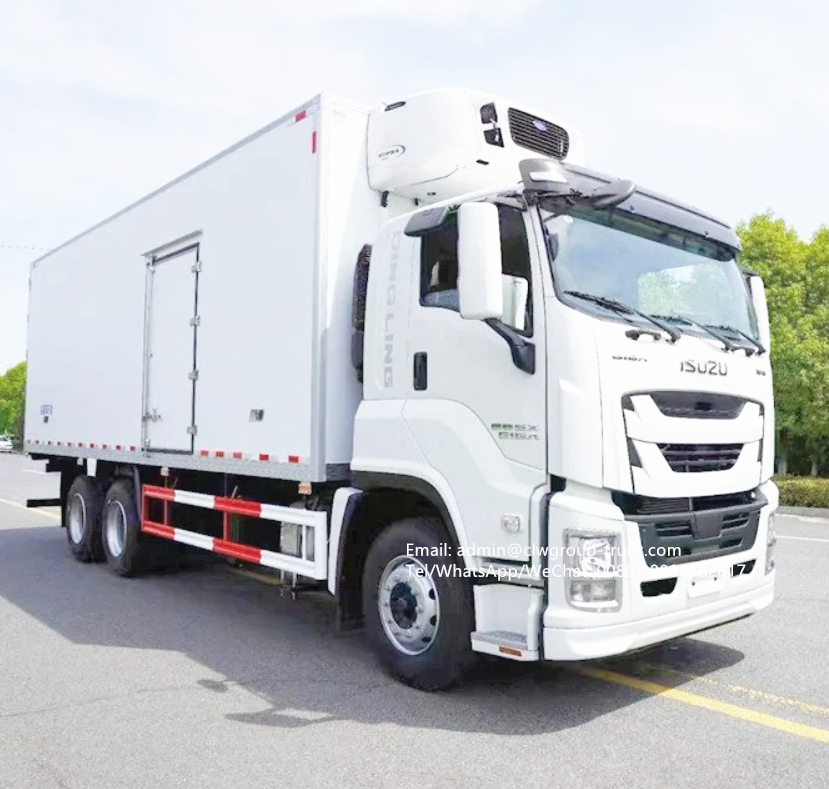

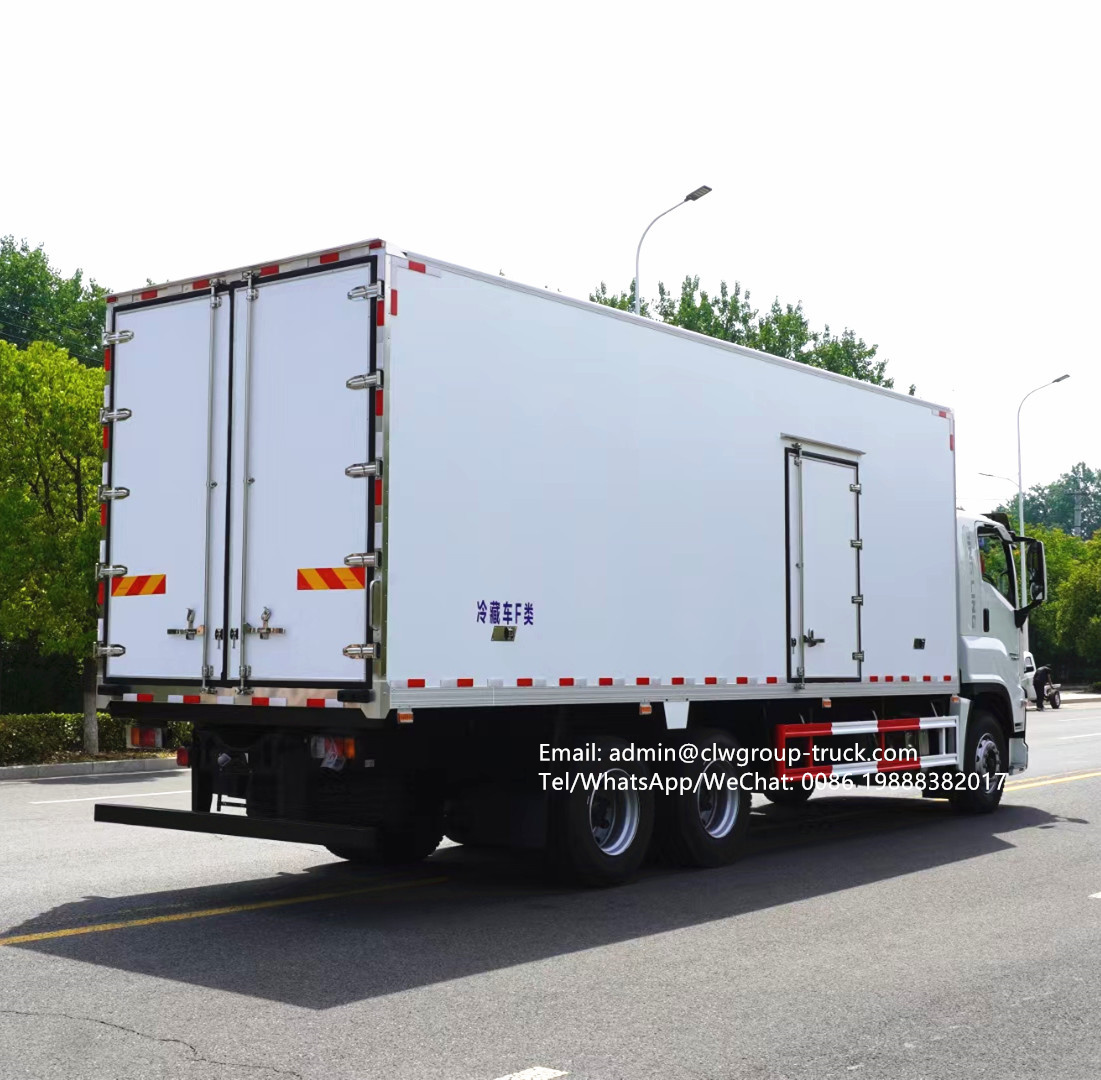

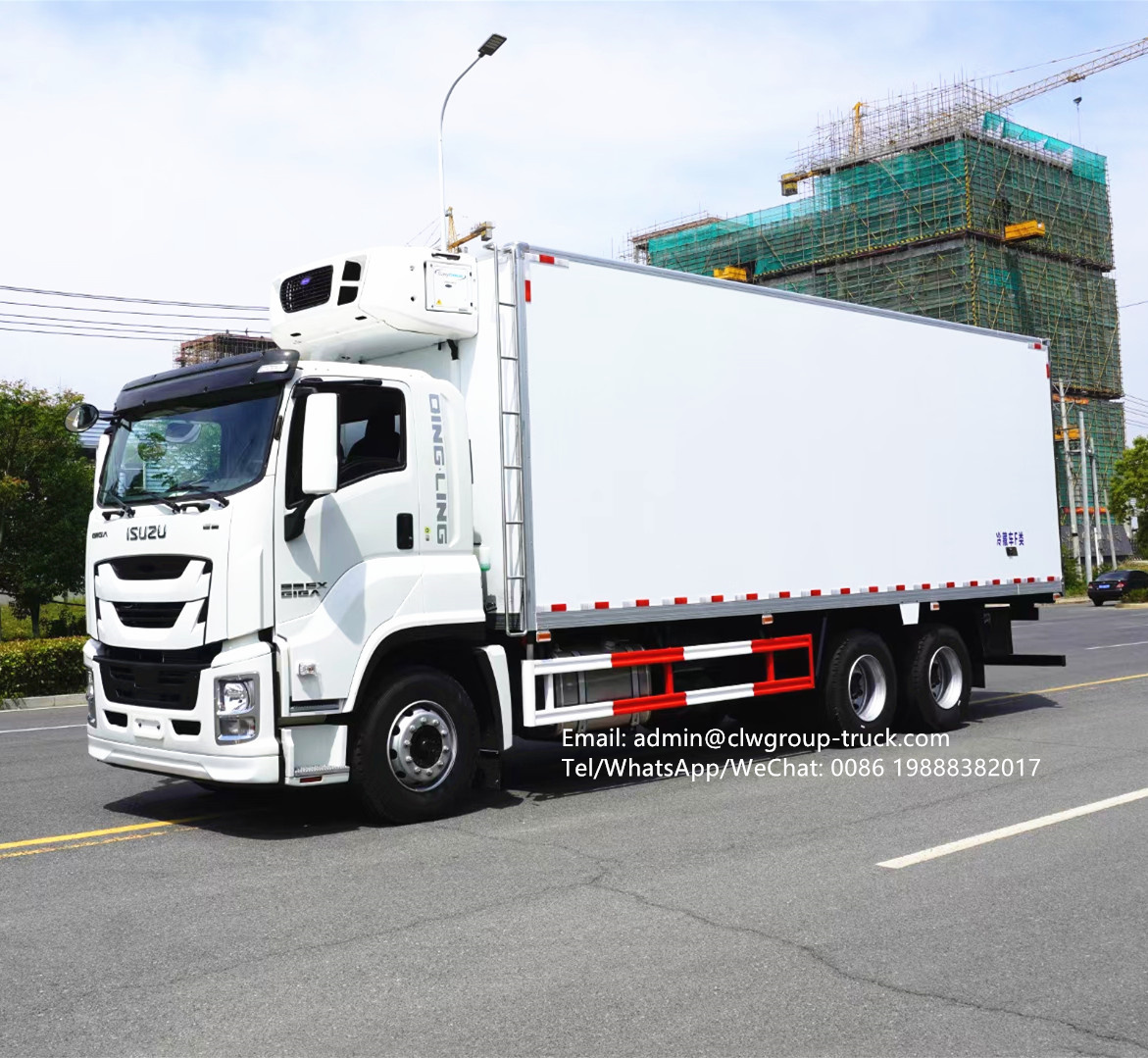

Isuzu Juka 6X4 refrigerated truck
Vehicle size: 10350 * 2600 * 3890 (mm)
Box size: 7850 * 2420 * 2400 (mm)
Power/horsepower: 221KW/300 horsepower 7790 displacement
Isuzu 300 horsepower (6HK1-TCG60)

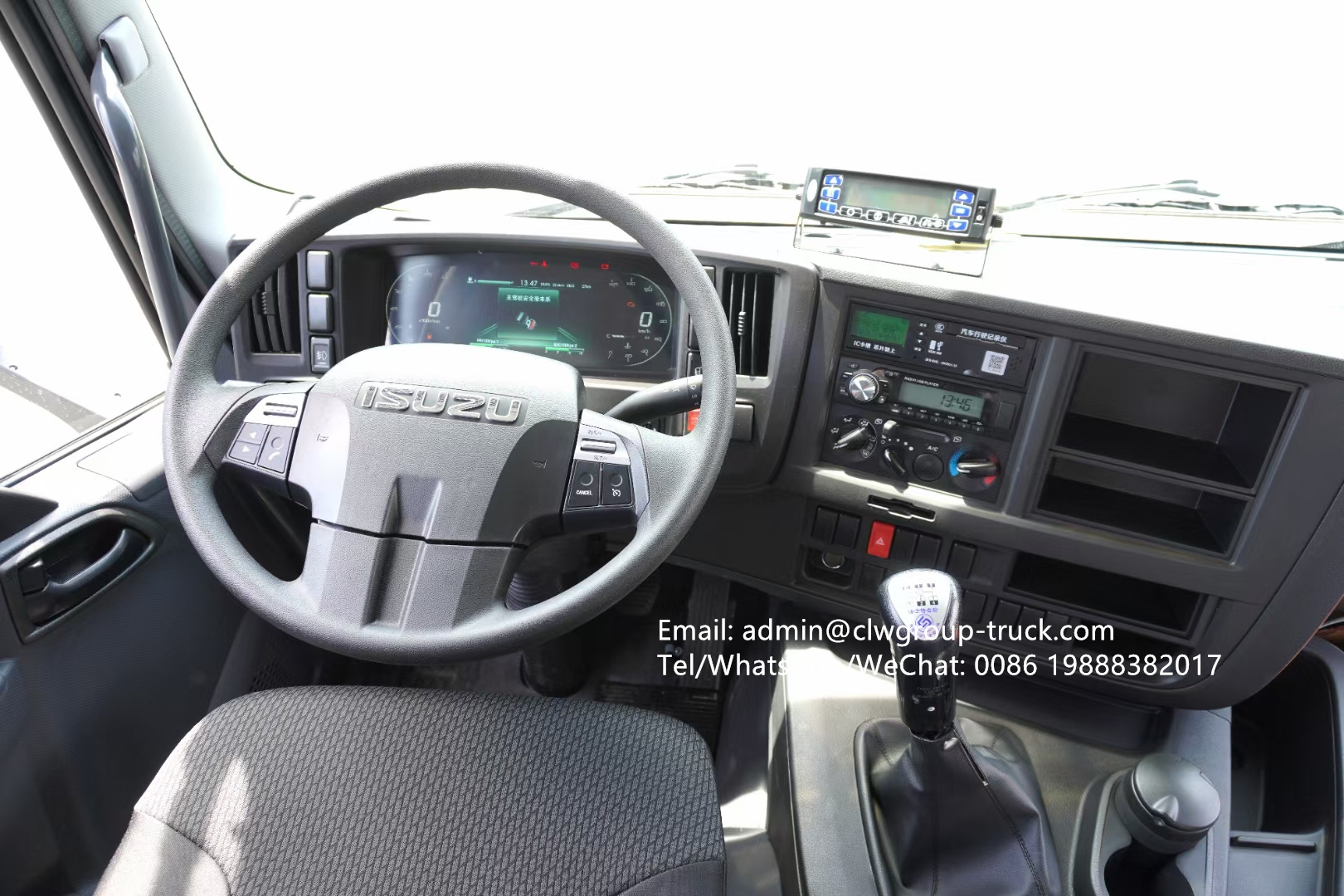

The new Isuzu Juka 5X has a flat head one and a half row (2 people), an air suspended cab and seats, air conditioning, hydraulic steering assistance, clutch and brake assistance, cruise control, multifunctional LCD instrument panel, and electrically heated rearview mirrors. The Isuzu 6HK1-TCG60 engine (National VI B emission standard, 300HP, 1000N. m torque, 7.79L displacement), Fast 9JS119TA transmission (9-speed with direct and hill up gears, synchronizer, manual), axle (front disc and rear drum brakes, rear axle speed ratio 4.555), driving mode: 6 × 4 (center and rear axles with central differential lock), braking system: air brake, ABS, exhaust brake, fuel tank (aluminum alloy 400L), tires 295/80R22.5 18PR.
Wheelbase: 5100+1370mm
ISUZU 6X4 20tons refrigerated box configuration:

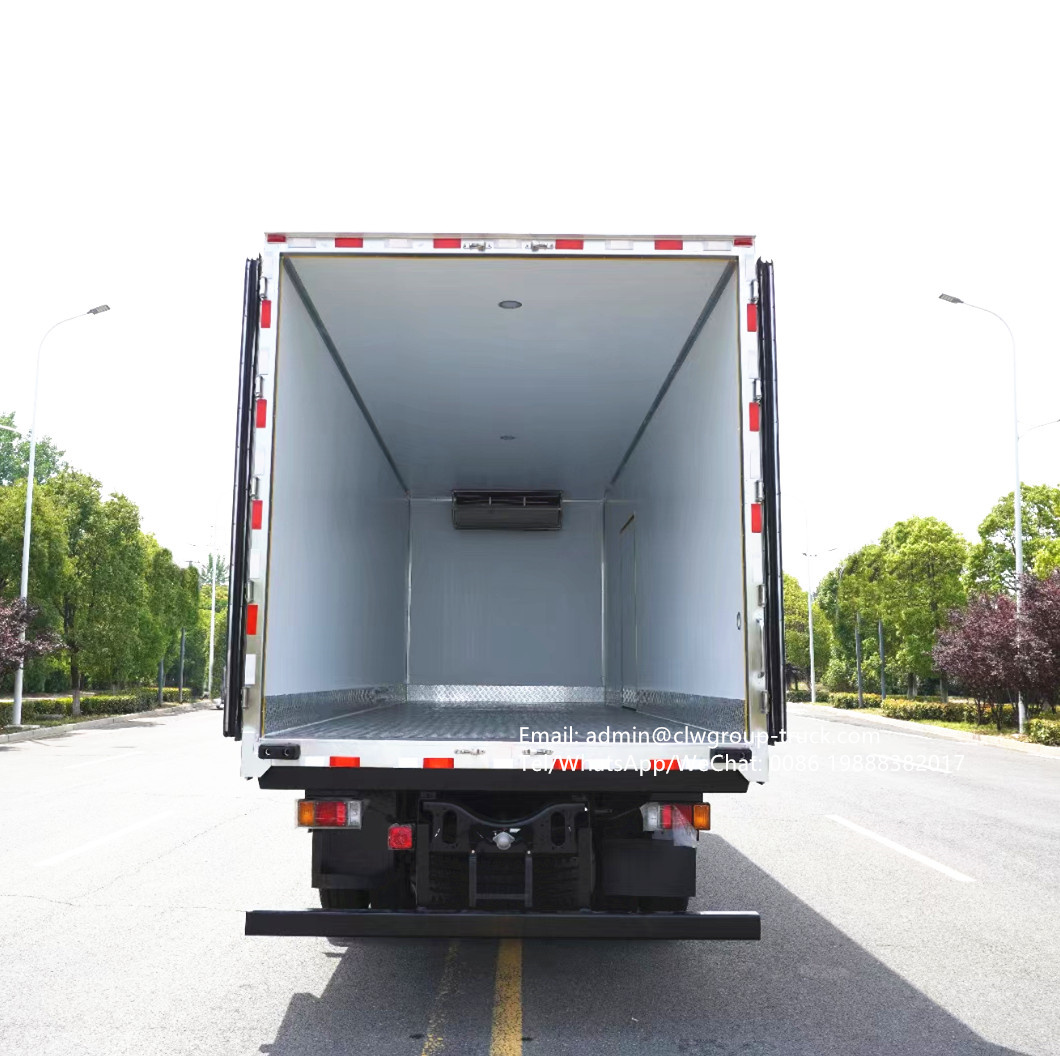

The box body adopts polyester wet process board making process and glass fiber reinforced all wood box body frame structure, with fully enclosed polyurethane plate bonding method; The insulation performance meets the national A-level standard.
ISUZU 6X4 20tons refrigerated box material:
The inner and outer wall panels are made of high-quality domestic 2.5mm nano fiberglass (non absorbent, good insulation, strong hardness, and antioxidant); The intermediate insulation material is filled with imported polyurethane foam without gaps; The thickness of the compartment is 80mm, and the thickness of the door is 80mm; The bottom of the compartment is made of aluminum alloy patterned plate or selected flat nano fiberglass;
Accessories: Aluminum alloy edging around the cabin, stainless steel corner wrapping, stainless steel door lock, 4 pieces of anti-collision rubber, stainless steel door frame, stainless steel hinges, energy-saving lighting inside the box; Rear double door, equipped with side doors.
The advantages of Insulated/Freezer Van Body
1. It is made of GRP and PU foam with all-closed structure that the GRP (Glass Reinforced Plastic Fiber) outside and PU foam in the core.
2. Light in weight: 40% lighter than metal body.
3. Non-corrosion, non-pollution, anti-brine, acid and soda-resisting.
4. The panel used for the truck body was constructed in type of sandwich. The thermal insulation layer is 50-80mm thick, which offers a very good thermal insulation performance.
5. Length of freezer truck body: 10-40 inch; Capacity of Cargo body: 5-70CBM. The material of the cargo body is optional according to which kinds of goods the truck transport, with perfect heat preservation, box open model: Rear double-open or Side-open.
6. Refrigeration unit Brand Optioanl: American CARRIER, THERMO KING. South Korea hanya. China Songhan,hanxue, etc. The Temperature range can be 0° C ~ -20° C. The refrigeration units that we select have simple structure, convenient operation, reliable working, low energy consumption, large refrigerating capacity, small noise, easy installation and maintenance and other advantages for our refrigerated truck.
