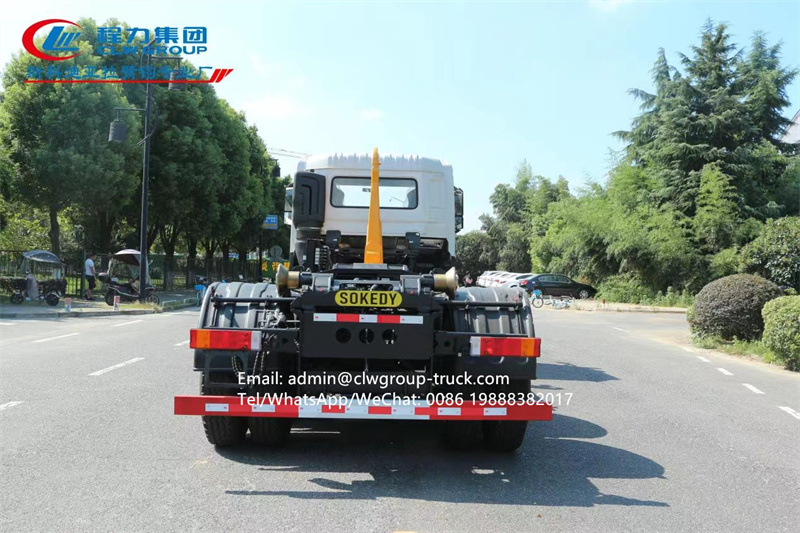

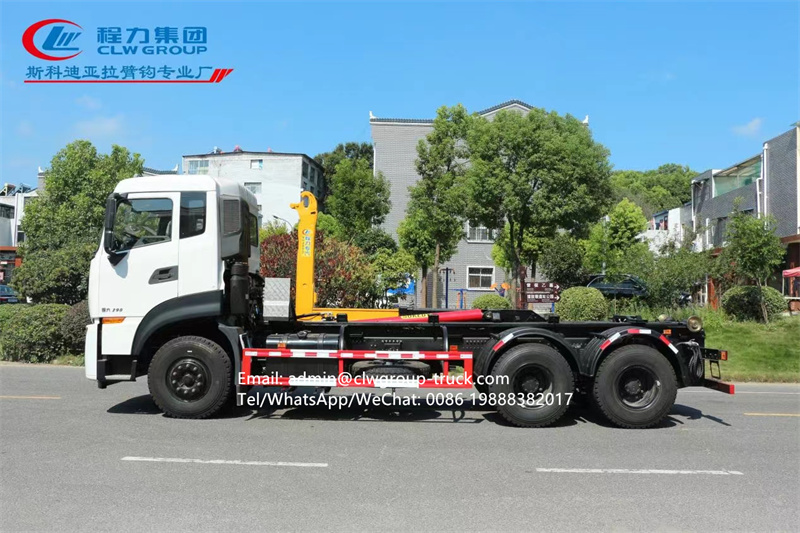

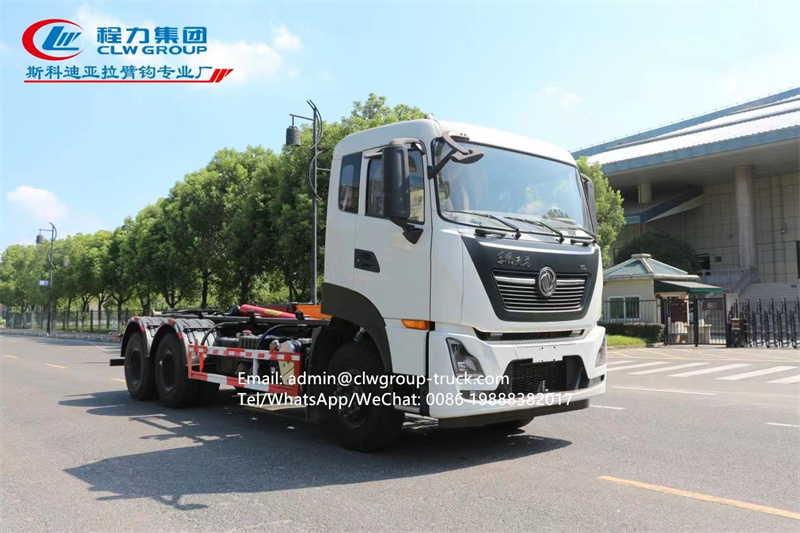

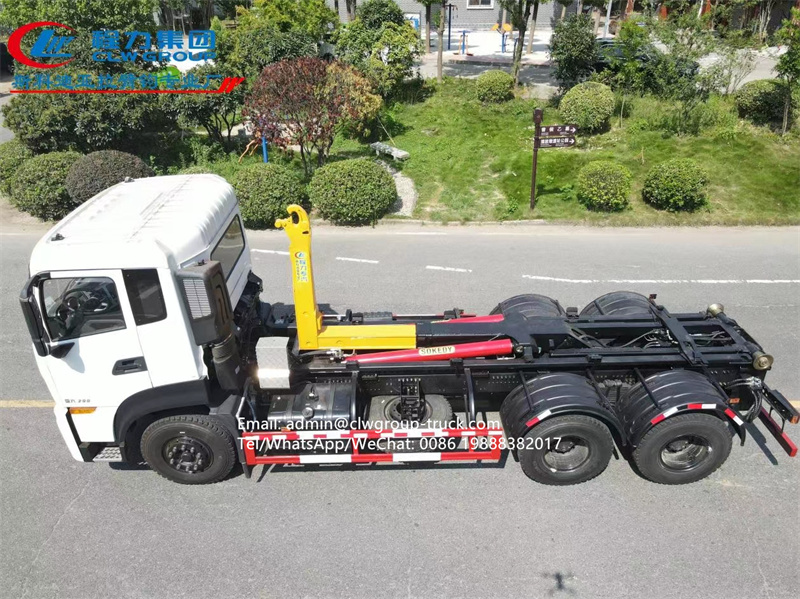

Dongfeng Tianlong 20-25 ton hook arm garbage truck adopts a full hydraulic control system, the garbage compartment and the chassis can be completely separated, and the hydraulic control system controls the extension and retraction of the hook arm to realize the secondary hoisting of the garbage compartment, which is self-hoisting and put down by itself. Dump the trash. It has the advantages of reasonable structure, simple operation, stability, high use efficiency, good sealing performance, and convenient dumping. It can effectively avoid secondary pollution during loading, unloading and transportation.
Chassis parameters of Dongfeng Tianlong 20-25 ton hook arm garbage truck:
Dimensions: 8380*2500*3160mm
Drive mode: 6X4
Total mass/curb weight: 25000kg/11405kg
Rated mass: 13465kg
Wheelbase: 4350+1350 mm
Tires: 12.00R20
Front axle and rear axle tonnage: 7 tons for front axle, 16 tons for rear axle
Engine: Cummins engine 245/270 hp
Transmission: 8 gears
Dongfeng Tianlong 20-25 ton hook arm garbage truck comes standard with:

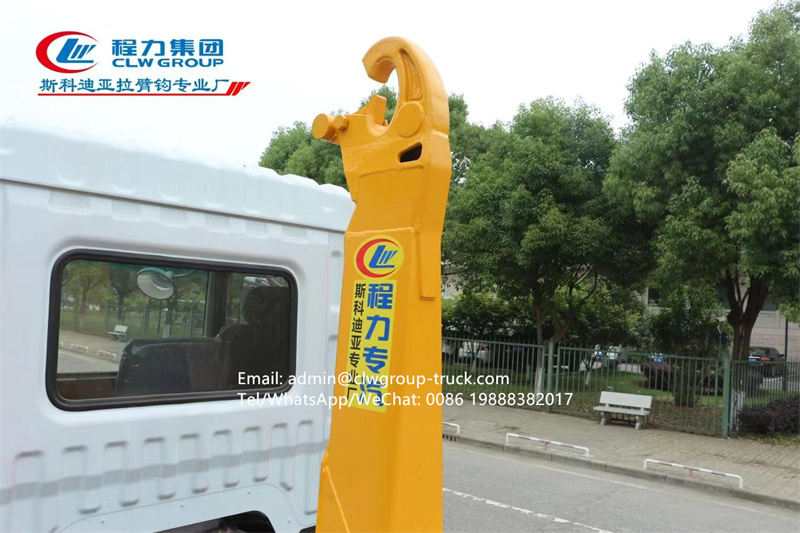

Hydraulic system, two-way valve, hydraulic cylinder, locking mechanism and hook arm box, the hydraulic control system controls the extension and retraction of the hook arm, realizes the secondary hoisting of the garbage box, self-hoisting and lowering, and can dump garbage by itself.
Dongfeng Tianlong 20-25 ton hook arm garbage truck operating system:
The loading and unloading work can be completed by manipulating the handle of the multi-way reversing valve. (When operating the multi-way reversing valve, the power take-off should be hung to drive the oil pump to work)
Dongfeng Tianlong 20-25 ton hook arm garbage truck adopts Dongfeng Tianlong 245 or 270 horsepower diesel engine chassis, with 20-25 ton telescopic sleeve arm, domestic famous brand hydraulic double cylinder (bore 160), four or five electric control multi-way valve ﹑Domestic/Hyvo high-pressure pump, standard drum rear outrigger, wireless remote control + manual operation, reserved hydraulic quick connector interface for waste bin (import), equipped with 20-28 cubic multi-functional bulk waste container (hydraulic wingspan upper cover, Hydraulic locking and sealing the rear door or docking rear door), the length of the box: 5500-6000mm, the reference size of the 25-cubic multi-function garbage can (inner empty): 6000*2300*1800mm; it can also be equipped with a 12-18 cubic conjoined compressed garbage can ( mobile garbage station).
