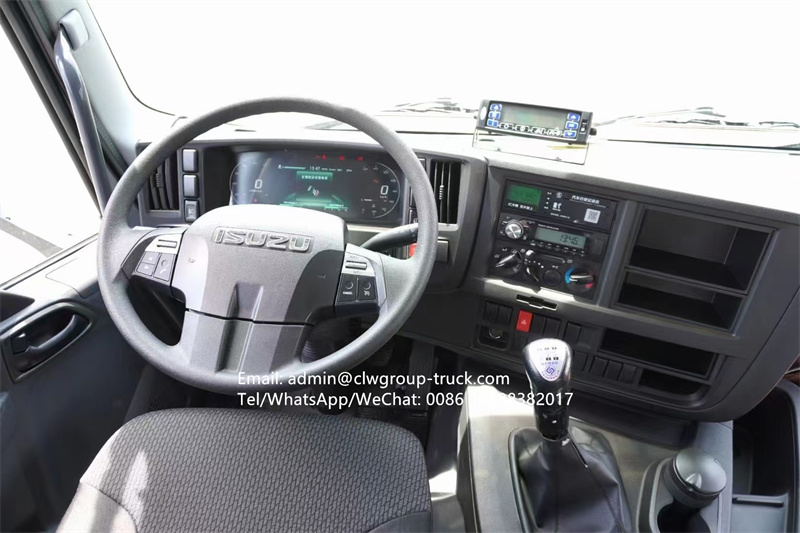

1. Chassis configuration: Isuzu 6U1-TCG50 engine 350 horsepower, Euro 5 emission, Fast 12 gears, multi-function instrument, multi-function steering wheel, 315/80R22.5, air conditioner, steering assist, central control lock, electric windows, ABS , The front axle is 7 tons, the rear axle is 13-26 tons

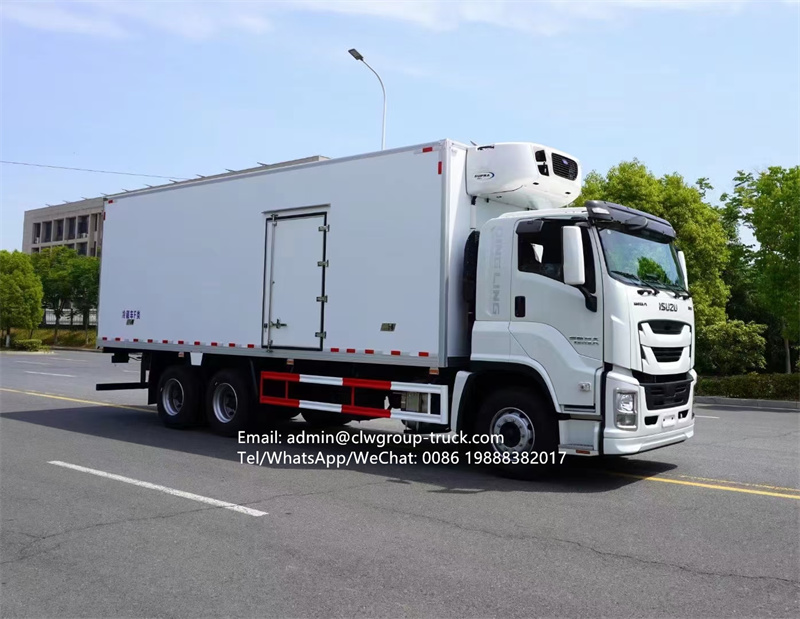

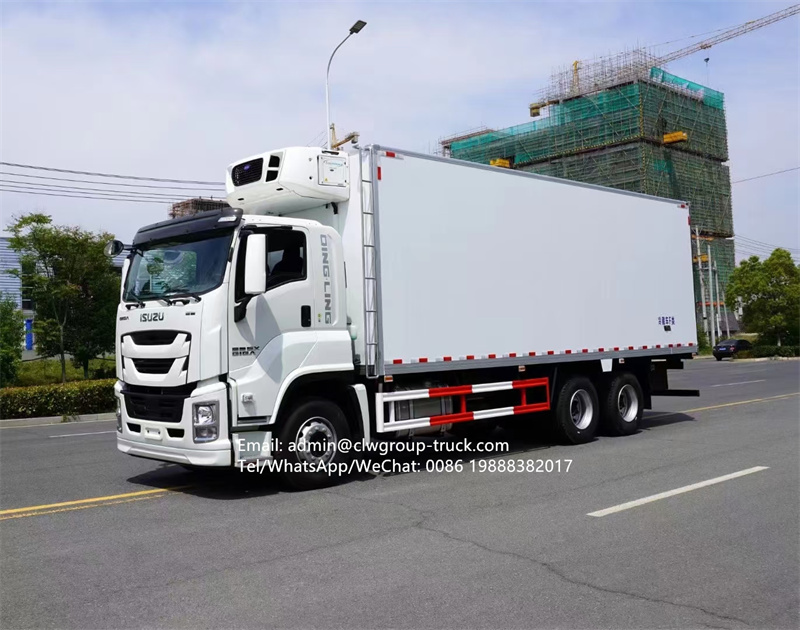

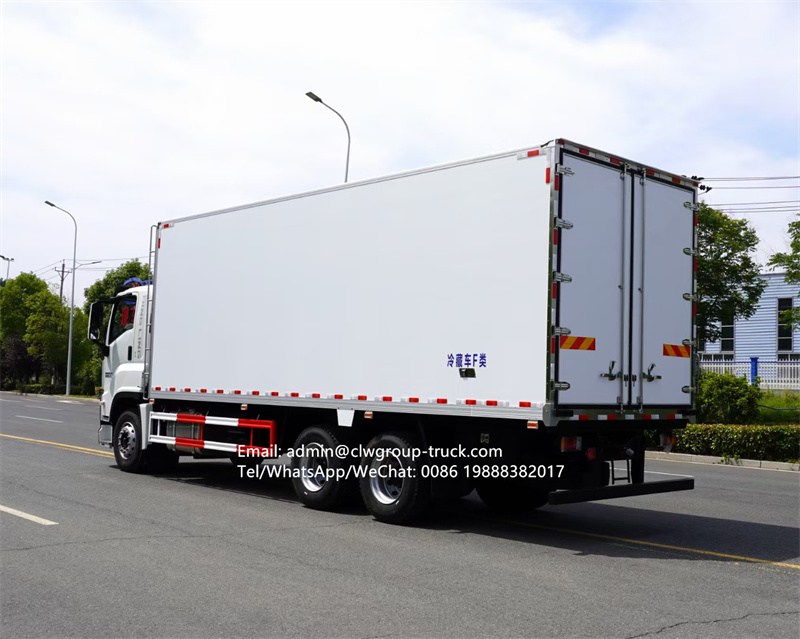

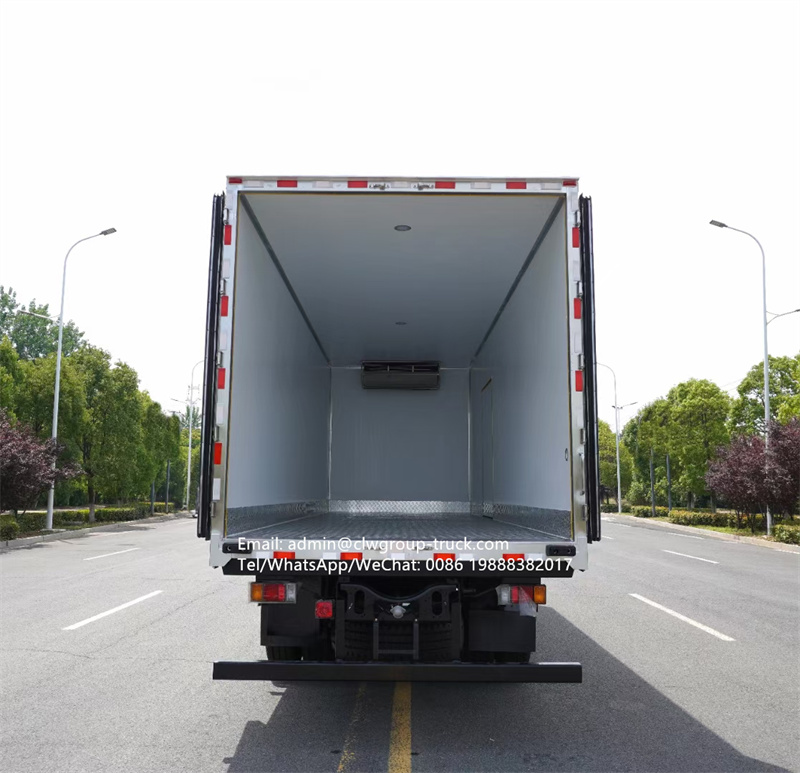

2. Box configuration: It is manufactured by our company's hydraulic adsorption integrated molding production line. The thermal insulation performance reaches the national A-level standard. The internal dimensions of the box are: 9500X2440X2500 (mm), and the box volume: 58 square. The inner and outer fabrics of the box are made of the latest nano glass fiber reinforced plastic (no light absorption, good heat insulation, strong hardness, and anti-oxidation). Polyurethane foam, the bottom of the box is made of aluminum alloy checkered plate or selected plane nano glass fiber reinforced plastics, the box body is made of galvanized stainless steel with corners, thickened aluminum alloy wrapped edges, the rear door frame is stainless steel, thickened stainless steel rear door hinges and locks , The interior of the car body adopts LED lighting and car body width lights.
3. Optional cooler: Different units can be selected according to the customer's vehicle needs. Customers can choose -5°C, -10°C, -15°C, -18 to -20°C refrigerating units, and the brand of refrigeration units is domestic Jinda Brand K, Asiana, Hanxue, Huatai, Songhan, Kaixue, Supercool, etc. Refrigeration units, imported refrigeration unit brands are: American Carrier, American Cold King. The refrigerating unit is divided into independent unit and split unit. This model can be equipped with a "cooling + heating" dual-temperature unit (control temperature range is +20°C to -18°C), which can be used in Northeast China and Inner Mongolia, Xinjiang, Tibet and other severe cold areas!
4. Optional configuration: rail meat hook, T-shaped ventilation slot, right side door, temperature real-time monitoring with printing device, interior fabric of seafood box must be made of stainless steel, optional 12V-24V external power supply (the vehicle is in When stopped, the car body is cooled by an external power supply).
5. Loading drugs and vaccines: For GSP drug certification, 5 ventilation slots on the front, rear, left and right sides of the car body and the bottom of the car body must be installed, and a temperature and humidity recorder with a printing device!
6. Mounting medical waste: The inside of the body must be made of fully enclosed stainless steel, with a stainless steel closed inner lift door, equipped with an antivirus spray device, an ultraviolet antivirus device, and a waste liquid overflow box device!
According to the different usage of refrigerated trucks, transporting seafood, fruits and vegetables, fresh milk is called warm-up trucks, transporting ice cream, ice cream and other frozen foods is called frozen trucks, which are equipped with special meat connection equipment such as hooks. A general refrigerated truck has three parts: the car chassis, the insulating box, and the refrigeration unit, so the manufacturer of the refrigerated truck is selected according to the nature of the goods it transports.
In order to buy a car chassis, we must consider what kind of chassis, what kind of chassis is open and comfortable, what kind of chassis runs long-distance fuel saving, what kind of chassis horsepower, what kind of after-sales service convenience and other factors.
Classification according to chassis manufacturer: Dongfeng refrigerated truck, Foton refrigerated truck , Isuzu refrigerated truck, FAW refrigerated truck, JAC refrigerated truck, Shacman refrigerated card.
According to the chassis capacity classification: mini refrigerated truck, small refrigerated truck, medium refrigerated truck, large refrigerated truck.
Classified by models: bread-type refrigerated trucks, car-type refrigerated trucks, semi-trailer-type refrigerated trucks.
Precautions for the use of refrigerated trucks
The following points should be noted when using refrigerated trucks:
1. Before loading, it must be pre-cooled or preheated for about 1.5 hours. Since the vehicle is parked in the open air, the temperature of the car is usually in the external environment. The ambient temperature of the car will affect the delivery temperature of the goods, resulting in changes in the delivery quality of the goods. Therefore, the car must be pre-cooled to the necessary temperature before loading.
2. The refrigeration unit must be turned off when loading and unloading goods. Many people do not turn off the refrigeration unit when loading and unloading, which is a very wrong operation. The principle is that when the car is pre-cooled, if it is not turned off, when the car is turned on, the fan of the refrigerator evaporator is working, the front of the fan is positive pressure, and the back is negative pressure, so the cold air from above and the cold air below will quickly Hot air is drawn in, causing the temperature inside the car to rise rapidly; if the car is shut down, the cargo is reloaded, the air flow inside and outside the car stops, and the air pressure is consistent, so the transfer of outside air to the car is relatively slow.
3. When using a refrigerated truck, the floor of the compartment should be kept clean. Due to the action of the evaporator fan, air circulates in the car, causing ground debris or mud to be sucked in by the evaporator fan. A prolonged effect will allow a large amount of magazine to enter the evaporator coil, which will affect the cooling effect of the refrigeration unit.
4. Proper packaging is essential to protect the goods. If the cargo is frozen, a different air pack should be used. Because the wind blows over the surface of the frozen cargo, it will cause water loss of the cargo, resulting in a decrease in the quality of the cargo.
5. Do not stack the goods too high when loading, and ensure that the height of the goods is not higher than the plane height of the exit. When loading, double-sided pallets must be used to ensure the circulation of cool air on the floor
