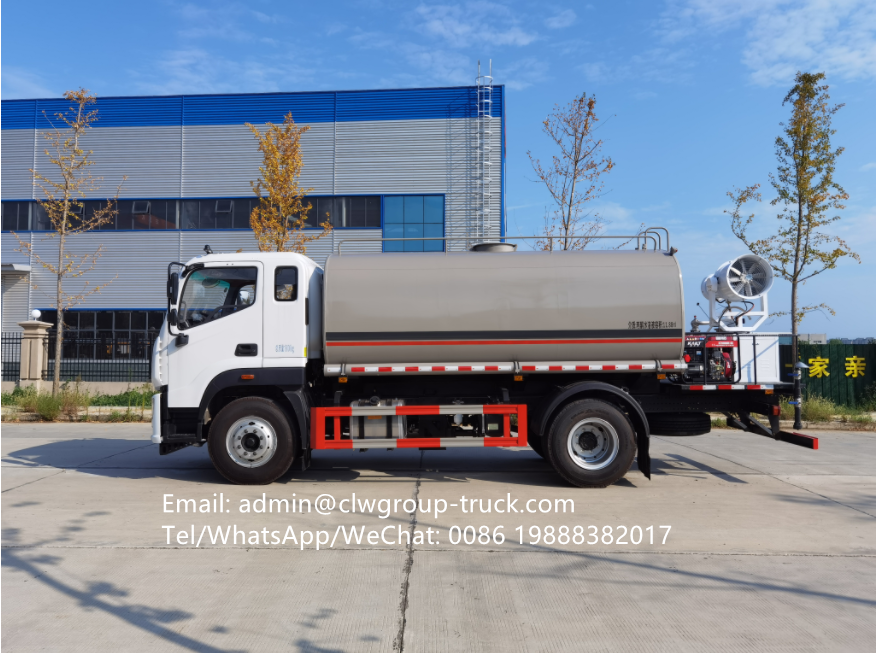

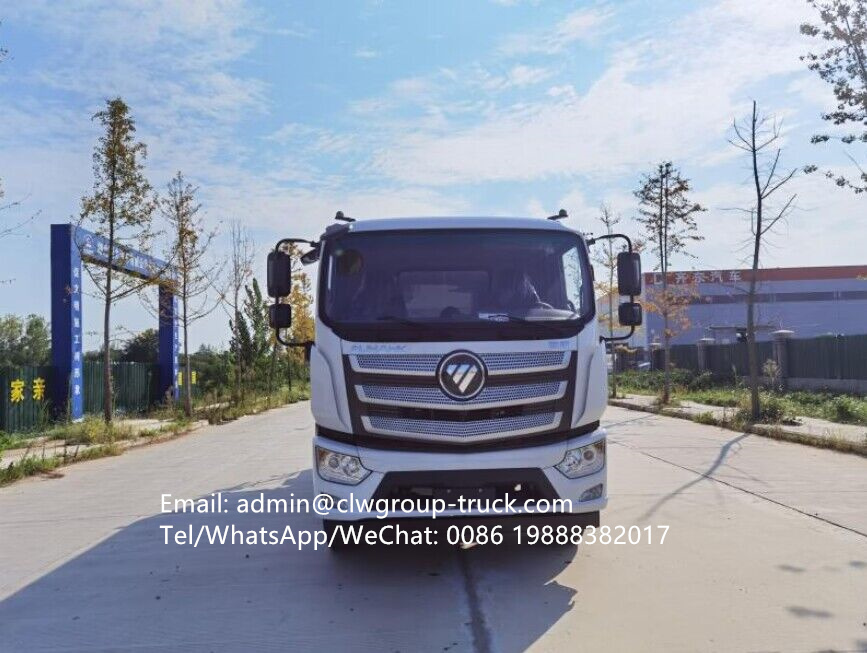

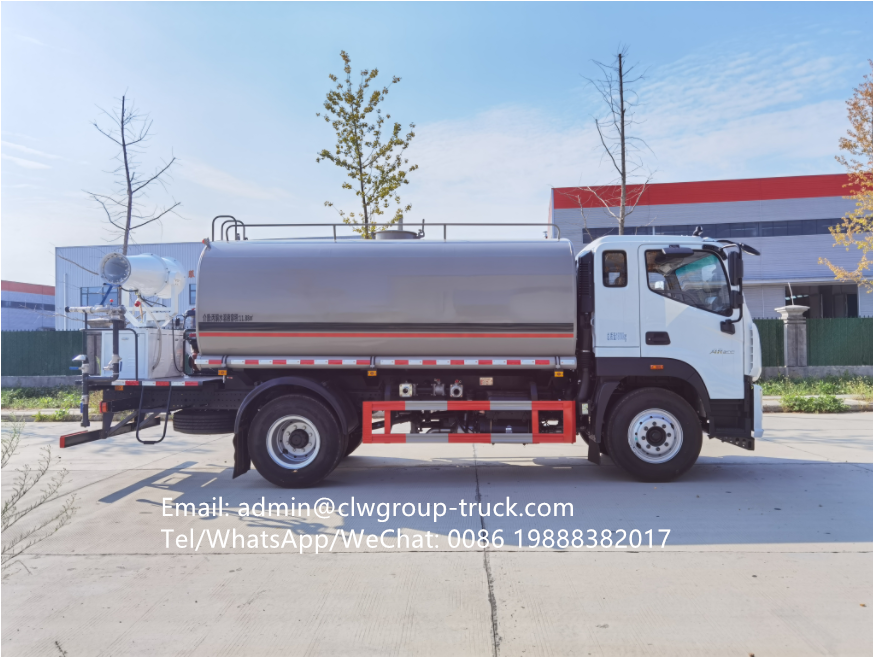

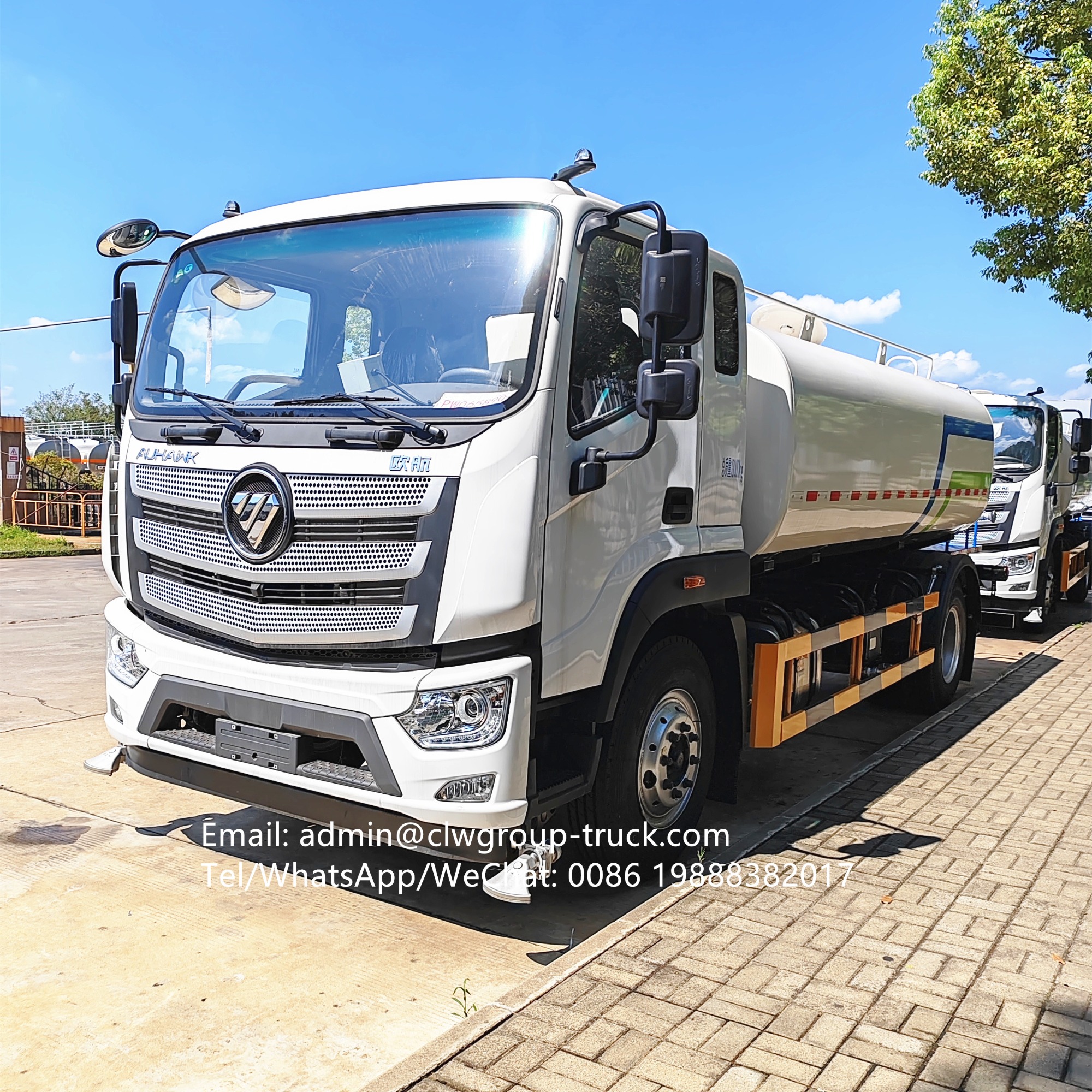

Foton Omark 15 cubic meter water cannon truck price
Powerful Yuchai 200 horsepower paired with a Fast 8-speed gearbox for powerful performance!!!
Short wheelbase 3950 wheelbase 18 tons, total weight golden, more flexible and convenient for urban use!!!
Large capacity of 13-15 cubic meters, large storage capacity, large water capacity, and longer endurance!!
Chassis model: BJ1186VLPFD-3K
Wheelbase: 3950, engine: Yuchai 200 horsepower, gearbox: Faster 8-speed gearbox, cab: 2200 luxury semi cab
Body configuration: 10. R20 steel tire, 8-ton rear axle, 250 beam, 10/10+8 leaf spring, original air conditioning, central locking, electric doors and windows, remote key, ABS, steering assistance, and air brake
water cannon truck body configuration:
1: The tank can produce 13-15 cubic meters.
2: Standard equipment includes front flushing (spraying) and rear spraying, with side spraying, and a rear work platform. High pressure green water sprinklers are installed on the platform, equipped with high-power dedicated sprinkler pumps, fire connectors, self flow valves, self suction functions, and filters.
3: The tank body adopts Q235, with a partition thickness of 3mm, a carbon steel thickness of 4mm, and a head thickness of 5mm. It is equipped with a large diameter straight through ball valve, an aluminum alloy tee, and a thickened main pipeline. Aluminum alloy elbow tee, aluminum alloy flange tee, aluminum alloy pump outlet four-way, aluminum alloy pump inlet straight way. Aluminum alloy rear sprinkler, stainless steel ball valve, new high-pressure water cannon
4 equipped with high-power sprinkler pumps, which can self suction and discharge.

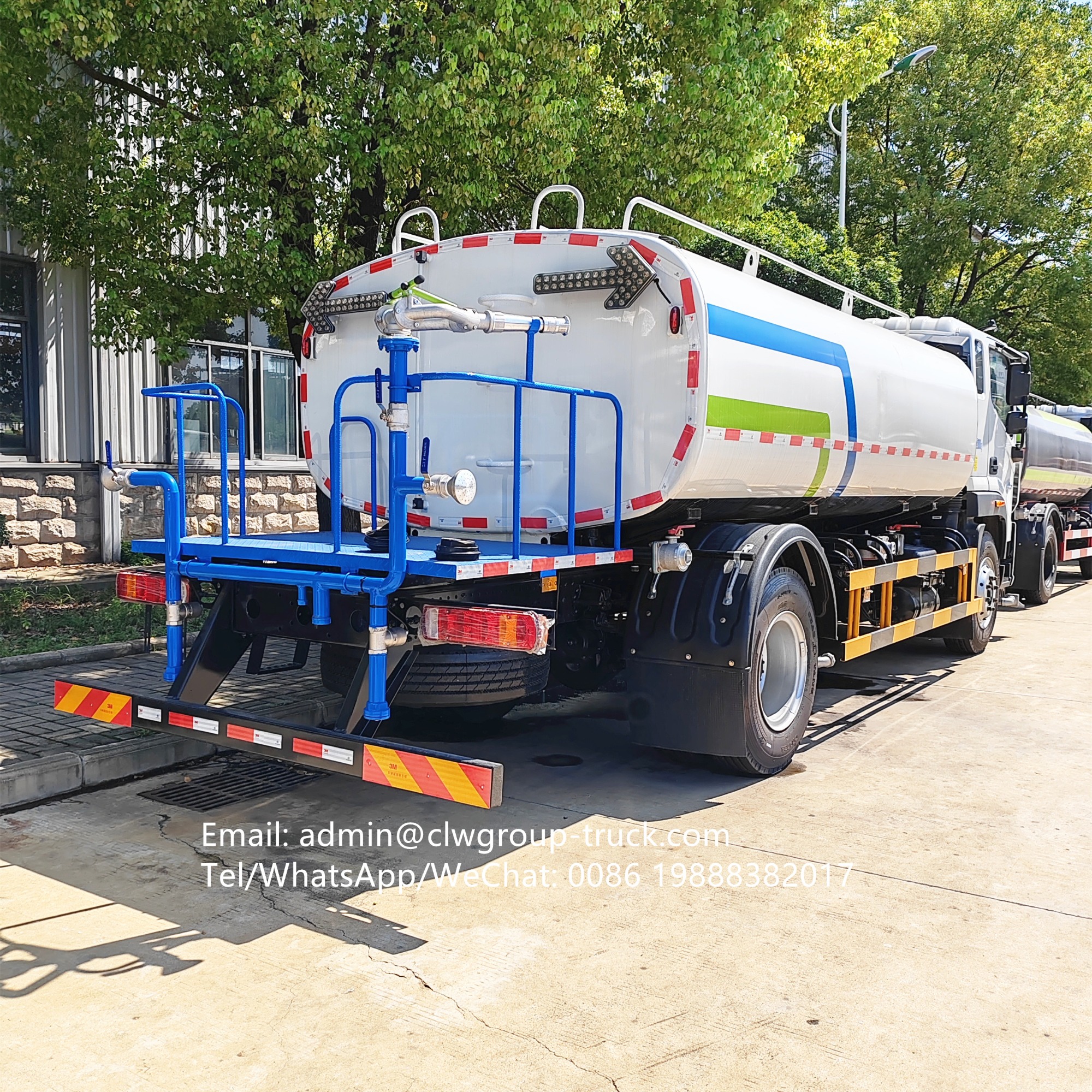

The vehicle is equipped with front flushing, rear spraying, side spraying, and 65 fire protection interfaces. The rear platform is equipped with a green sprinkler gun, which can rotate and continuously adjust to a direct flow, heavy rain, light rain, and drizzle; The front head is equipped with a water level gauge, the rear platform main road is equipped with a 1-inch watering interface, and the rear ladder is used. There is a small safety notice board at the back of the platform, which reads "Park at any time, pay attention to safety", with two water pipes and a male and female end. Tank color: white on top/blue on the bottom, silver gray/silver blue, with the words "sprinkler truck, green sprinkler truck" sprayed on both sides of the tank, and reflective labels affixed. Sprinkler can be equipped with forward flushing and back sprinkling pneumatic valve cab control, fog monitor unit, generator set, spray dust suppression device, snow shovels, snow rolling devices, street and road snow removal devices, etc
