Sinotruk hoowo 12-16 meter aerial bucket truck
Sinotruk HOWO 14 meter aerial bucket truck, Sinotruk HOWO 14 meter street light maintenance vehicle, Euro 2,3 emission standard, adopted
The Sinotruk Howo has a wheelbase of 3308mm and is equipped with a Yunnei 116 horsepower engine. The high-altitude arm of the aerial work vehicle is produced by Chengli Special Automobile Co., Ltd. It has a large working height of 14 meters, a working platform that can bear 200kg, a hook that can lift 1000kg, and a working arm that can rotate 360 °. The electromagnetic valve controls it, and a long-range engine start and stop device is installed at the rotating disc of the working arm and the working platform
Overview of the entire Sinotruk Howo 14 meter aerial bucket truck：:
1. Adopting the internationally leading Sinotruk Howo high-end chassis and equipped with a three section folding arm hydraulic lifting device, the whole vehicle is designed in an integrated manner, with strong load-bearing capacity and high reliability;
2. The lifting hydraulic cylinder adopts imported sealing components, and the workpiece hopper transitions smoothly during the lifting and rotation process without shaking or shaking, resulting in better safety;
3. Install four H-shaped hydraulic outriggers on the vehicle, with a large span and stronger stability. The outriggers can be independently extended and linked, and are equipped with outrigger flashing lights for indicating the contour of the outriggers during operation and emitting light alarm signals;
4. The lifting system adopts three folding arms, and the working platform can rotate 360 degrees. It can be equipped with an optional hook, which can lift 1 ton (with a hook extension of 800mm-1000mm);

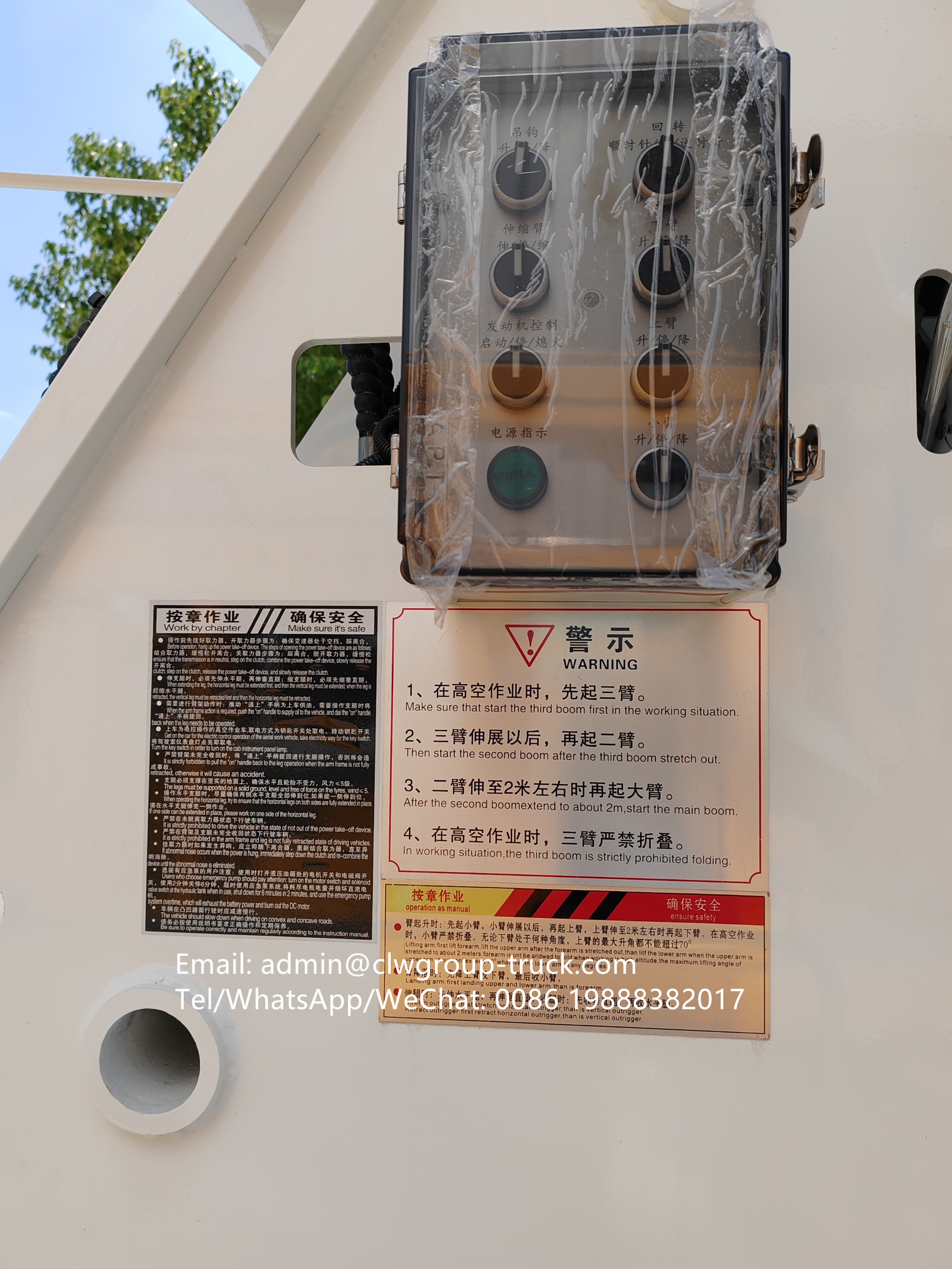

5. Both the upper and lower parts are equipped with an operating system, and the work platform is equipped with a control device, which can control the lifting and rotation in the work platform;
6. The lifting truck has a simple operation structure, is easy to operate, is safe and reliable, and has a beautiful appearance. It is widely used for high-altitude operations in various systems such as municipal, power, street lights, advertising, photography, communication, landscaping, transportation, mining, and docks.
aerial bucket truck Safety device: optional emergency pump, emergency stop device, equipped with automatic limit alarm device for extreme position, work platform and turntable operation department
There are engine start and stop devices, seat belt devices, night work lighting, etc;
Sinotruk Howo 14 meter aerial bucket truck has a ground clearance height of ≥ 12.3 meters, a large working range of ≥ 6.46 meters, a working height of ≥ 2.05 meters for large working heights, and a working height of ≥ 8.6 meters for large working ranges. The rated load of the work platform is 200 kilograms. The support leg method is H-shaped, with 4 legs, which can be adjusted separately or linked. The horizontal span is 2680mm, the vertical span is 3000mm, the maximum lifting weight of the hook is ≤ 1000 kilograms, the safety value is 800 kilograms, and the maximum lifting height is 6 meters. The main operating position is a dual station operation of the turntable or hanging basket, and the control form is manual hydraulic pressure or electric control. The fence and walking platform use steel toolbox. And the surrounding panel, patterned anti slip walking platform, and the arm frame structure form is a three section folding arm, with continuous 360 degree rotation in both directions
Chengli Special Purpose Vehicle Co., Ltd. is an important component of Hubei Chengli Group. large-scale specialized vehicle modification factory for Dongfeng, Futian, Jiefang, and CNHTC. It is a well-known manufacturer of specialized vehicles for landscaping, petrochemicals, municipal sanitation, and pressure vessels in China. Cheng Li registered trademark: "Cheng Liwei" brand, national product code: "CLW", is a specialized automobile manufacturing enterprise in China that was first awarded the title of "China".
