Truck mounted lifting and transportation vehicles can be divided into two categories: telescopic arm truck mounted lifting and transportation vehicles, and knuckle arm truck mounted lifting and transportation vehicles. According to the chassis, they can be divided into Dongfeng truck mounted lifting and transportation vehicles, Foton truck mounted lifting and transportation vehicles, FAW truck mounted lifting and transportation vehicles, Shaman truck mounted lifting and transportation vehicles, etc
Classified by tonnage, it can be divided into tonnage of 2.5 tons, 3.2 tons, 4 tons, 5 tons, 6.3 tons, 7 tons, 8 tons, 10 tons, 12 tons, 14 tons, 16 tons, 20 tons, and more than 25 tons
According to structure, it can be divided into two arms, three arms, and four arms. According to function, it can be divided into full rotation and rack and pinion rotation

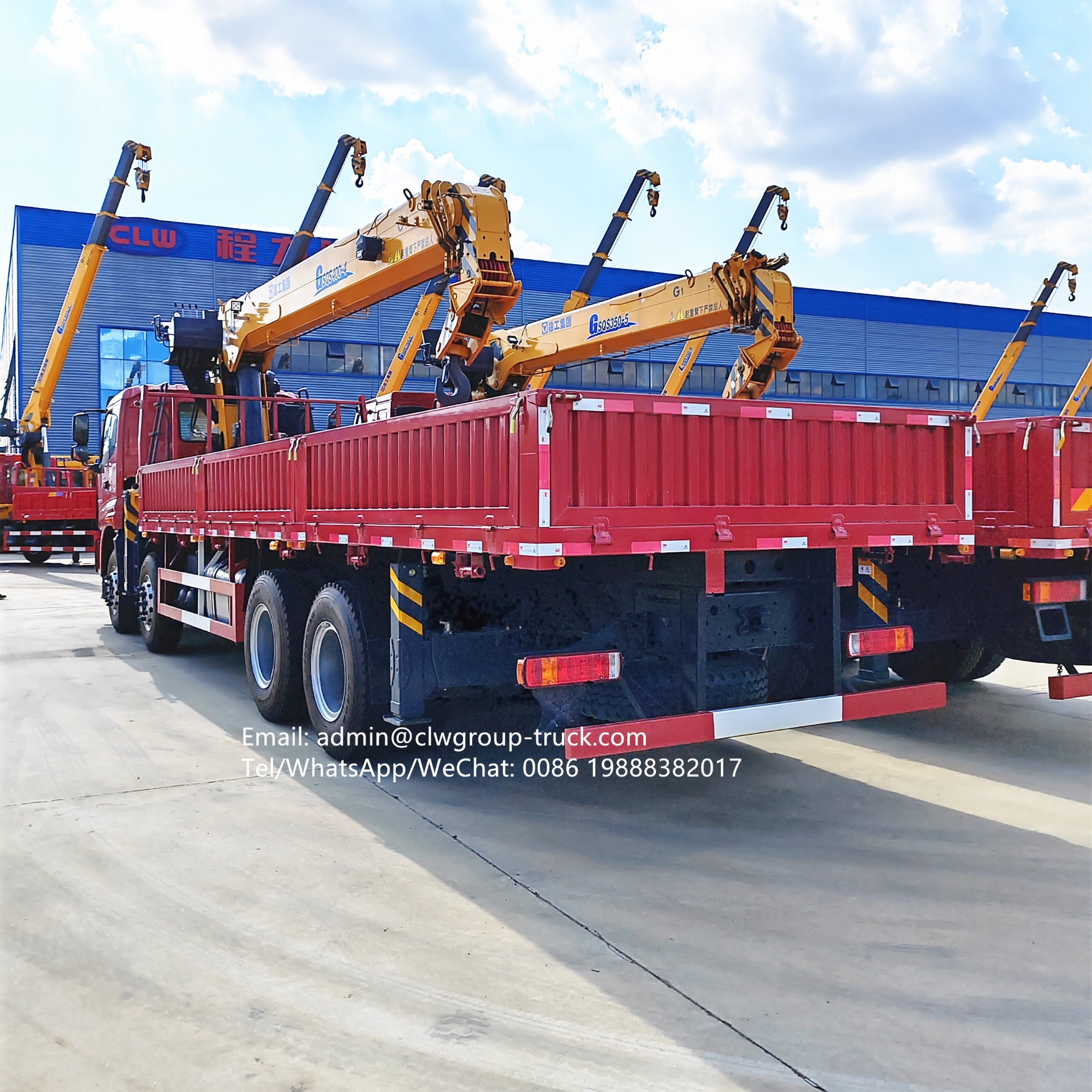

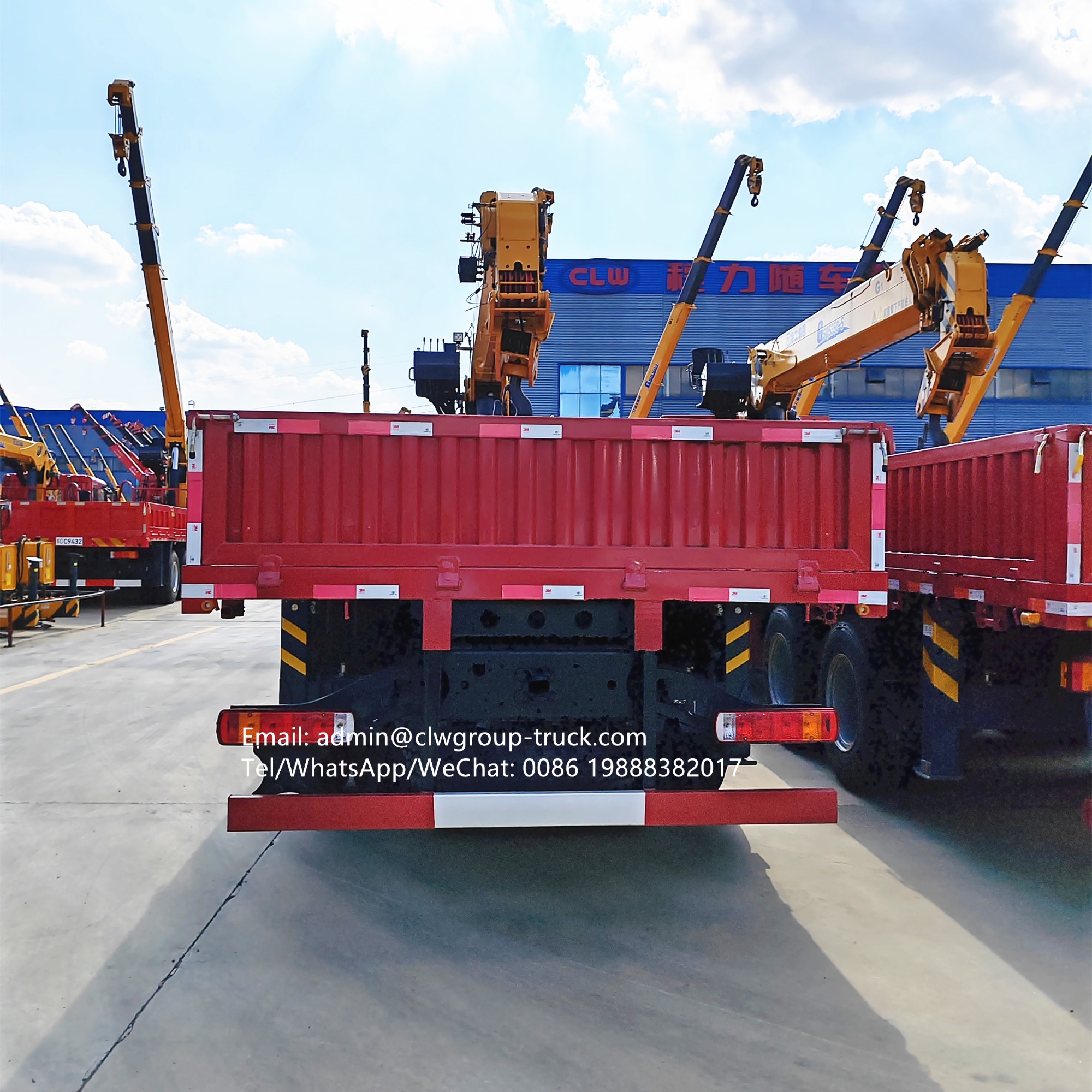

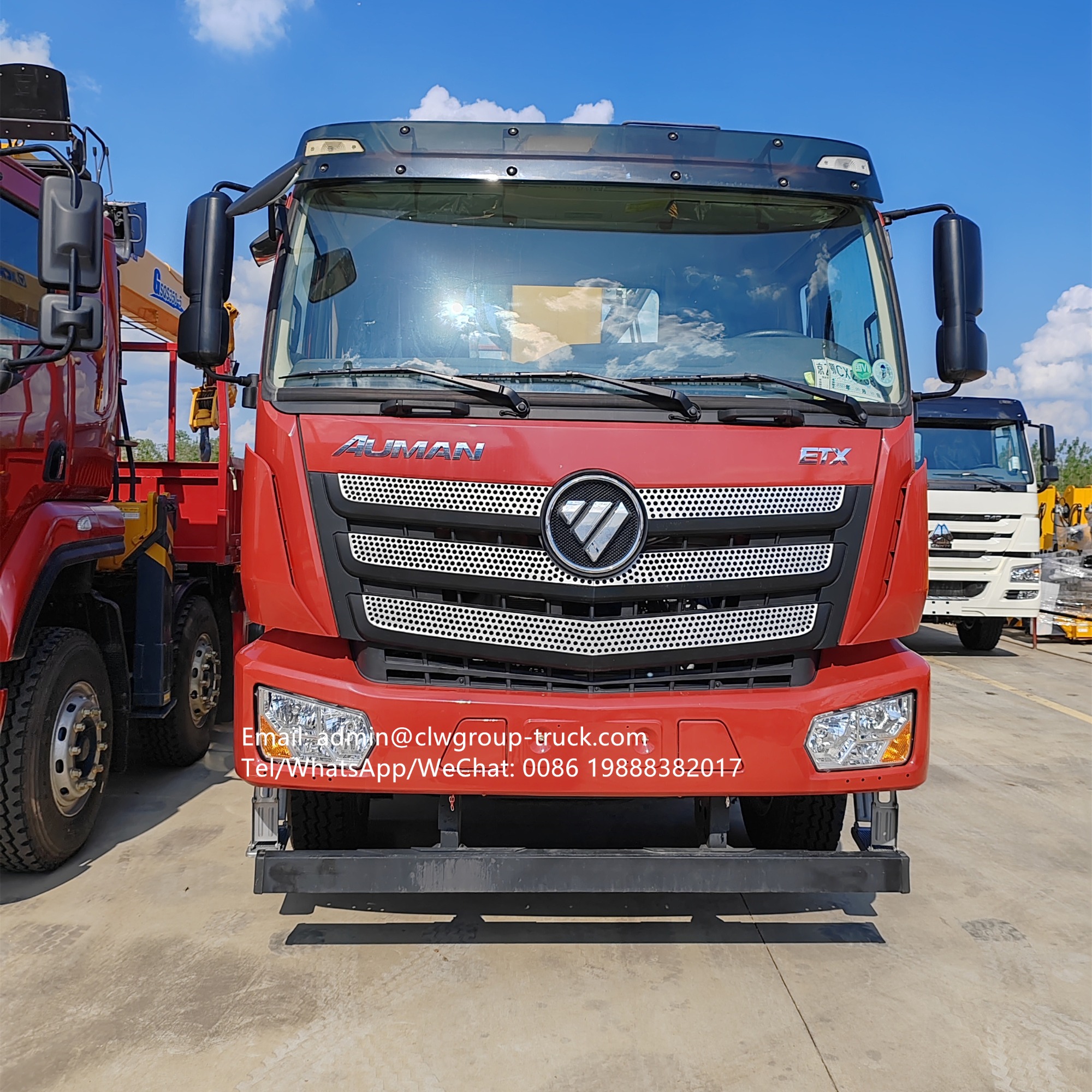

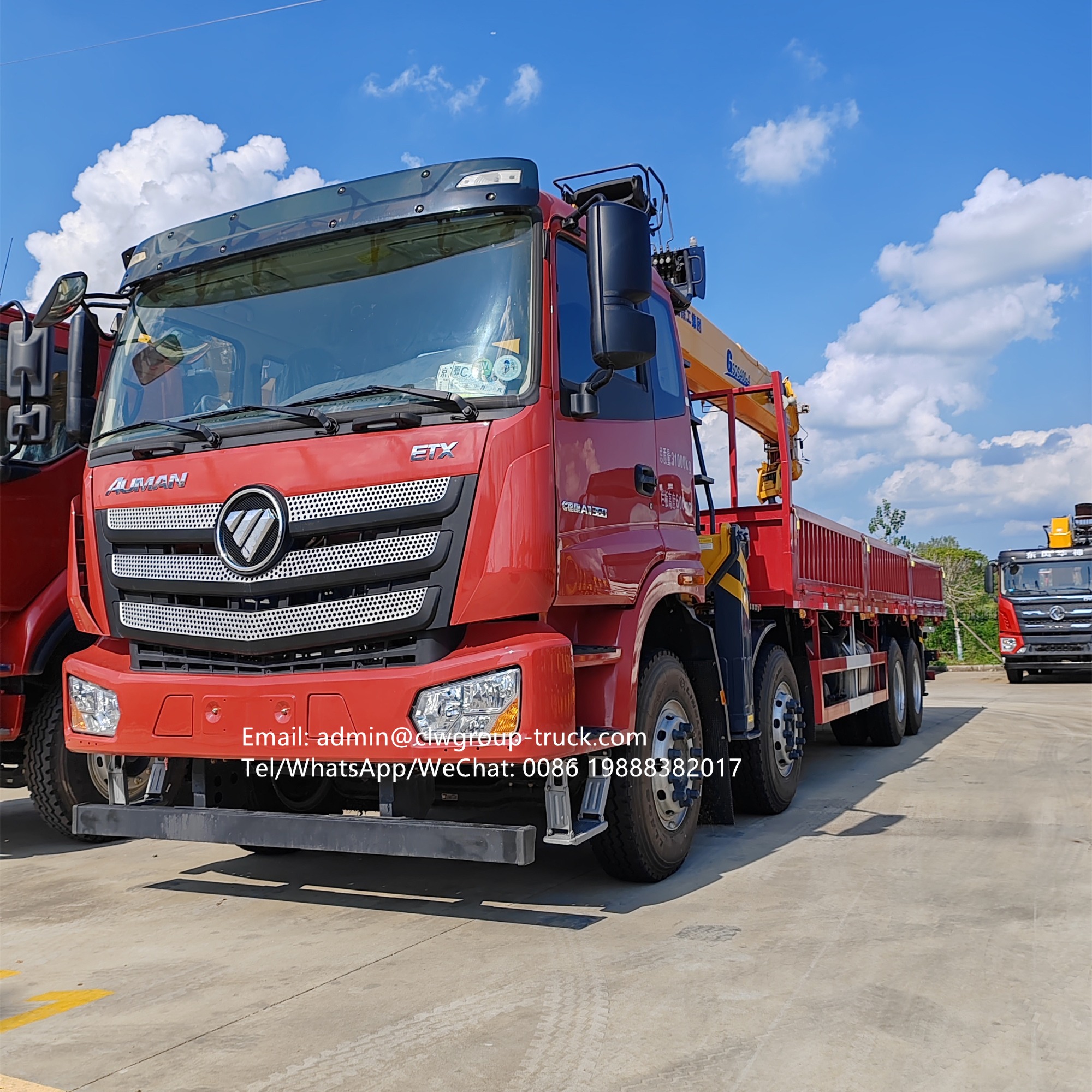

Now let's introduce a popular foton auman crane truck with 360 horsepower installed on a XCMG telescopic arm 16 ton crane in China. The engine power is strong, and the crane adopts a well-known brand. It is a truly big brand, guaranteed, and profitable tool on construction sites.
foton auman crane truck XCMG crane chassis parameters:
Body size: 12X2.5X3.725 meters
Total mass: 31 tons, rated mass: 13.62 tons
Engine: Foton Cummins XHHNS6B360 Maximum output power/horsepower: 256KW/360HP
Maximum torque speed: 1000-1400rpm Maximum torque; 1800N. m
Emission standard: National VI fuel injection system: Common rail displacement: 10.5L
Transmission model; Fast 12JSD180TA gear: 12th gear
Wheelbase: 2100+4400+1350mm Tire: 12R22.5
Crane configuration:
Equipped with XCMG SQS400-5 crane as standard, XCMG's 16 ton truck mounted crane has a five section straight arm length of 5.6 meters without extension, a fully extended arm length of 18.5 meters, a lifting height of 20 meters, and horizontal lifting parameters of 18.5 meters for lifting 1 ton, 11.5 meters for lifting 3.2 tons, 5.6 meters for lifting 7 tons, and 2.7 meters for lifting 16 tons.
Cargo compartment configuration:
Cargo compartment size: 8350 * 2450 * 600, the bottom plate is made of manganese steel plate with a thickness of 5mm, and the box board railing is made of manganese steel plate with a thickness of 4mm.
Optional configuration:
The on-board crane can be equipped with fixed rear legs, single chamber hydraulic rear legs, hanging baskets, drilling machines, brick throwing machines, grabbing machines, etc. according to needs. The cargo box can also be made into a telescopic cargo box or a self dumping cargo box according to the customer's usage environment, with an optimal telescopic length of 60-80 centimeters.
Product features
The 16 ton Foton auman crane truck adopts hexagonal boom technology, and the boom is made of manganese steel material and high-strength steel plate, which enhances the bearing capacity and ensures safe operation;
The 16 ton foton auman crane truck adopts a self-developed return and rotation mechanism from XCMG, which has strong driving force and can meet the needs of various working conditions.
