A truck mounted crane is a specialized transport vehicle composed of a crane, chassis, and cargo box. It is composed of lifting arm, lifting torque, frame, support legs, and other parts. Variable amplitude. To achieve the mechanical action of the on-board crane through lifting, shrinking, rotating, and other forms. The boom changes the working radius and lifting height. Turning is changing the direction of lifting. Outriggers increase their stability. Torque is an important part that connects the boom and the support legs of the frame. The fixed slewing support, support legs, and oil distribution components of the frame.
Cheng Li Special Automobile Co., Ltd. specializes in producing truck mounted crane, including 2 ton cranes, 3.2 ton cranes, 4 ton cranes, 5 ton cranes, 6.3 ton cranes, 8 ton cranes, 10 ton cranes, 12 ton cranes, 14 ton cranes, 16 ton cranes, 18 ton cranes, 20 ton cranes, and 25 ton cranes! Chassis brands include Dongfeng, JAC,YUEJIN,ISUZU ,JMC ,FOTON ,ISUZU etc; If you need to order a truck mounted crane, you can come to our company or contact us by phone
The Isuzu chassis is deeply loved by customers in Central Asia and the Philippines. Due to the early arrival of Isuzu technology from Japan in their countries, there are many repair points and after-sales service parts centers. The parts of the Isuzu chassis are very easy to obtain, and the quality of the Isuzu is very excellent, making it the king of quality for specialized vehicle chassis.
Below we will introduce the parameters of a XCMG crane equipped with Isuzu chassis, which is a customized product for customers. After the customer came to the company for inspection last year, they were very satisfied with the manufacturer and Isuzu's chassis. This year, we have ordered a double order product. Our Isuzu truck mounted cranes are exported to more than 30 countries overseas, and our products are very mature and reliable.

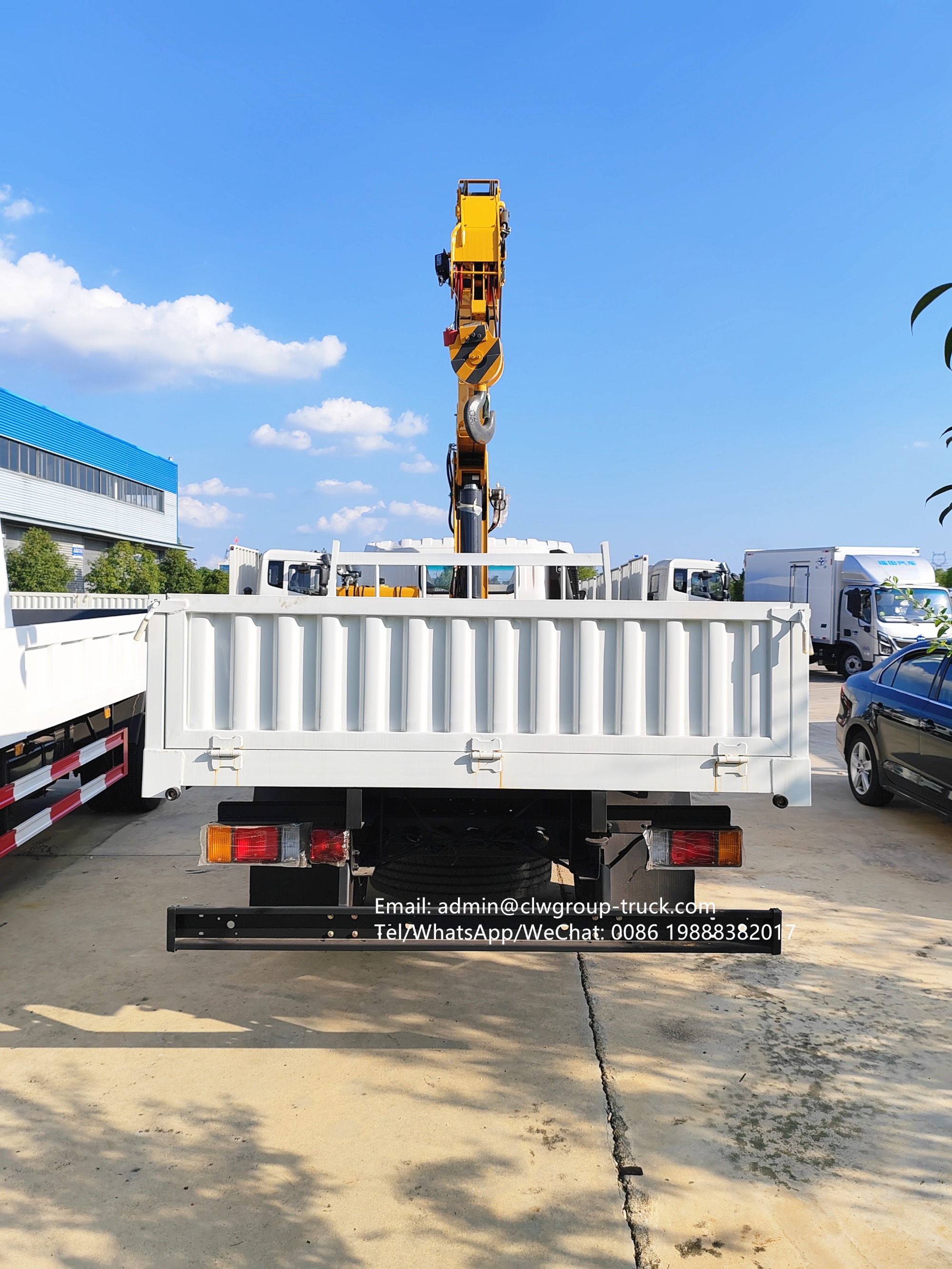

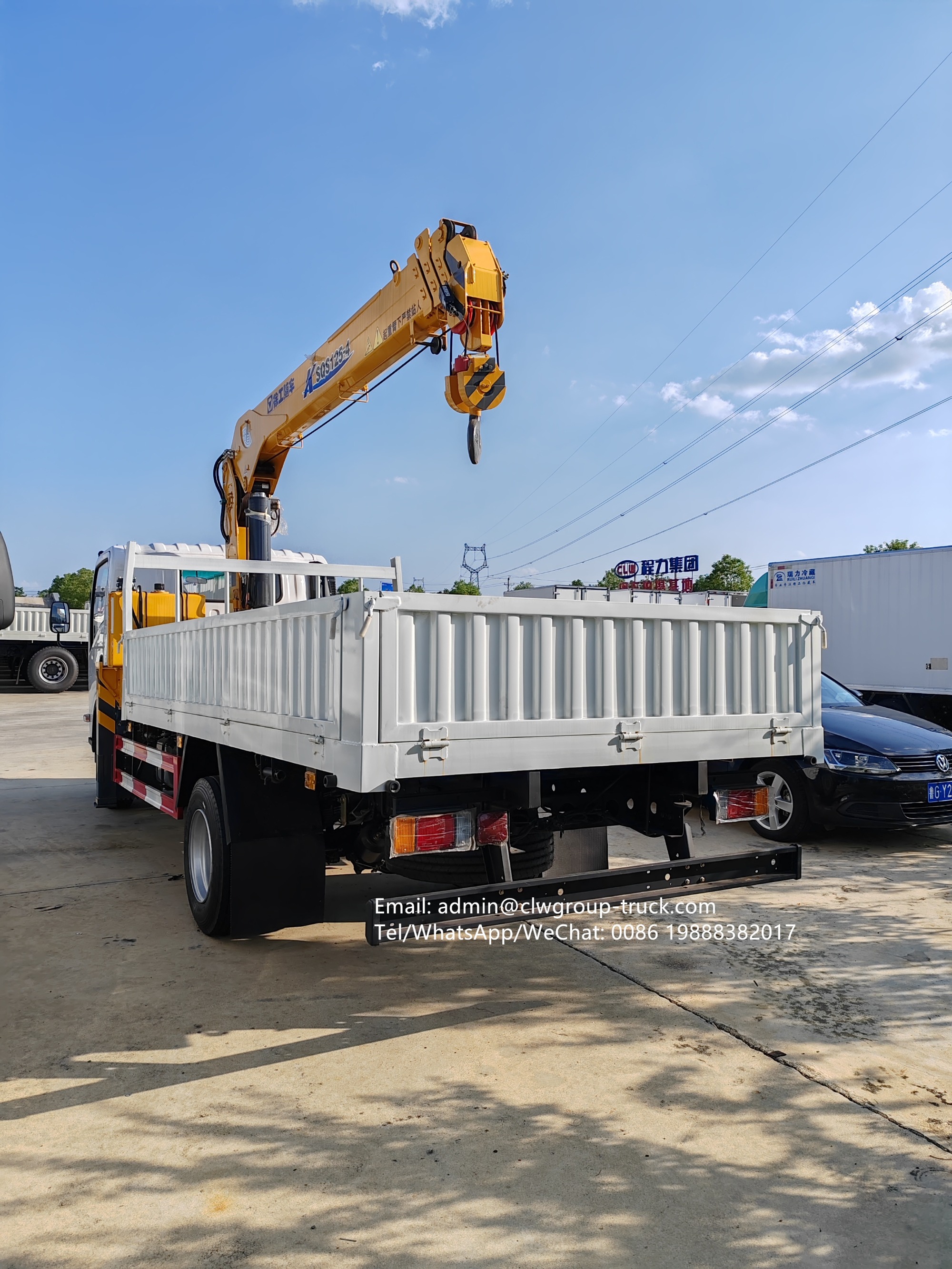

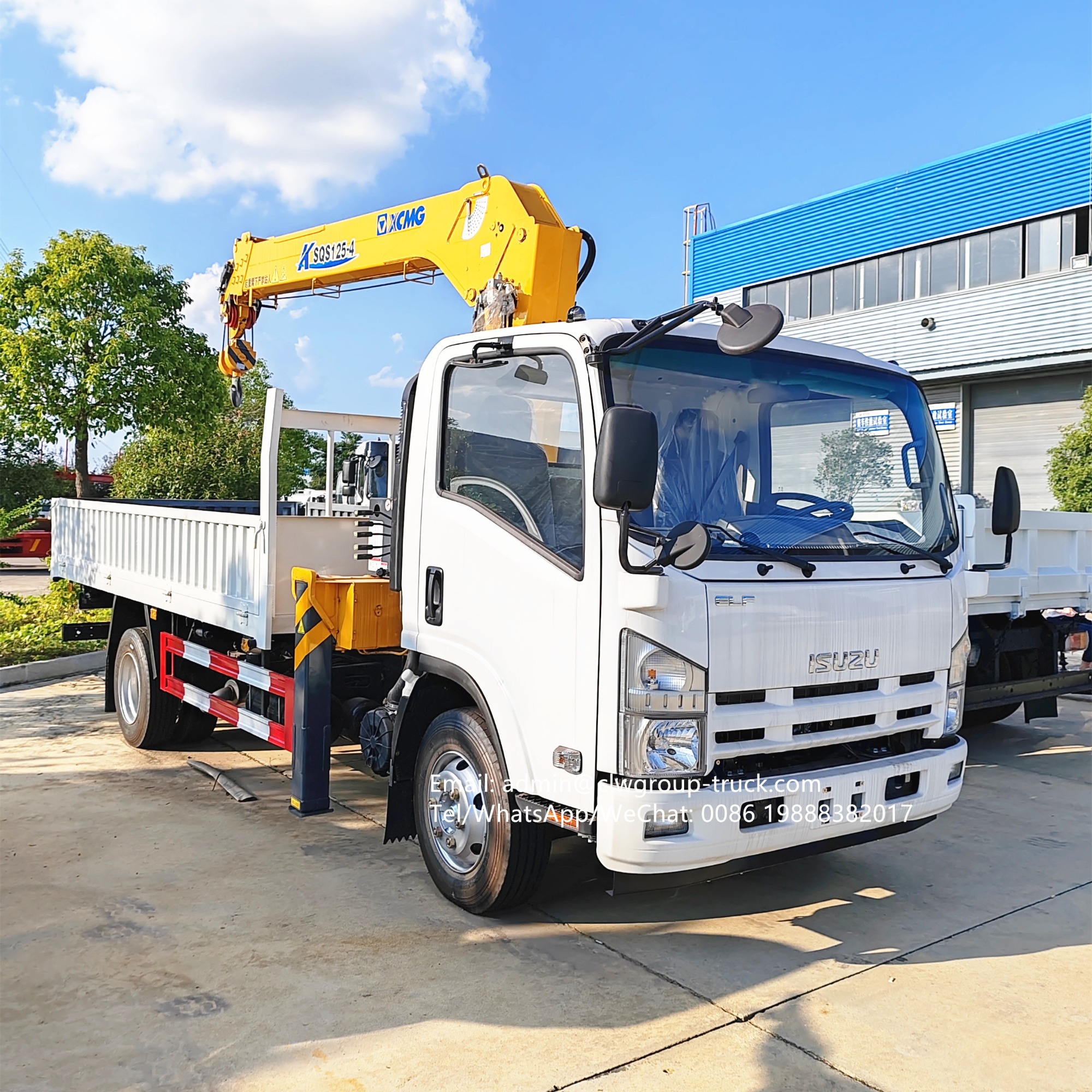

Isuzu 5 ton truck mount crane XCMG 5 tons parameters:
External dimensions: 7030 * 2400 * 3200mm
Total weight: 8280Kgs curb weight; 4600kgs rated load capacity: 3485kgs
Wheelbase; 3815mm container size; 4300 * 2300 * 550mm
Isuzu 5 ton truck mount crane configuration instructions:
Chassis configuration: Standard Isuzu 4HK1-TC51 engine with National V emissions of 190 horsepower, optional 205 horsepower Isuzu 4HK1-TC50 engine, Isuzu MLD six speed transmission with air conditioning, steering assistance, front axle 4 tons, rear axle 7 tons, with ABS, air brake, and reversible cab
Crane configuration: XCMG 5-ton three section straight arm crane has a maximum lifting height of 10.5 meters and a maximum working radius of 8.7 meters. XCMG 5-ton four section straight arm crane has a maximum lifting height of 12.5 meters and a maximum working radius of 11 meters. You can also choose to install cranes with straight or folded arms such as Sany, Shimei, Feitao, Changxing, etc.
