4X4 5000l water tanker fire truck hot sale

Introduction to the functions of water tanker fire sprinklers: Compared with water sprinklers, it inherits all the functions of sprinklers and also compensates for the problems of small range and low pressure of sprinklers. In addition to being equipped with fire pumps and equipment, fire sprinklers are also equipped with large capacity water storage tanks, water guns, water cannons, etc. Water and firefighters can be transported to the fire scene for independent firefighting. It can also directly extinguish fires by absorbing water from a water source, or supply water to other fire trucks and water tanker fire sprinkler systems. Superior to fire trucks in terms of functionality, as there is no fire truck equipment box, the chassis height and vehicle width are more suitable for mountain, township, and rural road conditions, making it an advantageous firefighting tool for forest, township, and rural firefighting.

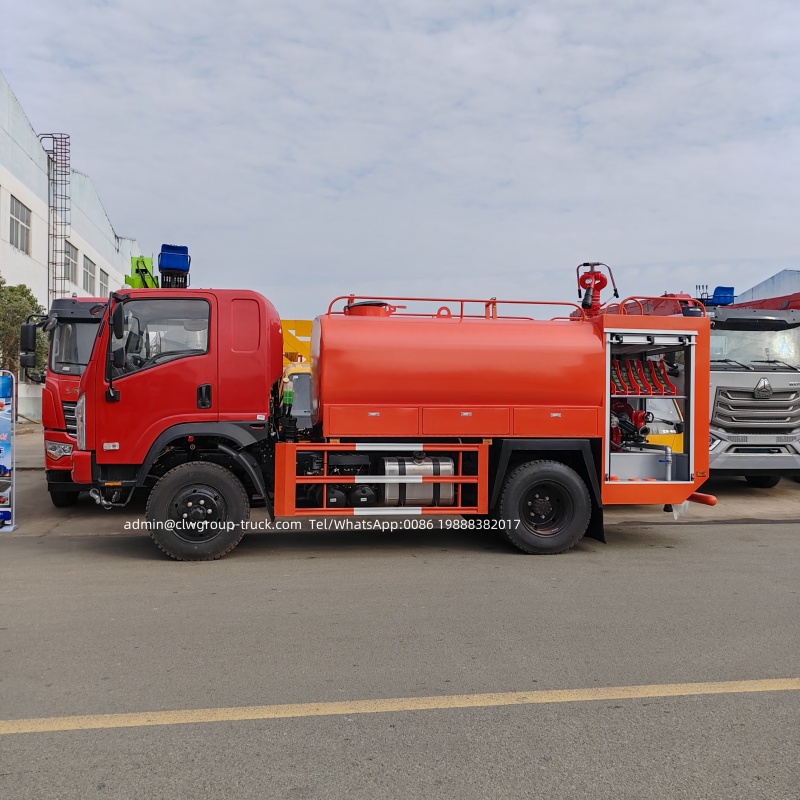

Now let's recommend a small fire sprinkler truck that is very popular in China: a four-wheel drive single row 5.6-meter fire sprinkler truck

Chassis configuration: Yuchai 160 horsepower, 825 steel wire tires, 3400mm wheelbase, equipped with 30 fire pump cannons.

External dimensions: 6510 * 2180 * 2750

Volume: 5.33 cubic meters

Chassis configuration: Drive mode 4 * 4; Yunnei D30TCIF2 (163 horsepower) engine, wheelbase: 3400mm, 700P half cab (width 1835), Shaanxi small 8-speed gearbox, with sandwich power take-off, front axle 3-ton single-stage front drive axle, rear axle 6-ton single-stage rear drive axle, plate spring number 6+4/11+8; Hangchi 400 transfer case (without power take-off), 250 belly double layered frame, tire number: 8.25R2016PR tire, 160L fuel tank, with air conditioning, self-adjusting arm ABS、 Air brake, splash guard, environmentally friendly terminal, widened wheel cover, front wheel tread ring,

Upper configuration: The tank has a full load capacity of 5.5 cubic meters and is made of high-quality carbon steel material (with advanced anti-corrosion treatment inside the tank). It is equipped with CB10/30 atmospheric pressure fire pump and PS30 fire monitor. Equipped with front flushing and rear spraying functions, the entire vehicle is equipped with fire protection red

Introduction to the spraying performance of water sprinkler trucks:

◆ Three cornering front flushing range: 14 meters, adjustable water flow direction, suitable for road surface flushing and watering;

Duck billed side spray range: 8-10 meters, spraying on both sides of the vehicle, suitable for cooling the water surface of green belts;

◆ Rear spray nozzle range: 8-10 meters, spraying towards the rear of the vehicle, suitable for road dust suppression, humidification, and cooling;

High pressure water cannon range: 28 meters, requires manual operation, can rotate 360 degrees, and can spray columnar, flowering, rainy, and semi misty water flow;

Fire water cannon has a range of 45 meters and requires manual operation. It can rotate 360 degrees and spray water in the form of columns, flowers, rain, and semi mist;

Special function description of water tanker fire sprinkler truck:

1. Sandwich power take-off (installed between the engine and gearbox for stronger power)
2. CB20 fire pump: flow rate (L/S): 20; Pressure (Mpa): 1.0; Installed on the main beam
3. SP20 fire monitor (installed on the top of the tank): range ≥ 40 meters
4. There are fire-fighting equipment,
5. Front flushing, rear spraying, side spraying, work platform, cannon (installed at the rear of the tank, with a range of ≥ 25 meters), self flow valve, fire joint.
6. This vehicle has both the function of a fire truck and a sprinkler truck, making it versatile. Suitable for landscaping, fire sprinkler, fire extinguishing, dust reduction in mines, fire extinguishing in residential areas, and can also be used for spraying pesticides when needed.

In addition to this tank type water tanker fire sprinkler truck, we also produce water tank fire trucks with larger flow rates and stronger professionalism, equipped with more fire-fighting equipment for easy emergency rescue.

.The dedicated part of the water tank fire truck consists of a liquid tank, pump room, equipment box, power output and transmission system, pipeline system, electrical system, etc.

2. The water tank fire truck adopts a double row integrated structure, with a wide field of view and a large number of passengers, capable of accommodating 6-8 people; Fire trucks can extinguish fires while in motion, with a long range and strong firefighting capabilities.
3. Fire pump model: CB10/30, flow rate: 30L/S, pressure: 1.00Mpa. Fire monitor model: PS30, firing range>50 meters. Lift 120m, water supply distance 2000m.
4. The carriage is made of high-quality steel, high-strength aluminum alloy profiles, and both the inner and outer skins are made of corrugated aluminum plates. The tank body is designed with multiple anti wave plates.
5. The outer frame of the equipment compartment is made of high-quality carbon steel plates, the inner frame is made of high-strength aluminum alloy profiles, and is designed and manufactured with a concealed overlapping structure. The interior panel is made of patterned aluminum plate and has undergone anodizing treatment on the surface, making it sturdy and durable. In terms of structure, the equipment compartment is arranged reasonably, making equipment access more convenient, and a specially designed fixture fixing device makes equipment storage more secure.
6. The rolling shutter door of the equipment compartment is designed and made of high-quality aluminum alloy, with flexible opening and closing, low noise, good sealing, and beautiful appearance.

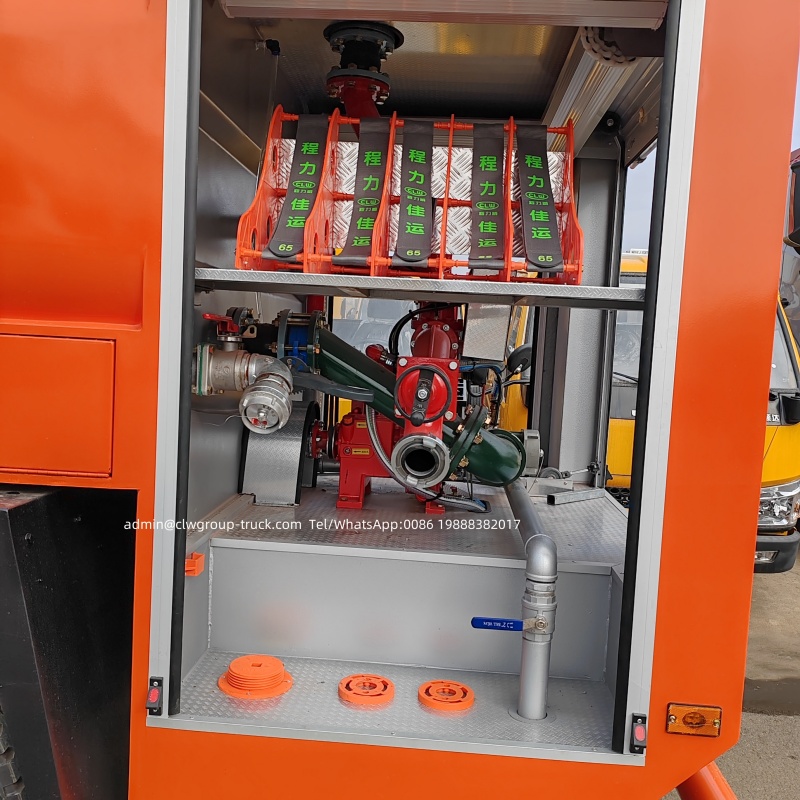

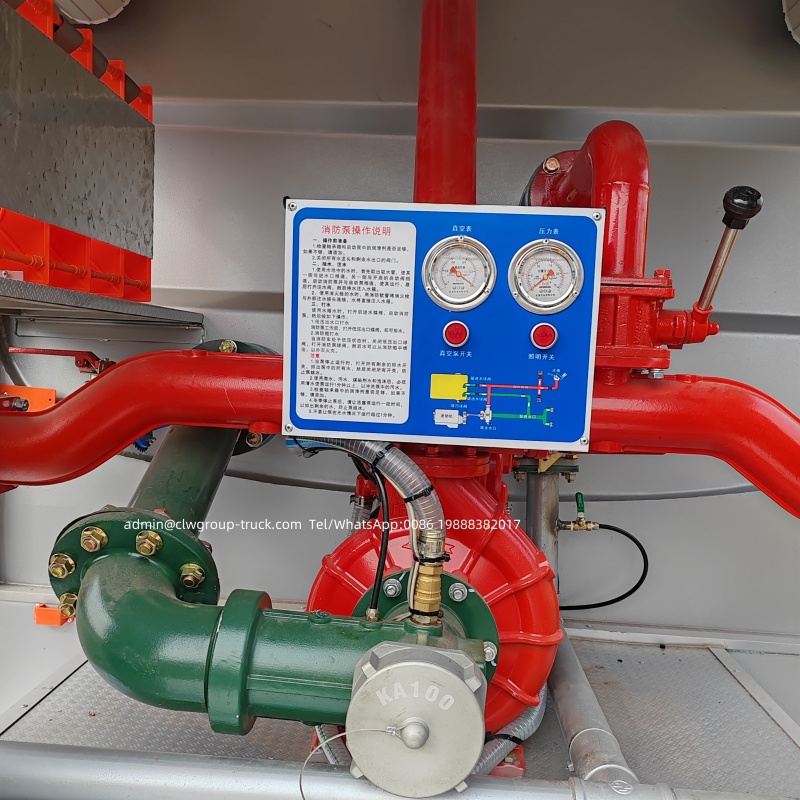

7. The pump room is equipped with a water pump system, various instruments, indicator lights, level gauges, pressure gauges, vacuum gauges, and other devices.

Optional: self-priming high-pressure remote water supply fire extinguishing pump, pump suction depth of 8m, horizontal suction distance of 200m, head of 500800m, conveying distance of 5000m-8000m: optional high-pressure plunger pump: optional medium pressure pump CB20/20.
