Isuzu Mobile Advertising truck — Mobile Billboard & Promotional Truck with Integrated Stage
Mobile advertising truck are a highly popular type of specialized vehicle. As they traverse city streets and alleyways, their vibrant screens and dynamic visuals frequently capture the attention of passersby. Equipped with integrated audio systems, these LED trucks can project promotional messages audible from several kilometers away. Compared to traditional advertising methods, these mobile units significantly boost efficiency and deliver more tangible, effective returns for businesses.
Currently, our factory manufactures a diverse range of led advertising trucks, including small, medium, and large-scale models.

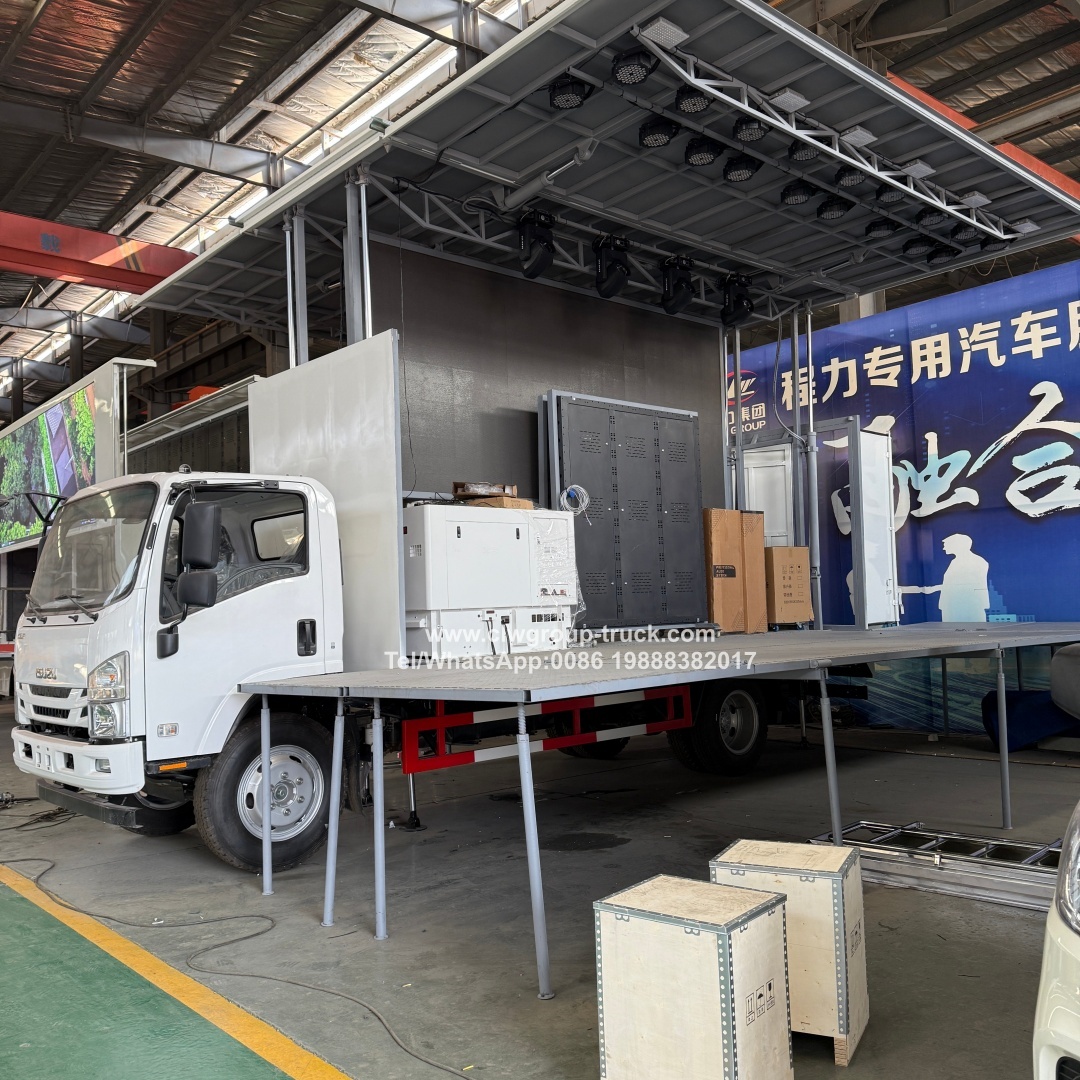

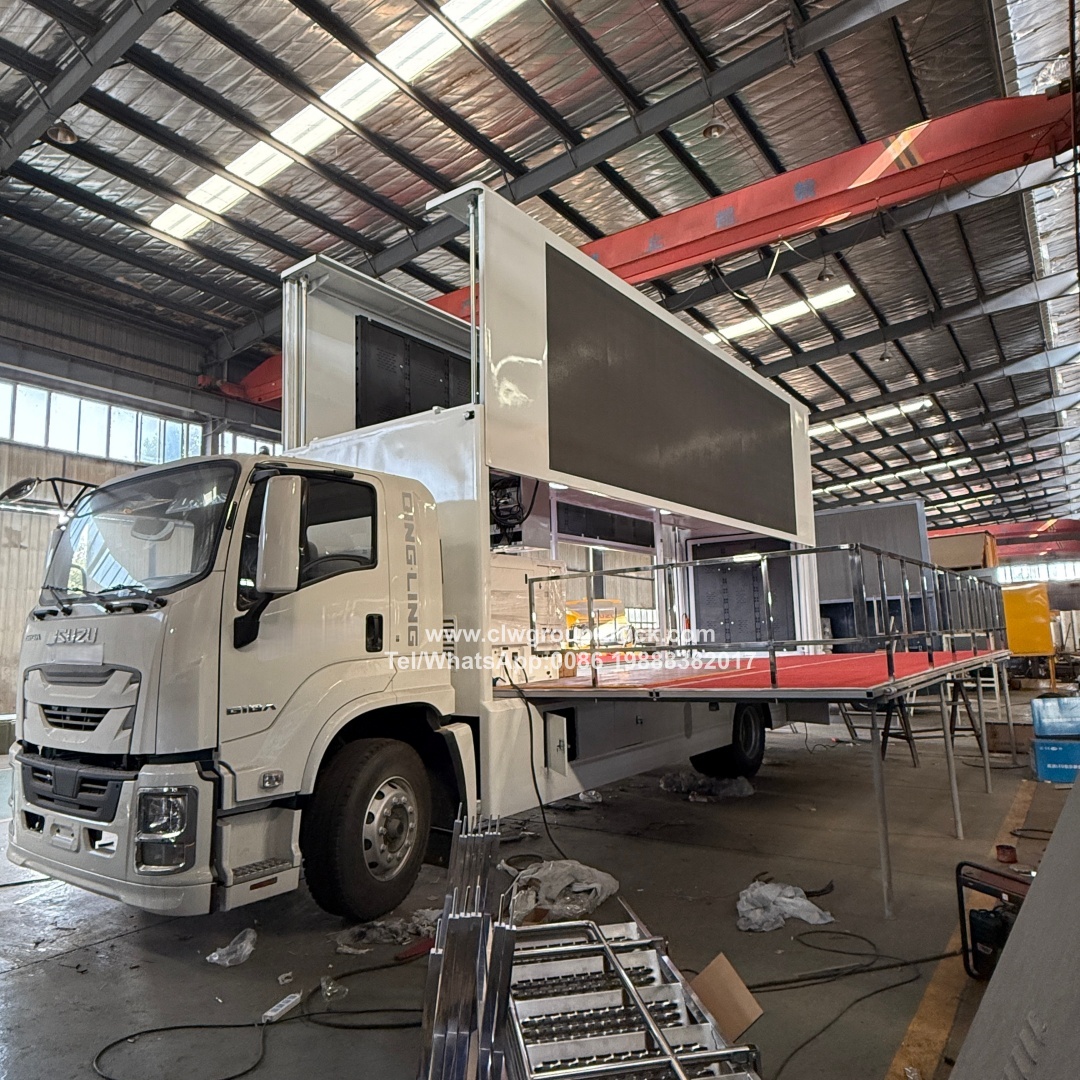

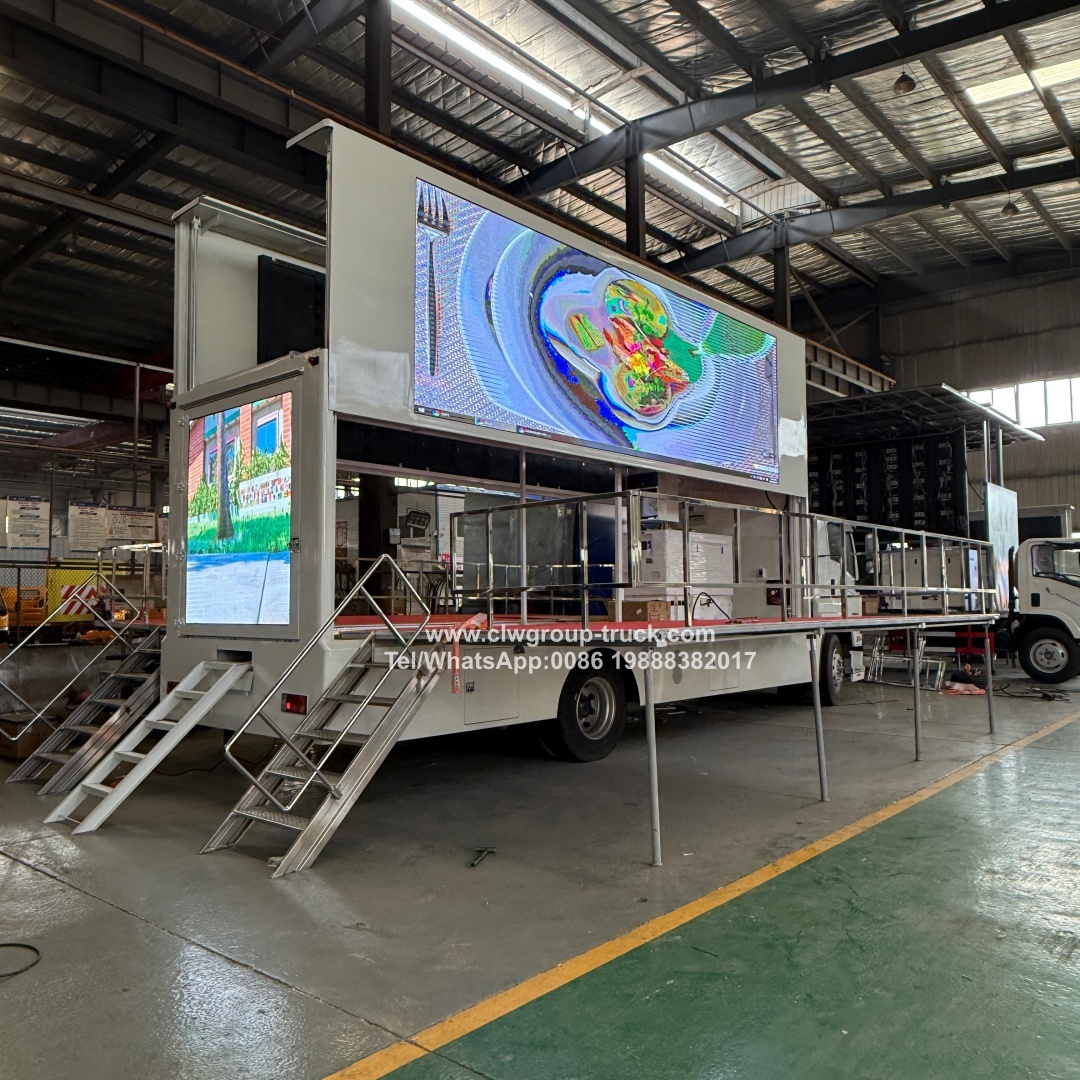

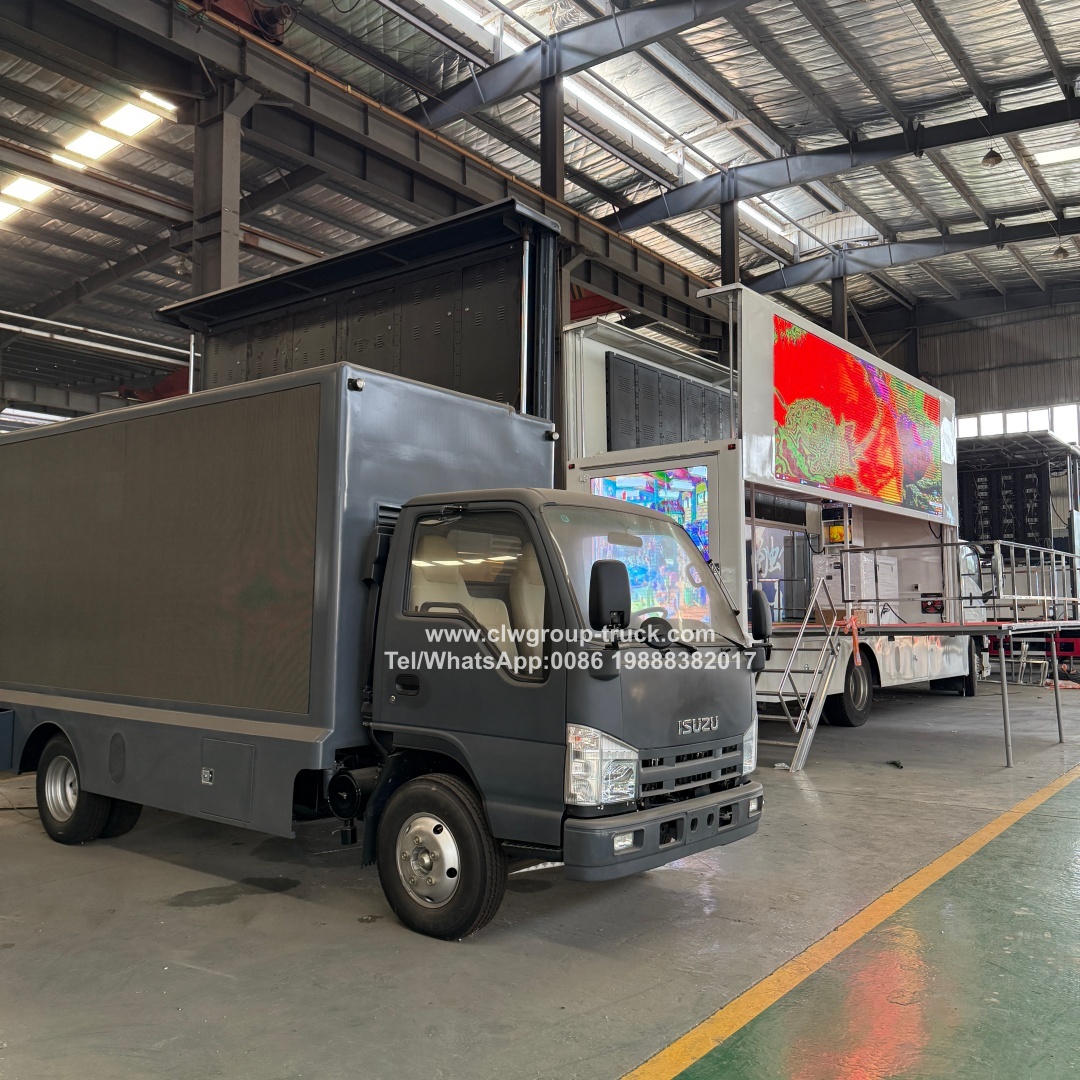

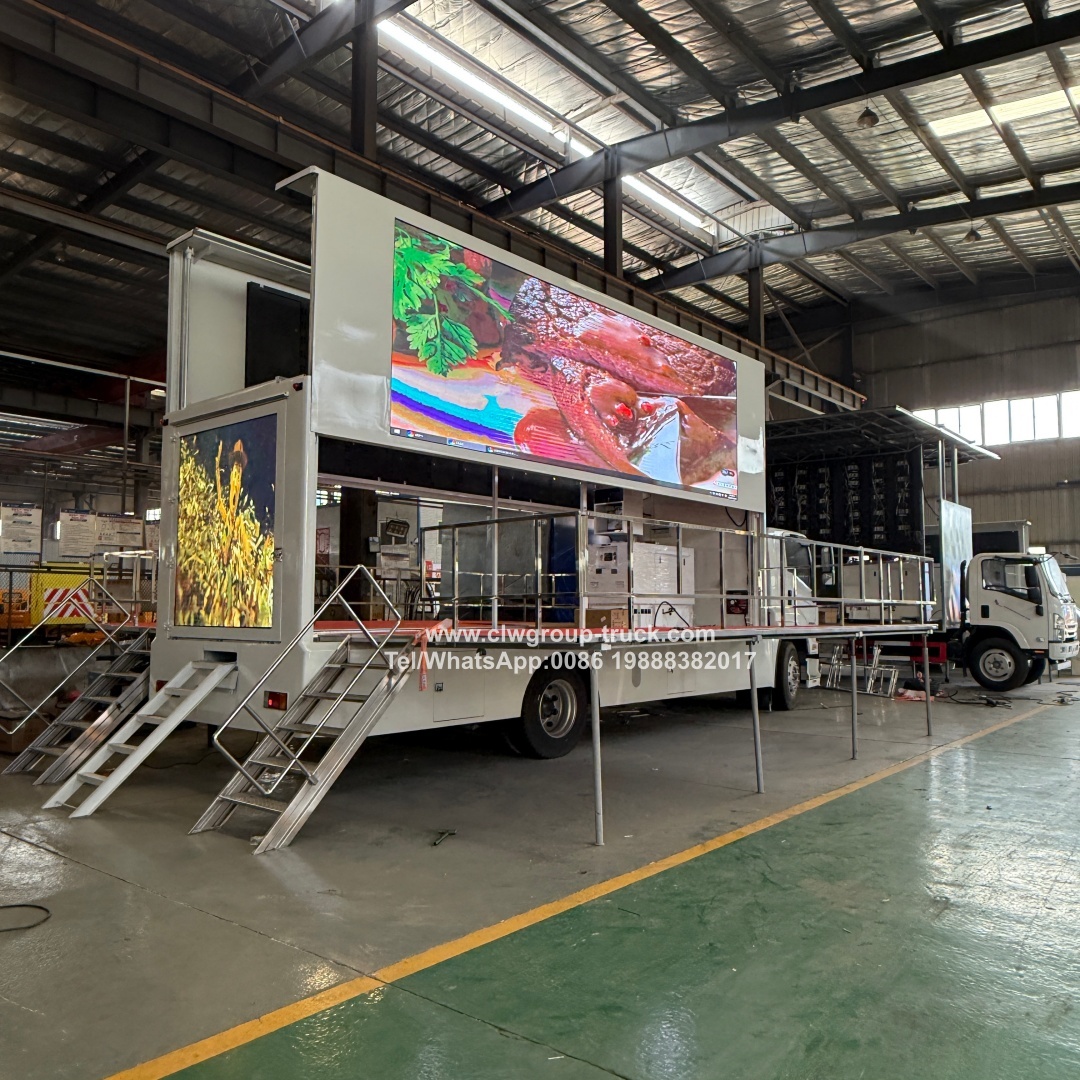

We are currently highlighting a newly developed model: the Isuzu Large LED Advertising truck This particular unit features an exceptionally large display screen.
**Isuzu led Advertising truck — Body & Equipment Specifications:** Dual-sided P4 full-color LED screens (6080 x 1920 mm); Rear LED screen (1760 x 1760 mm); Left-side hydraulic lift stage system; 35 kW silent Ouma generator; Integrated video processor; Optional single-side screen hydraulic lift mechanism; Stainless steel safety railings; 45 kW voltage converter.
**Isuzu led Advertising truck — Chassis Specifications:** Isuzu "National VI" (Euro 6) standard chassis powered by a 205 HP 4HK1-TC60 engine; Paired with an Isuzu MLD 6-speed manual transmission; Features either the standard Isuzu 4x cab or a compact VC61-style cab; Includes heating and air conditioning, power steering, central locking, power windows, a multi-function steering wheel, and a multi-function LCD instrument cluster; Equipped with ABS and air-brake system. Small-scale advertising vehicles typically consist of compact, gasoline-powered units—specifically micro-trucks—built on Changan or Foton chassis and equipped with a 122-horsepower Dong'an engine. Available in both left-hand drive and steering-wheel configurations, these vehicles feature a 5-speed manual transmission and offer wheelbase options of 2500mm, 2750mm, 2800mm, and 3000mm. The overall vehicle dimensions measure 5100mm x 1900mm x 2650mm. Standard vehicle configurations include hydraulic outriggers, scrolling lightboxes, an automotive-style ventilation sunroof, power switches, exhaust fans, a power inverter, aviation-grade connectors, and a Camel-brand battery (or an optional gasoline generator). For the display screens, customers may choose from outdoor-rated, shockproof, and waterproof LED panels with P5, P4, or P3 pixel pitches; the left and right side screens measure 2560mm x 1480mm, while the rear screen dimensions are [dimensions to be specified]. The advertising vehicle's body is constructed from a 5mm composite steel frame, featuring an interior lined with heat-resistant patterned aluminum plating. The electrical control system incorporates intelligent safety features with automatic switching between internal and external power grids. The ventilation system utilizes powerful exhaust fans in conjunction with the roof sunroof, and the vehicle comes equipped with an audio system and amplifier. Optional upgrades include a hydraulic stage and a hydraulic screen lifting mechanism. Power for the screens is supplied by either a 6.5kW or 8kW "Wing Tiger" gasoline generator or the onboard battery system.

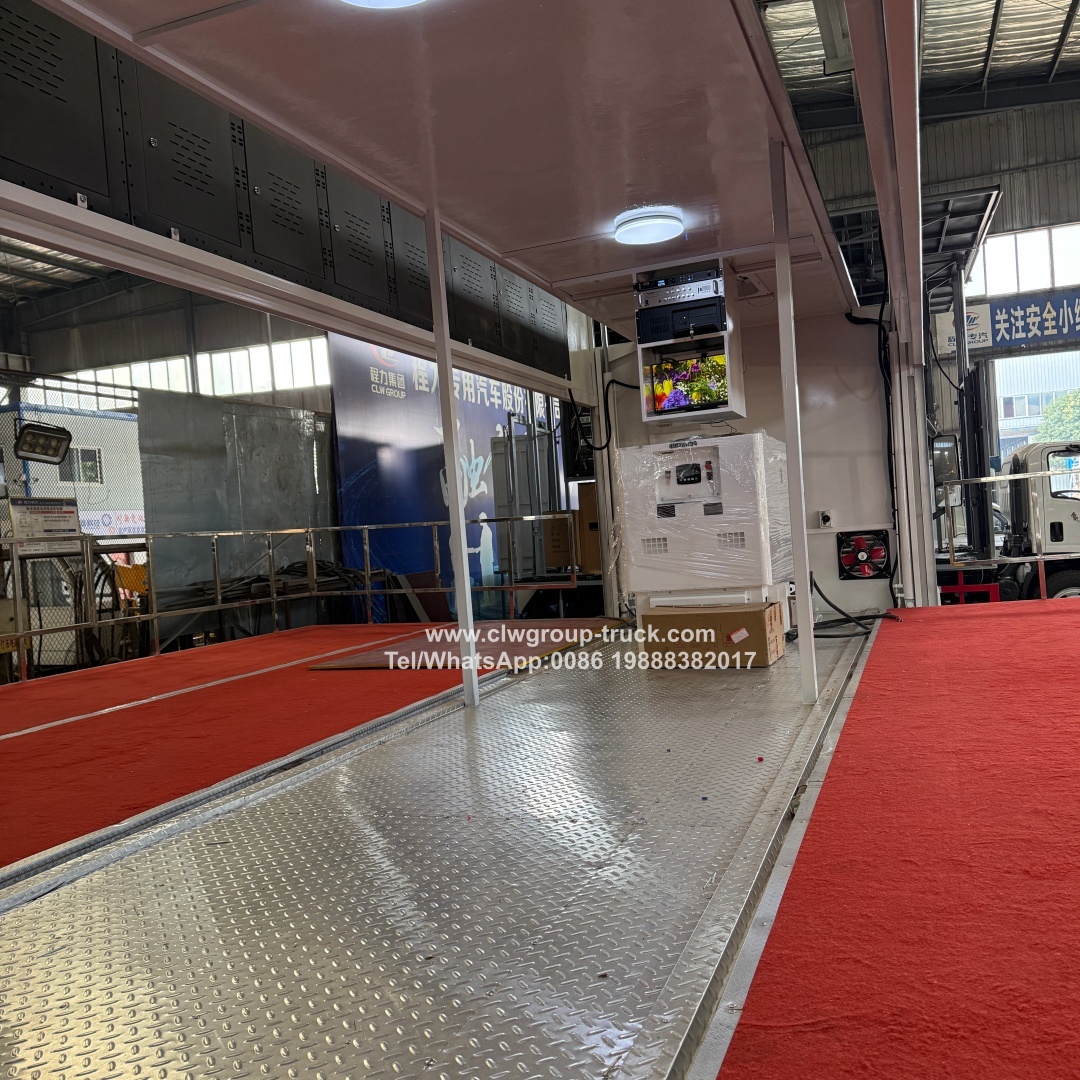

Our medium-sized LED advertising truck is a standard model featuring a 3300mm wheelbase and meeting Euro 2 or higher emission standards. It is available with either left-hand or right-hand drive configurations. The chassis can be selected from various manufacturers, including Dongfeng, Foton, Isuzu, Sinotruk, and FAW. The cargo box dimensions are 4200mm in length, 1700mm in width, and 2250mm in height. Customers may choose between single-sided, double-sided, or triple-sided full-color LED screens, with options ranging from P5, P4, or P3 resolutions to other higher-definition displays. The interior of the vehicle body is equipped with a built-in ultra-silent diesel generator set, audio system, computer, power amplifier, ventilation system, and other components. Additionally, optional features include a screen lifting mechanism and a hydraulic stage. The actual screen dimensions are determined by the specific LED display model selected. The opposite side of the vehicle can be optionally fitted with a monochrome scrolling text display and a lightbox advertisement featuring a built-in scrolling mechanism capable of rotating through 3 to 7 different images. The main LED display screen can be equipped with an optional hydraulic lifting system, allowing it to be raised vertically by up to 1.5 meters; a safety lock valve is included to control the lifting operation. The generator configuration—either an ultra-silent 8–15 kW diesel generator or a 6–8 kW gasoline generator—is selected based on the power requirements of the specific screen size. Alternatively, a dedicated battery system paired with an inverter of appropriate wattage can be installed. An external power switch and a 30-meter power cable are provided with the vehicle, allowing for seamless switching to a 220V mains power supply whenever available. Small and medium-sized advertising trucks can be optionally equipped with a simple stage ranging from 4 to over 10 square meters in size. The stage features a hydraulic retraction and deployment system, and the stage decking is constructed from bamboo plywood finished with a vinyl covering or red carpeting; an aluminum tread plate finish is also available as an option.
LED advertising vehicles come in various configurations:
(1) One side features a high-definition, full-color outdoor LED display, while the other side combines a monochrome LED ticker screen with a scrolling light box; the rear door is a spring-loaded mechanism; the LED display can be raised vertically by 1,800 mm.
(2) Both sides feature high-definition, full-color outdoor LED displays, and both screens are capable of being raised vertically. Our company's advertising and mobile stage vehicles prioritize superior quality and comprehensive after-sales support, placing the user's needs at the forefront. Consequently, they are frequently purchased by advertising agencies and interior design firms to serve as their primary advertising platforms. Beyond our hallmarks of high quality and competitive pricing, our company's greatest distinction lies in our twelve years of specialized expertise in LED display manufacturing, ensuring that customers acquire the most cost-effective products at the lowest possible prices.
Configuration Options for Mobile Advertising truck:
① Single-Sided Color Screen Configuration: The left side features an outdoor high-definition, full-color LED display (available in various resolutions such as P10, P8, P6, etc.); the right side features a scrolling light box (capable of displaying 2 to 7 scrolling graphic posters in a continuous loop); and the rear features a monochrome text display screen measuring 960 mm x 1,280 mm. Standard equipment includes a 6.5 kW gasoline generator (or an optional 5.5 kW diesel generator), an industrial-grade control computer, a high-power audio amplifier, waterproof column speakers, an exhaust skylight, a high-capacity exhaust fan, wooden flooring, and other amenities.
② Double-Sided Color Screen Configuration: Both the left and right sides feature outdoor high-definition, full-color LED displays (available in various resolutions such as P10, P8, P7, P6, etc.); the rear features a monochrome text display screen measuring 960 mm x 1,280 mm. Standard equipment includes an 8 kW gasoline generator, an industrial-grade control computer, a high-power audio amplifier, waterproof column speakers, an exhaust skylight, a high-capacity exhaust fan, wooden flooring, and other amenities; optional upgrades include screen lifting mechanisms and hydraulic stage systems.
Chengli Special Automobile Co., Ltd. specializes in the manufacture of mobile advertising truck, LED promotional trucks, lightbox advertising truck, mobile stages, and multi-functional publicity vehicles. The promotional vehicles produced at our facility can be fully customized to meet specific client requirements. For instance: 1) LED Bodywork Integration—we can fabricate advertising vehicle bodies designed to perfectly match the chassis specifications provided by the client, featuring outdoor-grade full-color LED screens. Our company handles the entire process, including installation and system debugging, while our professional staff coordinate closely with clients to finalize vehicle parameters and configurations, thereby facilitating the production schedule.
Through rigorous analysis and extensive testing, our company's LED truck are equipped with superior full-color display technology. These screens feature exceptional brightness, stable performance, and high impact resistance; they deliver vivid, dynamic visuals with a realistic, three-dimensional depth. Furthermore, each vehicle is fitted with an intelligent light-sensing system capable of automatically adjusting screen brightness in response to ambient outdoor lighting conditions.
