Milk transport trucks are different from water tankers and oil trucks. Milk is in great demand as an important supplement for people's healthy life, so milk transport trucks have become a model that is just needed by major factories and enterprises. In order to meet health standards, drinking water tanks will be made of stainless steel that will not rust, corrode, and be easy to clean. Compared with water, milk requires higher standards. Milk transport trucks are made of food-grade 304-2B stainless steel, and the surface must be finely polished to reduce bacterial adhesion and milk scale residue. The welding process is also crucial. Ordinary welding is prone to gaps and deformations, but professional milk transport trucks use fully automatic argon arc welding. The welds are flat and smooth, with no sanitary dead corners, and comply with food production hygienic regulations.
Chengli Special Purpose Vehicle Co., Ltd. is one of the only domestic manufacturers with the qualification to produce special vehicles for fresh milk transport. It also has export qualifications, has announcements and 3C, and can obtain the export license for milk transport vehicles. It is a formal professional manufacturer that meets ISO and 3C standards and has been producing for more than 20 years. It not only produces milk transport vehicles but also milk transport semi-trailers, milk transport tank bodies, and refrigerated trucks related to the milk transport cold chain.
Milk transport trucks can be divided into 5-ton, 8-ton, 13-ton, 25-ton, 30-ton, 35-ton, 45-ton milk tank trucks according to tonnage. By volume, it includes small vehicles such as rated volume 2.08 cubic meters, 8 cubic meters, medium-sized vehicles such as 13 cubic meters, 14 cubic meters, 16 cubic meters, 20 cubic meters, 22 cubic meters, and large semi-trailers such as 30 cubic meters, 36 cubic meters, 40.7 cubic meters, 41 cubic meters, etc.
Where can I buy milk tanker trucks? Chengli Special Purpose Vehicle Co., Ltd. cooperates with Dongfeng, Sinotruk, Isuzu, FAW, JMC, Shacman and other chassis manufacturers to manufacture milk transport trucks and milk tank trucks for transporting fresh milk.
The tank structure is divided into three layers: insulation layer, protective layer, insulation layer and tank liner:
The inner tank of the milk transport truck frame is made of food-grade 304/2B stainless steel plate. The tank can be made into 2-3 compartments. The inner tank of the tank must be smooth and clean without sharp angles. Each milk cabin is equipped with a cip (cleaning device, cleaning rod (or cleaning ball), cleaning pipe (Φ38mm), four or more rotating cleaning nozzles, and external water pipes. The inner tank of the tank can be automatically cleaned with a little pressure). The tank can achieve 360-degree all-round rotation for easy cleaning.
There is an insulation layer in the middle of the milk transport tank, which has a thermal insulation effect and prevents fresh milk from deteriorating. When the temperature difference is 30 degrees, the temperature change will not exceed 1 degree in 24 hours. The insulation material uses 80 (mm) thick polyurethane foam material for insulation. The thickness of the polyurethane foam in Xinjiang and northwest regions ranges from 100 to 200mm, and the polyurethane foam part of the semi-trailer manhole is 60mm thick.
The outer outer layer of the milk transport tank (insulation protective layer) is made of 2mm thick 304l stainless steel plate. The stainless steel outer skin and trunk are beautiful in shape, the entire car body is beautiful in shape, scientific in structure, light in weight and good in strength.

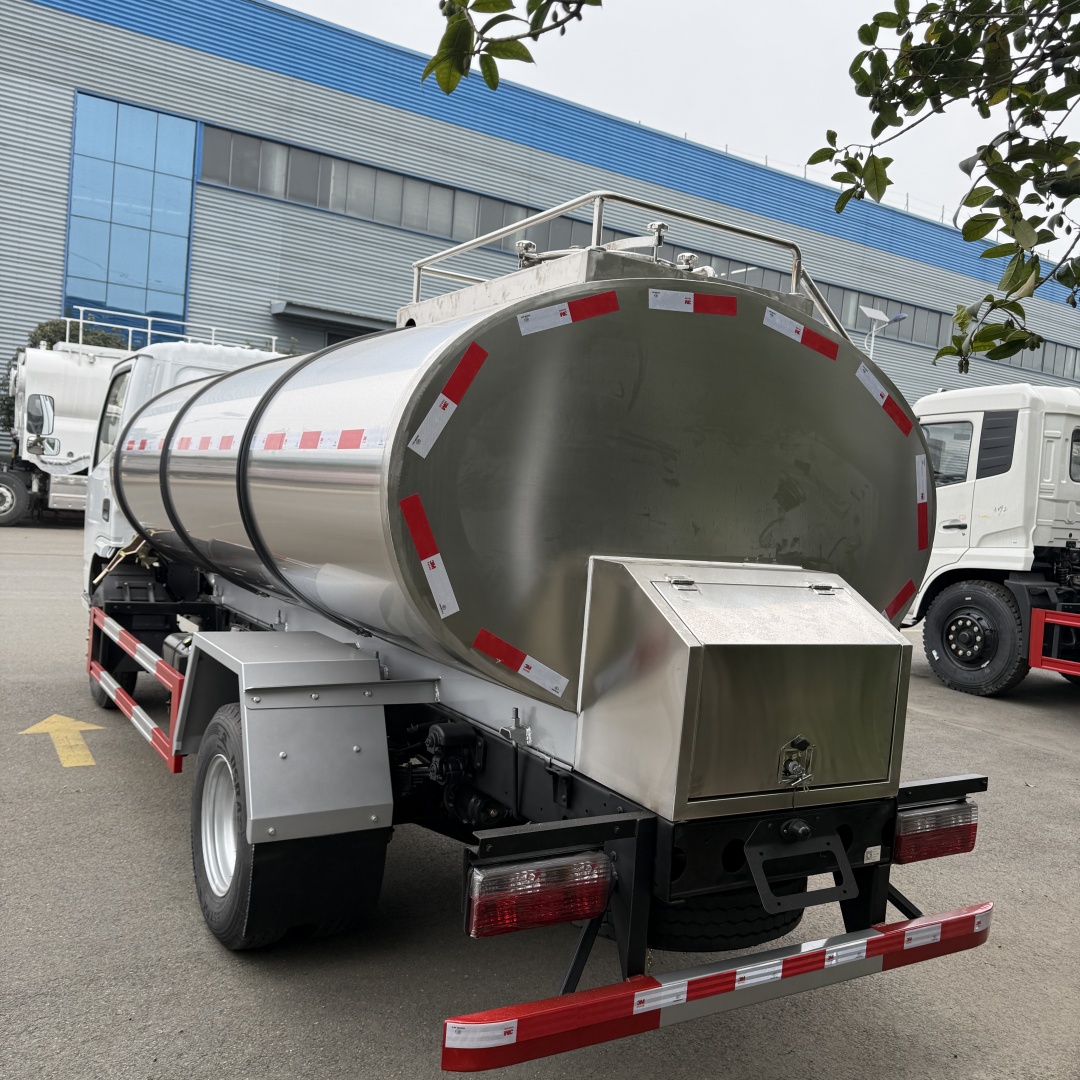

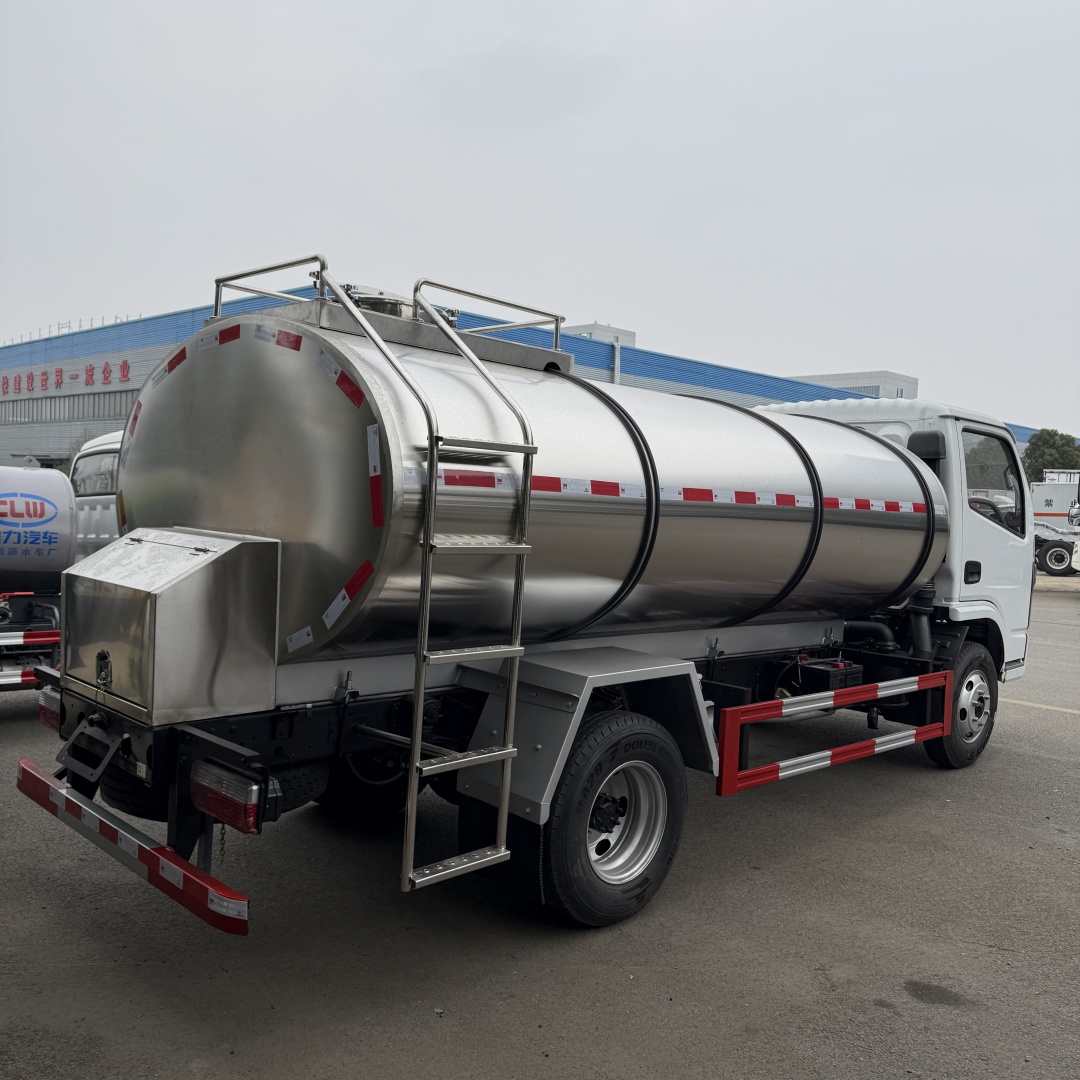

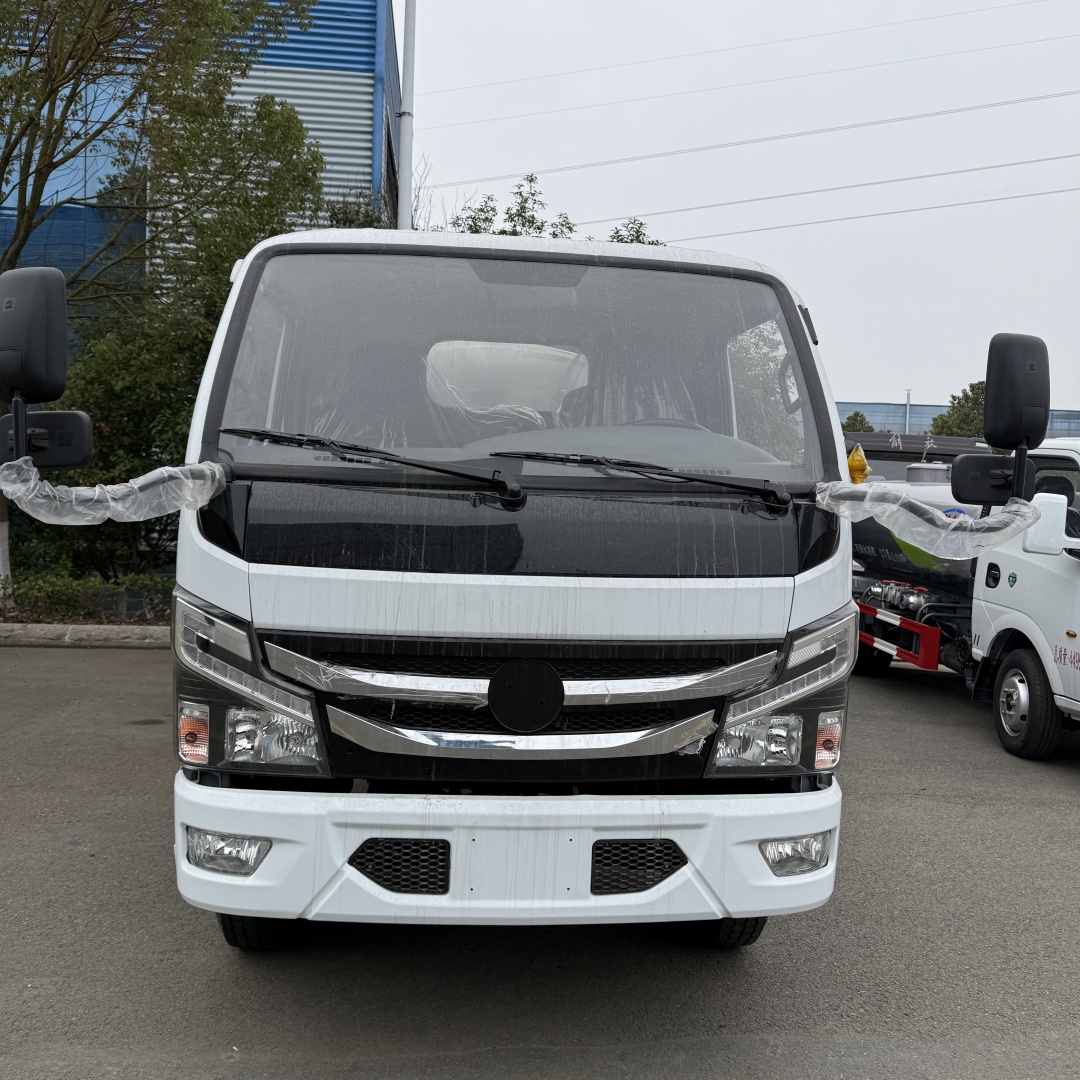

Now we also recommend a relatively popular small milk transport truck, which uses a chassis independently developed by Cheng Li. The engine is equipped with 90 horsepower from Yunnei. It is powerful and adapts to complex vehicle conditions at home and abroad. The engine has strong endurance and is easy to repair. It has a 5-speed gearbox, an axle of 1.8 tons in the front and 3.5 tons in the rear, and 7.00R16 tires. The wheelbase is 3300mm.
The tank is made of food-grade stainless steel plate with a volume of 5 cubic meters. It can be divided into one warehouse or two optional warehouses. The outside of the tank needs to be insulated to prevent the fresh milk from deteriorating. Generally speaking, it is divided into three layers. The inner tank of the tank is made of 304/2B food-grade stainless steel. The plate thickness is 3-4mm. The middle part is polyurethane foam insulation with a thickness of 80mm. The polyurethane foam in the semi-hanging manhole part is 60mm thick. The thermal insulation effect is ±2-3℃ for 24 hours. The outermost part of the tank is a 2mm thick 304 stainless steel plate. The inner tank is equipped with a cleaning device, a cleaning rod (or cleaning ball), a cleaning pipe (Φ38mm), four or more rotating cleaning nozzles, and an external water pipe. The inner tank can be automatically cleaned with a little pressure.
Some users said that they want a fresh milk transport truck, which needs to collect fresh milk of different qualities from different farmers, store it in different areas in the tank, and unload the milk separately, and each area must have an automatic cleaning function. In order to meet the needs of users, Hubei Chengli has specially developed a fresh milk transport truck with a divided warehouse design. It can be divided into warehouses according to customer requirements, and each warehouse is equipped with an automatic cleaning device. Each warehouse has independent stainless steel inlets and outlets to solve the problem of separate shipments of milk of different qualities. The default number of bins for tank volume is as follows:
3 to 6 square meters are divided into 1 compartment, 8 to 10 square meters are divided into 2 compartments, 13 to 18 square meters are divided into 3 compartments, and 20 to 30 square meters are divided into 4 compartments
Semi-trailer 35 cubic meters-45 cubic meters divided into 5 compartments
Milk transport truck, milk transport truck, milk tank truck, milk truck price is composed of chassis price and modification fee price. Different chassis and different engines have different prices, as well as different tank volumes and different accessories. The prices of fresh milk transport trucks are also different. Therefore, when customers purchase a fresh milk transport truck, it is best to communicate with the sales staff first, so that our sales staff can recommend a suitable, high-quality and low-priced fresh milk transport truck for you. Order hotline: 0086 19888382017 (WeChat/WhatsAPP)
