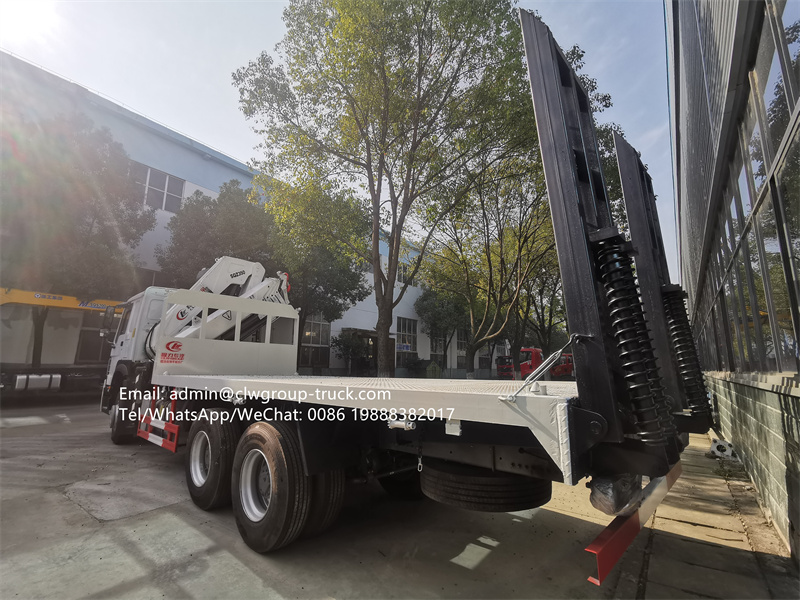

Flatbed truck mounted crane integrates a crane/excavator transporter. It is suitable for the transfer of various small and medium-sized construction machinery and equipment in highway, municipal and construction, such as road pavement machinery, paver, iron milling machine, road roller and engineering crawler equipment. It has the characteristics of flexibility and convenience, independent up and down (each crawler-type engineering equipment can go up and down the platform by itself, without any other lifting equipment and auxiliary tools), and can be lifted freely (the springboard adopts the internal clearance self-adjusting hydraulic booster device, which can be lifted and lowered by itself).

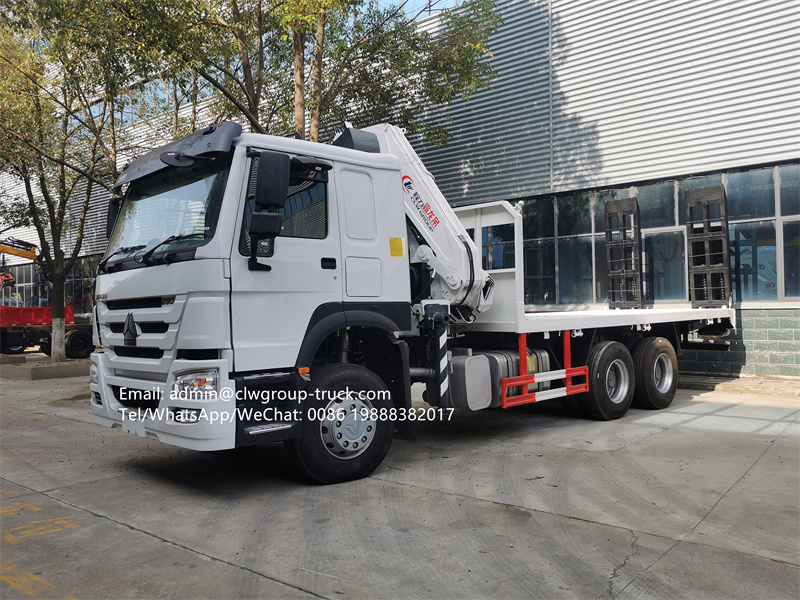

Sinotruk 6X4 Flatbed truck mounted crane This model is designed as a flatbed transporter on the basis of the truck-mounted crane, and has a container lock that can pull containers, and is a multi-functional truck-mounted crane.
Sinotruk 6X4 Flatbed truck mounted crane Chassis Parameters
Engine: Sinotruk 336 hp
Wheelbase: 4300+1350mm
Axle tonnage: 7 tons for front axle, 16 tons for rear axle
Gearbox: 10-speed gearbox
Tire: steel wire tire 12.00R20
Fuel tank: 400L
Girder: 8+8/300
Sinotruk 6X4 Flatbed truck mounted crane Crane Parameters:
Crane brand: CLW
Crane tonnage: 14 tons, five-section folding arm
Maximum lift height: 14.8 meters
Maximum working radius: 12.3 meters
Installation space: 1.4 meters
Crane weight: 5100KG
Rotation angle: 360 degree full rotation
Parameter of Sinotruk 6X4 Flatbed truck mounted crane:

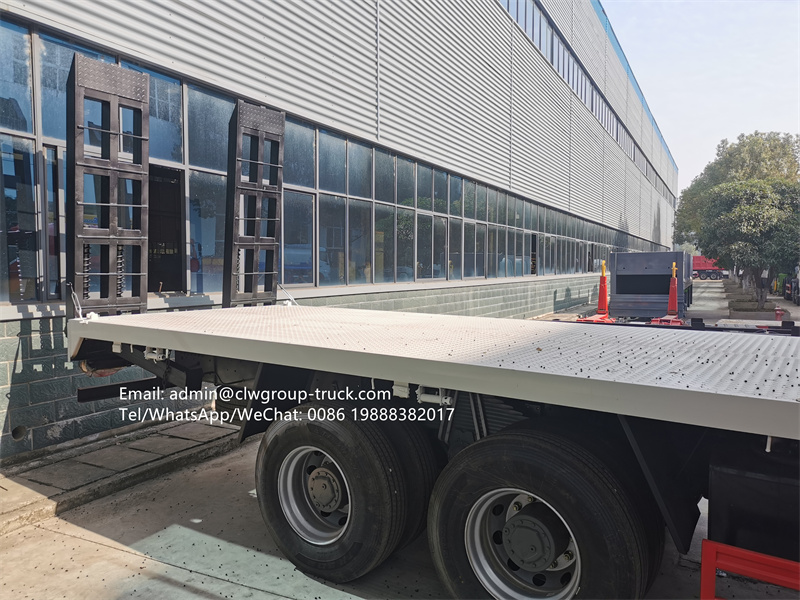

6200*2500mm with rear hydraulic ladder
Special features of Flatbed truck mounted crane:
1. Made of WISCO high-strength HG80-HG60 steel plate to ensure product quality. Not only the weight of the whole vehicle and the crane is lighter, the lifting capacity is larger, but also the lifting performance is improved.
2. The use of lightweight design enables the vehicle to have a greater carrying capacity, reduce the weight of the vehicle, reduce fuel consumption, save fuel and improve transportation capacity, and the annual investment recovery rate is higher.
3. The modularized and parameterized computer design can be matched with a variety of hoisting attachments and expand the operation function. And has a variety of operating forms of configuration.
4. The key parts of the hydraulic system of the truck-mounted crane adopt a full set of imported hydraulic oil seals and imported multi-way valves to ensure stable performance, reduce failure and maintenance costs, more reliable quality, longer service life and safer operation.
5. The unique 25% safety overload capacity design makes the hoisting safer and the work scope larger. 24-dimensional ferrule type pipe joints and high-precision cold drawn pipes completely solve oil leakage; the imported oil cylinder seals are more durable; the floating three-point bridge better protects the car frame.
6. Using hydraulic winch technology, automatic welding production line, higher efficiency, more convenient operation and maintenance, more economical and practical.
7. The truck-mounted crane can be operated left and right, fully hydraulic, and can rotate 360 degrees forward , full rotation, high speed and stable rotation, high efficiency and convenient operation. Standard hand throttle, adjustable swing speed and lifting speed. It adopts military quality production, advanced technology, reliable quality performance, long life and fast working speed.
