Sinotruk 8X4 flatbed with truck crane 5 tons folding arm crane exported to the Philippines

Jul 15th,2022 467 Views

Sinotruk Howo 8X4 truck-mounted crane flatbed transporter is a collection model of Sinotruk Howo 8X4 truck-mounted crane and excavator flatbed trailer. It has the characteristics of multi-function and multi-purpose. It adopts Sinotruk 8X4 chassis, Sinotruk engine 430 horsepower, 10 gears Gearbox, 300mm double-layer girder, 16-ton Dana rear axle, 12.00R20 steel tire, with air conditioner, ABS

Crane brand: XCMG, Sany, Chengli, Unic, etc. 3-16 ton truck crane, optional remote control crane

Sinotruk Howo truck-mounted crane flatbed transporter parameters:

Vehicle brand: Chengliwei brand

Truck-mounted crane: 3-16 tons straight arm and knuckle arm crane

Engine: Sinotruk 430 hp

Gearbox: Sinotruk 10 gears

Rear axle: 16 tons rear axle

Vehicle size (mm): 12000X2550X3910

Cargo box size (mm): 8000, 8400X2450X600;

The length of the plate is 8 meters - 8.4 meters; the width can be equipped with a telescopic device, which can be extended by 3 meters and retracted by 2.55 meters.

Total mass (kg): 31000

Rated load mass (kg): 11605

Wheelbase (mm): 1850+4600+1350

Tire: 12.00R20

SINOTRUK HOWO truck-mounted crane flatbed transporter flatbed loading parameters:

The flat plate can choose standard type and heavy-duty type;

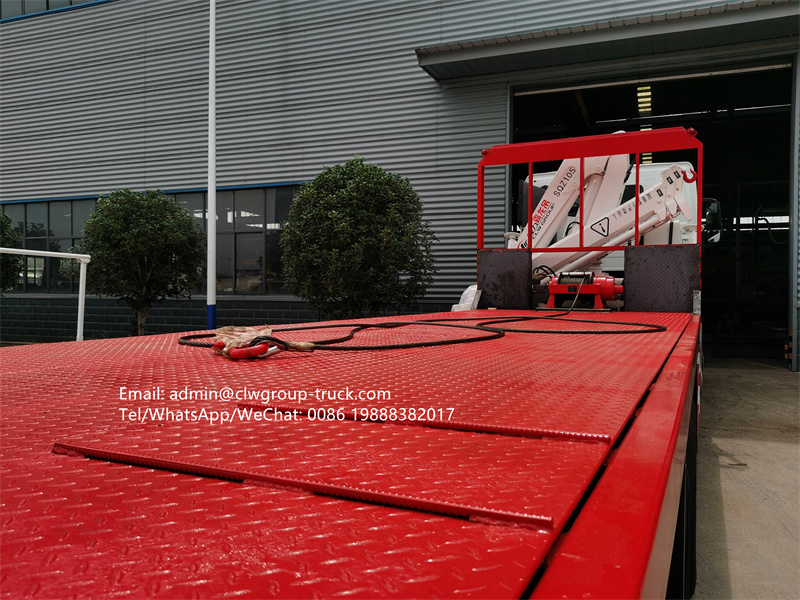

Standard type: The beam is made of 12*12 5mm thick square steel, and the flat plate is 8mm thick checkered plate;

Heavy-duty type: The beam is made of 15*15 specification 8mm thick square steel, and the flat plate is 8mm or 10mm thick checker plate. Standard reinforced spring ladder, you can choose the hydraulic ladder structure.

It can transport construction machinery such as 20 tons to 30 tons of large excavators, pavers, drilling rigs, pipe jacking machines.
