| Vehicle General | Overall dimension | 10500*2500*3400 mm |
| Gross/Kerb weight | 25000/12500 kgs | |
| Chassis | Chassis brand | Shacman |
| Engine power | Weichai engine 375hp | |
| Drive mode | 6x6 all off road | |
| Axle weight | Front axle 7.5tons rear axle 16 tons | |
| Transmission | 10 forwards 2 reverse | |
| Tire | 14.00R20 6 tires with 1 spare tire | |
| Van box | Material of van box | Carbon steel |

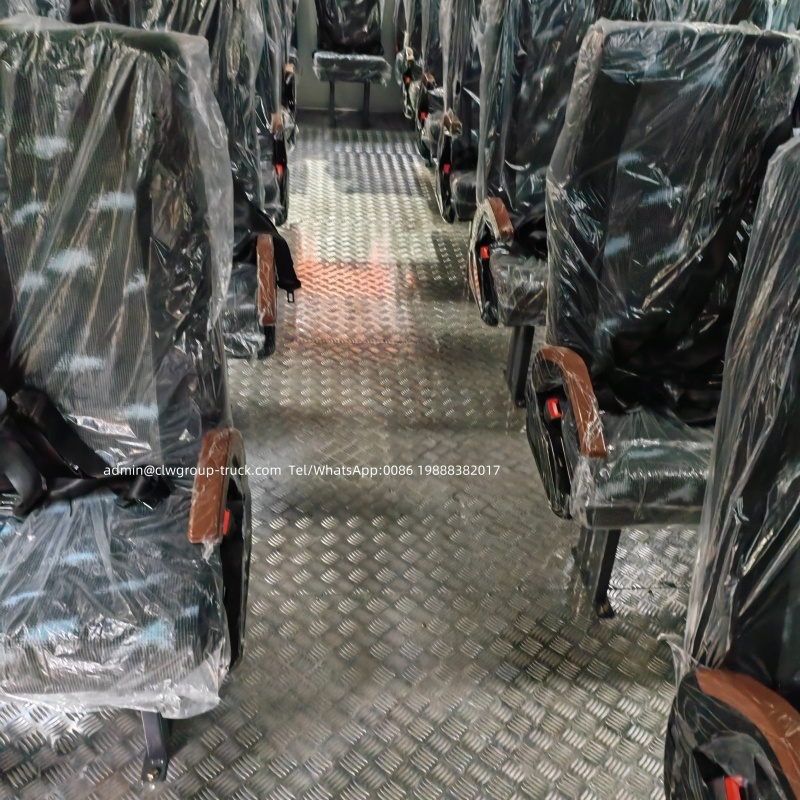

| Seat | 29 seats | |

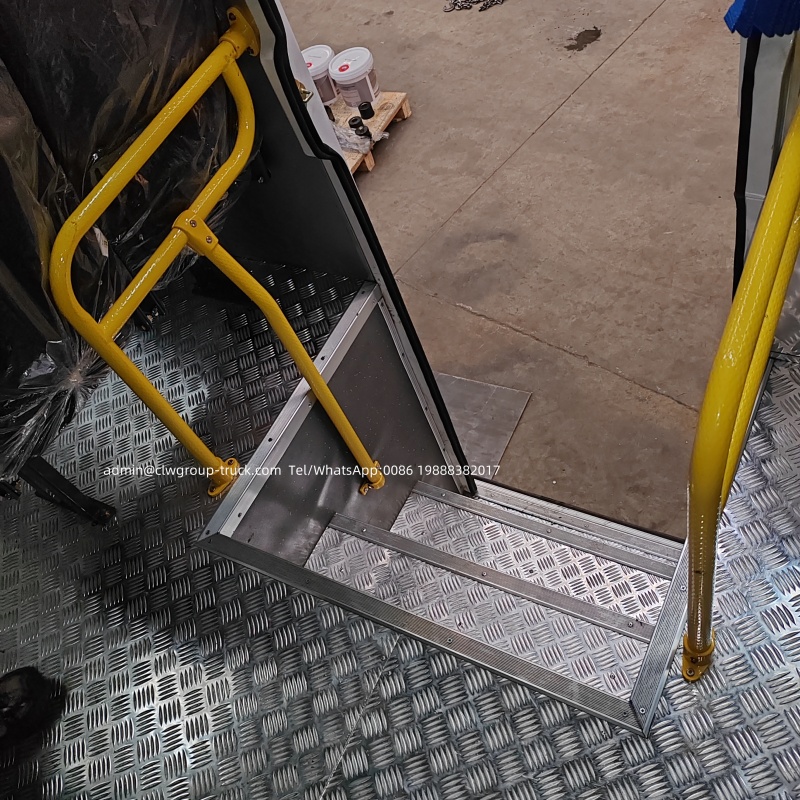

| Floor | Aluminum alloy floor | |
| Top and side upholstery covers, interior lights, doors, windows, 2 air conditioners, 4 ventilator, frequency converter, external power interface | ||
Off road box trucks are widely used for special transportation of various goods in deserts, Gobi, grasslands, snowy areas, and forest regions,
Off road van options: rear door, left and right door, fully enclosed, semi enclosed, and storage rack
Off road buses can be divided into two types: four-wheel drive off-road buses and six wheel drive off-road buses. Off road buses refer to vehicles where all wheels can be driven simultaneously and are suitable for environments such as mountainous areas, deserts, and oil fields with poor road conditions. They can adapt to various complex road conditions in the wild.
Seating capacity: 17-20 seats, 19-23 seats, 27-30 seats, etc
The whole vehicle body electrophoresis process is corrosion-resistant, and the vehicle has strong passability. It is produced strictly in accordance with the safety performance standards of passenger cars.
Vehicle configuration requirements

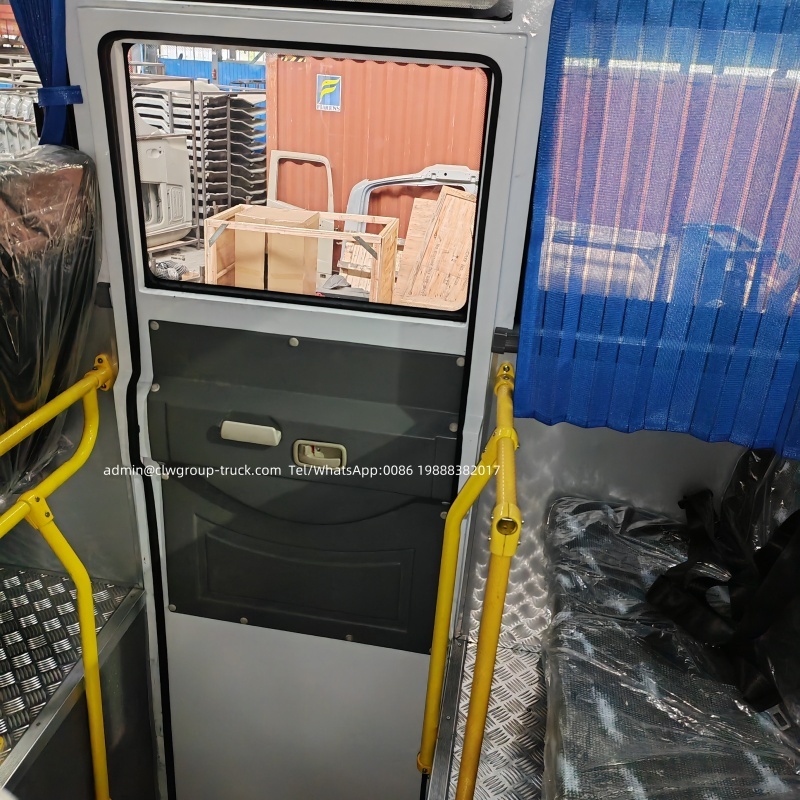

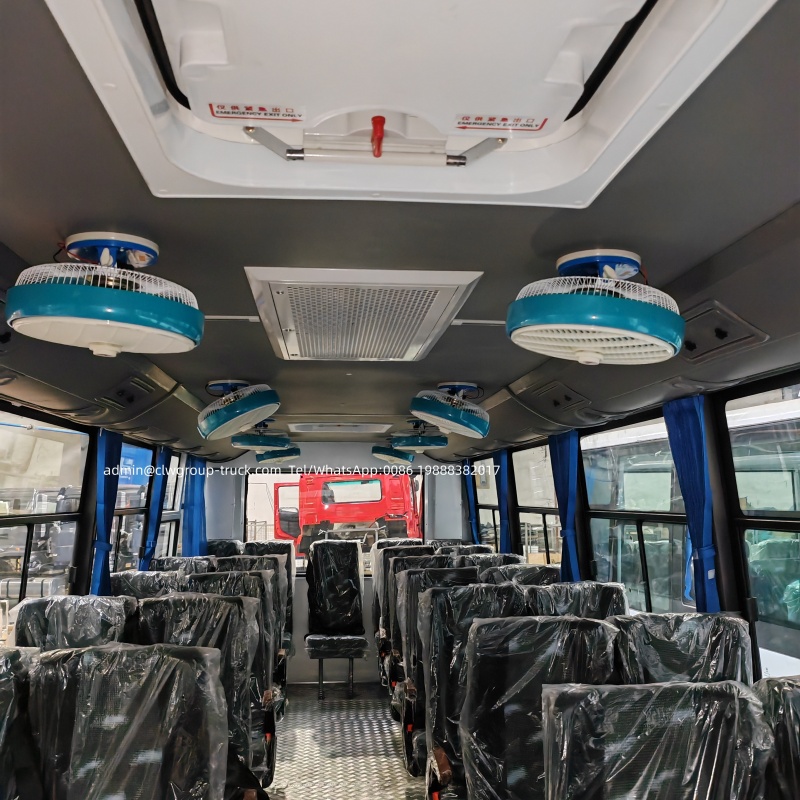

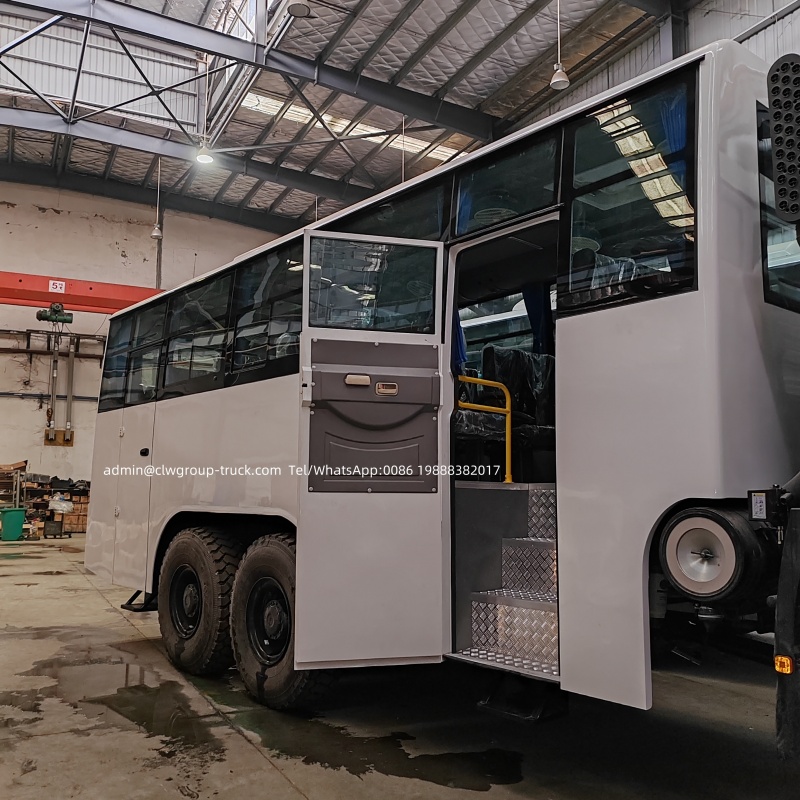

Body material: The frame is made of Q235 rectangular steel, and the skin is made of high-quality low-carbon steel plate; Car doors: 4 locations, 2 driver's area doors on both sides; A passenger door; One rear door (located at the rear of the car, double door); Car windows: electrically heated laminated front windshield, tempered glass rear windshield, and other fully bonded sliding structure windows; Tool compartment: with a volume of ≥ 2m3, all side doors are equipped with embedded door locks; Vehicle interior: Simplified interior with curtains, equipped with a ventilated safety sunroof, manual sunshade for the front windshield, protective railing in front of the passenger seat behind the middle door, and aluminum patterned flooring; Seats: driver's seat with shock absorption (adjustable for forward and backward displacement, vertical height, horizontal angle, and backrest angle), passenger's seat is a regular leatherette seat (fixed but not adjustable), with adjustable armrests; Heating system: independent gas water heating, high-power defrosting of the front windshield, the temperature inside the car can reach over 18 degrees Celsius during winter driving, one forced radiator is installed behind the driver's seat, and three forced radiators are installed in the passenger area; Air conditioning cooling capacity ≥ 12000Kcal/h; Audiovisual system: radio and tape player (with USP interface, equipped with MP3), stereo sound system (4-speaker high and low frequency configuration); Lighting system: front and rear lighting system, front and rear fog lights, clearance lights, step lights, high mounted brake lights, interior lighting.
