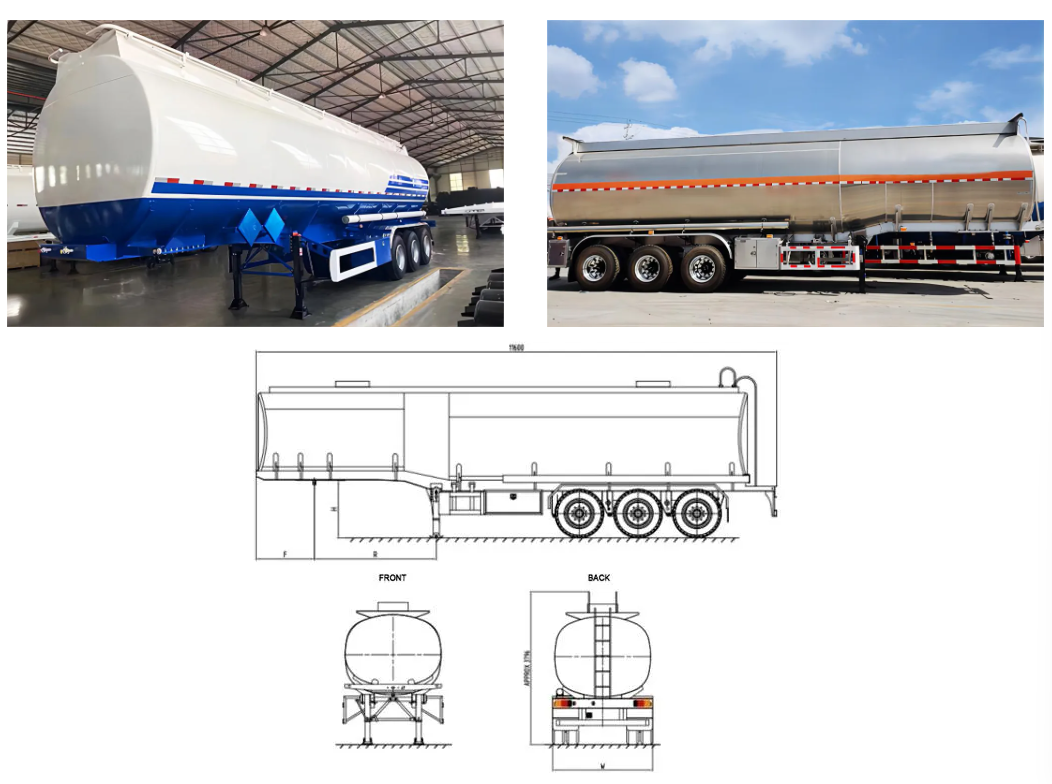

| General | Approx. Dimension | 11700*2500*3900 mm |
| GVW./Kerb Wt. | 40000 / 7100 kg | |
| Fuel tanker | Axles | FUWA brand ,3x13 tons |
| Landing legs | Heavy duty landing legs 28T | |
| Suspension system | 8-piece steel plate spring suspension | |
| King pin | 90# or 50# | |
| Tires | 12R22.5, 12 pieces | |
| Total volume | 45-48m3 | |
| Tanker material | Carbon steel Q235B 6mm thickness | |
| Tank top guardrail | Segmented elevated guardrail with anti-skid mesh | |

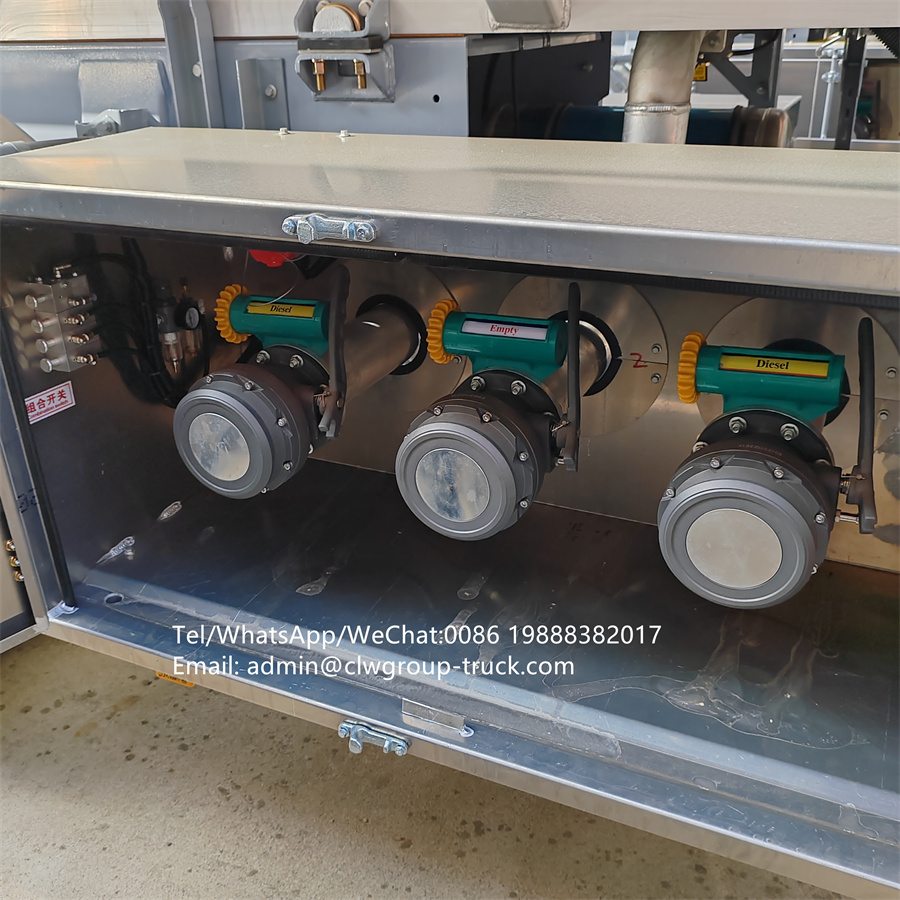

| Hose storage box | 1 box on each side (left& right) | |
| Fire protection device | 2 units 8kg fire extinguishers | |
| Anti static device | One static conductive drag belt and one static conductive terminal block | |
| Electric system | 24V lighting system ,7-pole distribution cable |
Fuel transport tank trailer is suitable for transporting gasoline, kerosene, diesel, vegetable oil, edible oil, heavy oil, coal tar and non-petroleum products such as alcohol, aldehyde, benzene, ether and other liquid substances.
Fuel tanker body structure consist of tanker bottom welded structure ,oil outlet ,tanker body , suspension , bottom beam ,manhole ,axles and outrigger ,walkway ,tool box
The trailer could optional many compartments for customer’s required convenient loading of different media oil product .Inside fuel tanker there are wave-proof plate has more fluid inflow holes than the compartment plate .
Tanker : the stee thickness of tank body is 5mm and head 6mm silo board wave proof plate for 5mm or 4mm .
Tanker material could optional aluminum alloy tanker or stainless steel or carbon steel
Fuel tanker capacity : 38000l -60,000L
Fuel tanker loading : Fill from top or bottom loading
The fuel tanker trailer has a variety of refueling or oil transportation functions according to different purposes and usage environments. Including oil absorption, oil pumping, fuel storage and various oil packaging and distribution functions.
The fuel tanker trailer has a variety of refueling or oil transportation functions according to different purposes and usage environments. Including oil absorption, oil pumping, fuel storage and various oil packaging and distribution functions.

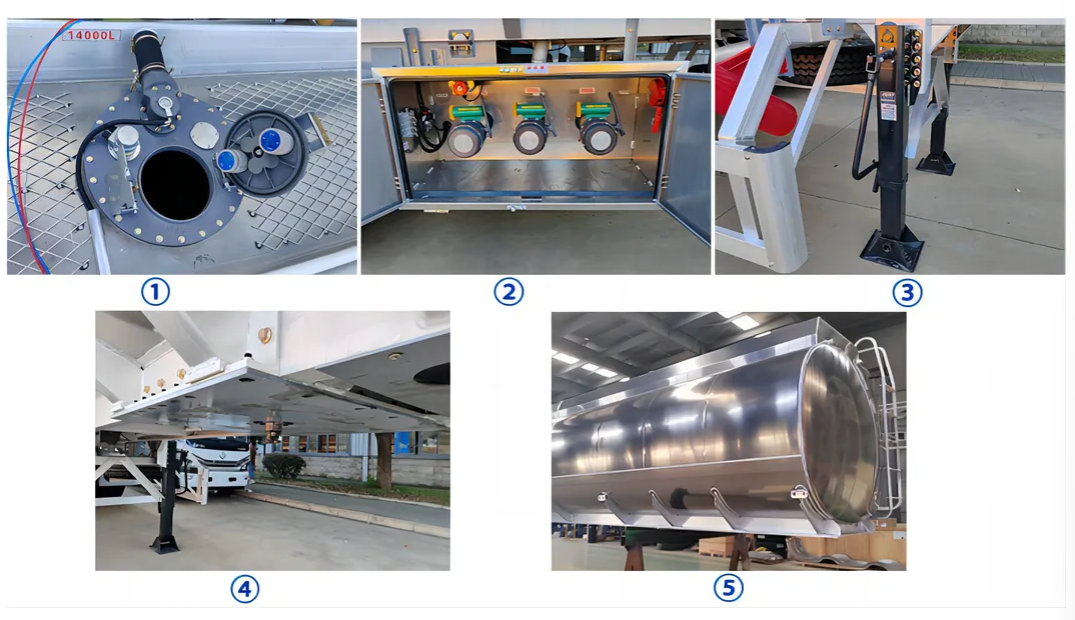

1.European manhole 2 API drain port ,3 Landing gear 4 Traction Pin 5 Tanker container
