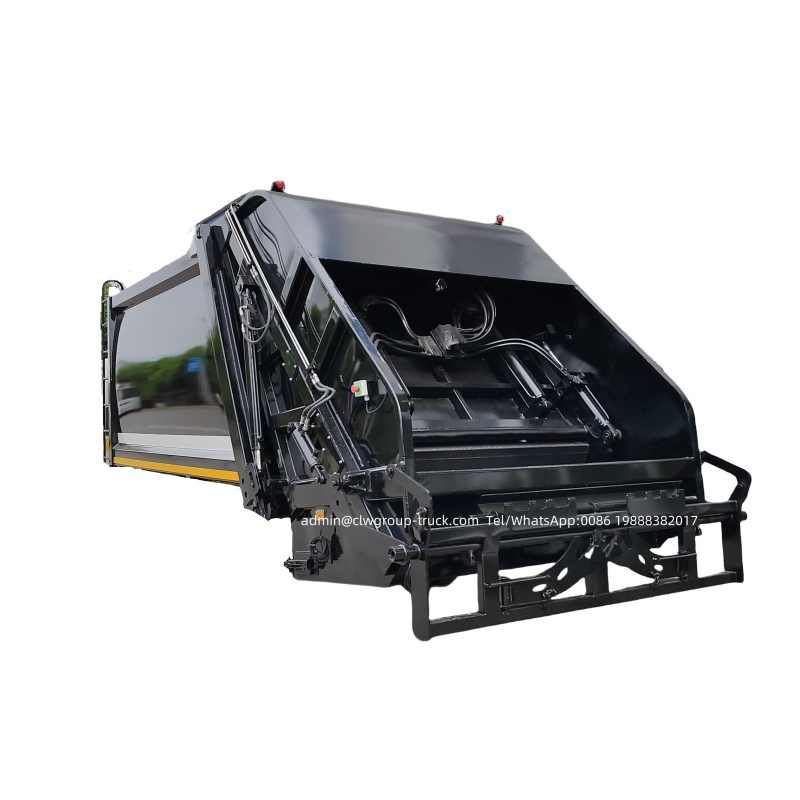

5-20m3 garbage body compressor upper body superstructure

The types of garbage trucks are divided into compressed garbage trucks, self dumping garbage trucks, swing arm garbage trucks, hook arm garbage trucks (detachable garbage trucks), sealed garbage trucks, hanging bucket garbage trucks, kitchen waste trucks, etc

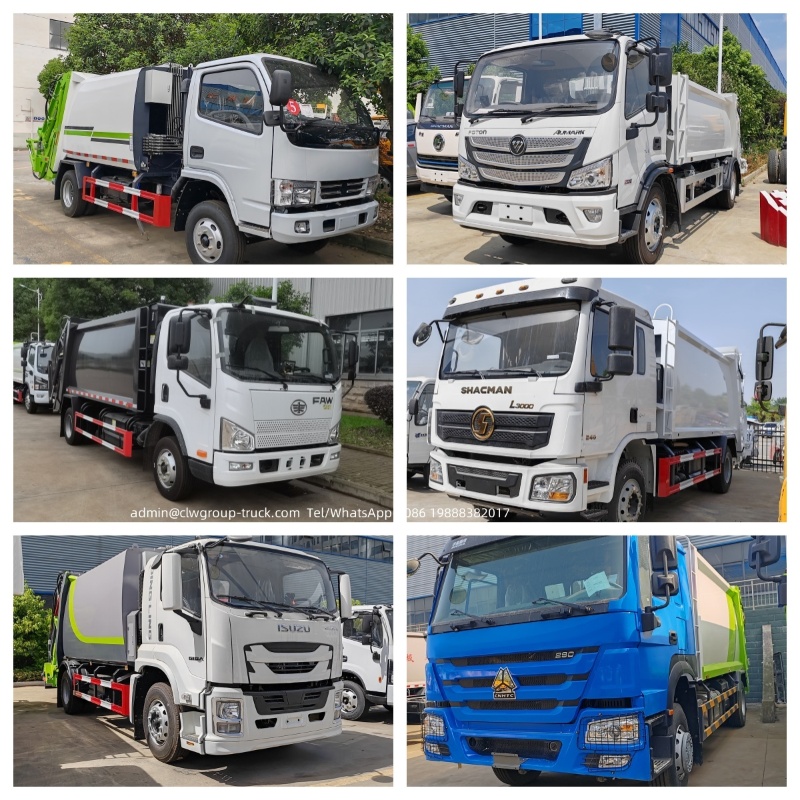

The volume of compressed garbage trucks can be increased from 3 to 20 cubic meters, and the colors can be selected from yellow, green, and white (colors can be customized, and logo spraying can also be customized according to customer requirements). Depending on the chassis brand, Dongfeng, FAW, JAC, Isuzu, JMC, Foton, etc. can be selected. According to fuel classification, garbage trucks can be divided into diesel or gasoline

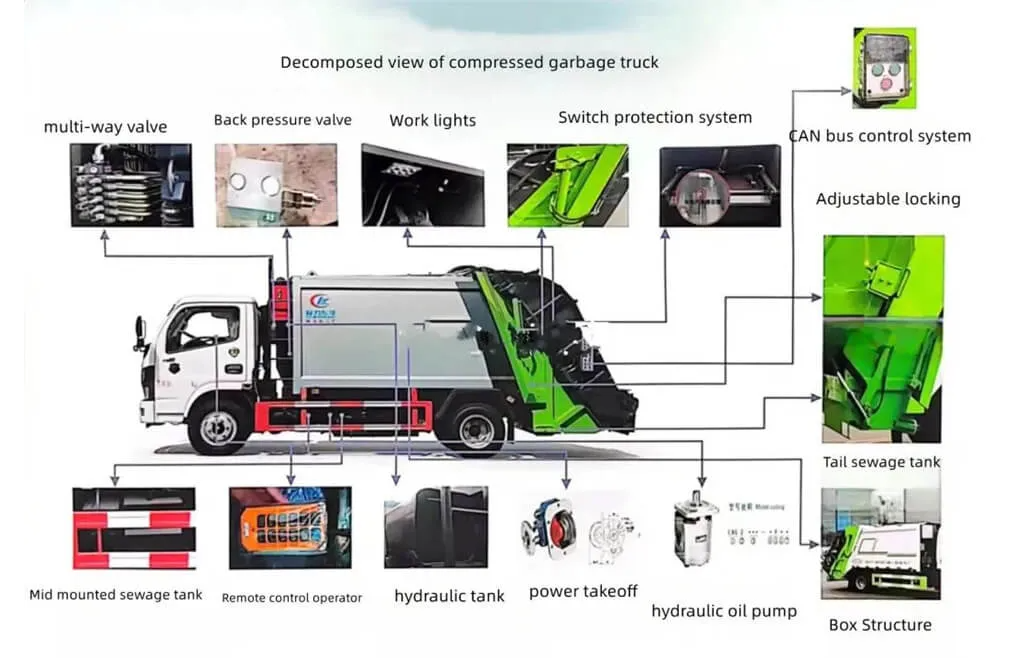

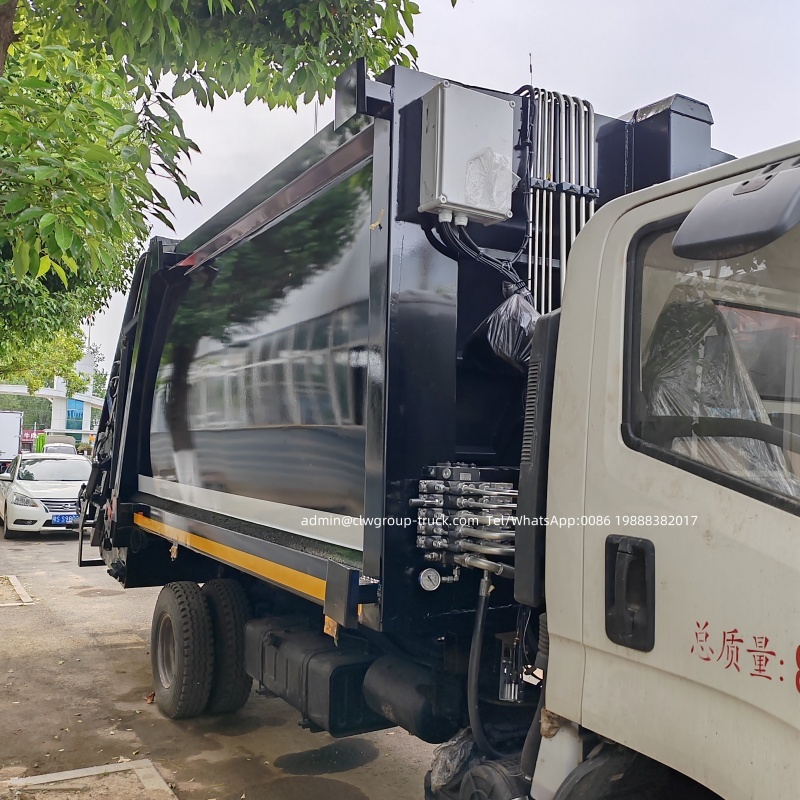

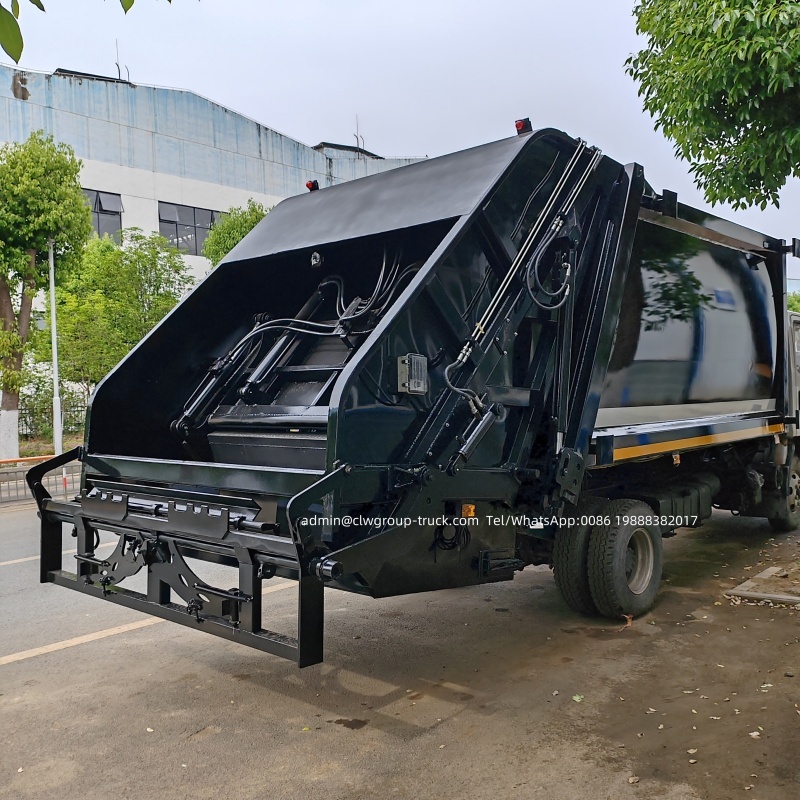

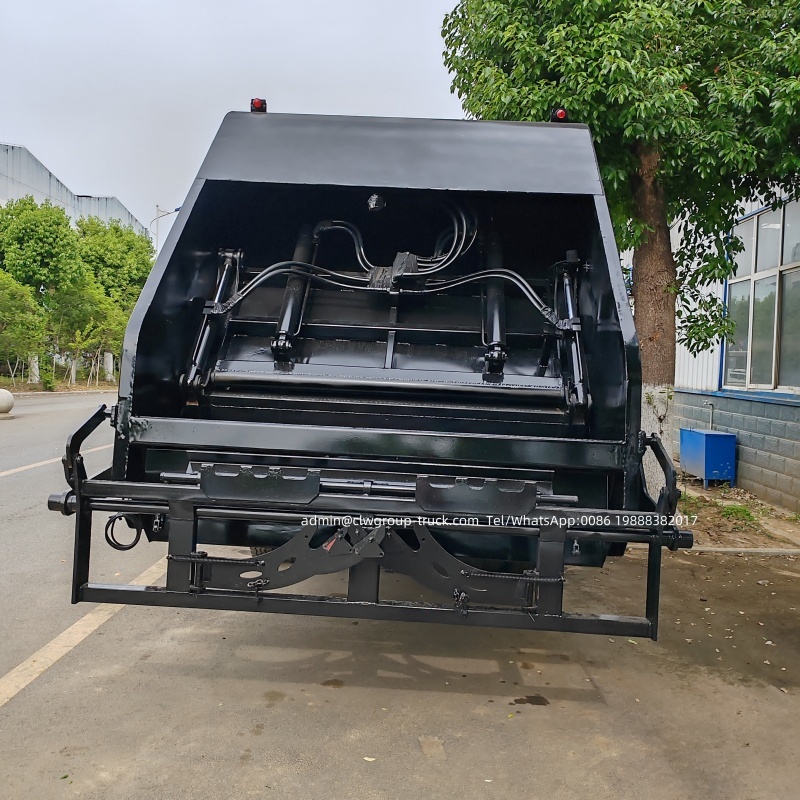

The box material of the compressed garbage truck can be made of carbon steel or stainless steel, and the interior of the compressed garbage truck can be optionally treated with epoxy resin for corrosion prevention. It is widely used for urban street garbage truck treatment, with self dumping function, hydraulic operation, and convenient dumping. The compressed garbage truck consists of a sealed garbage truck, hydraulic system, and operating system. The carriage of the compressed garbage truck is made of 16 # low-alloy channel steel welded with 8mm, 5mm, 4mm, and 16Mn steel plates. The bottom channel steel of the carriage is both the installation foundation of the rigid structure and the support for the push plate to move forward. The loader consists of a frame type skeleton, guide rails, arc-shaped hopper, scraper, sliding plate, negative pressure plate, and lightweight covering parts. The scraper oil cylinder, sliding plate oil cylinder, and negative pressure plate are used to circulate and press the material in the hopper into the carriage. The whole vehicle is a fully sealed type, which compresses and pours itself, and all the sewage during the compression process enters the sewage tank, completely solving the problem of secondary pollution in garbage transportation and avoiding inconvenience to people. The key components are imported, with advantages such as high pressure, good sealing, easy operation, and safety. Optional rear hanging bucket flipping mechanism or garbage bin flipping mechanism. The multi way valve hydraulic system can be operated simultaneously on the side of the cabin and the cab, and remote control operation can be optionally installed. The control valve adopts PLC integrated control. The action of the hydraulic cylinder is controlled by an electrical circuit, and the pneumatic valve controls the cylinder. The cylinder operates the hydraulic multi way valve, which controls the action of the cylinder. The compressed garbage truck is equipped with a one-way balance valve, which not only ensures the smooth descent of the filler, but also blocks the direct connection between the lifting cylinder and the hydraulic oil pipe. Even if the oil pipe bursts, the filler will not suddenly fall down, improving the safety of use. The new process adds a stroke sensing switch, effectively avoiding damage to the scraper oil cylinder and improving daily operation speed and efficiency. The compression ratio of the garbage truck reaches 2.5:1. In addition to installing a high-pressure filter, the hydraulic oil tank of the garbage truck is equipped with a filtering device to maximize the protection of the hydraulic system of the oil cylinder

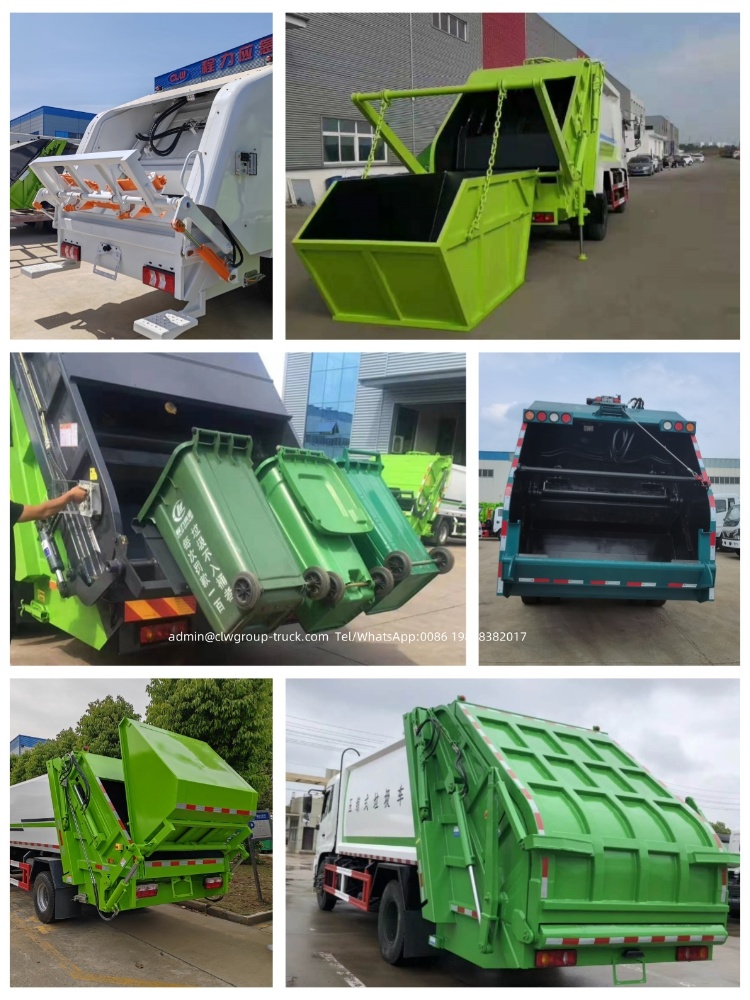

Chengli Special Purpose Vehicle Co., Ltd. not only produces complete compressed garbage trucks, but also can customize compressed garbage truck bodies according to customer chassis drawings. The body of the compressed garbage truck adopts a fully sealed structure carbon steel box, and the hydraulic system adopts a well-known domestic brand. According to the customer's garbage bin capacity, a rear flip structure can be customized. The bracket for lifting the garbage bin can be used with a 120 liter square plastic bin, a 240 liter square plastic bin, a 240 liter square iron bin, or a 240 liter round iron bin. It can also be equipped with a triangular bucket, a swing arm type rear flip, or a fully sealed structure. The side and rear of the compressed garbage truck can be equipped with flip pedals for sanitation workers to stand and operate.

The performance characteristics and advantages of the compressed garbage truck produced by Chengli Special Purpose Vehicle Co., Ltd.:

1) The appearance of the box is a circular arc flow linear shape, and the bottom plate is fully folded without welding, eliminating the risk of leakage. Simple and beautiful, strong deformation resistance, good structural reliability, while effectively increasing the actual loading capacity, surpassing similar products. The material used is high-strength manganese steel plate, which is not easy to deform, wear-resistant, and corrosion-resistant.

2) The power take-off adopts a well-known domestic brand, Jiashan Power take-off. The vehicle is equipped with an electrical system that can achieve fully automatic control of engine output, ensuring automatic selection of acceleration or idle state during operation or other working conditions, reducing power loss and fault occurrence rate, lowering fuel consumption, and being more stable and energy-saving..

3) The oil pump adopts the well-known domestic brand Anhui Wanye oil pump, equipped with a compaction valve to increase compression density and increase loading capacity. The loading capacity is equivalent to two and a half times that of non compressed waste of the same tonnage. Weisen Bole multi way valve, Xuzhou Global Hydraulic Oil Steel Pipe, with hard connections at the multi way valve, neat and beautiful, fast heat dissipation, and high work efficiency. It adopts the latest external oil cylinder structure and bidirectional compression technology, and achieves a compression ratio of over 1:2.5 and a single cycle of ≤ 20 seconds through first-class domestic and foreign brand accessories, achieving a double improvement in garbage collection and efficiency.

4) The oil tank is enlarged and the volume is increased to prevent high temperature of hydraulic oil. All hydraulic oil must be added to the oil tank through a hydraulic oil filter. The high-pressure pipeline filter can be installed on pressure pipelines of different pressure levels to further remove or block impurities caused by external factors entering the internal components, such as wear or jamming, as well as chemical reactions of the internal medium itself. Equipped with a high-pressure filter, the oil filtration accuracy is 0.01 microns. Reduce the failure rate and effectively prevent component damage;

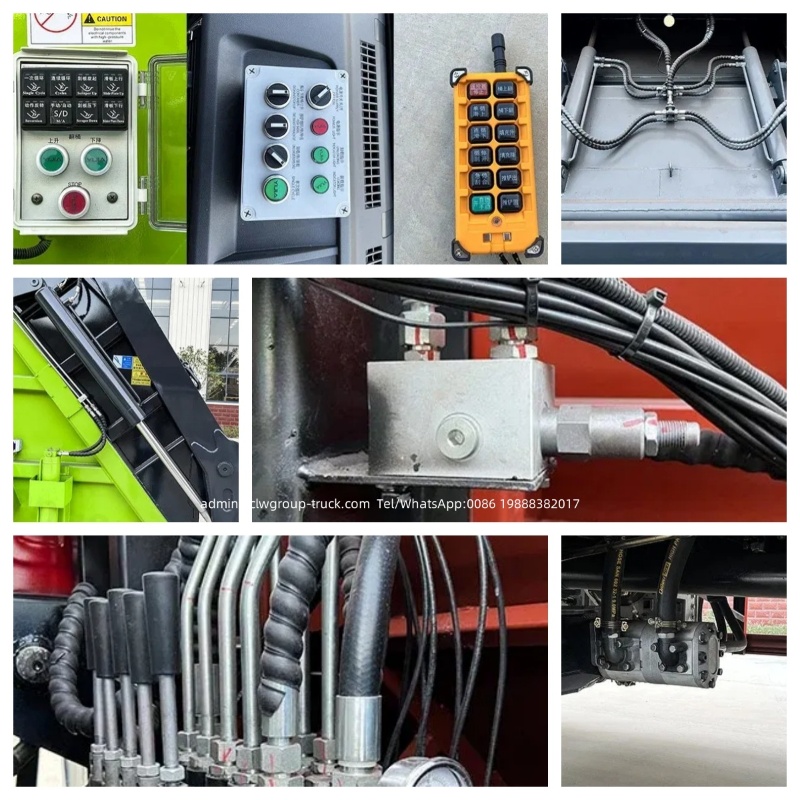

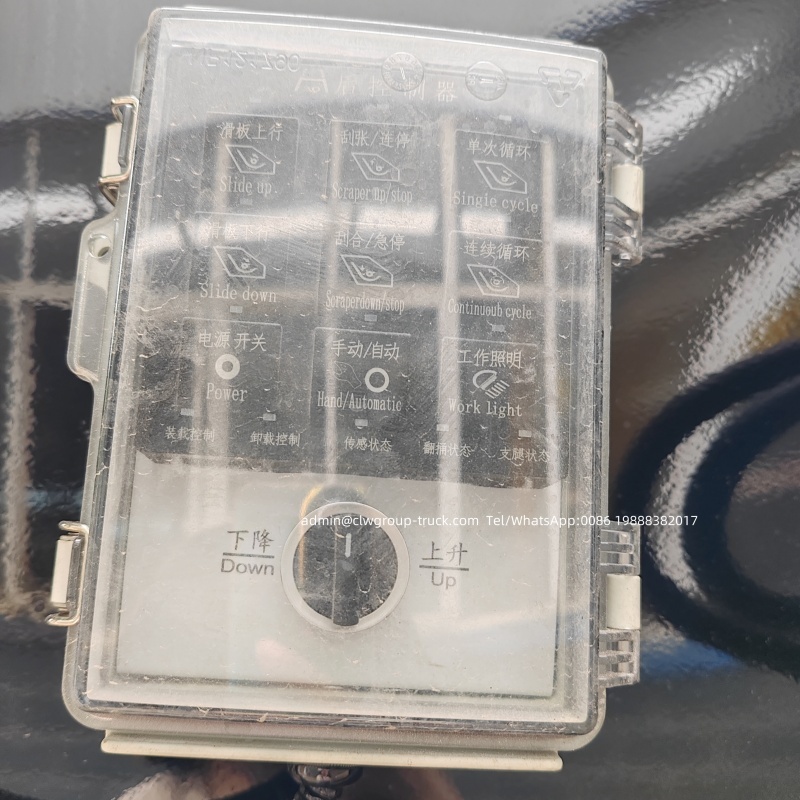

5) Homework automation: The intelligent control system adopts imported CAN bus design and modular structure. By combining proximity switches and oil pressure sensing, an efficient, stable, and easy to maintain compression solution is achieved. It has three sets of manual, automatic, and semi-automatic operation modes, and can be operated inside the cab, in front of the box, and at the back of the box. It is also equipped with a remote control, which can operate in different working environments in all directions, making it convenient and efficient

6) Dual insurance system: The operating system has dual functions of computer control and manual operation, greatly ensuring and improving the utilization rate of vehicles. Change the position of the pressure regulating valve to prevent customers from adjusting the pressure without authorization. Install warning signs on the power take-off to remind customers to turn on and off the power take-off to prevent damage. The tail can be optionally equipped with a flipping mechanism with a garbage bin (or bucket). 7) Considering the customer's usage environment to the greatest extent possible, the humanized design features many highlights, including night lighting, dual sewage tanks, drainage pipes, remote control, complete operation and maintenance manuals and videos.
