| Vehicle general | Dimension | 8080*2500*3130 mm |
| Gross weight/Kerb weight | 18000/8850 kgs | |
| Chassis | Chassis brand | Dongfeng |
| Cabin | Single,left hand drive | |
| Engine model /power | Yuchai engine 245hp | |
| Emission standard | Euro VI | |
| Displacement | 6.2 L | |
| Transmission | 8 forwards 1 reverse | |
| Axle weight | front axle 5 tons rear axle 10 tons | |
| Wheelbase | 4500 mm | |
| Brake system | Air brake | |
| Tire | 10.00R16, 6 tires and 1 spare tire | |
| Max speed | 95 km /h | |
| Sewage& pressure tanker | Sewage tank capacity | 8cbm |
| Vaccum pump | SK-15 15m3/h | |
| Clean water tank capacity | 4 cbm | |
| Pressure pump | 215L/min 22 Mpa | |
| Equipped | 1 sewage tanker & clean tanker material are carbon steel 2 Equipped 60m high pressure tube,diameter 19mm 3 Equipped with 10pc different thrust cleaning nozzles .suitable for cleaning and dredging of different sewer 4 Equipped with looking sludge window,suction hose 7m etc |
|

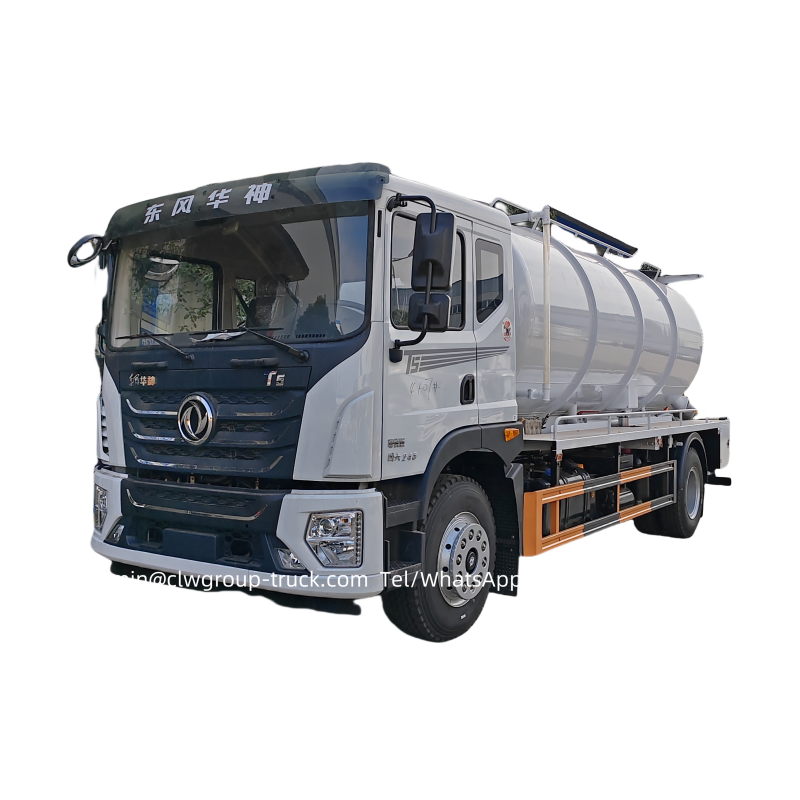

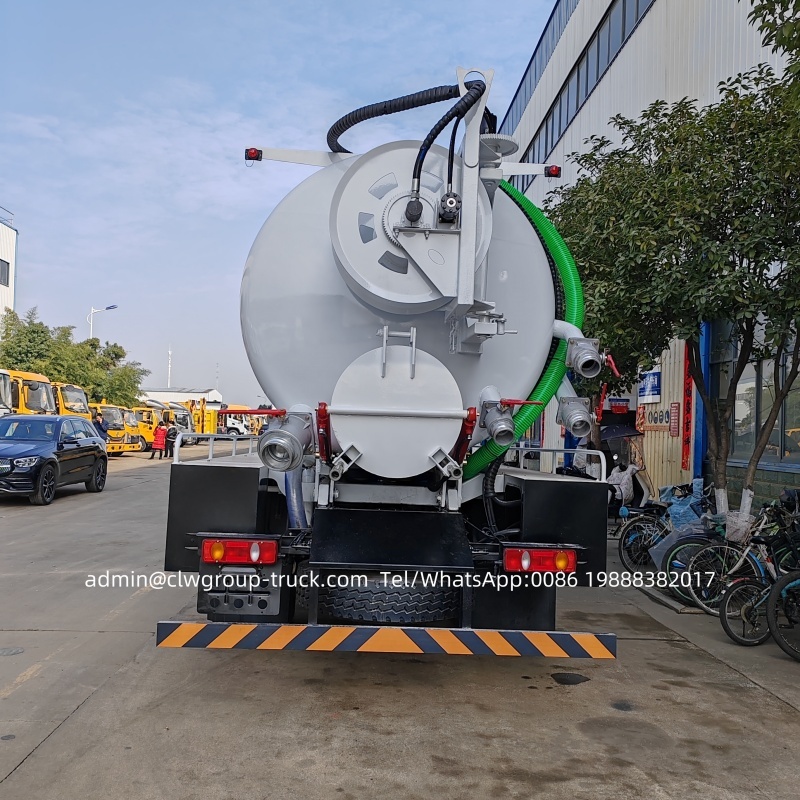

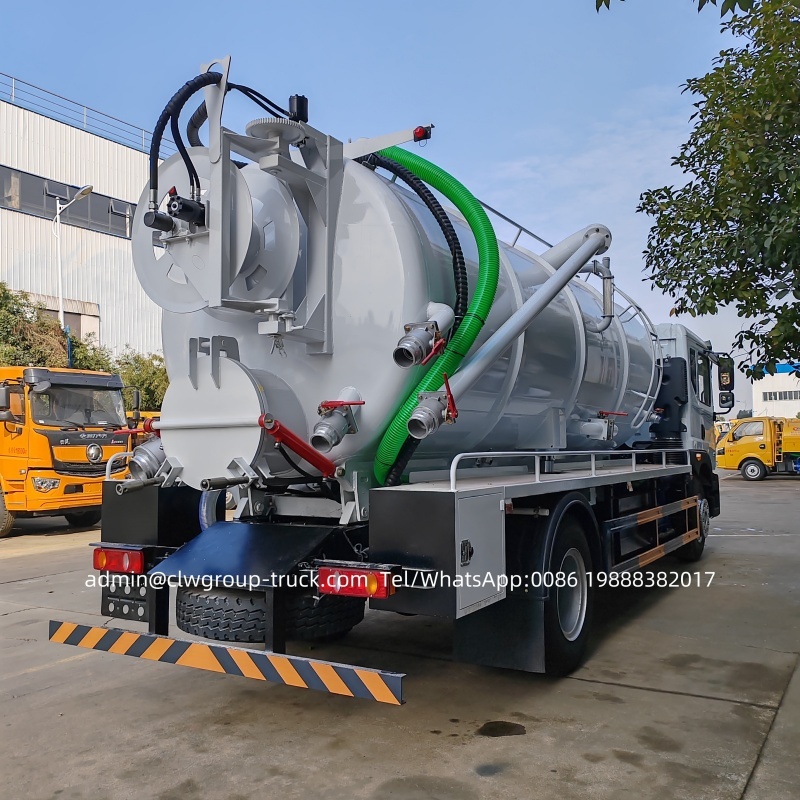

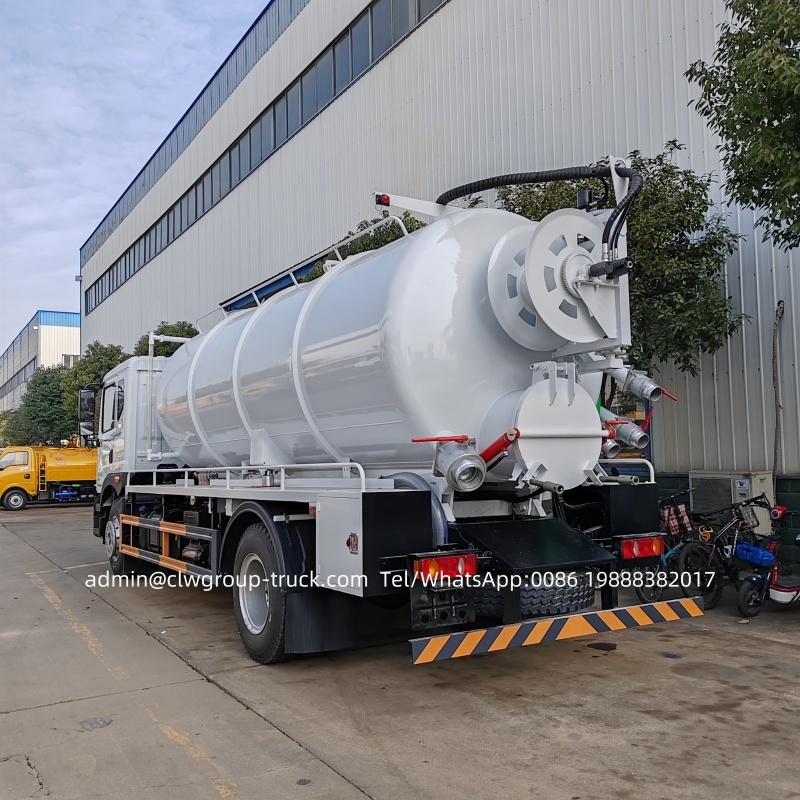

The sewage cleaning truck (the water tank is on the side of the tank body) is based on the original sewage suction truck. Water tanks are installed on both sides of the tank body, and a set of high-pressure waterway system is installed to improve the cleaning and sewage suction function. , it is a new sanitation vehicle that combines the functions of a high-pressure cleaning vehicle and a sewage suction vehicle. In addition to cleaning urban sewers, sediments in pipes, and dredging of dead-end mud ditch, it can also be used to clean industrial drainage pipes and walls. It integrates sewage suction and cleaning, and can effectively solve the dredging work of sewer blocked areas and dead corner mud ditch that cannot be reached by workers.
The combined dredging vehicle is composed of a second-class vehicle chassis, a power take-off, a clean water tank, a sewage suction tank, a high-pressure water pump, a vacuum pump, a hydraulic control device, a mechanical winch device, a high-pressure flushing pipeline, a vacuum sewage suction pipeline, and a sewage system.
