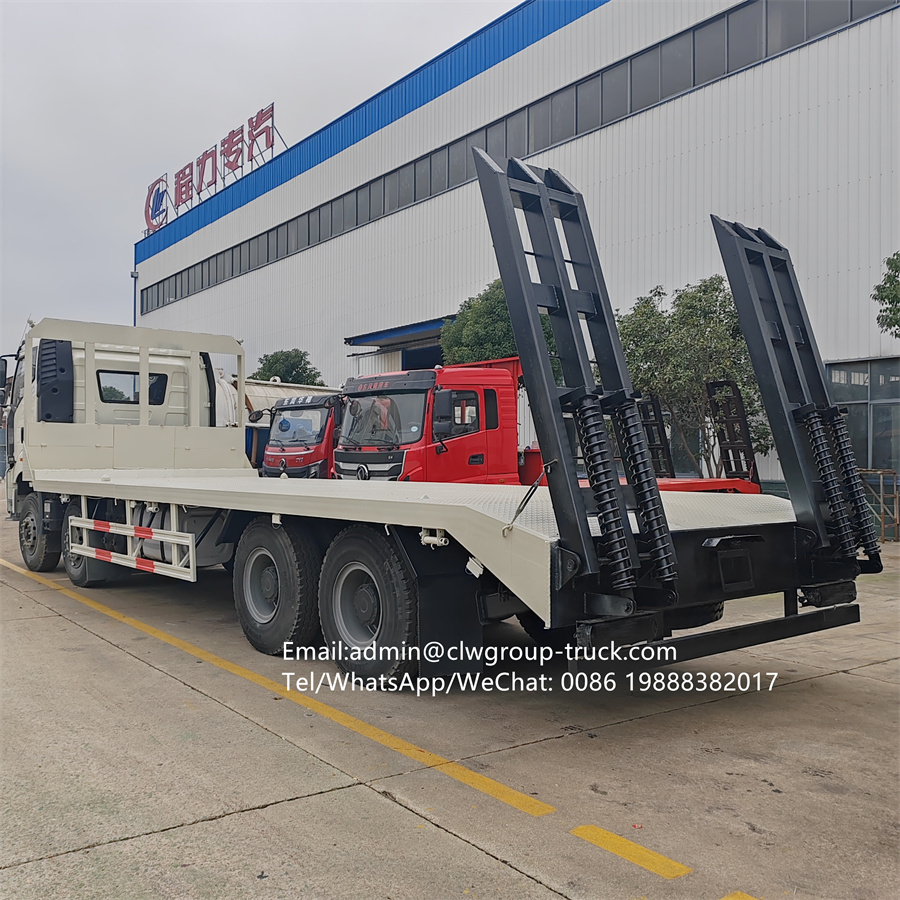

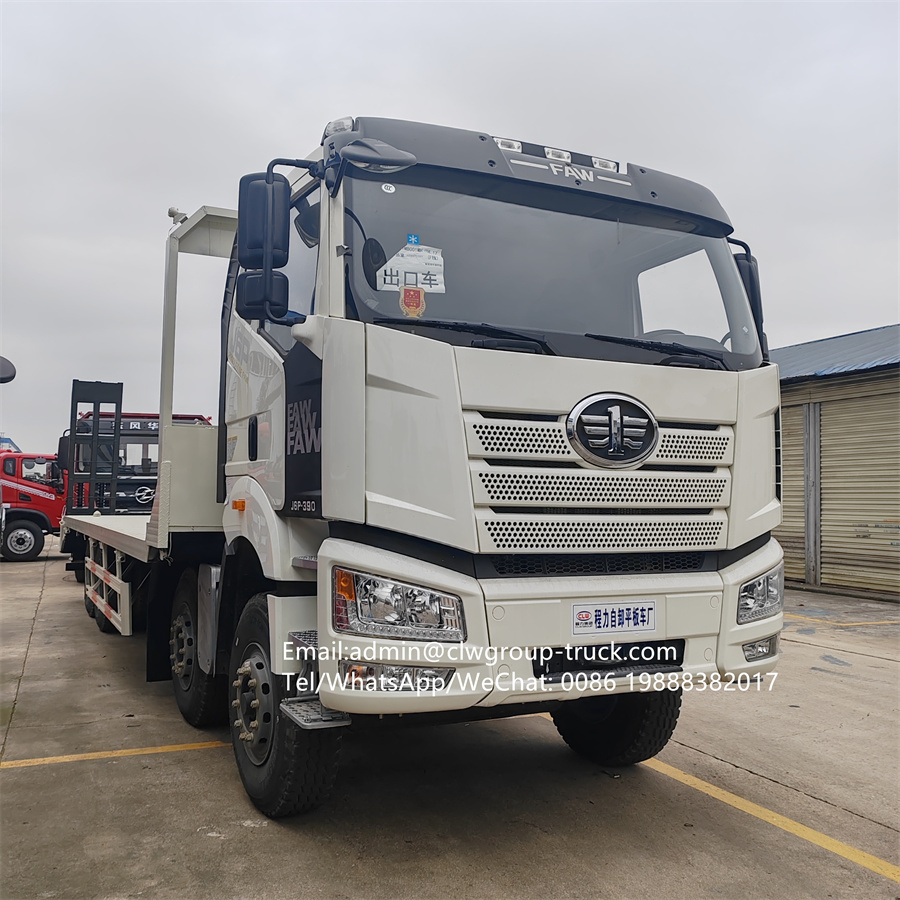

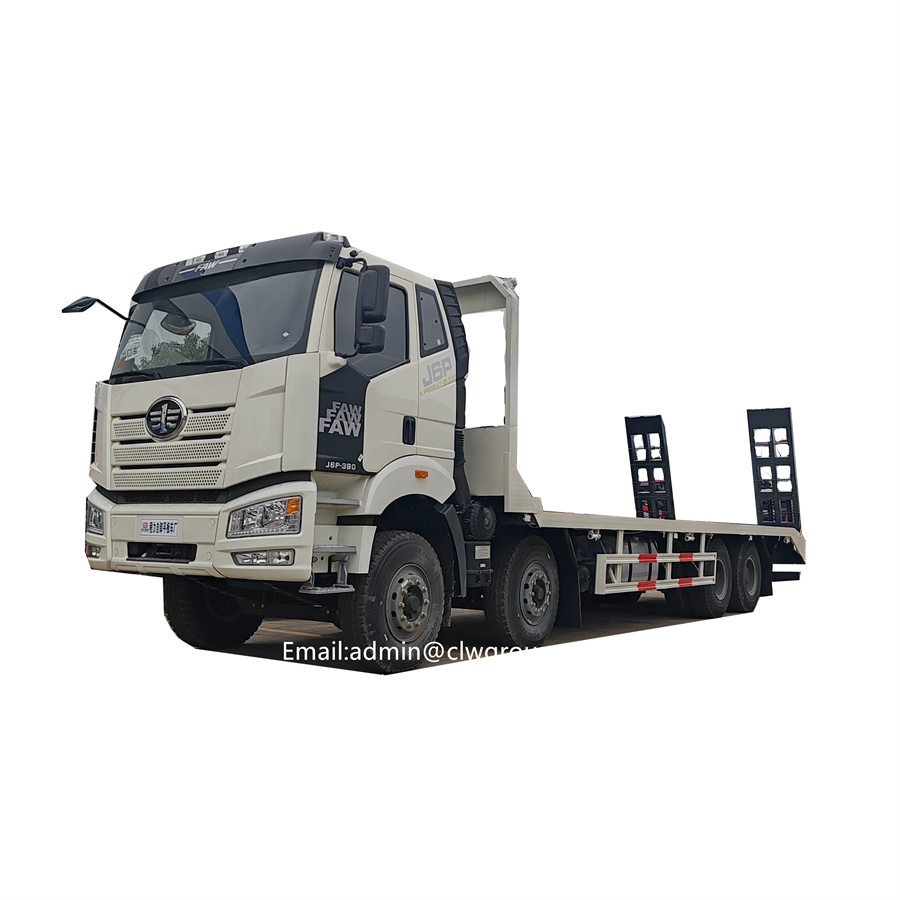

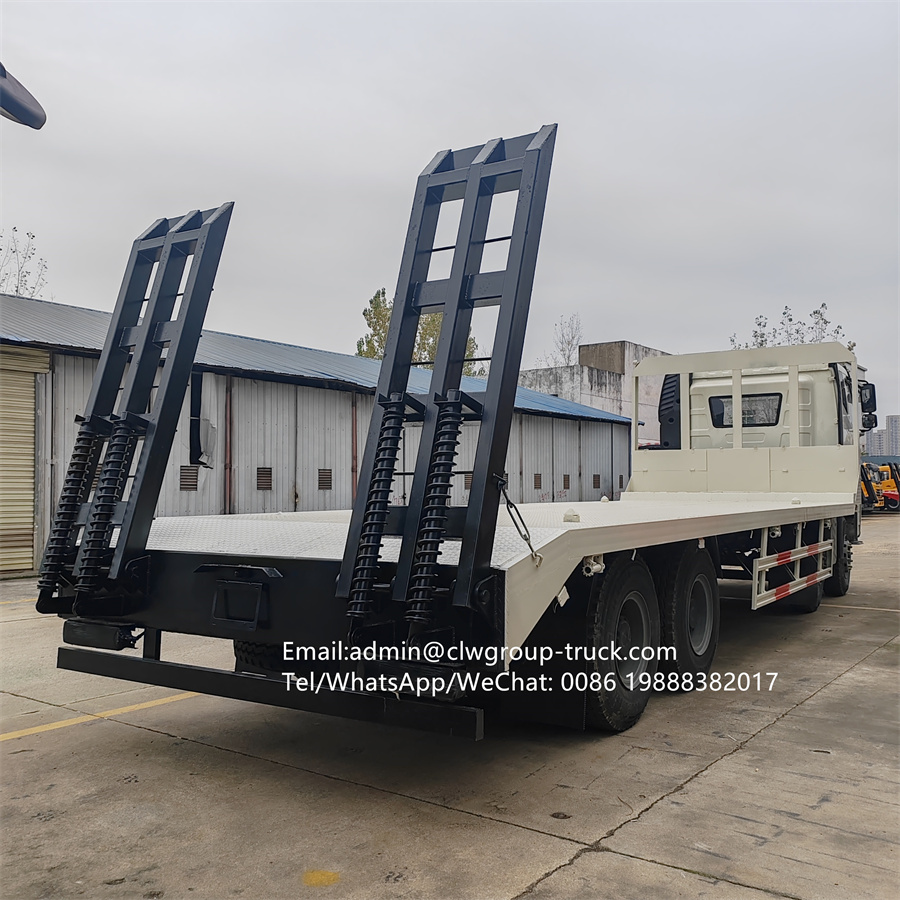

FAW 12wheeler 8x4 9.5m flatbed truck for container delivery

Flatbed transporter, also known as factory machinery transporter, flatbed truck, low flatbed transporter, is mainly used to transport some non-removable objects like excavators, loaders, and harvesters. , This kind of vehicle is generally widely used in factories, construction sites and other large-scale production or engineering locations. The characteristics of the strong seed bearing capacity of the flatbed transporter make it play an important role in the process of economic development.

FAW Low Flatbed Truck Parameters
8X4 Heavy Duty Truck Low Flatbed Truck, made of 145 sets of 120 square steel for flat plate material, with edge bonding and lining welding process. The bottom plate is made of 10mm patterned plate, double section double hydraulic ladder, manganese steel material, slope hydraulic extension, slope 80 cm, extension sleeve 1.2 meters, frame 120 * 145 * 8mm, and the whole car is connected with 100 * 100 * 6mm square tube

The truck-mounted flatbed transporter is a combination of the truck-mounted crane and the flatbed transporter. It has the basic functions of the truck-mounted crane and the flatbed transporter. It can be used not only as a truck-mounted crane but also as an engineering transport vehicle, or as a cargo Transportation; truck-mounted flatbed trucks are often used in various loading and unloading, installation and lifting operations, especially for field lifting, operating in narrow places such as stations, ports, warehouses, construction sites, etc. In addition to the operation, equipment such as excavators can also be transported, and hydraulic rear outriggers need to be installed to enhance the stability of the vehicle.

Special features of Flatbed truck mounted crane:

1. Made of WISCO high-strength HG80-HG60 steel plate to ensure product quality. Not only the weight of the whole vehicle and the crane is lighter, the lifting capacity is larger, but also the lifting performance is improved.

2. The use of lightweight design enables the vehicle to have a greater carrying capacity, reduce the weight of the vehicle, reduce fuel consumption, save fuel and improve transportation capacity, and the annual investment recovery rate is higher.

3. The modularized and parameterized computer design can be matched with a variety of hoisting attachments and expand the operation function. And has a variety of operating forms of configuration.

4. The key parts of the hydraulic system of the truck-mounted crane adopt a full set of imported hydraulic oil seals and imported multi-way valves to ensure stable performance, reduce failure and maintenance costs, more reliable quality, longer service life and safer operation.

5. The unique 25% safety overload capacity design makes the hoisting safer and the work scope larger. 24-dimensional ferrule type pipe joints and high-precision cold drawn pipes completely solve oil leakage; the imported oil cylinder seals are more durable; the floating three-point bridge better protects the car frame.

6. Using hydraulic winch technology, automatic welding production line, higher efficiency, more convenient operation and maintenance, more economical and practical.

7. The truck-mounted crane can be operated left and right, fully hydraulic, and can rotate 360 ​​degrees forward  full rotation, high speed and stable rotation, high efficiency and convenient operation. Standard hand throttle, adjustable swing speed and lifting speed. It adopts military quality production, advanced technology, reliable quality performance, long life and fast working speed.

We can also customize the flatbed transporter according to the customer's requirements, optional front hydraulic lifting outriggers, reels, flatbed widening, rear hydraulic climbing ladder, ladder widening, beam reinforcement, flatbed self-unloading function, etc.
