| Vehicle General | Overall dimension | 11050*2550*3080 mm |
| Gross /Kerb weight | 18000/14500 kgs | |
| Chassis | Chassis brand | Foton |
| Cabin | Single ,left hand drive or right hand drive | |
| Engine model/power | Cummins engine 168hp | |
| Engine emission standard | Euro II or III or IV V or Euro VI | |
| Engine displacement | 6.7 L | |
| Transmission | 8 forwards 1 reverse | |
| Front & Rear axles | front axle 6.5 tons rear axle 13 tons | |
| Wheelbase | 5000 5550 mm | |
| Brake system | Air Brake | |
| Tire | 295/80R22.5 6 tires with 1 spare tire | |
| Max speed | 98 km/h | |
| Platform bed | Platform | 7200/8200* 2550 mm |

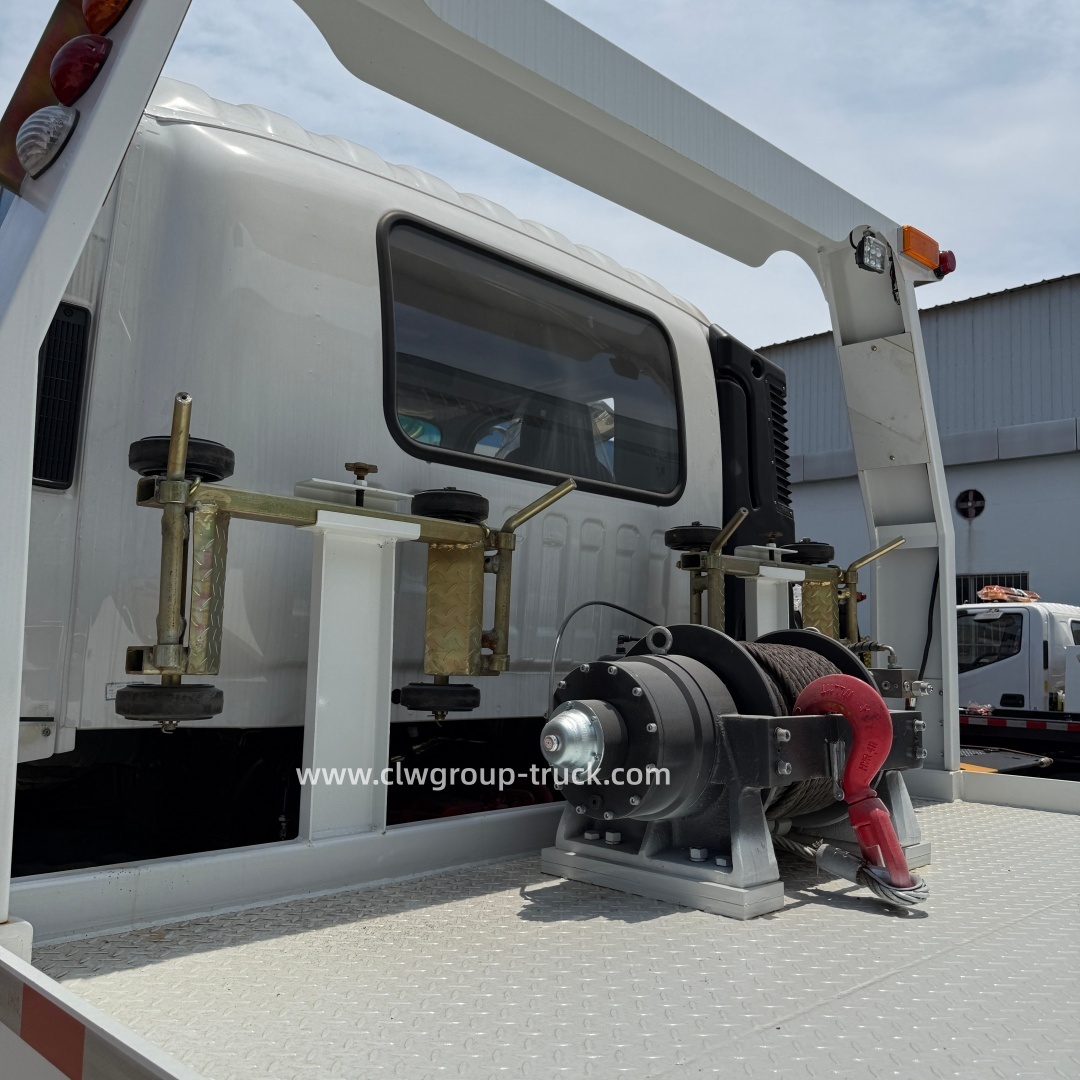

| Winch | 10T/15T | |
| Steel rope | 25 m | |

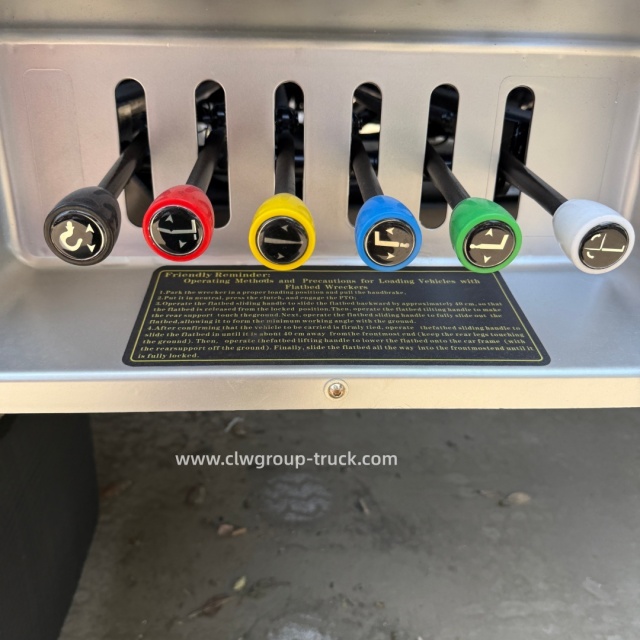

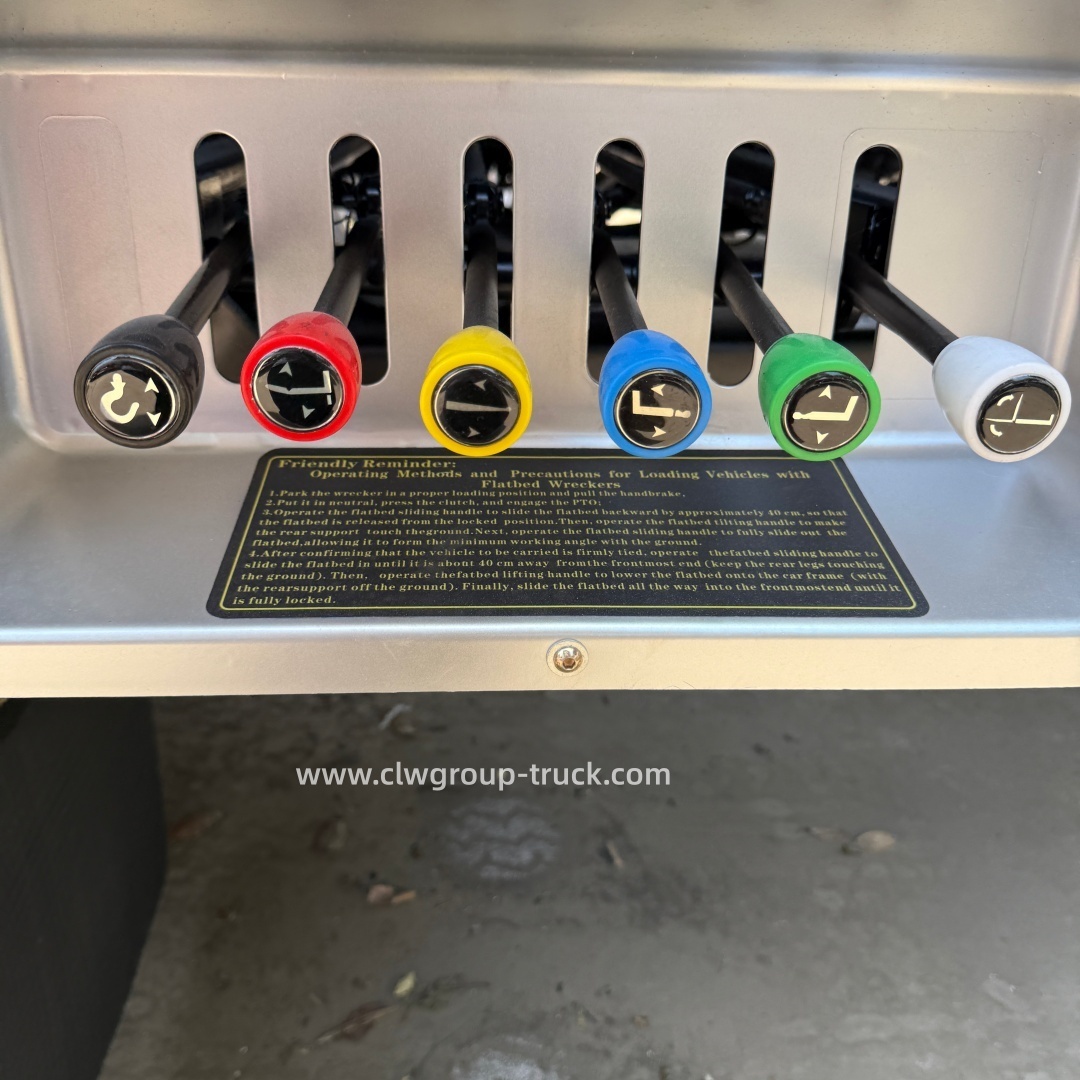

| Control | hydraulic control or remote control | |
| Equipped | A set of auxiliary wheel. four bandage,long row of warming light etc | |

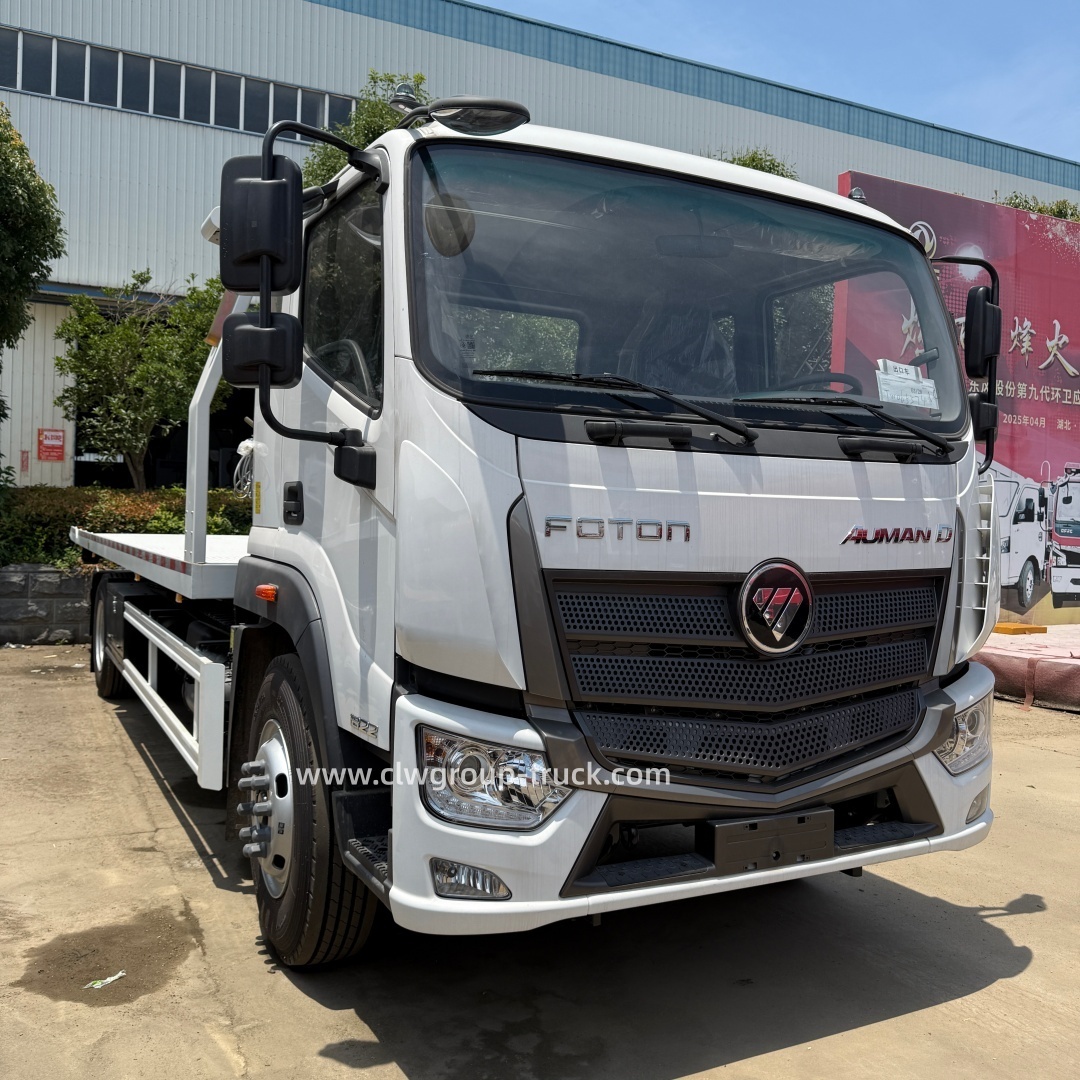

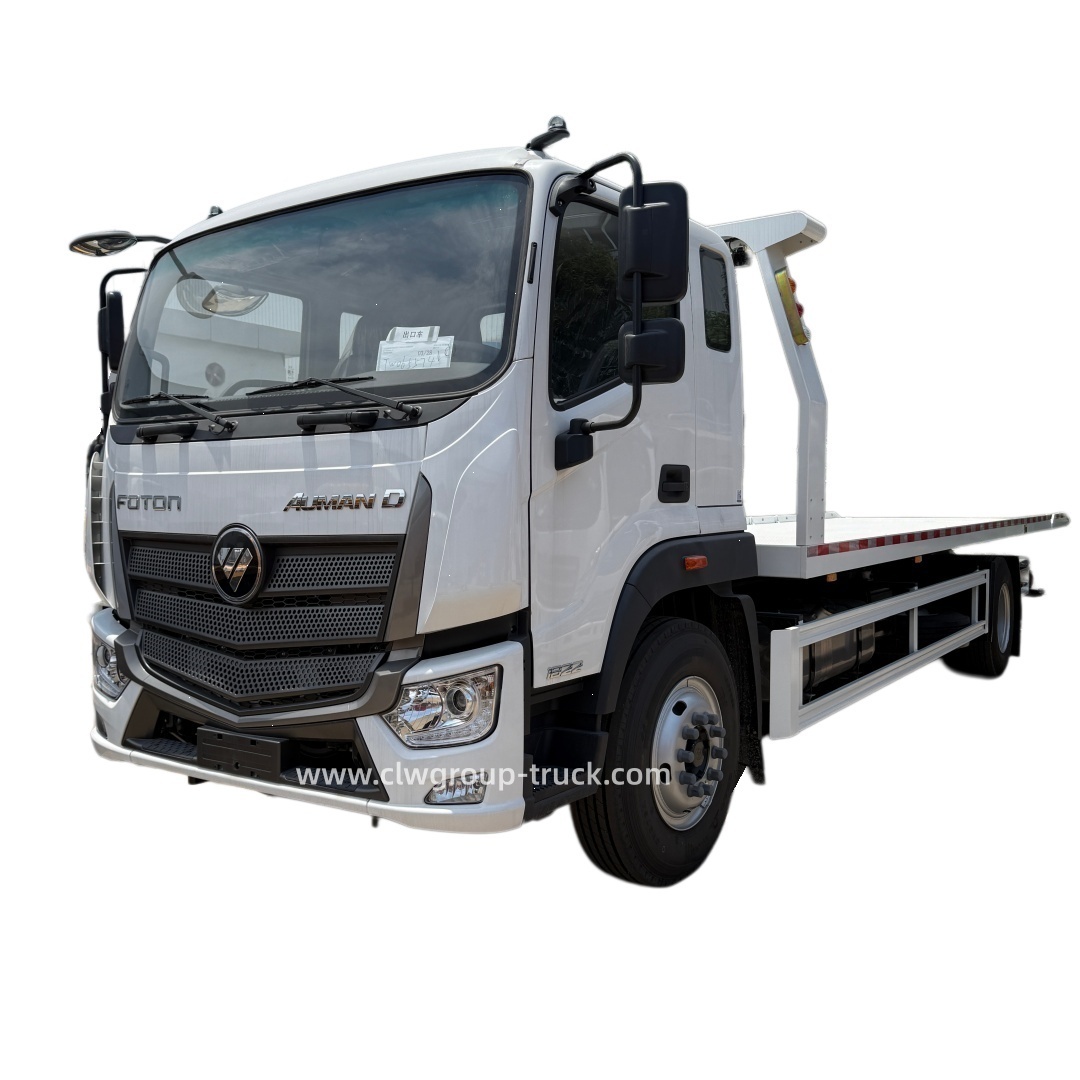

Foton 10tons 15tons Flatbed Tow Truck
Chassis Configuration: Wheelbase 5000mm, flat-top cab, Cummins engine 168hp, 9 forwards 1 reverse , front and rear axles 6.5T/13 T, tires 295/80R22.5

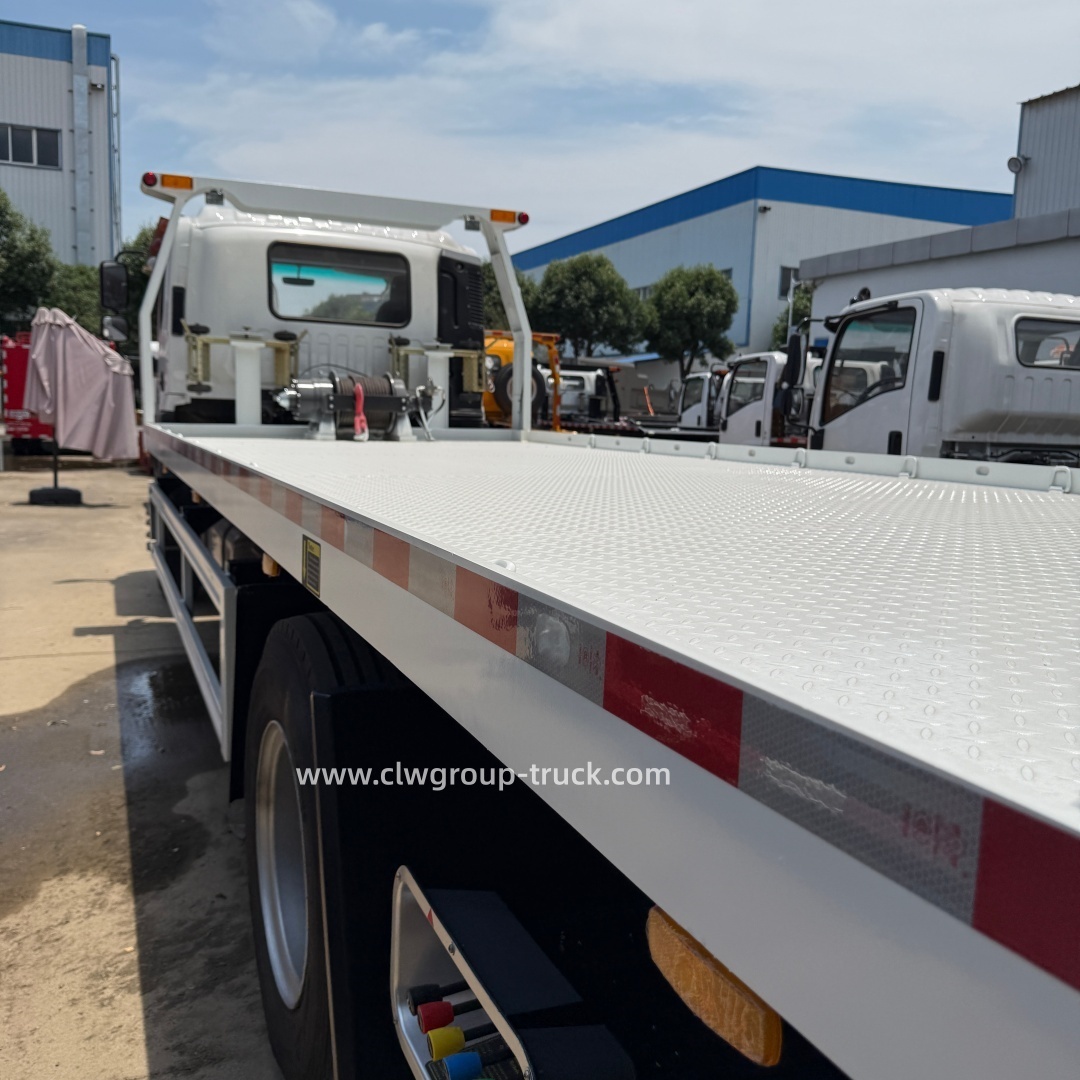

Superstructure Configuration: Fully enclosed three-layer frame, recessed platform, main platform 8.2 meters, tail platform 1.2 meters, width 2.55 meters, 10-15-ton platform,15-ton central winch, square tube frame (16# solid frame optional), 120MM cylinder, 6mm thick checkered plate, large triangular support, triangular support under the plate, supports every 25 cm, double sub-frame, 10mm thick slide rails, long rectangular square tubes attached to the side of the slide rails, a pair of auxiliary trolleys, 4 tie-down straps, hand wash box, large chain hook, tow fork and tow fork seat set.
★Definition of wrecker truck: Wrecker truck is equipped with lifting, towing, lifting and other devices on the basis of a special cargo chassis. Beautiful appearance, safe and reliable. Widely used in highways, airports, docks, auto repair industry and highway companies and other departments, can promptly and quickly clean up accidents, failures, illegal vehicles and other vehicles.
★Classification of wrecker trucks: Wrecker trucks can be divided into light, medium-heavy and super-heavy types according to their ability to clear the wrecker; according to the structural characteristics of the operation device, wrecker vehicles can be divided into separate types of support-hoisting, support-hoisting combined Body type, flat back-loading type, platform lifting type; according to the unique functions of the boom and support arm in the wrecker truck, the wrecker truck can be divided into boom rotation type, boom sliding type, and boom folding (load) type Wait.
★Users who have special requirements for road wrecker vehicles, please call the wrecker vehicle modification factory. We can design and modify the user's order, and can also install accessories such as steering assist and air conditioning.
The flatbed wrecker is mainly composed of a power take-off device, a hydraulic transmission mechanism, a traction system, a deck mechanism, a lift mechanism, etc.;
It can handle two accident vehicles at the same time, dragging on the upper back and lower, mainly suitable for cars within 3 tons; optional automatic clamping device;
Equipped with lights, straps, auxiliary wheels, J-hook, optional air conditioning, air brake
The wrecker rescue vehicle, also known as road wrecker, trailer or road rescue vehicle, has a number of functions such as lifting, pulling and lifting traction, mainly used to remove road obstacles, clean up accident vehicles, organize the urban environment, and provide help and rescue services for drivers and vehicles. With the increasingly busy urban traffic and the increasing number of vehicles, the rescue vehicle is playing an increasingly important role in ensuring the smooth flow of roads and reducing the loss of traffic accidents
The rescue vehicle is widely used in highway, urban construction, automobile repair industry, airports, docks and highway companies. It plays an important role in traffic accident handling, vehicle fault rescue, illegal vehicle towing and so on. At the same time, the rescue vehicle also has the special transportation function of "trouble-free vehicle", such as the transportation of large equipment and the escort of valuables
.Purpose of Recovery Truck: wrecker/recovery truck/towing truck is used for towing break-down cars or vehicle or bus or trailers on road.With increasing ownership of private cars,wreckers are now widly used by government organization or towing company.
2. Optional brand of Recovery Truck :howo,Dongfeng,faw,JAC,JMC,Foton,Shacman...
3. Spare parts of Recovery Truck : Italy brand multi-way valve and balance valve; Gernamy Roxroth technology hydraulic cylinder and joint; imported sealing element; strengthed checked plate
4. Capacity range of Recovery Truck:3ton, 4ton, 5ton, 6ton, 8ton, 12ton, 16ton, 20ton, 25ton, 31ton, 40ton, 50ton, 60ton, 70tons, 80tons.
FAQ
1.You are factory or trading Company?
Yes, we are oversea sales department of Chengli automobile. And you are always welcomed to visit our factory.
2.Could your company modify the standard product depends on my request?
Yes. Our company is specialized in researching and designing various of special purpose vehicle and spare parts. We can provide any product according to your demand.
3. Could your company totally customize products for me?
We can provide the customized-designing product meeting with any of your demand.
4. Could you provide certification that we need?
We can provide various certifications associate with trailer and truck. Such as DOT, ADR, SASO and so on.
5. How long could we receive our goods?
It depends on the product that you have ordered. If the goods are prepared, we will deliver your goods as soon as possible.
6. How about the after-sale service?
We can provide you the technical support to guide you repaire your product. And we will also send original spare parts free of charge by air. If you have special need, we can let our engineer to help you in person
