| Vehicle general | dimension | 7120*2510*3460 mm |
| Gross weight/Kerb weight | 7400/3405 kg | |
| Chassis | Chassis Brand | Isuzu |
| Cabin | Left hand drive | |
| Engine Model/Power | Isuzu engine 130hp 4KH1CN6HB | |
| Emission standard | Euro V or Euro VI | |
| Displacement | 2999 ml | |
| Gear box | 6 forwards 1 reverse | |
| Front and Rear axle | Front axle 3.3 tons rear axles 5.5 tons | |
| Wheelbase | 3815mm | |
| Brake system | Air Brake | |
| Tire | 7.50R16,6 tyre with 1 spare tire | |
| Maximum speed | 95 km/h | |
| Box Van | Refrigerated box size | 5150*2300*2300 |
| Material | Fiberglass | |
| Insulation | 80mm thick polyurethane thermal | |
| Refrigeration unit | Brand | Thermo king /Carrier/China other brand |
| Temperature | -5 degree,-18 degree | |
| Optional Aluminum alloy ventilation slot,meat hook,external power supply ,side door,movable partition,hydraulic tailgate lifting etc |
||
Insulation box structure

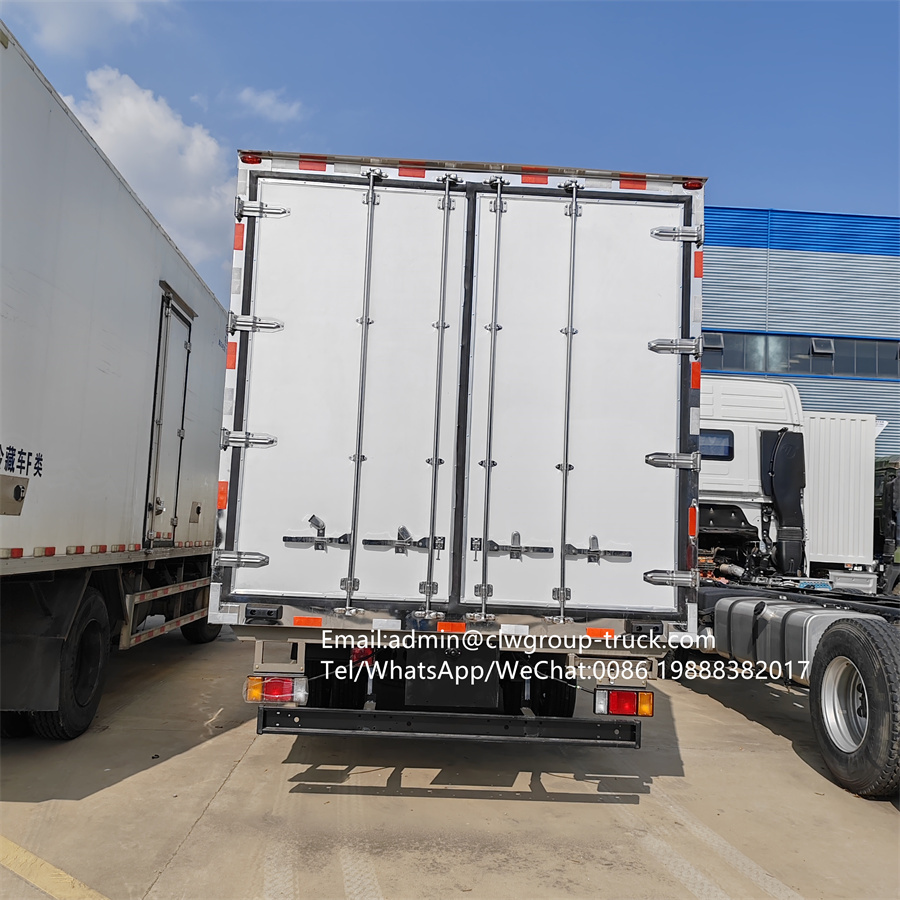

The body of the refrigerated compartment is manufactured by a hydraulic adsorption integrated molding production line, and its thermal insulation performance has reached the national A-level standard. Density polyurethane insulation layer, the bottom of the box is flat nano-fiberglass reinforced plastics, the rear door is fully sealed with FRP double doors, stainless steel rear door hinges and locks, LED lighting and box width indicators are used inside the box.
Refrigerated truck transport category
Refrigerated truck for vaccines and medicines (2~8 degrees)
Vegetables, fruits and milk trucks (0~-5 degrees)
Cold Fresh Meat Transporter (-5℃~-15℃)
Ice Cream Cold Drink Transporter (-10℃~-15℃)
refrigeration unit
Different units according to the customer's vehicle needs, and the customer can choose -5°C, -10°C, -15°C, -18 to -20°C refrigerated units;
The brands of refrigeration units include domestic Kelly, Jinda K brand, Asiana, Hanxue, Huatai, Songhan, Kaixue, Supercool... and other refrigeration units;
Imported refrigerating units from the United States Carrier and the United States Cold King. Refrigerator units are divided into independent units and split units!
The refrigerated heat preservation vehicle can be equipped with a "cooling + heating" dual-temperature unit (control temperature range is +20°C to -18°C), which can be used in cold areas!
Refrigerated truck product details:
Technology: sandwich process using vacuum negative pressure technology into one board, the box board is formed by galvanized pipe skeleton and environmentally friendly waterproof wood, filled with 80mm thick polyurethane thermal insulation material in the middle ,3mm thickness glass steel inside and outside and hot pressured by adding high strength adhesive
Refrigerated truck box temperature +30 degree to -20degree, box capacity 2m3 to 60m3
A refrigerated truck for frozen meat and fish consist of meat hook guide rail, stainless steel switch, side wall vent-slot, floor vent slot, rubber anti-collision block, stainless steel top light, stainless steel fixed cargo strip, stainless steel cargo anti-collision lever
A refrigerated truck is a vehicle that is used to transport temperature sensitive cargo. they are insulated and fitted with refrigeration gear, the main purpose is to maintain the desired temperature for products such as meat, dairy and produce. meat can be transported without spoilage because refrigerated trucks can maintain a constant temperature,
Refrigerated truck have temperature control that monitor and adjust the temperature inside the truck to stay within the required limits. This system consists of sensors, controllers and alarm that indicate any temperature fluctuations. insulation is very important for refrigerated trucks. Proper insulation is required to minimize the transfer of heat inside and outside of truck, Maintaining a stable temperature. every refrigerated truck has a refrigeration unit cools the cargo space. temperature mapping is the process of measuring the monitoring temperature distribution within a refrigerated truck to ensure temperature uniformity throughout the cargo space. Door seals and gaskets play a crucial role in maintaining the temperature inside the refrigerated truck by preventing air leaks
