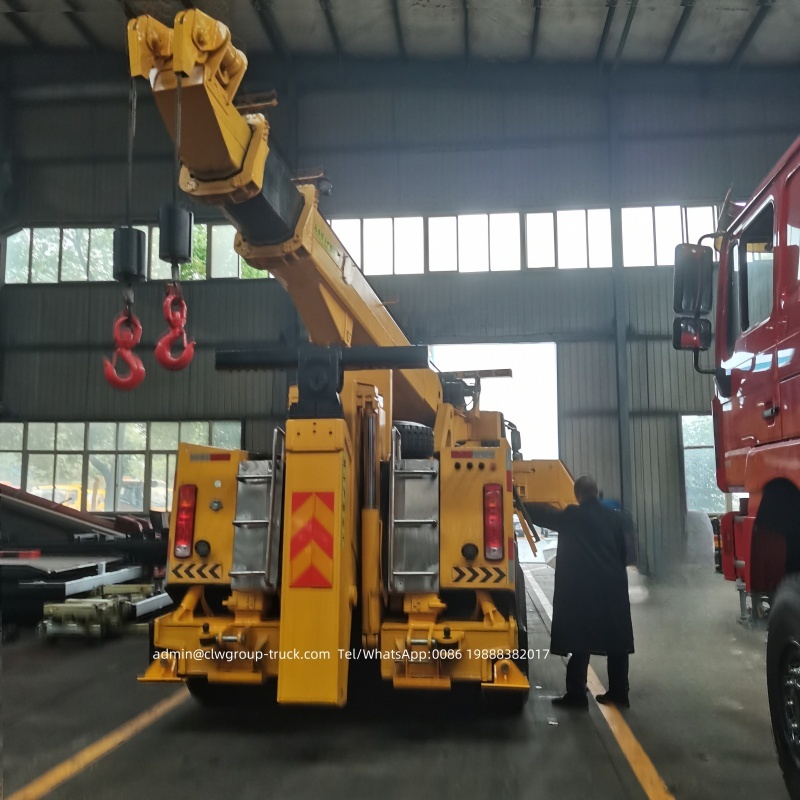

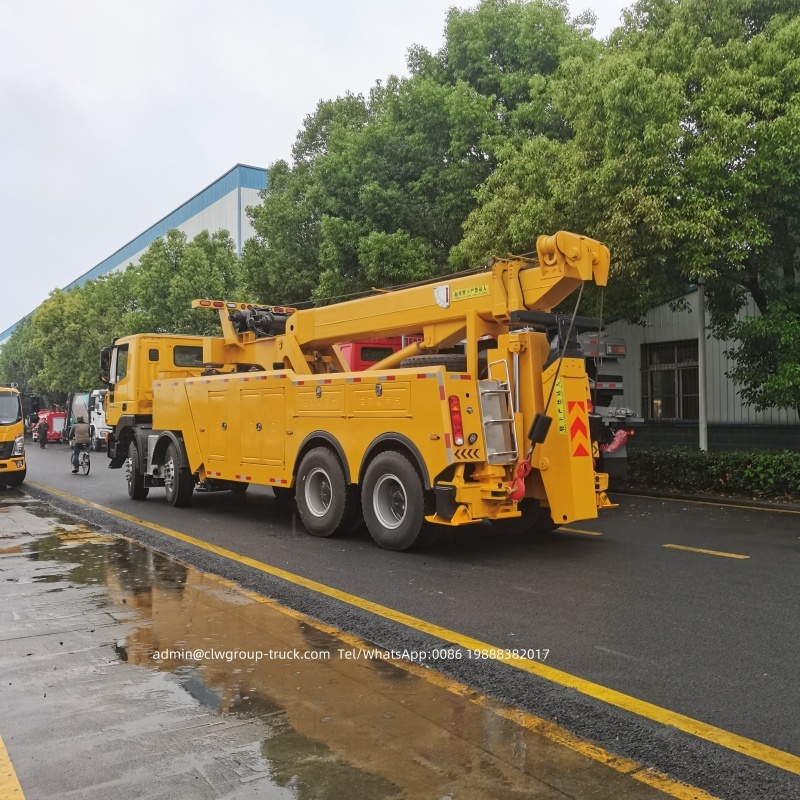

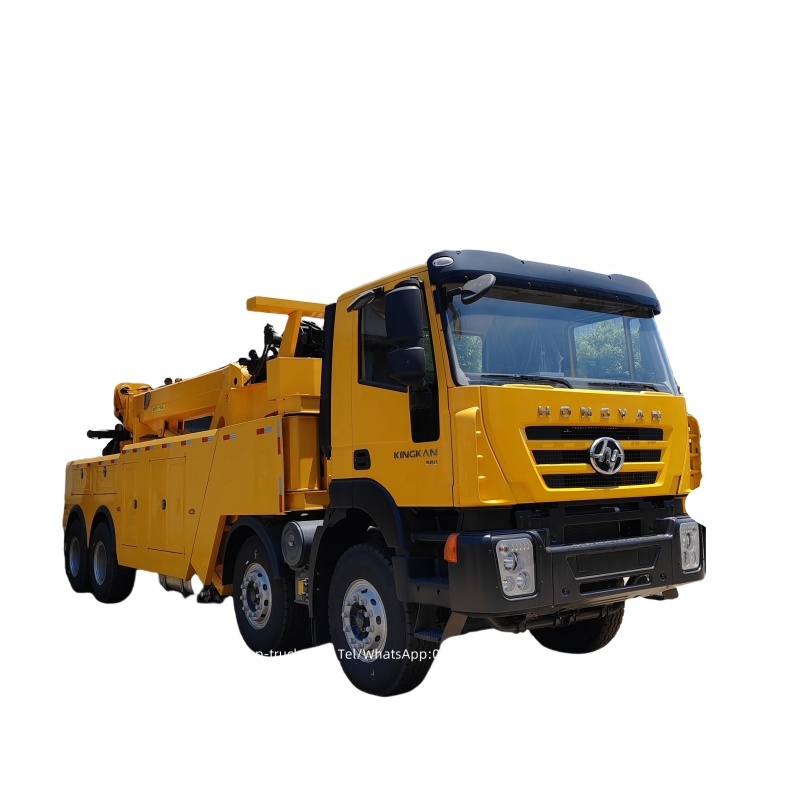

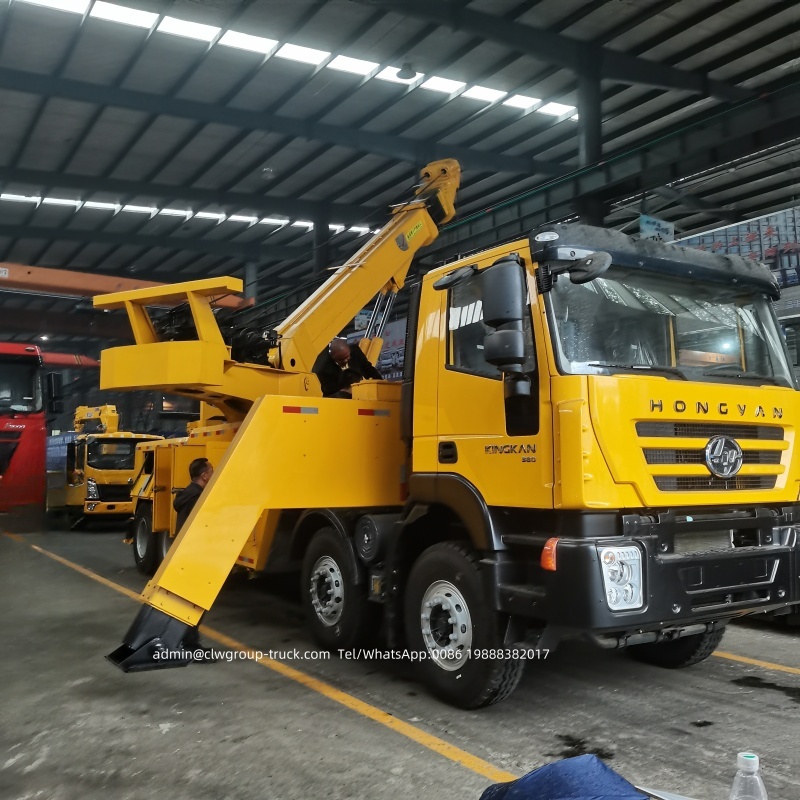

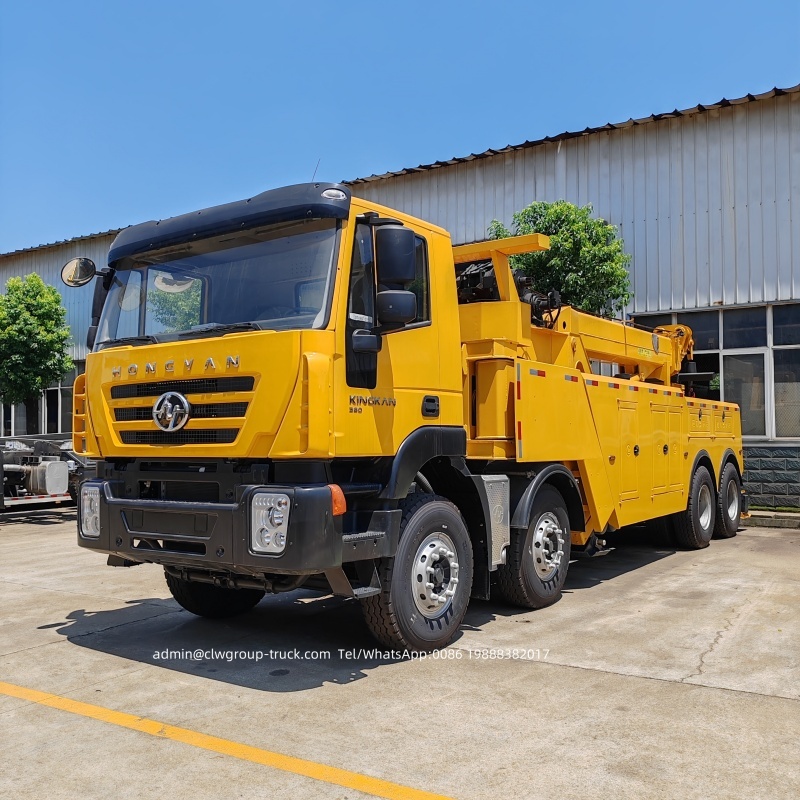

IVECO hongyan 12 wheeler 8x4 30tons lifting 50tons towing wrecker truck

8X4 12 wheeler 30tons 50tons 70tons towing rotator wrecker upper body specification :

20 ton or 25 ton integrated boom , imported valve, two section hexagonal crane arm, three support arms, split type carriage, double-sided linkage operation device, two ten ton hydraulic winches, 45 meter steel wire rope, diameter 18mm, equipped with four sets of steel forks, one set of drag fork sleeve, one set of steel plate lifting ear drag fork, one set of tire holding device, one long row engineering warning light, one set of auxiliary lights, one set of auxiliary air pipe assembly, and two binding chains

30 ton or 50 ton 360 ° rotating road wrecker, three section hexagonal crane arm, three section support arm, inlet valve, split type carriage, double-sided linkage operation device, one set of remote control operation device, front bumper with counterweight, three rear work lights, two 15 ton hydraulic winches, 45 meter steel wire rope, diameter 18mm, equipped with four sets of steel forks, one set of drag fork sleeve, one set of steel plate lifting ear drag fork, one set of tire holding device, one long row engineering warning light, one set of auxiliary lights, one set of auxiliary air pipe assembly, and two binding chains

The full name of a wrecker towing truck is a road clearing vehicle, also known as a trailer, road rescue vehicle, or towing vehicle. It has multiple functions such as lifting, pulling, and lifting. The clearing vehicle is mainly used for road malfunctioning vehicles, urban illegal vehicles, and emergency rescue. Obstacle clearing vehicles are mainly classified into: trailer connected type, trailer separated type, one trailer one type, flat one trailer two type, multifunctional obstacle clearing vehicle, and hydraulic automatic clamping type. Divided by traction tonnage: 2 tons, 3 tons, 5 tons, 8 tons, 10 tons, 15 tons, 25 tons, 30 tons, 50 tons, 80 tons

Chengli Special Purpose Vehicle Co., Ltd. has 21 years of experience in producing wrecker towing truck , towing wrecker truck products not only receive popularity in China, winning over 60% of orders nationwide, but also can be customized with various clearance installations according to customer chassis requirements. The technical team can provide drawings and complete customized container loading.

The tow truck flatbed can be modified with folding and telescopic panels or an extended version in the middle. The straight version is suitable for various roads with good conditions and large venues, while the folding version can flexibly pass through narrow and short blocks. According to the different usage environments of customers, we also produce a flatbed clearing vehicle model with a crane, which is multifunctional and can adapt to various complex rescue operations.

The basic configuration of a flatbed tow truck model is:

We can choose customized floor standing or full floor flat clearance models with a wheelbase of 3300 3800 4700 4800 centimeters.

Stamped flat plate, with holes on the plate, hydraulic telescopic plate, equipped with lifting device, the flat plate can carry heavy objects from 3 tons to 15 tons, double-sided linkage operation, iron mudguard, equipped with one hydraulic winch of 3 tons or 4 tons, 5 tons, 6 tons, 8 tons, 10 tons, 15 tons, 21-25 meters steel wire rope, 4 binding straps, two carts, and one toolbox.

We use thickened stamping splicing plates for the clearing vehicle platform, which have stronger load-bearing capacity and longer service life. The Italian imported multi way valve, balance valve, Italian imported precision hydraulic valve, maintenance free oil circuit, Foshan sea battle hydraulic cylinder, telescopic lifting barrier free, reinforced 50 hydraulic oil pump, reinforced oil pump to ensure the platform's extension and retraction, and the arm lifting speed is faster and smoother

One to one heavy-duty road wrecker is also our advantage model, which can be used for loading from 3 tons to 30 tons. The configuration can choose imported hydraulic system, double-sided linkage operation, two hexagonal crane arms, three support arms, two 8-ton or 10 ton 15 ton hydraulic winches, 45 meter steel wire rope, and split type carriages. One set of tire holding device, one set of towing fork sleeve, one set of steel plate lifting ear towing fork, one long warning light, one set of auxiliary light, one set of auxiliary airway assembly, two binding chains, can be operated manually or remotely,

The objects of operation for light-duty tow truck flatbed are light-duty trucks, mini buses, and sedans, while the objects of operation for medium and heavy-duty rotator wrecker are medium and heavy-duty trucks, large and medium-sized buses, etc. The objects of operation for ultra heavy clearance vehicles are heavy-duty trucks and heavy-duty semi-trailer series.

The support arms and lifting arms of the wrecker truck are all made of high-strength steel plates, which are bent into shape. Carbon dioxide automatic protection welding allows only two welds, with few welds, small deformation, high precision and strength, and has undergone ultrasonic weld detection. All welding of the clearing vehicle adopts carbon dioxide shielded welding and argon arc welding, with a weld length greater than 300mm, using automatic welding, and making the weld surface smooth and beautiful.

We can choose well-known brands for the chassis of the wrecker towing truck, which have many service stations overseas for easy maintenance. The commonly used chassis brands include Dongfeng, Foton, Shacman FAW, Isuzu, JAC,JMC SINOTRUK, etc.

 According to the different tonnages required for the wrecker towing truck, we can choose light trucks and medium heavy trucks 4X2 6X4 8X4. If the customer has a chassis locally, we can send the wheelbase and tonnage parameters of the chassis. We can draw a technical drawing according to your chassis and provide a plan for how large and long the clearance can be done, and then transport it to your country by sea or land.

The paint and logo of the wrecker towing truck can be customized according to customer requirements and are free of charge. The painting process can also choose electrophoresis or powder coating to make the color more vivid and bright.

We have selected some previous models and installations of wrecker towing truck for your reference. If you have any actual needs and requirements, please contact us Tel/WhatsApp/WeChat:0086 19888382017 directly, and we will tailor a plan for you to choose a suitable vehicle.

The production cycle of the wrecker towing truck is generally 30 working days after the deposit is deposited into our company's account. If the chassis is in stock, there is no need to wait. Customizing the chassis takes about 30-50 working days, and the specific details can be discussed in the next step when interested.

The use and maintenance of the wrecker towing truck are very simple. In addition to the accompanying tools and basic accessories of the clearing vehicle, we usually shoot an operation video, a simple installation video, and drawings for customers to use. It is easy to learn and welcome orders and visits to Chengli Company. The company is located in Suizhou City, Hubei Province, and can be quickly reached by plane or high-speed rail. The company provides free shuttle service
