| Vehicle general | dimension | 10200*2550*3850 mm |
| Gross weight/Kerb weight | 25000/173000 kg | |
| Chassis | Chassis Brand | Shacman L3000 |
| Cabin | Left hand drive or right hand drive | |
| Engine Model/Power | Weichai engine 270hp 300HP | |
| Emission standard | Euro II or Euro III or Euro IV or Euro V | |
| Displacement | 7470 ml | |
| Gear box | 9 forwards 1 reverse | |
| Front and Rear axle | Front axle 4.8 tons rear axles 11.5 tons | |
| Wheelbase | 4600+1350 mm | |
| Brake system | Air Brake | |
| Tire | 10R22.5,10 tyre with 1 spare tire | |
| Maximum speed | 95 km/h | |
| Sewage tanker | Capacity | 16-20cbm |
| Material | high quality carbon steel | |
| Vacuum pump | china famous brand vacuum pump | |
| Equipped | chassis,sub frame,sewage tanker ,manhole ,vacuum pump ,liquid indicator ,outlet gravity valve ,hand washing device,6m suction hose anti overflow valve,hydraulic lifting cylinder etc | |
| Main function | self priming ,self discharging ,tanker lifting up&down,rear door open | |
| Optional European brand vacuum pump ,stainless steel tanker body ,anti rust coating inside tank |
||

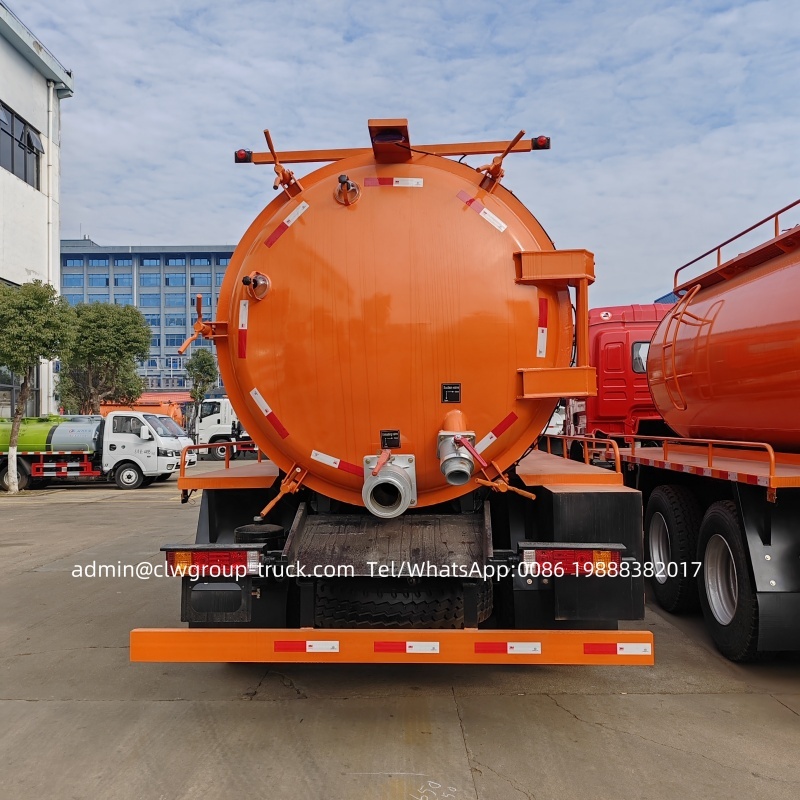

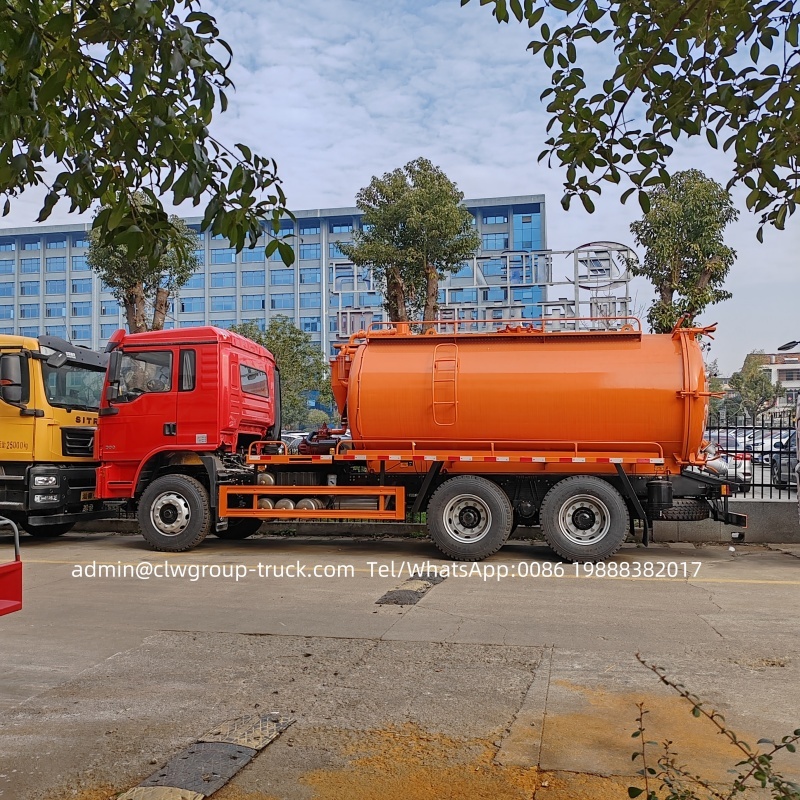

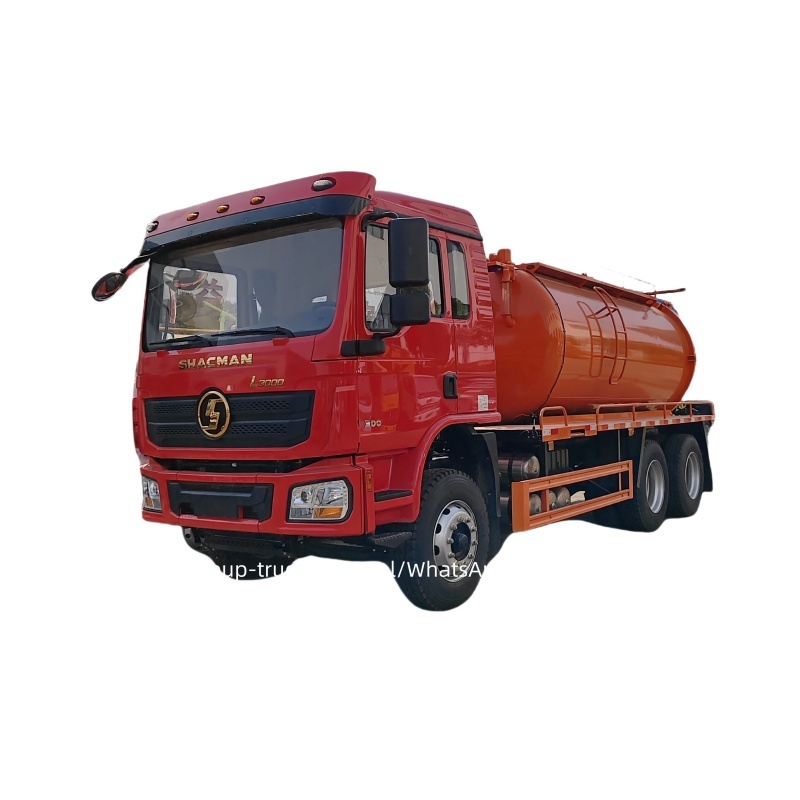

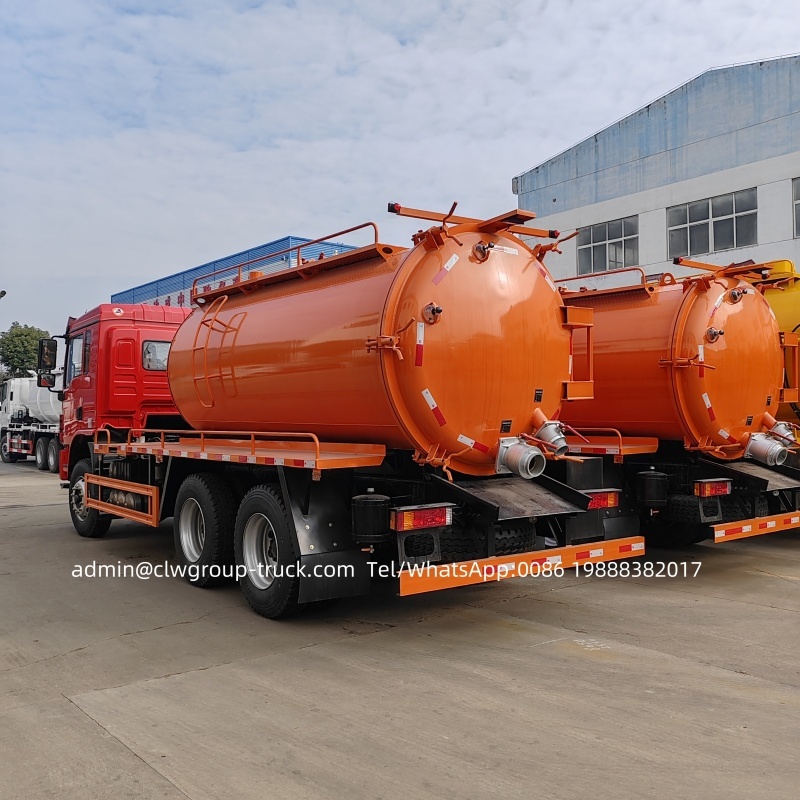

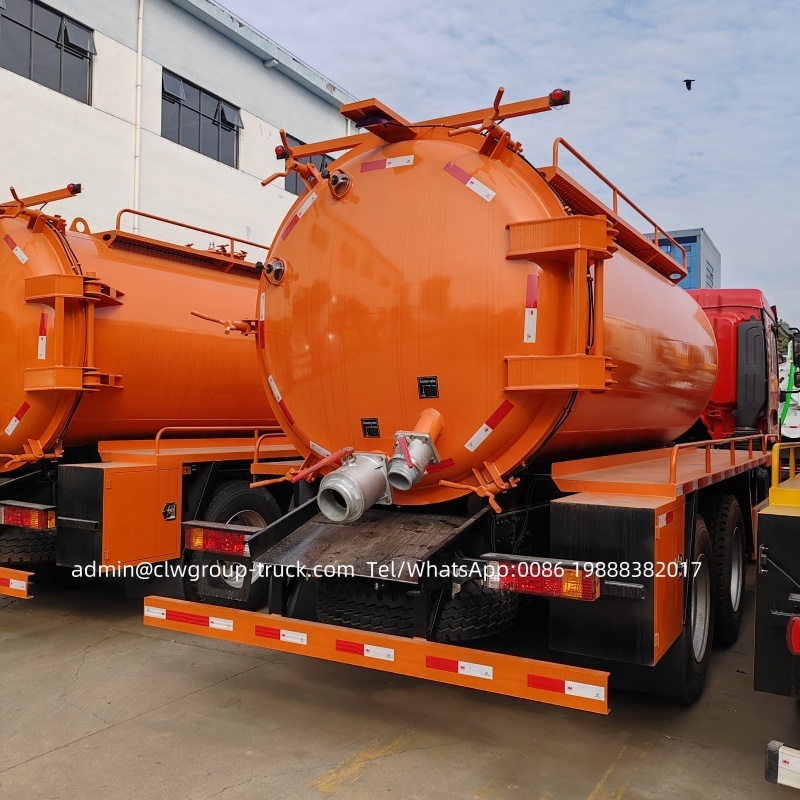

(1) Vacuum sewage suction truck (also called truck mounted sewage cleaner,vacuum cleaner truck ,vacuum suction truck ,vacuum suction tanker ,vacuum waste collection truck ,sewage suction truck,sewage vacuum truck ,waste vacuum truck ,sewer truck ,cesspit emptier ,gully emptier,etc.) is used to collect, transport and discharge liquid such as dirty water,sludge,septic,crude oil and solid stuff such as small stones,bricks as well.It is suitable for cleaning the sewer,cesspit,gully ,etc. It is widely used in environment and sanitation field.
(2)Accessory of sewage suction function :Equipped with PTO, transmission shaft, vacuum suction sewage pump, high pressure molding tank, moisture separator, gas-oil separation, multiple directional control valve, hanger rod, self-discharging valve, suck fecal gun and pipe network system.
(3) Vacuum tank capacity ranges from 3,000 Liters to 20,000 liters
Features:
a.Cylinder vacuum tank can be lifted hydraulically to 40-45 degree.Rear door can be opened and closed hydraulically.
b.Adopt EU vacuum pump (Italy brand) or equivalent China top brand double vacuum pumps,super powerful,highly efficient.
c.Pump can be operated by a hydraulic motor or by an auxiliary engine.
d.Overfill system with music horn is equipped ,preventing the vacuum pump damage from sewage water into vacuum pump when the tank is full.
e.Nice shape ,rational structure,durable and long service life.
