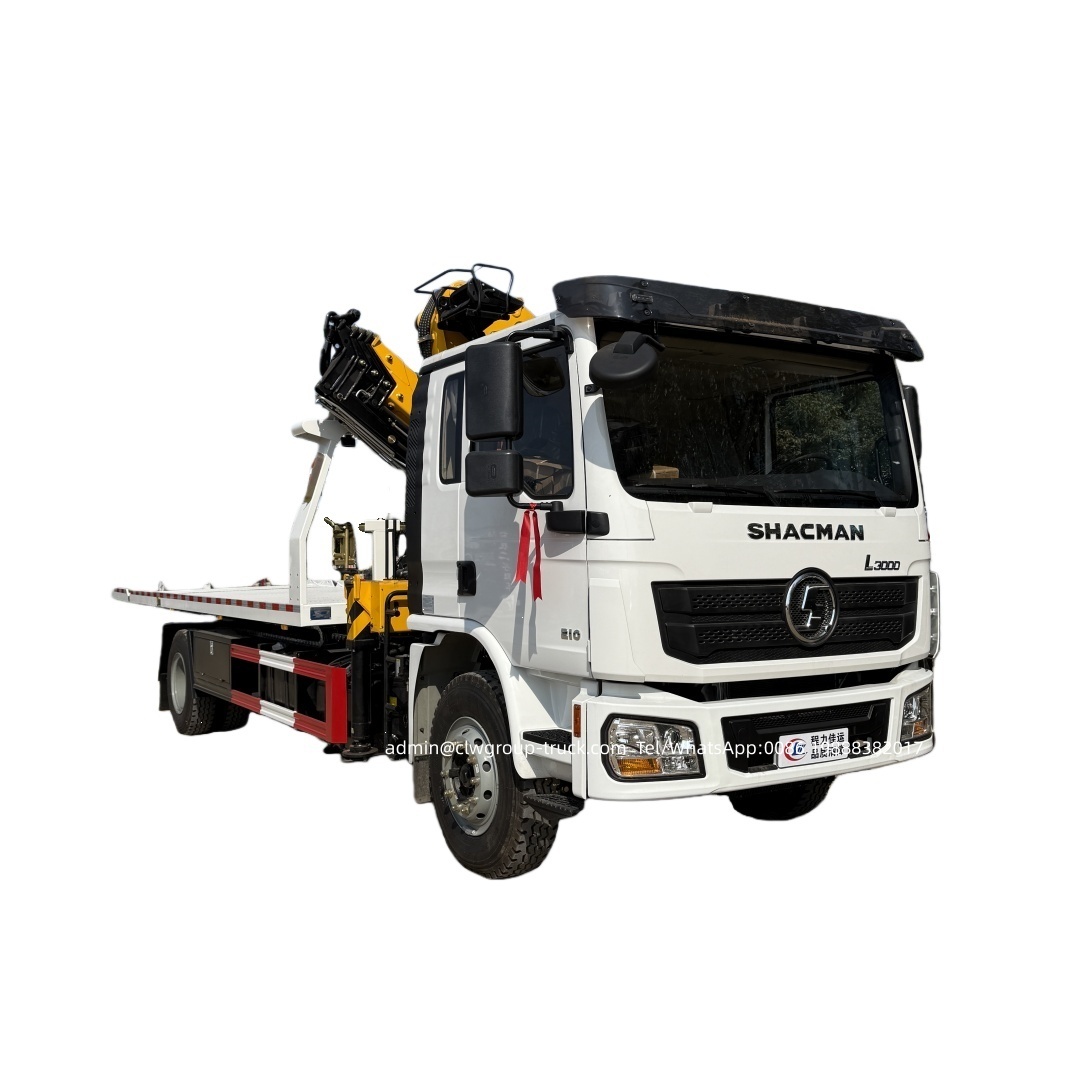

Shacman L3000 Road Rescue wrecker truck with Folding Arm Crane xcmg 8 tons

The Shacman L3000 road rescue truck with folding arm crane is a hydraulic principle that combines three special operation functions: flat back loading, lifting, and hoisting. It can meet the rescue tasks of urban roads, general national highways, and highways, and has more efficient rescue and solution capabilities for various difficulties. It is one of the ideal car models chosen by relevant departments such as transportation, highways, professional rescue companies, auto repair shops, etc. to ensure smooth road traffic.

Main Performance and Characteristics of Shacman L3000 Road Rescue truck with Folding Arm Crane
The tablet part has two functions: "back" and "support", which can handle two accident vehicles at once with high clearance efficiency. The tablet back load is particularly suitable for long-distance operations.
Equipped with a 3.2-6.3 ton gantry crane, the maximum lifting capacity covers 3200kg~6300kg, and the maximum operating radius can reach about 13 meters.
Modular design for installation, various chassis can be selected according to user requirements.
The tablet is a foldable tablet with a minimum tilt angle of up to 8 °, which has a wide range of applications and can handle accident vehicles with low front bumpers.
Humanized design, winch side mounted, easy to operate, equipped with three wire rope pulley seats that can adjust the wire rope traction position up and down, left and right to adapt to different working conditions. Optional auxiliary wheels and front tire blocks can be selected, and the enlarged toolbox is convenient for storing work aids.
The control mechanism is bidirectional and distributed at the rear of the vehicle, with a wide field of view and flexible operation.
The main component materials are made of high-strength steel plates, which are lightweight and can ensure the strength of the components.

Shacman Road Rescue truck with Folding Arm Crane Parameters
Shaanxi Automobile's obstacle clearing platform has a total length of 6.5 meters, a width of 2.38 meters, and a ground clearance height of 1.3 meters. It can be welded with four corrugated stamping plates or directly assembled with patterned plates and other assembly methods;
Shaanxi Automobile Road Rescue Vehicle equipped with XCMG 8-ton four section folding arm crane (SQZ160) lifting height of 13 meters, working radius of 9.75 meters, upward operation, 360 degree full rotation
The roadside rescue tablet can choose not to slide or slide, the rear support arm can be optionally installed, the auxiliary tool is anti-theft, and there are multiple configuration options;
The crane adopts XCMG articulated arm crane and fully imported hydraulic system, with a maximum working range of 9.8 meters. The fully extended arm can lift 1060KG, and wireless remote control operation is optional, which is more stable, safe and fast, and better solves the problem of rescue in difficult situations
The key structural components are treated with acid pickling and phosphating, and the upper assembly is coated with electrophoretic paint.

The full name of a wrecker towing truck is a road clearing vehicle, also known as a trailer, road rescue vehicle, or towing vehicle. It has multiple functions such as lifting, pulling, and lifting. The clearing vehicle is mainly used for road malfunctioning vehicles, urban illegal vehicles, and emergency rescue. Obstacle clearing vehicles are mainly classified into: trailer connected type, trailer separated type, one trailer one type, flat one trailer two type, multifunctional obstacle clearing vehicle, and hydraulic automatic clamping type. Divided by traction tonnage: 2 tons, 3 tons, 5 tons, 8 tons, 10 tons, 15 tons, 25 tons, 30 tons, 50 tons, 80 tons

Chengli Special Purpose Vehicle Co., Ltd. has 21 years of experience in producing wrecker towing truck , towing wrecker truck products not only receive popularity in China, winning over 60% of orders nationwide, but also can be customized with various clearance installations according to customer chassis requirements. The technical team can provide drawings and complete customized container loading.

The tow truck flatbed can be modified with folding and telescopic panels or an extended version in the middle. The straight version is suitable for various roads with good conditions and large venues, while the folding version can flexibly pass through narrow and short blocks. According to the different usage environments of customers, we also produce a flatbed clearing vehicle model with a crane, which is multifunctional and can adapt to various complex rescue operations.

The basic configuration of a flatbed tow truck model is:

We can choose customized floor standing or full floor flat clearance models with a wheelbase of 3300 3800 4700 4800 centimeters.

Stamped flat plate, with holes on the plate, hydraulic telescopic plate, equipped with lifting device, the flat plate can carry heavy objects from 3 tons to 15 tons, double-sided linkage operation, iron mudguard, equipped with one hydraulic winch of 3 tons or 4 tons, 5 tons, 6 tons, 8 tons, 10 tons, 15 tons, 21-25 meters steel wire rope, 4 binding straps, two carts, and one toolbox.

We use thickened stamping splicing plates for the clearing vehicle platform, which have stronger load-bearing capacity and longer service life. The Italian imported multi way valve, balance valve, Italian imported precision hydraulic valve, maintenance free oil circuit, Foshan sea battle hydraulic cylinder, telescopic lifting barrier free, reinforced 50 hydraulic oil pump, reinforced oil pump to ensure the platform's extension and retraction, and the arm lifting speed is faster and smoother

One to one heavy-duty road wrecker is also our advantage model, which can be used for loading from 3 tons to 30 tons. The configuration can choose imported hydraulic system, double-sided linkage operation, two hexagonal crane arms, three support arms, two 8-ton or 10 ton 15 ton hydraulic winches, 45 meter steel wire rope, and split type carriages. One set of tire holding device, one set of towing fork sleeve, one set of steel plate lifting ear towing fork, one long warning light, one set of auxiliary light, one set of auxiliary airway assembly, two binding chains, can be operated manually or remotely,

The objects of operation for light-duty tow truck flatbed are light-duty trucks, mini buses, and sedans, while the objects of operation for medium and heavy-duty rotator wrecker are medium and heavy-duty trucks, large and medium-sized buses, etc. The objects of operation for ultra heavy clearance vehicles are heavy-duty trucks and heavy-duty semi-trailer series.

The support arms and lifting arms of the wrecker truck are all made of high-strength steel plates, which are bent into shape. Carbon dioxide automatic protection welding allows only two welds, with few welds, small deformation, high precision and strength, and has undergone ultrasonic weld detection. All welding of the clearing vehicle adopts carbon dioxide shielded welding and argon arc welding, with a weld length greater than 300mm, using automatic welding, and making the weld surface smooth and beautiful.

We can choose well-known brands for the chassis of the wrecker towing truck, which have many service stations overseas for easy maintenance. The commonly used chassis brands include Dongfeng, Foton, Shacman FAW, Isuzu, JAC,JMC SINOTRUK, etc.

 According to the different tonnages required for the wrecker towing truck, we can choose light trucks and medium heavy trucks 4X2 6X4 8X4. If the customer has a chassis locally, we can send the wheelbase and tonnage parameters of the chassis. We can draw a technical drawing according to your chassis and provide a plan for how large and long the clearance can be done, and then transport it to your country by sea or land.

The paint and logo of the wrecker towing truck can be customized according to customer requirements and are free of charge. The painting process can also choose electrophoresis or powder coating to make the color more vivid and bright.

We have selected some previous models and installations of wrecker towing truck for your reference. If you have any actual needs and requirements, please contact us directly, and we will tailor a plan for you to choose a suitable vehicle.

The production cycle of the wrecker towing truck is generally 30 working days after the deposit is deposited into our company's account. If the chassis is in stock, there is no need to wait. Customizing the chassis takes about 30-50 working days, and the specific details can be discussed in the next step when interested.

The use and maintenance of the wrecker towing truck are very simple. In addition to the accompanying tools and basic accessories of the clearing vehicle, we usually shoot an operation video, a simple installation video, and drawings for customers to use. It is easy to learn and welcome orders and visits to Chengli Company. The company is located in Suizhou City, Hubei Province, and can be quickly reached by plane or high-speed rail. The company provides free shuttle service
