| Vehicle General |
Overall dimension |
10900*2550*3950 mm |
| Gross /Kerb weight |
25000/11010 kgs |
| Chassis |
Chassis brand |
Sinotruk howo |
| Cabin |
Single,left hand drive or right hand drive |
| Engine model/power |
Weichai engine 340hp |
| Engine emission standard |
Euro II or III or IV or V or VI |
| Engine displacement |
10 L |
| Front & Rear axle weight |
front axle 9.5tons rear axle 16 tons |
| Transmission |
10 forwards 2 reverse |
| Brake system |
Air brake |
| Tire |
12.00R20 10 tires with 1 spare tire |
| Max speed |
95 km/h |
| Feed tanker |
Loading Medium |
Bulk feed, grain,powder, etc. |
| Bulk Capacity |
12.5-15tons (25 -30cbm) |

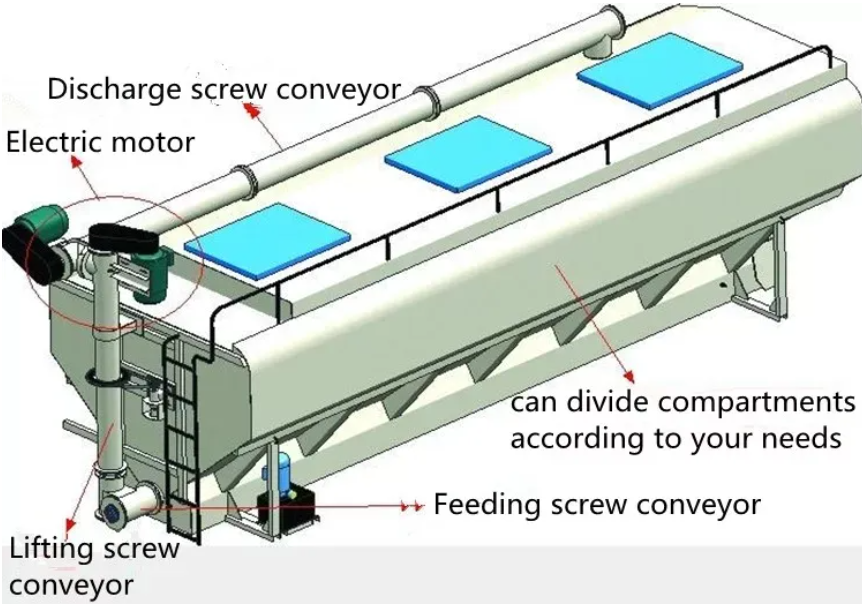

| Main Parts |
Mobile conveyor,Vertical conveyor,Electric operation box,Conveyor maintenance port,Horizontal conveyor,Discharging operation handle, |
| Tank drive form |
External power and generator (Permanent magnet generator 20kw/380V. It is recommended to use an external power supply for unloading, which is low cost, environmentally friendly and low vehicle attrition) |
| Electrical configuration |
Complete set of Schneider Electric control system; conveyor motor ABB, with 20m external power cable, external power supply 380V |
| Hydraulic auger |
Use the patent of intermediate support structure, Graphite bearing; Lifting auger steering with wireless remote control. |
The main best-selling models of bulk feed trucks both domestically and internationally are as follows
The Dongfen 4X2 12 cubic meter feed truck adopts a chassis wheelbase of 3800mm, an engine with 120 horsepower from Chaochai, a 6-speed gearbox from Wanliyang, and 8.25R20 tires. The overall size of the vehicle is approximately 7100 * 2200 * 3400 mm
The Dongfeng Tianjin 4X2 22 cubic meter feed truck adopts a chassis wheelbase of 5000mm, a Cummins engine with 180 horsepower, a Fast 8-speed gearbox, 10.00R20 tires, and a total vehicle size of 9000 * 2450 * 3800mm
FAW 4X2 22 cubic meters adopts a chassis wheelbase of 5000mm, a large diesel engine with 180 horsepower, a Fast 8-speed gearbox, 10.00R20 tires, and a total vehicle size of 8950 * 2450 * 3170mm
The Dongfeng Tianjin 6X2 30 cubic meter feed truck adopts a chassis wheelbase of 1800+5000mm, an engine of Cummins 210 horsepower, a Fast 8-speed gearbox, and tires of 11.00R20. The overall dimensions of the vehicle are 10980 * 2480 * 3930mm
The Dongfeng 8X4 40 cubic meter feed truck adopts a chassis wheelbase of 1800+4600+1350mm, an engine with Cummins 315 horsepower, a Fast 12 speed gearbox, tires of 11.00R20, and a total vehicle size of 12000 * 2500 * 3995 mm
Feed truck semi-trailer, 65 cubic meters capacity, vehicle size 13750 * 2550 * 4000 mm, wheelbase 7080+1310+1310mm, feed tank material can be made of carbon steel or aluminum alloy material
Feed truck tank configuration: The tank material is made of 4mm high-quality carbon steel plate, and the whole vehicle has 3 auger driven by 3 5.5KW motors. The top auger is lifted by hydraulic control and can rotate 180 degrees left and right. The tank can be made into multiple independent compartments according to user requirements, and the unloading sequence and speed of each compartment can be independently controlled.

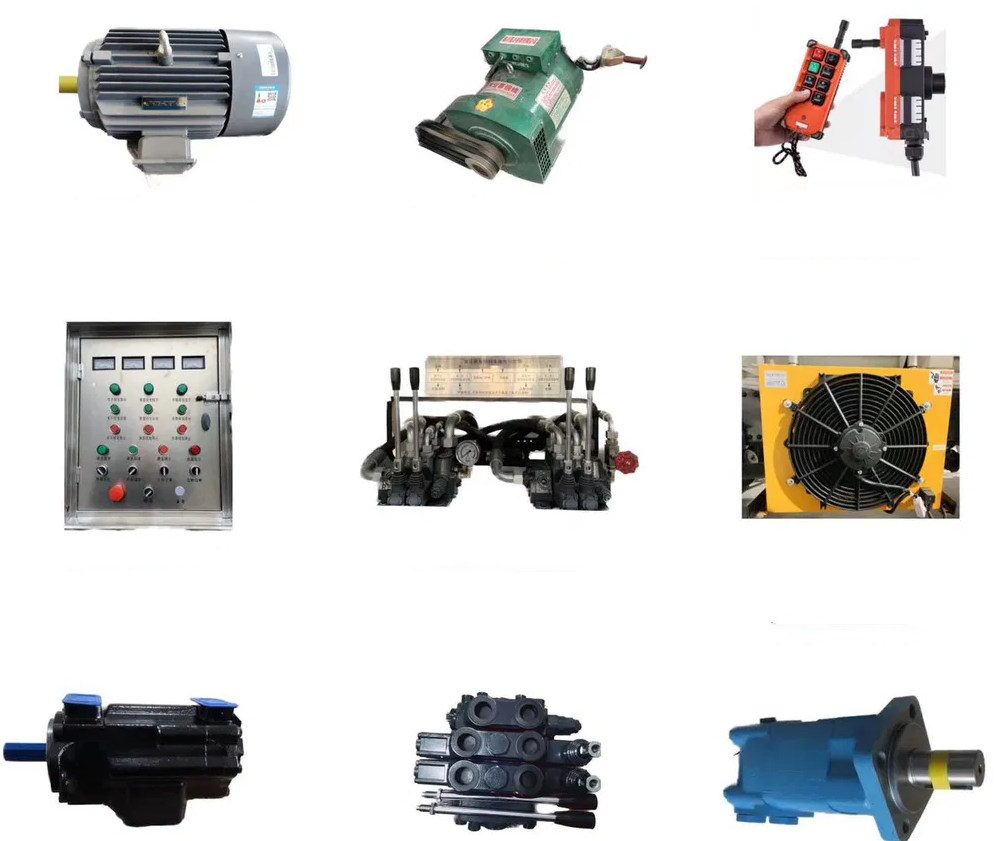

Optional configuration: Remote control operation of auger lifting, vehicle mounted generator, imported hydraulic auger, multi compartments, etc
Bulk feed truck is also called animal feed truck, feed delivery truck, feed tanker vehicle, feed tank truck, feed transport truck, bulk feed transport vehicle, bulk feed delivery truck, bulk feed transporter truck, etc
Bulk feed truck introduction:

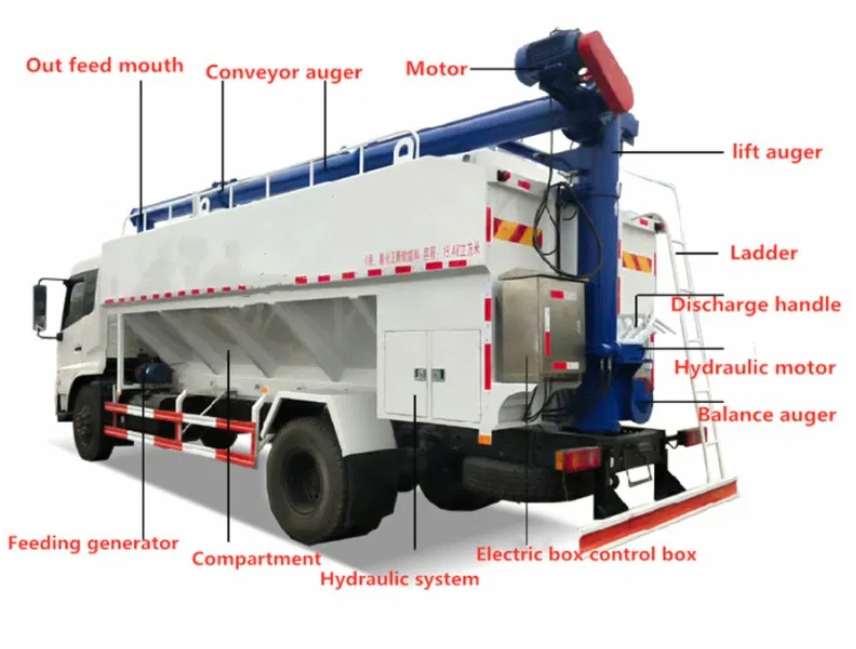

Bulk feed transport vehicleis a special transport vehicle made of high-quality, high-strength steel plate welded forming tanks and equipped with electric or hydraulic auger unloading system on the basis of various types of trucks or second-class chassis.Bulk feed truck consists of the chassis, the loaded feed tank, the discharge auger system and the electro-hydraulic operating system.
Bulk feed transporter tanks are welded with high-quality steel plates. Different bins can be loaded and unloaded at the same time. Electro-hydraulic auger unloading saves manpower and time, convenient loading and unloading, less residue and beautiful appearance.
The advantages of bulk feed trucks1. Save costs without using bags or manual loading and unloading, greatly reducing labor and time, and improving factory revenue and efficiency2 bulk feed trucks can be divided into compartments according to customer requirements and can transport various types of feed. According to different customer requirements, the feed box can be divided into multiple small compartments, which can transport different types of feed or expansion media simultaneously (such as solid feed, granular feed, forage, soybean meal, grains, meat and bone meal, whey powder, oil, fish meal, miscellaneous meal)Sealed transportation to avoid pollution, equipped with an automatic feeding system storage tower for bulk feed transport vehicles. Feed is directly fed into the tower, and the site design allows bulk feed transport vehicles to unload without entering the site, thereby reducing potential pollution problems caused by external transport vehiclesAutomatic feeding does not require manual feeding. Hydraulic pellet feed truck, achieving fully automated operation, can automatically feed into the groove at fixed time and quantity.5. The hydraulic system is easy to operate, fully automatic hydraulic system, easy to operate and use. The chassis adopts a heavy-duty truck chassis, and the gear pump hydraulic motor adopts well-known Chinese brands and imported hydraulic components.
Chengli Special Purpose Vehicle Co., Ltd. Feed Truck TechnologyAuger technology, intermediate connection support structure, graphite bearings, significantly improves the service life of Jiaolong compared to traditional iron bearings, maintenance free, ensures smooth operation of auger, reasonable Jiaolong clearance, pitch, speed, and reduces the crushing rate of feedThe tank process adopts strict welding technology to ensure the sealed transportation of the tank, reduce losses, and avoid pollution. The fully automatic loading and unloading can operate continuously, saving a lot of time and improving production efficiencyThe welding process for the bulk feed truck tank is strictly in accordance with the welding process. The auxiliary beam and reinforced rib lights are all fully welded, ensuring the strength and sealing of the tank bodyThe painting process uses specialized corrosion-resistant paint, which effectively ensures that the paint does not peel off or crack under frequent disinfection conditions in the breeding farmThe rear ladder of the vehicle is installed at the rear of the feed truck, and the body ladder is made of stainless steel welding technology, which is sturdy and reliableThe top sloping roof design increases strength and is less prone to water accumulation. The walkway uses patterned boards for greater safetyInstall an alarm on the bulk feed truck. When the feeding is completed, the lifting dragon will detach from the fixed position of the horizontal bracket, and the buzzer in the cab will sound to remind the driver to put the lifting dragon in its original position. Install a tail work light for more convenient night operationStrict inspection is required, and each feed truck factory must undergo strict feeding testing before use. Professional thickness gauges, hardness testers, layer thickness gauges, torque plates, ultrasonic flaw detectors, and other effective testing equipment are used
