With the expansion of its global business, Chengli Special Automobile Co., Ltd. has welcomed customers from various countries. A particularly noticeable trend in recent orders is the increasing demand for truck-mounted cranes. There's a growing number of customized trucks with cranes mounted on them, requiring more functionality beyond traditional cranes. For example, they need self-unloading capabilities for easy loading and unloading, and grab handles to handle different items, making lifting operations more convenient, efficient, and intelligent.
The advantages of truck-mounted cranes include high mobility, integrating lifting and transportation functions, improving resource utilization, ease of operation, and high work efficiency. Truck-mounted cranes can be equipped with various grabbing attachments, such as log grabs, aerial work platforms, brick clamps, drilling tools, and scrap/garbage grabs, to enable multi-scenario operations.

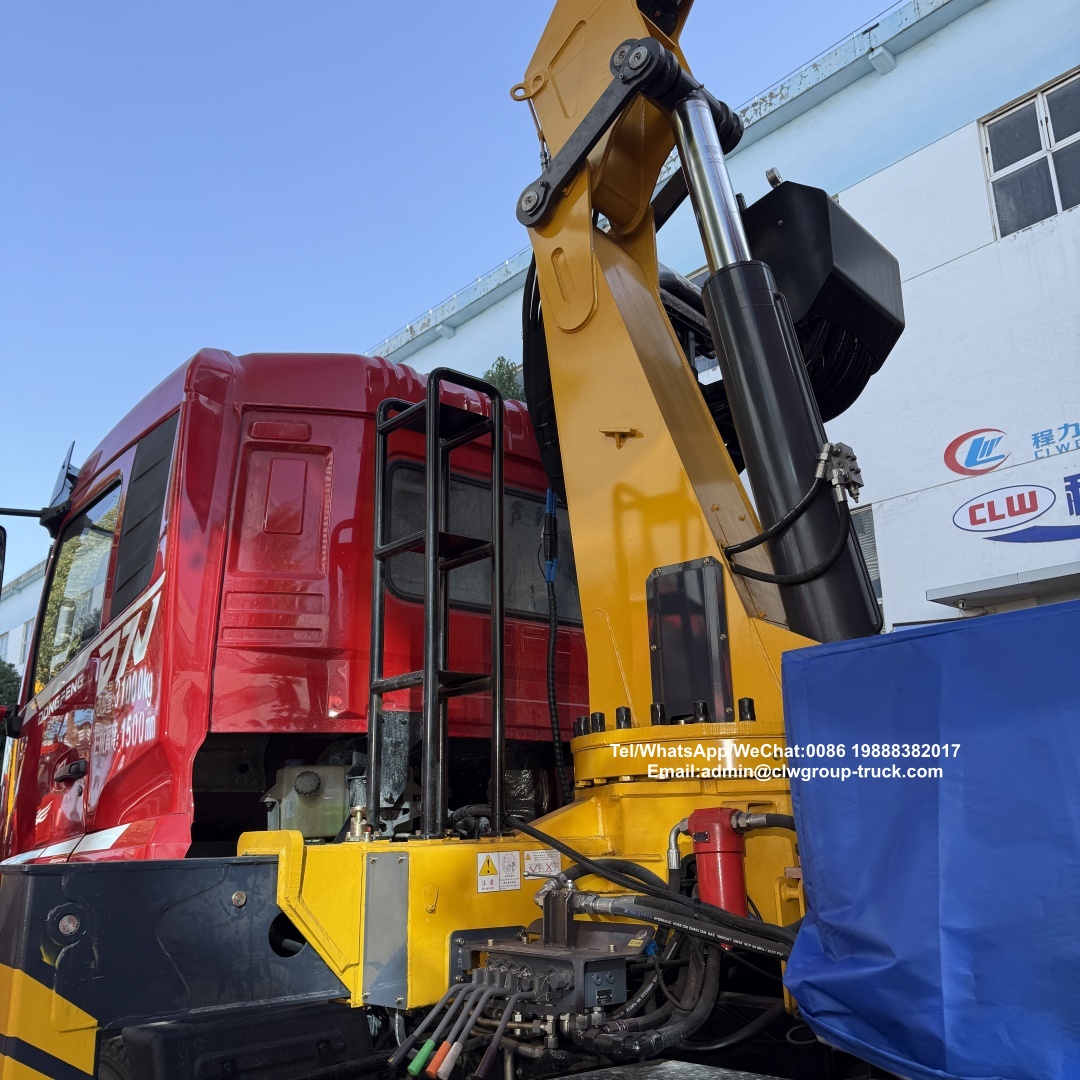

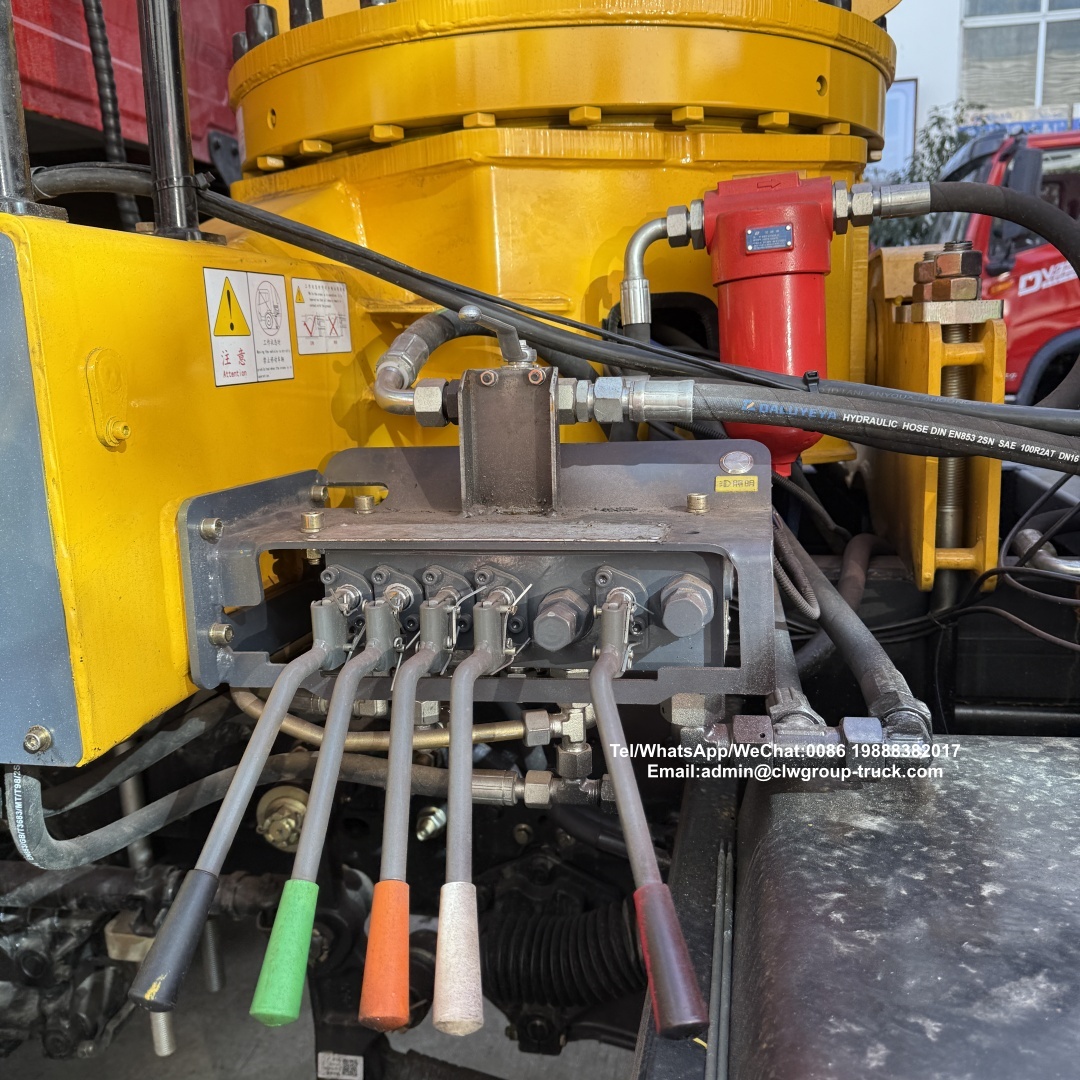

Truck mounted crane features: Fully hydraulic, full rotation, extra-long operating radius, +360 degree rotation angle, manual throttle for adjustable rotation speed and lifting speed; 24V VIC-type pipe fittings, high-precision cold-drawn tubing completely eliminates oil leaks; imported cylinder seals ensure durability; floating three-point axle better protects the truck frame. The truck-mounted crane can be operated left and right, rotates 360 degrees in both directions, and is flexible in vertical operation. It boasts reliable quality, long service life, and fast working speed. The truck-mounted crane uses new H-type outriggers, each individually adjustable to level the chassis, with a large outrigger span for excellent overall stability. Imported hydraulic seals ensure stable operation.

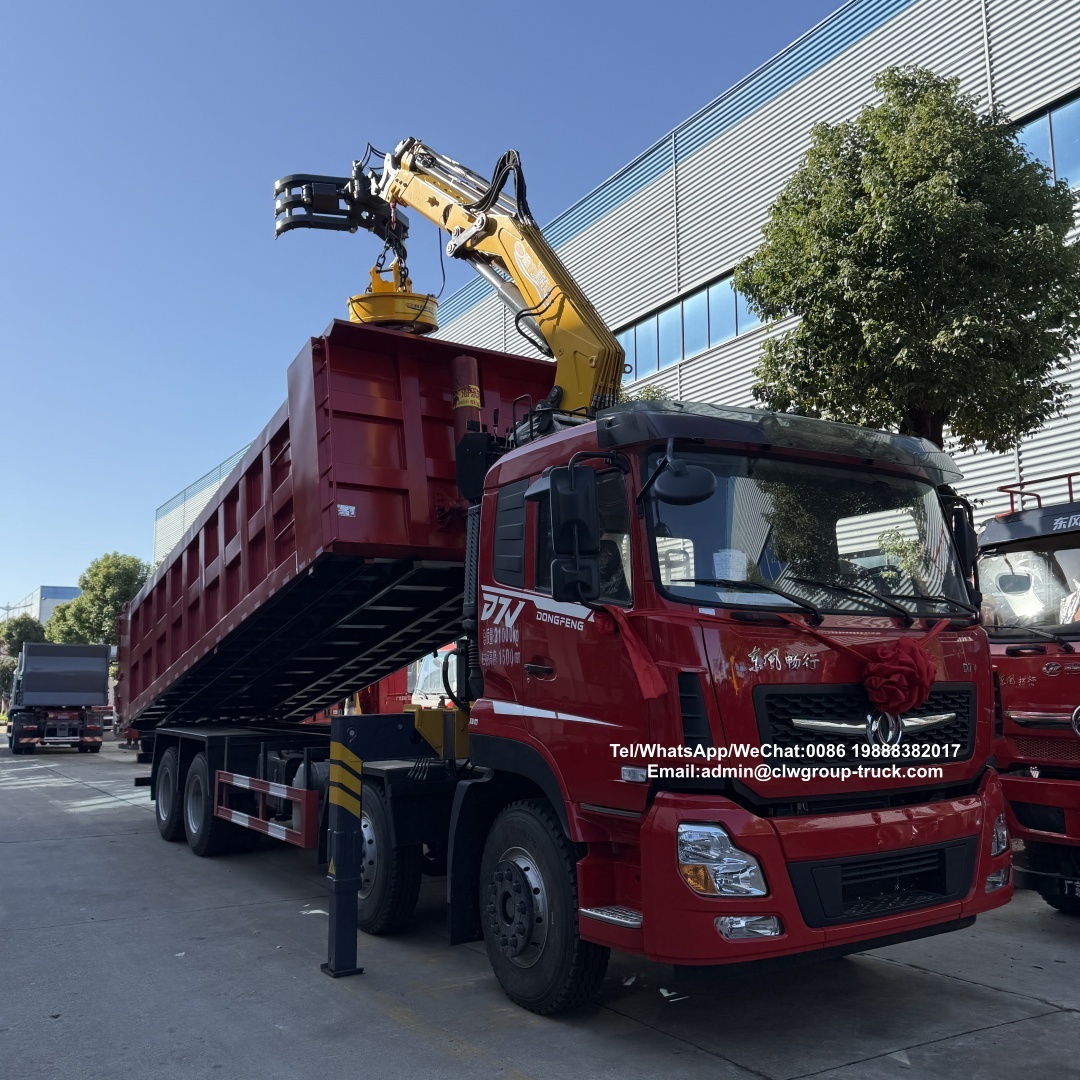

Chassis configuration: Dongfeng Changxing D7V 2.5-meter Dongfeng Tianlong extra-wide cab, Yuchai YCK08 engine 350-60 six-cylinder engine, Fast 12-speed transmission, wheelbase 2150+4250+1350, 5T/10T front/rear axles, 11.00R20 Dongfeng Fengshen tires, 300 three-layer straight-through frame, factory-installed ABS, electric windows, air-suspension seat, factory-installed air conditioning, daytime running lights, central locking, keyless entry, underbody protection, aluminum alloy fuel tank + air reservoir. The Dongfeng Changxing D7 8x4 truck with crane is a high-configuration, practically priced vehicle with a robust three-layer straight-through frame, luxurious interior, and imposing exterior. The cab is marked with "Dongfeng Special Chassis." Its curb weight is 20400 kg, so equipping it with a 20-ton or 18-ton crane will not exceed the weight limit, bringing the curb weight to 18600 kg. Cargo box dimensions: 8300, 8500×2400, 2450×550, 600, 800 mm. Self-unloading cargo box dimensions: 7800X2400X1500mm. The bottom plate is made of 8mm thick carbon steel plate, and the side plates are made of 6mm thick bottom plate. It features front-mounted top hydraulic cylinder lifting.
Regarding the cargo box selection for truck-mounted cranes, we can customize low-flatbed truck-mounted cranes, dump truck-mounted cranes, wrecker truck-mounted cranes, and cargo box truck-mounted cranes according to customer requirements.
Crane Brand and Specifications: Chengli 12-ton Knuckle Boom Crane
12-ton four-section knuckle boom crane: lifting height 12.8 meters, working radius 10.2 meters, 360-degree full rotation, crane weight 3850 kg

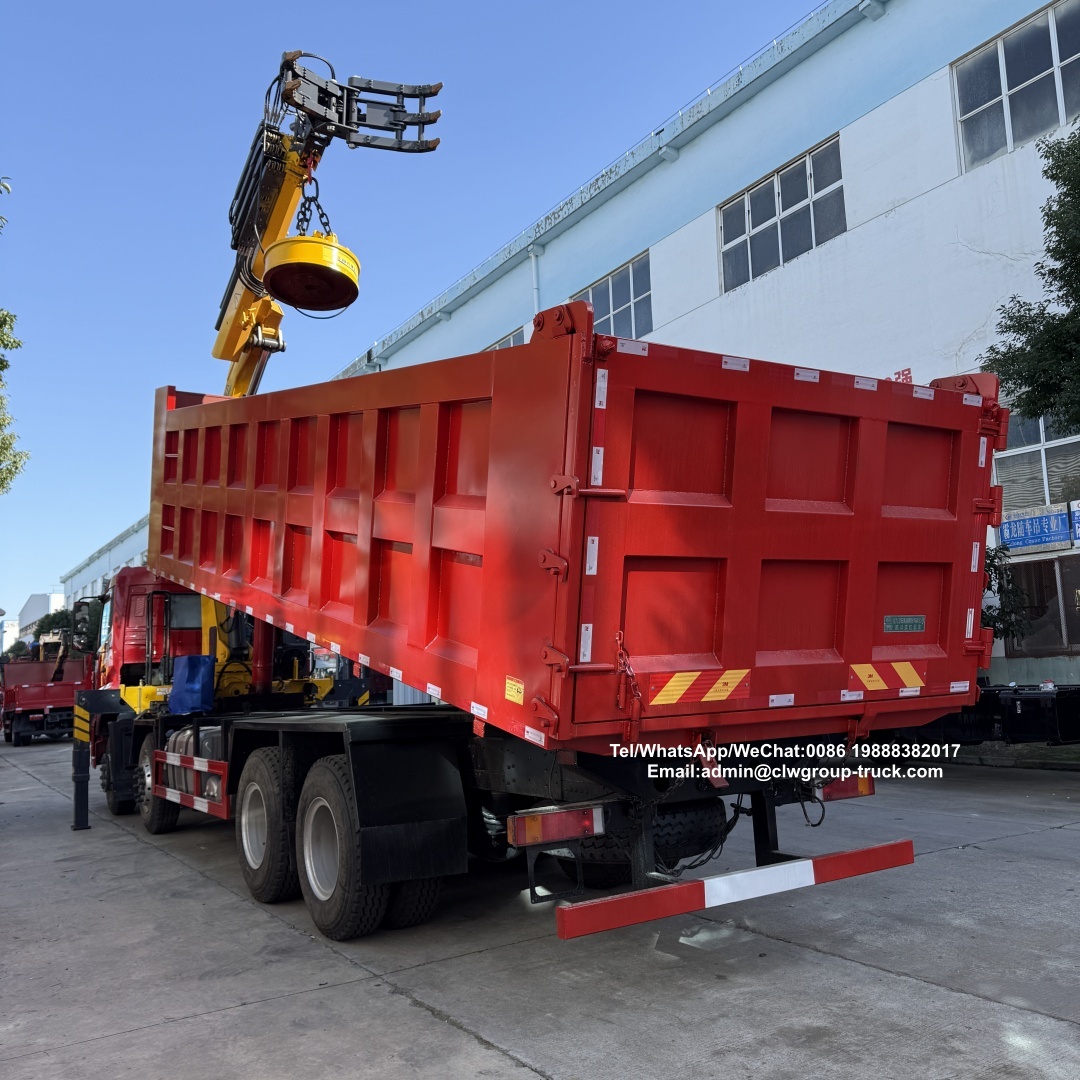

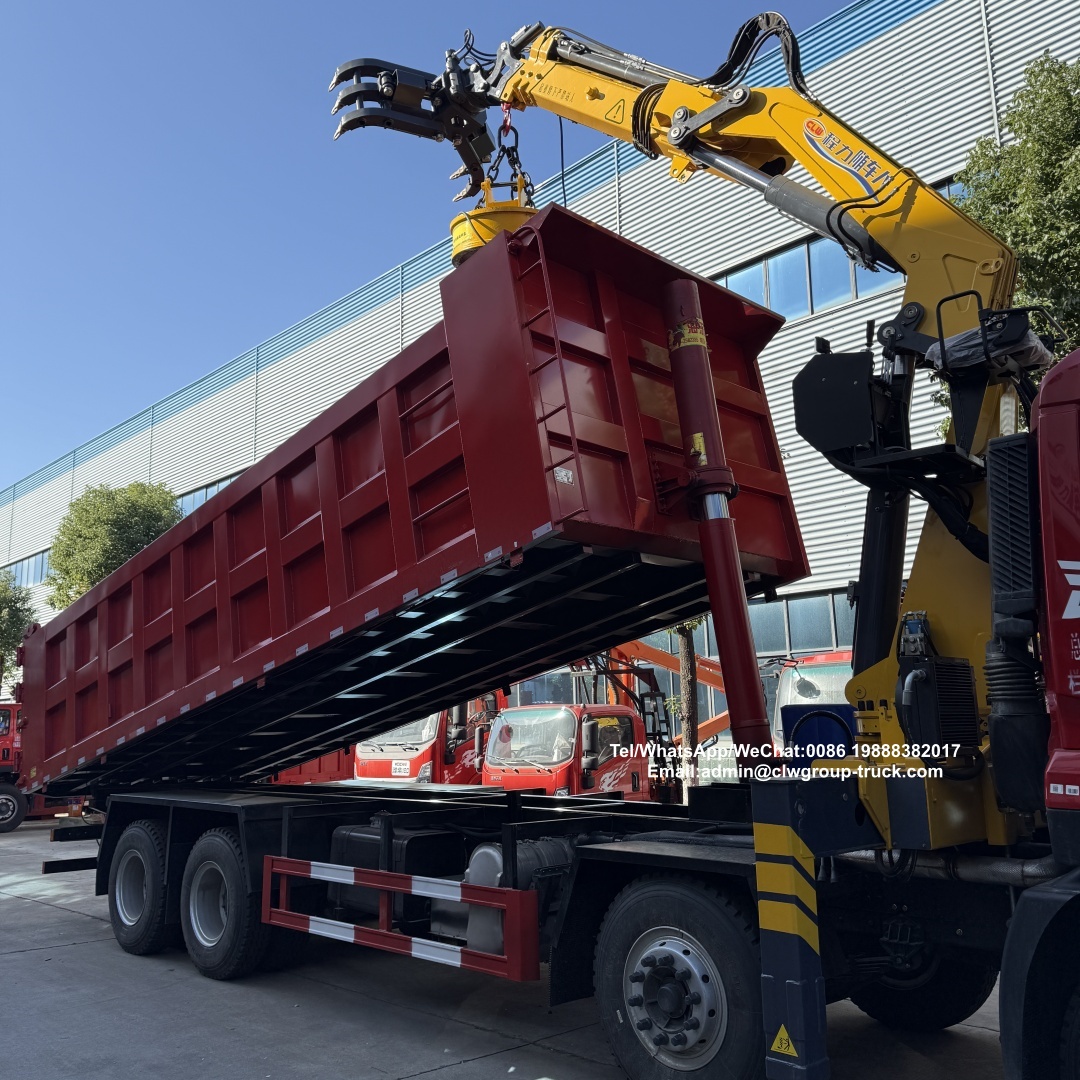

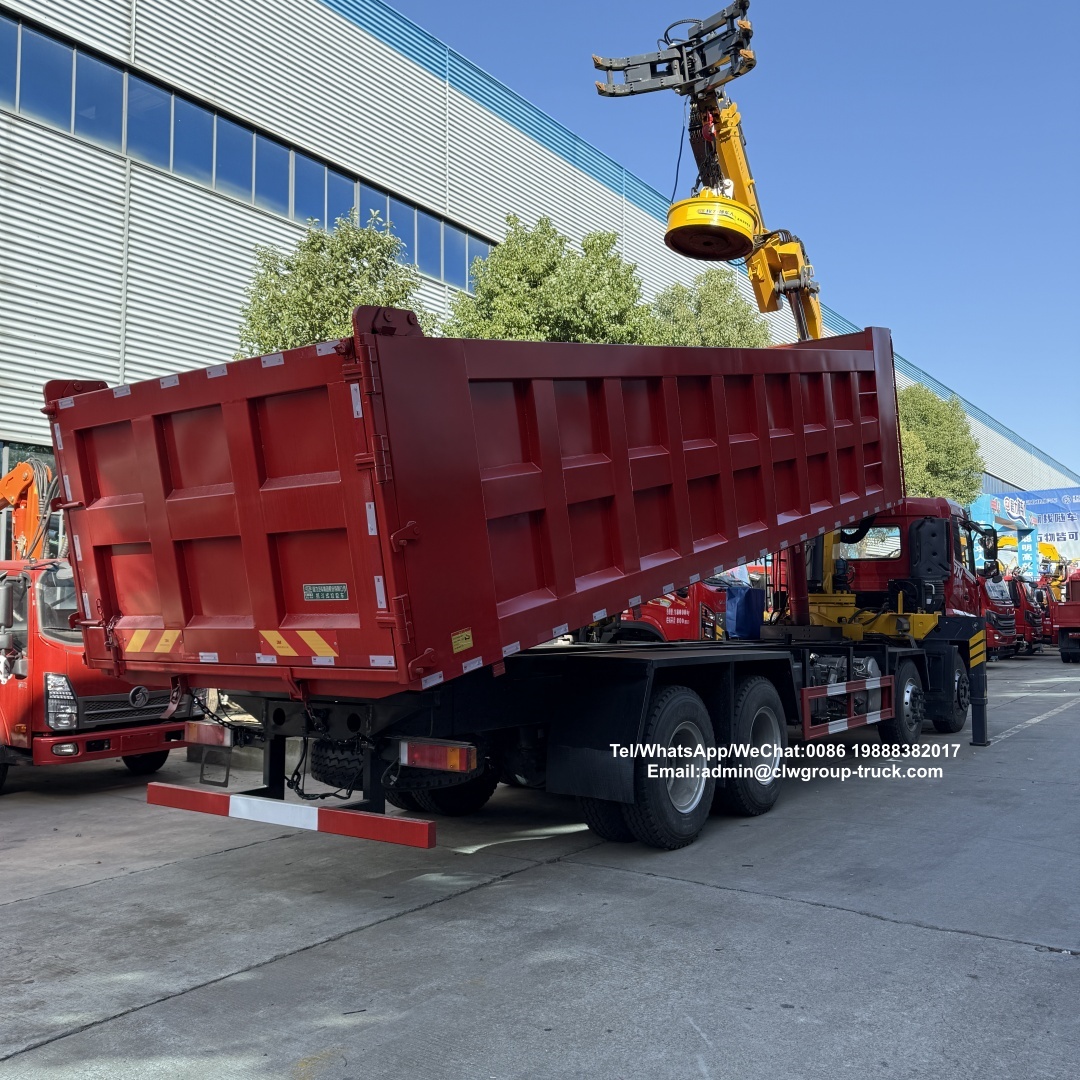

12 ton five-section knuckle boom crane: lifting height 14.8 meters, working radius 12 meters, 360-degree full rotation, crane weight 4250 kg. Chengli's self-operated cranes have accumulated rich production technology through years of production and sales experience. Their products are of stable and reliable quality, and their affordable prices are loved by many users. We also offer other globally renowned crane brands for selection: XCMG, Sany, UNIC, etc.The Dongfeng 8x4 truck-mounted crane and transport vehicle features a grab, a 12-ton folding boom crane, a 7.8-meter front lifting dumper box, and rear outriggers. This Dongfeng self-unloading garbage truck is equipped with a hydraulic lifting mechanism, allowing the truck body to tilt at a certain angle for self-unloading of garbage under its own weight. It is suitable for sanitation, municipal, industrial, mining, residential, and high-volume garbage areas.
Truck-mounted crane and grab trucks, also known as grab-type truck mounted crane, can be categorized by function (sugarcane grabber, log grabber, stone grabber, steel grabber, etc.) and by working principle (hydraulic rotary and mechanical). They are also available with two, five, and seven teeth, and are used for handling, loading, and unloading materials such as sugarcane, timber, stones, and steel slag, as well as for garbage grabbing and scrap metal processing. The boom and grab head can rotate 360° indefinitely. The operation is fast, loading a truck in 30 minutes to two hours depending on the size of the cargo box, which is 5 to 6 times faster than manual loading. The crane has low fuel consumption and can be operated quickly. A single unit can transfer 30 tons of bamboo and wood (scrap iron) per day, and about 10,000 tons per year. Operation is simple, requiring no manual assistance; one person can complete the entire loading and unloading process. Optional remote control options are available to further double the efficiency. Suitable for loading and unloading vehicles carrying timber, straw, sand, coal, and steel in timber mills, power plants, paper mills, particleboard factories, and forest farms, as well as for loading, unloading, and transporting stacked and fed bulk and piled goods. Equipped with various grippers (such as clover grabs, shell grabs, log grabs, billet grabs, hydraulic shears, hydraulic clamps, etc.), it can meet the needs of different customers for loading and unloading scrap steel, ore, coal, bulk fertilizer, and yellow sand under different working conditions.
Material: Made of robust Swedish imported special steel, the log grab has better performance and pressure resistance, allowing customers to buy a better product for the same price. The claw body structure is entirely made of Q345 high-strength plate to increase the structural strength of the grab body, reduce the weight of the grab body, and improve the grab ratio.
